Description by Manufacturer

CNC Machine Tool PD-ST Medium-Speed Wire-Moving Control System

Product category: CNC machine tool control system

Product model: PD-ST medium-speed wire movemen t

Brand: Wenjie CNC

Manufacturer: Taizhou Wenjie CNC Equipment Co., Ltd.

Product description: The medium-speed wire-moving control cabinet of the Company adopts the multiple cutting technology to carry out major reforms of the high-speed wire-moving control system.

Main functions and features of simple structure linear cutting machine :

1. It adopts multiple cutting technology, intelligent control, primary input parameters and automatic switch of machining electrical gauge;

2. The integrated design combines computer control, high-frequency power supply, driving power and electric equipment for machine tools;

3. The dedicated digital control chip design ensures a stable and reliable high-frequency pulse output;

4. The touch-type keyboard design makes it easy to operate and convenient to adjust and makes digital parameter display clear at a glance;

5. The wire storage motor adopts frequency stepless governor, so that the motor runs stably and reliably;

6. The totally-enclosed environmentally-friendly structure is attractive in terms of appearance;

7. The high-grade linear guideway and the ball screw of Taiwan HIWIN are adopted.

Machine tool type	PD-32SE/ST	PD-40SE/ST	PD-50SE/ST	PD-63SE/ST
Worktable Size (W*L) of CNC machine tool control system	760×520mm	850×600mm	1000×750mm	1170×830mm
Max trip of X,Y-axis of the worktable （Y×X）	400×320mm	500×400mm	630×500mm	800×630mm
Max cutting thickness	250mm	250mm	300mm	300mm
Max load weight	300kg	500kg	800kg	1000kg
Max cutting efficiency	180mm²/min
Max processing current	7A
Optimum surface roughness	First cutting Ra≤2.3um, second cutting Ra≤1.6um, third cutting Ra≤1.0um
Cutting accuracy	Line≤±0.0025mm, taper≤±0.01mm
Hop accuracy	0.01mm/0-200mm、0.015mm/0-350mm、0.02mm/0-500mm
Max cutting taper	±3°/80mm
Electrode wire diameter range (molybdenum wire)	0.12-0.25mm(standard configuration 0.18mm)
Driving mode of multiple cutting CNC Machine Tool	X, Y, U, V-axis servo (Panasonic servo) or stepper ( 5-phase 10-pat), Z-axis electric silent elevation
Cutting fluid box configuration	High pressure slow wire filtration, volume 100L
Cutting fluid ratio	Dick liquid mixed with pure water, concentration 8-12
Power consumption of complete machine	＜2KW
Power supply	Three-phase four-wire 380VAC/50HZ
Host weight	1860kg	2160kg	2750kg	3450kg
Host outline size (LWH)	1570×1100×1700mm	1600×1220×1700mm	1850×1400×1800mm	2070×1655×2060mm
Packaging outline size (LWH)	1720×1300×1800mm	1850×1420×1800mm	2050×1600×1900mm	2340×2100×2160mm

visit our website:

https://www.wjcncmachine.com/medium-speed-wire-cutting-machine/

More information:

http://www.moiminerals.com

http://www.autoaccessoriessite.com

http://www.pcheauv.com

http://www.rfillumination.com

http://www.voipbusinesslist.info

http://www.isubmitnow.com

https://www.weblogworld.com

https://www.blogequipment.com

https://www.blog4evers.com

https://www.newipx.com/sitemap.xml
https://www.newipx.com/sitemap-resources.xml

https://www.electdir.com/sitemap.xml

https://www.electdir.com/sitemap-resources.xml

Price

Price US$ 1000 / Set

Packaging & Shipping

- Delivery Lead Time10 working days
- Minimum Order 1 Set
- Supply Ability2,500 sets per year
- Delivery Portshanghai
- Shipping Career

Product Image

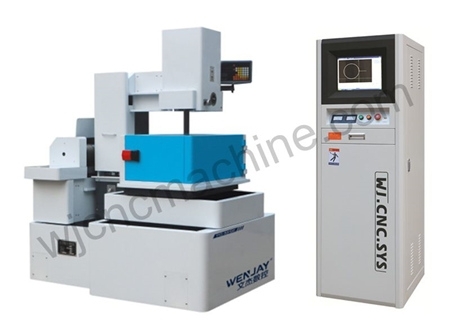

CNC Machine Tool PD-ST Medium-Speed Wire-Moving Control System
