Cnc Vertical Turning Lathe Machine High Precision Single Spindle

High Precision Single Spindle Heavy Duty Vertical Lathe Machine

Product Description

The CNC vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.

CNC vertical lathe has a vertical spindle that holds and rotates the workpiece. They are widely used in the manufacturing industry for producing large and heavy components, such as gears, turbines, and aerospace parts. They are particularly useful for turning components with a high aspect ratio.

Additionally, CNC vertical lathes are highly automated and can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.

Overall, The CNC vertical lathes are a versatile and efficient machining tool that offer high precision and automation capabilities, and that is why makes them an essential component of modern manufacturing processes.

1.The main components of the equipment are made using a whole casting structure with high-strength, low-stress cast iron material. After casting, it undergoes annealing and aging treatment after rough machining. The column guide rail is ground to ensure precision, while the beam guide and ram guide undergo grinding after intermediate frequency quenching.

2.The main transmission is driven by an AC motor, with a main drive speed that can be changed in 16 steps through solenoid valve control. All gears in the gearbox undergo high-frequency quenching for enhanced durability.

3.The worktable features a rolling guideway design, allowing for large loading capacity and high turning precision.

4.The vertical tool-post is equipped with a five-station tool-post and utilizes high-precision rat-gear disk positioning. The tool-posts employ hydraulic balancing, with horizontal and vertical feeds using sliding screw drives. The tool-post is powered by a 3-ph AC motor, featuring a sliding guide rail type guideway with a high-strength PTFE soft belt for smooth operation.

5.The hydraulic system is equipped with German traffic transmission devices to ensure stable oil flow for the worktable lubrication.

Machine Parameter

Model	C518	C5112	C5116	C5120	C5125
Max.turning dia.(mm)	800	1200	1600	2000	2500
Max.cutting height(mm)	800	1000	1000	1250	1250
Max.loading weight(tons)	1.2	3.2	5	8	10
Worktable diameter(mm)	720	1000	1400	1800	2250
Worktable speed range(r/min)	30-260	6.3-200	5-160	3.2-100	2-63
Max worktable torque(n.m)	1000	25000	32000	32000	35000
vertical travel of vertical tool post(mm)	650	650	800	800	1200
horizontal travel of vertical post(mm)	570	700	915	1200	1400
G.W(tons)	7	8	12.4	17	23
Dimension(LWHmm)	20802621 3515	23602280 2800	28302670 3010	32002800 3250	33004000 3500

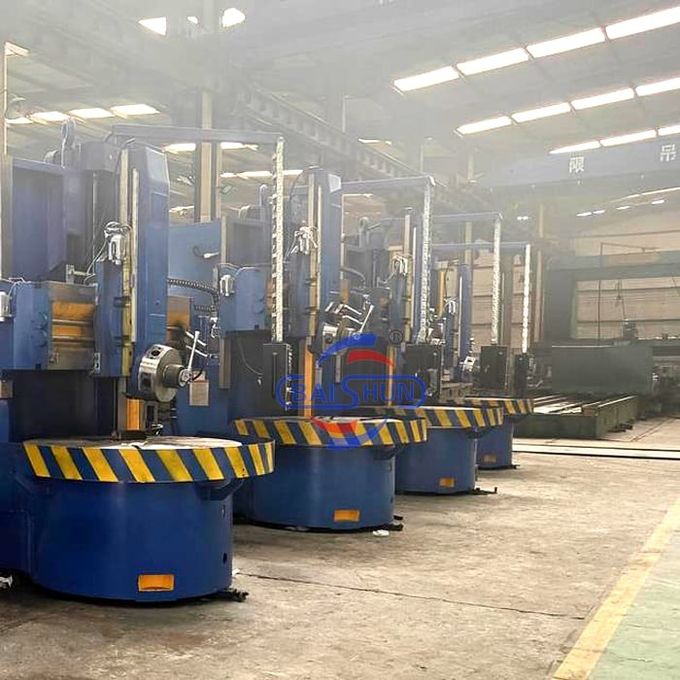

Machine picture

Cnc Vertical Turning Lathe Machine High Precision Single Spindle 0
