COB P1.56mm LED Wall Screen Panels Micro Pixel Pitch Without Significant Pixel Graininess

Add to Basket Share to :

Payment Terms 1

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Conwin Optoelectronic Co., Ltd.
Membership Free member
Registration Date2023.11.23
Country/RegionChina
CityShenzhen
Contact Mr. Billy Liu(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords HD LED Display

Description by Manufacturer

COB LED Display Micro Pixel Pitch P1.56mm Without Significant Pixel Graininess

Application:

MI-COB series(MI-COB1.5) P1.56mm LED screen panel widely using in high standard hotels, 2K 4K HD LED TV, conference room, bar(waterproof), malls,security monitoring and other places.

Advantage and Features:

- High reliability COB modules, moisture proof, anti-collision, scrubbable lamp surface,
low power consumption, fast heat dissipation, effectively prolong the service life of the chip.

- Good consistency, seamless assemble, available for 2K/4K/8K solutions.
- Magnetic modular design, it can be mounted to the wall and maintained from front, save space and guarantee worry-free operation of large screen.
- Constant current drive chip, low power dissipation, uniform light, meet the high refresh rate/contrast ratio/gray level requirements.

- Support point by point calibration function, insure the color and brightness uniformity of whole screen after assemble, and improve visual performance.

- 160°Ultra large horizontal and vertical viewing angel, soft and not dazzling image, better visual performance.

Parameters:

Pixel pitch	mm	1.56
Brightness	nits	500-800
Color temperature	deg.k	1,000-18,500
Viewing angle - Horizontal	deg.	160(+85/-85)
Viewing angle - Vertical	deg.	160(+85/-85)
Cabinet weight	kg	5.1
Cabinet width	mm	600
Cabinet height	mm	337.5
Cabinet depth	mm	30
Cabinet material		Die-casting Aluminum
Operating temperature range	deg. C	-20 to 60
Operating humidity range	HR	10％ to 85％
Pixel type and configuration	R/G/B	Inversion
Pixel matrix per cabinet	dots	384X216
LED module size(WXH)	mm	150X168.75
Module resolution(WXH)	dots	96X108
Gray scale	Levels	65536 levels per colour
Brightness control	Levels	100
Frame rate	Hertz	60
Display refresh rate	Hertz	3840
Input voltage	VAC	110/240
Input power frequency	Hertz	50/60
Power (max/avg)	Watts per sq.m	500/200
Grey scale level	bits	16

Pictures:

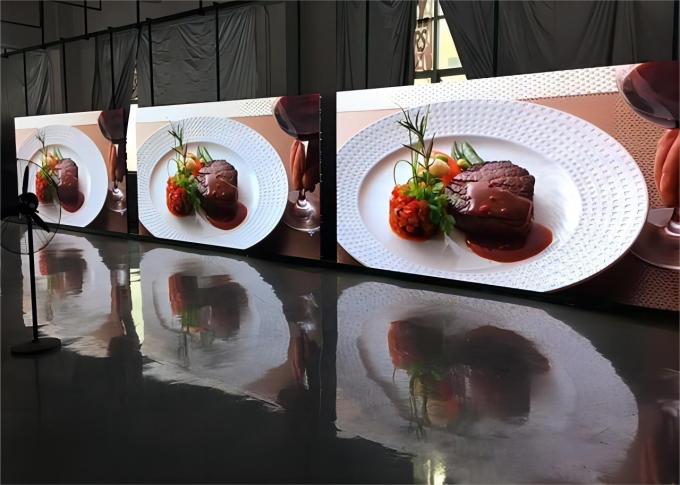

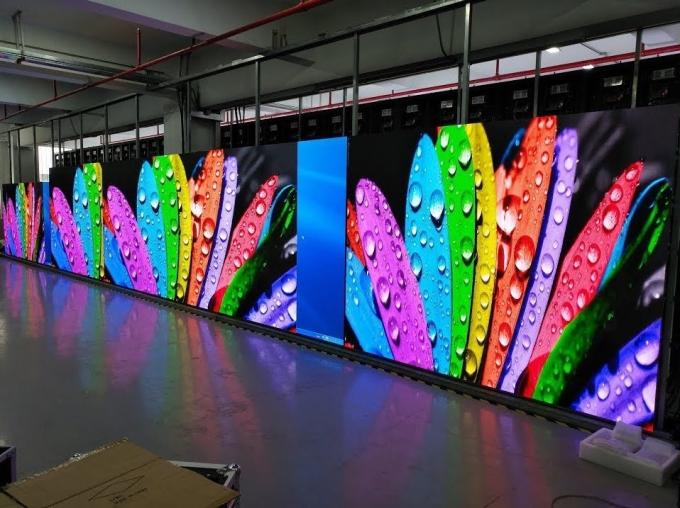

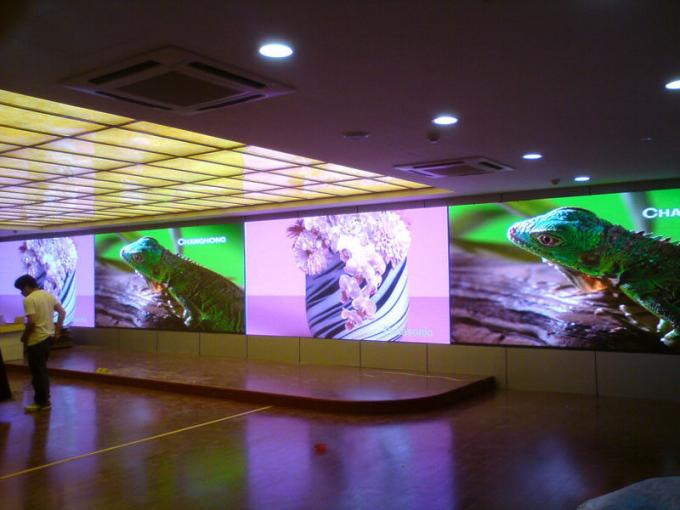

Product Image

COB P1.56mm LED Wall Screen Panels Micro Pixel Pitch Without Significant Pixel Graininess

Company Profile

About Conwin Optoelectronic Co., Ltd.

Membership Free member
Registration Date2023.11.23
Country/RegionChina
CityShenzhen
Contact Mr. Billy Liu(Mr.)

Conwin Optoelectronic Co., Ltd was established in 2018,located in Shiyan Industrial Zone, Shenzhen City, China, founded by an accomplished and experienced team with more than 18 years of experience in LED display manufacturing industry. Conwin Optoelectronic Co., Ltd is a high-tech enterprise with LED display development, production, sales and engineer service.

We desire to supply clients with the most competitive and reliable LED display products, committed to offer fully and premium service to our customers/partners. Conwins products covers fine pitch/HD LED screen, indoor&outdoor LED Ads billboards, stage rental LED display, transparent LED display ,creative LED screen and others, shinning in malls,DOOH markets, exhibitions, TV stations...And our products are qualified with different markets with CE,Rohs,FCC,ETL ,etc.

Selling Categories

- Electronic Components & Supplies >> Optoelectronic Displays

Keywords

HD LED Display

Registration Date	2023/11/23(Year/Month/Date)
Buyer / Seller in EC21	Seller
Business Type	Manufacturer
Year established	2018
Employees total	101 - 500
Annual revenue	USD 1,000,001 - 2,000,000

Contact Information Order Credit Report

Company	Conwin Optoelectronic Co., Ltd.
Address	Room403, Building B, Sanlian Industrial Zone, Shiyan Street ,Shenzhen, ChinaShenzhenGuangdong518000China
Phone	86 - 0755 - 82599892
Fax	86 - 0755 - 82599892
Homepage	www.conwinleddisplay.com/
Contact	Mr. Billy Liu
