Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Plastic Extruders

Description by Manufacturer

Essential details

Condition:: New

Plastic Processed:: PVC

Application:: PIPE

Screw Design:: Double-screw

Twin Screw Type:: Counter-rotating conical Twin-screw

Screw Material:: 38CrMoAl

Screw diameter (mm):: 65

Screw L/D Ratio:: Unapplicable

Screw Speed (rpm):: 36 rpm

Place of Origin:: Jiangsu, China

Brand Name:: FAYGO

Voltage:: 380V 50HZ

Dimension(L*W*H):: 20mx2.5mx2.2m

Power (kW):: 18.5

Weight:: 4000 KG

Warranty:: 1 Year

Key Selling Points:: Long Service Life

Applicable Industries:: Manufacturing Plant

Video outgoing-inspection:: Provided

Warranty of core components:: 1 Year

Core Components:: Bearing, Motor, Pump, Gear, PLC, Other, Pressure vessel, Engine, Gearbox, Screw

Machinery Test Report:: Provided

Name:: Extrusion Machine

Raw material:: PVC Powder

Usage:: Wide Usage

Product Type:: Flat

Processing Type:: Exturding Machine

Automatic Grade:: High Automation

Product:: PVC PP HDPE PE Pipe

After-sales Service Provided:: Video technical support

After Warranty Service:: Video technical support

Marketing Type:: Ordinary Product

Product Description

This PVC pipe production line is widely used for producing PVC water supply pipe, drainage pipe and high voltage cable protection pipe. With CPVC pipe mold, it could also produce CPVC pipe. It is consist of SJSZ series extruder, mold, vacuum tank,spraying cooling tank, haul-off,cutting machine, stacker, and can produce PVC pipe from mixed powder directly.
The production line uses special designed screw and mould, which makes it easy forming, even plasticization, high capacity stable running and easy operation.

Specification

Model	SJSZ-51	SJSZ-55	SJSZ-65	SJSZ-80	SJSZ-92
Screw Dia(mm)	Φ51/105	Φ55/110	Φ65/132	Φ80/156	Φ92/188
Max speed(rpm)	40	38	38	37	36
Main motor(kw)	18.5	22	37	55	90
Output(kg/h)	80~100	100-150	150-250	250-380	380-700
centre height(mm)	1050	1050	1050	1050	1100
Net Weight(kg)	3000	3500	4000	5500	8000
LWH(m)	3.61.11.2	3.61.12.1	4.21.52.4	4.71.52.4	61.62.5

Price

Price US$ 8500 / Set

Product Image

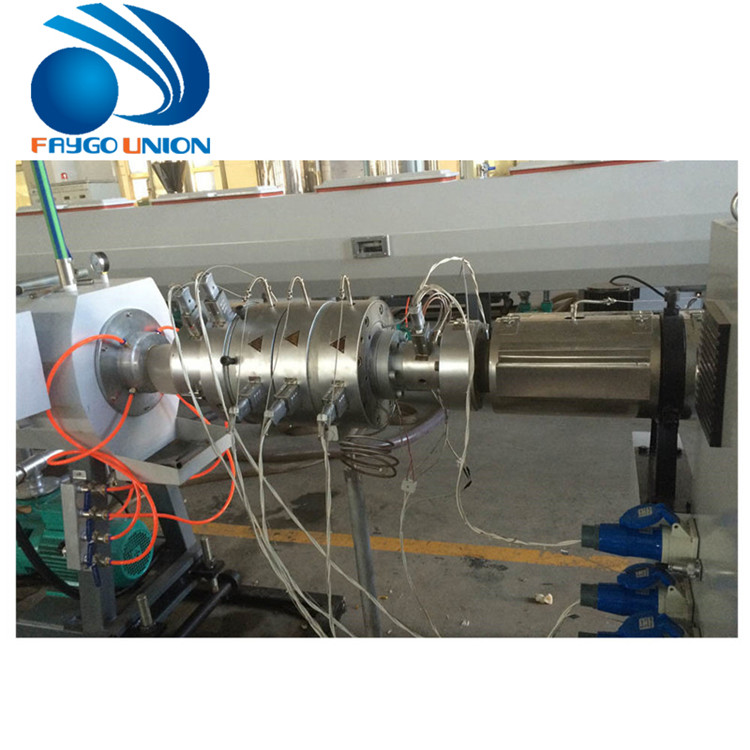

CPVC UPVC OPVC PP HDPE Plastic Water Hydraulic Double Pipe 20-16mm Making Machine Low Price

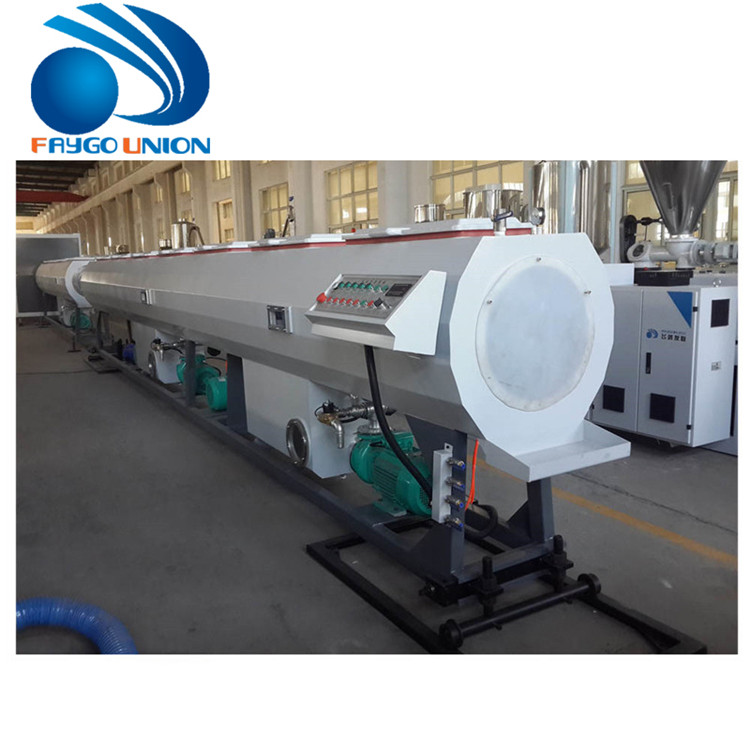

CPVC UPVC OPVC PP HDPE Plastic Water Hydraulic Double Pipe 20-16mm Making Machine Low Price 2

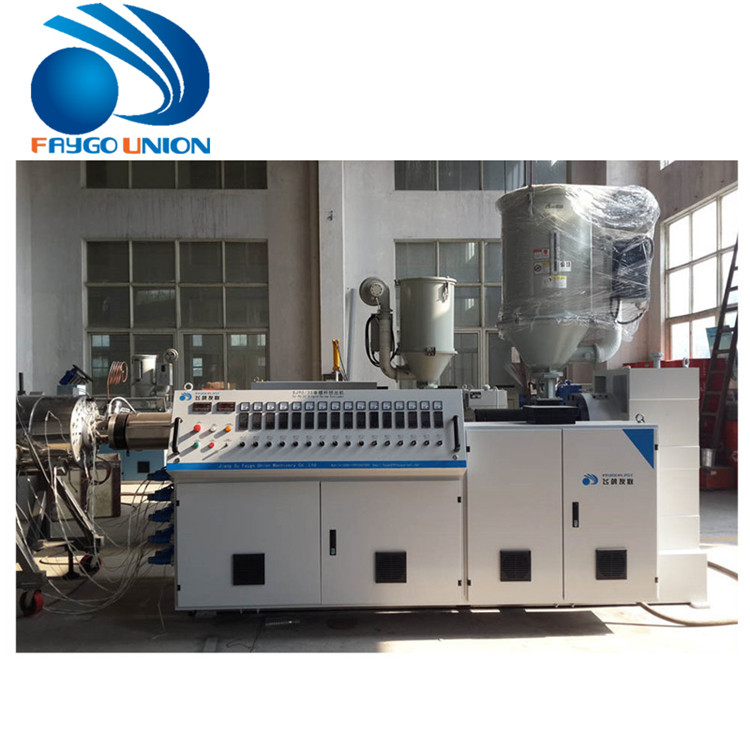

CPVC UPVC OPVC PP HDPE Plastic Water Hydraulic Double Pipe 20-16mm Making Machine Low Price 3

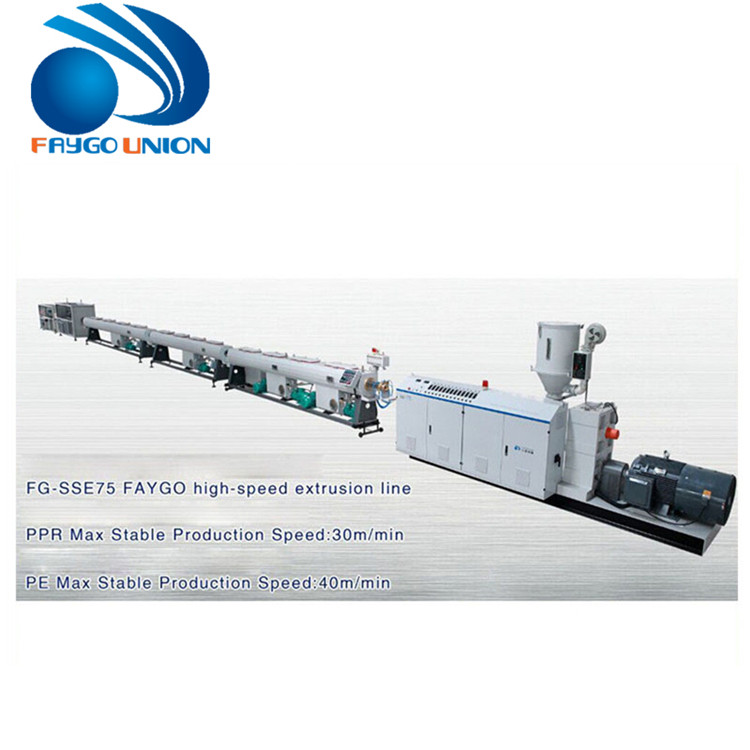

CPVC UPVC OPVC PP HDPE Plastic Water Hydraulic Double Pipe 20-16mm Making Machine Low Price 4

CPVC UPVC OPVC PP HDPE Plastic Water Hydraulic Double Pipe 20-16mm Making Machine Low Price 5

CPVC UPVC OPVC PP HDPE Plastic Water Hydraulic Double Pipe 20-16mm Making Machine Low Price 6
