CTP Plate Processor

Add to Basket Share to :

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name McLantis Group
Membership Free member
Registration Date2007.03.22
Country/RegionChina
CityShanghai
Contact Howard Xue(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name McLantis
- Model Number PROCEMAC 85PT 110PT 135PT
- Place of Origin China
- Related Keywords plate processor, CTP processor, CTP plate processor, thermal plate processor, CTP plate

Description by Manufacturer

1. Exquisite Design and Enduring Duralumin Material

Built with highly acid-resistant duralumin materials and PVC tank inside, McLantis thermal CTP plate processor is designed with long operation life.

2. Precise Electronic Controls

Equipped with Precise Siemens PLC control, McLantis thermal CTP plate processor operates the develop-wash-gum-dry process smoothly without any letup.

3. Easy Operation and Maintenance

McLantis thermal CTP plate processor can be connected to most thermal CTP brands and operates online or offline. Suitable for most brands 0.15 mm - 0.4 mm thermal plates. Convenient access to all serviceable components.

4. Superior Plate Developing Performance

Developing processing roller assures no damage to the plate surface and two sets of brushes assures sufficient development to the plate in McLantis thermal CTP plate processor. Equipped with automatic anti-oxidation detecting and replenishing system, McLantis processors accurately control developer concentration.

5. Independent Cooling System

Independent cooling system on McLantis thermal CTP plate processor keeps the developing temperature fluctuation within 0.5 degree Celsius.

6. Environmental Friendly

Gumming process with automatic cleaning and recycling function. Energy saving and environmental friendly.

Model	PROCEMAC thermal CTP plate processor
	90PT	125PT		150PT	165PT
Material	thermal CTP plate
Capacity	12-90 m/hr
Plate width (mm)	900	1250		1500	1650
Min. Plate length(mm)	300	400		400	400
Plate thickness(mm)	0.15-0.4
Tank content, developer(L)	45	60		75	100
Tank content, wash(L)	35	45		60	80
Adjustable temperature, dev	0 to 40 degree C. adjustable
Adjustable temperature, dry	normal temperature to 70 degree C.
Water consumption, max	8 L/min		12 L/min	15 L/min	20 L/min
Diameter of wash brush (mm)	50
Rotary speed of wash brush	80 rpm
Filter(um)	75
Water supply	tap water (min. pressure 1 bar)
Gumming	Roller pressing gumming
Diameter of roller	60mm
Dev. replenishment	0-1L per plate
Dev. heating-up rate	0.5 degree C. per minute
Horizontal adjustment	Adjustable
Power supply	220V single phase 50-60Hz
Power consumption (kwh)	3.5		4.5	5	6
Voltage fluctuation	within 10%
Gross weight(kg)	500		650	780	900
Net weight(kg)	400		550	650	770
optional	water wash recycle pump automatic plate stacker plate conveyor

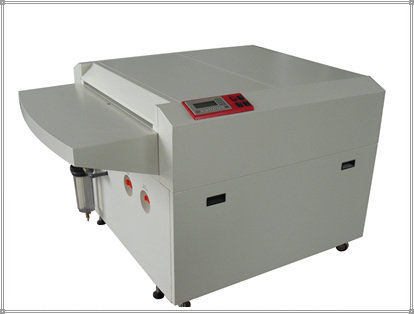

Product Image

Plate Processor Related Products

Related Products from premium suppliers on EC21

- McLantis Group is mainly exporting to China (Mainland), Asia, Europe, North America, South America, Australia, Africa

Download Product Brochure

McLantis Catalogue.pdf (3.33 Mb) Postpress.pdf (2.13 Mb) materials.pdf (2.51 Mb)

Company Profile

About McLantis Group

Membership Free member
Registration Date2007.03.22
Country/RegionChina
CityShanghai
Contact Howard Xue(Mr.)

McLantis Group is focused in the designing, developing and production of high performance pre-press equipments, laser imaging equipments, digital printing machine and consumables, including CTP machine, CTCP machine, CTS machine, digital printing machine, LDI machine, auxiliary washing machine, auxiliary drying oven, offset printing plate, conventional PS plate, CTP plate, CTCP plate, screen printing emulsion etc. And, we commit to the development and research in laser photonics, imaging, material handling, robotics and automation. At present, McLantis has grasped several core technologies namely laser MEMS micro packaging technology, DLP digital process system technology, high precision lens technology, and precision motion control system, and has been awarded several patents and software copyrights. McLantis has been supporting its customers worldwide for many years in the fields of printing industry, PCB industry and various manufacturing industry.
