Cast Roll Rings, Sleeves, Rollers for Section Mills, Bar & Pipe Mills (SGP Sleeves, Accicular Rings)

TSR is a professional roll company integrating technical service and integration, with a number of roll experts team composed of doctor of materials and metallurgy, and is committed to becoming a world-class roll technology service provider. We provide all kinds of hot rolling mill rolls for steel industry. Our users now cover more than 30 different countries.

Our manufacturing plant covers an area of more than 300, 000 square meters, with an annual production capacity of more than 20, 000 tons of various large, medium and small rollers and roller rings, and a machining capacity of 30, 000 tons. Our company passed ISO9001: 2008 quality management system certification.

We produce various grades for sleeves, such as SGP, SGA, Adamite and etc. Those sleeves are used for bar mill and section mill to roll disections in different shape like I section, H section and etc.

--MELTING

TSR Rolls factory is equipped with a variety of smelting equipments, such as EBT electric arc furnace, LF double-bit refining furnace, VD-VOD vacuum furnaces and etc. Advanced smelting equipment supplemented by temperature control, component analysis and other testing equipment ensure that each furnace is in line with the requirements of molten steel.

• EBT Arc Furnace; Capacity 55T

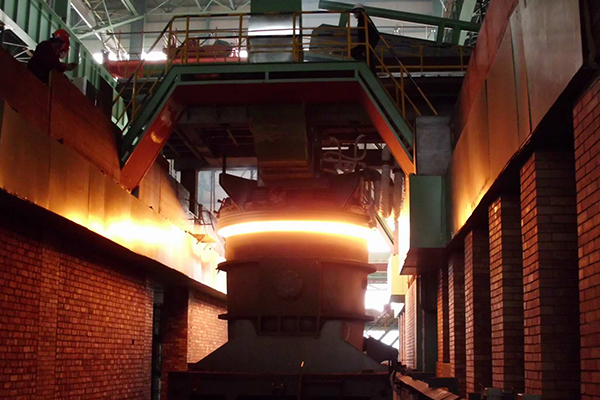

• Ladle Furnace, Double position; Capacity 55 T Each
• Vacuum Degassing VD + VOD, 9 units; Capacity 90 T Each
• Medium Frequency Induction Furnaces, 2 sets; Capacity 20 T Each

• 2 x 20 T Medium Frequency Induction Furnaces
• 2 x 10 T Medium Frequency Induction Furnaces
• 2 x 7 T Medium Frequency Induction Furnaces
• 2 x 3 T Medium Frequency Induction Furnaces

• 2 x 3 T Medium Frequency Induction Furnaces
• 2 x 1.5 T Medium Frequency Induction Furnaces
• 2 x 1 T Medium Frequency Induction Furnaces

--CASTING

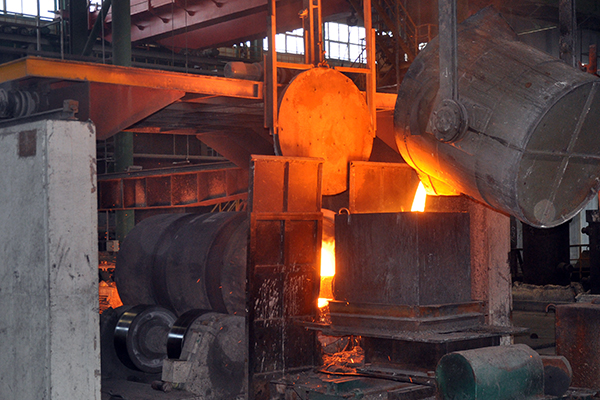

TSR Rolls applies advanced roll casting technology to first-class foundry equipment. Our main production processes use computers to control and select parameters automatically. So we can ensure that each batch of rolls has consistent production process control. Every step is traceable by our Electronic recording system. Whether it is static casting or centrifugal casting, our products have excellent performance.

• 1 Unit 1.600 mm x 4.500 mm B.L.
• 1 Unit 1.400 mm x 3.000 mm B.L.
• 2 Units 800 mm x 2.600 mm B.L.
• 1 Unit 500 mm
• 2 Units 300 mm

Plus a complete set of chills, chillers and moulding tackle to cast all kind of rolls including big section rolls with the barrel shaped with grooves and collars in as-cast condition.


--HEAT TREATMENT

During the manufacturing process of rolls, many materials need to pass one or more heat treatment to further achieve the most appropriate mechanical properties and good microstructure. The resistance furnace of TS ROLL can achieve multi-point precise temperature control to ensure uniformity of the furnace temperature. Between different furnaces, we use a unified computer control to achieve the furnace heating and cooling consistency in order to ensure the rolls from different furnaces with same microstructure and performance.

• Differential Heat Treatment Furnace 1.600 mm x 2.800 mm B.L.
• Spray quenching machine, Maximum capacity: 1800mm rolls
• Electrical fumaces, Maximum capacity: 200T 18 sets - bogie type
• 7  sets - low-temperature
• 11 sets - high temperature



--MACHINING

TSR Roll has a machining shop of more than 15.000 square meters, including the lathe, boring machine, grinding machine and other modern processing equipment for rolls. Thanks for the first-class operator working on high-precision CNC equipment, it is easy to produce the rolls with various kinds of grooves and precise tolerances.

• CK61160 CNC Lathe, Maximum capacity: 32T
• MK84200 CNC Grinding machine, Maximum capacity: 50T
• C9125*6/63 Turing and Boring machine, Maximum capacity: 63T
• T6920D Boring machine

--QUALITY ASSURANCE

The high performance requirements of today's mills require reliable rolls capable of remaining in the production cycle longer than ever while still assuring a high quality of the rolled products. TS Rolls has built a consistent quality control throughout the manufacturing process. Our aim is supplying the customer with reliable rolls capable to perform better, contributing to customer benefit, cost reduction and satisfaction.

Since the beginning TS Roll obtained the ISO 9001:2008 Quality Management System Certification. Based on our consistent adherence to the quality management, TS Roll products quality has been universally acclaimed by dozens of customers worldwide.

• Emission Spectrometer ARL - 3460; Two sets
• Carbon & Sulphur Analyzer CS-80
• Hydrogen & Oxygen Analyzers
• Thermal Analyzer
• Hardness Testers (Portable and Laboratory sets)
• Ultrasonic Testing Equipments (Several units)
• Material Testing Machine WAW-600
• Charpy Impact Test Machine JSB-300



SERVICE AND SUPPORT

At TSR Roll, we are focused on the roll service. Our Technical Service will help you to solve questions about roll maintenance, roll wear, roll damages, roll configuration, shape of the roll, surface hardness, roughness, temperature distribution and damage inspection among others. The aim is reducing the Total Cost of Operation for the customer by supplying reliable rolls and advanced roll service always with strict adherence to the delivery time.
