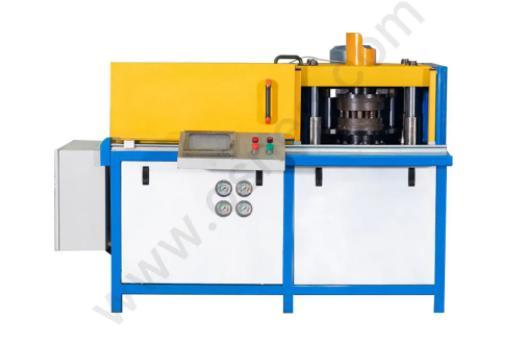

Ceiling fan rotor casting machine

The ceiling fan rotor casting machine is a special aluminum casting equipment that is used to form the ceiling fan rotor. It is simple to operate, has a high pass rate, and is highly efficient. It can produce one product every 8 seconds, which is three times the efficiency of ordinary aluminum casting equipment.

Before processing → After processing

product name	Ceiling fan rotor casting machine	control method	PLC
model	OSN-1960	Energy Source	Hydraulic drive/electric
After-sales service	One year	Maximum processing length	30mm(customizable)
Transmission Type	Axis hydraulic cylinder/V-belt	Maximum rotation diameter	220mm(customizable)
Scooping mode	Manual	Product Size	L2000W1400H1400mm
Packing	Wooden box or film package	Weight (Kg)	890kg
Customs Registration Code	44289600P9	Production Capacity	20 units/month

Application Areas

Our ceiling fan rotor casting machines are dedicated to forming aluminum castings for ceiling fan rotors and other products.

Features and benefits

The frame and the fuel tank are designed as one body, made of steel plates bent and welded, and are subjected to high temperature annealing and vibration to eliminate stress, ensuring that the frame is stable and does not deform.

It adopts four-column and three-plate design. The middle plate is fixed. The upper and lower plates move with the oil cylinder at the same time, opening and closing the upper mold and ejecting the product.

Adopt Japanese Mitsubishi PLC control, easy to operate.

Using Taiwan's Shangyin guide rail, it has high precision and long service life.

The rotation speed is as high as 1450r/min.

The brake adopts hydraulic brake, which can implement millisecond-level braking.

The lubrication system uses an electric lubrication pump for automatic timing lubrication to ensure the service life of the bearings.

Each unit has an independent hydraulic oil gauge, and the required pressure can be adjusted individually as needed, and the adjusted pressure is clearly visible.

The hydraulic oil and mold are cooled by water cooling to ensure that the hydraulic oil and mold do not overheat and achieve efficient production.

By using the clutch to release the transmission energy, the spindle motor can keep rotating without stopping and the mold can stop quickly, preventing the motor from starting and stopping frequently, thus extending the service life of the motor.

The manual safety door is interlocked with the hydraulic cylinder and the spindle motor. When the safety door is not closed, the machine will not work to prevent accidents.

Equipped with a grating protection switch, when an abnormality is detected, the machine will alarm and stop working.

Product Parameters

name	Model/Specification
power supply	AC380V three-phase 50/60HZ (customizable)
Gas source	0.5~0.7Mpa
Spindle motor	7.5KW
Hydraulic motor	4.0KW
Hydraulic oil pump	VP40
Spindle speed	1450r/min
Hydraulic tank	140L
Cooler	OR150
touchscreen	7-inch touch screen
PLC	Mitsubishi
Four column diameter	ᴓ 50 chrome plated hard shaft

The ceiling fan making machine encapsulates the sophisticated processes and technologies involved in the efficient production of ceiling fans. This specialized machinery is designed to streamline the manufacturing process from raw materials to finished products, ensuring consistency, quality, and adherence to safety standards.

A ceiling fan making machine integrates advanced manufacturing processes and equipment to produce ceiling fans of various types and sizes. From initial design and engineering to final assembly and testing, each step in the production line is optimized for efficiency and precision.
