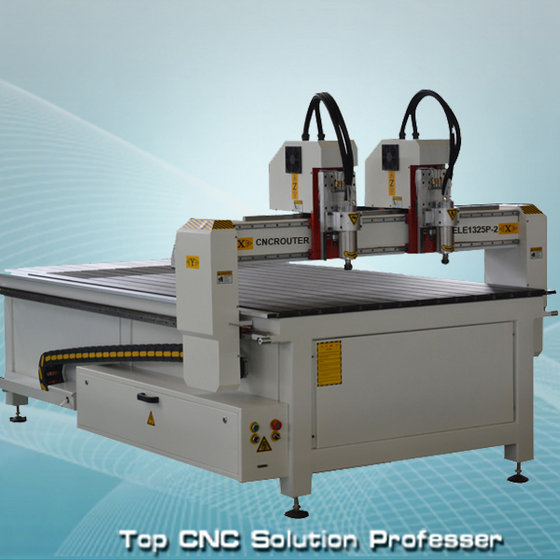

Cheap CNC Router

Add to Basket Share to :

Price

US$ 4500

Min Order Quantity1 set / set
Supply Ability200/month
PortQingdao
Delivery Lead Time 7 working days after receive payment

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Jinan Blue Elephant CNC Machinery Co., Ltd.
Membership Free member
Registration Date2014.08.02
Country/RegionChina
CityJinan
Contact Jack(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Jack

Jinan Blue Elephant CNC Machinery Co., Ltd.

* Buying Product

Category : Other Manufacturing & Processing Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name ELE
- Model Number 1325P
- Place of Origin China
- X,Y,Z Working Area 1300x2500x160mm
- X,Y,Z Traveling Posi ±0.03/300mm
- X,Y,Z Repositioning ±0.03mm
- Table Surface T-slot Table
- x-frame Welded Structure
- Related Keywords cnc machinery, cnc router, router machine, cutting machine

Description by Manufacturer

Specification

NO.	Description	Parameter
1	X,Y,Z Working Area	1300x2500x160mm
2	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
3	X,Y,Z Repositioning Accuracy	±0.03mm
4	Table Surface	T-slot Table
5	Frame	Welded Structure
6	X, Y Structure	Rack and Pinion Drive, Taiwan TBI Rail Linear Bearings
7	Z Structure	Taiwan TBI Rail Linear Bearings and Ball Screw
8	Max. Power Consumption	(Without Spindle) 2. kw~2.2Kw
9	Max. Rapid Travel Rate	33000mm/min
10	Max. Working Speed	25000mm/min
11	Spindle Power	2.2KW water cooling spindle for both heads
12	Spindle Speed	0-24000RPM
13	Drive Motors	Stepper System
14	Working Voltage	AC220V/50/60Hz,3PH (Option: 380V)
15	Command Language	G Code
16	Operating System	DSP control system(options: NCstudio/Mach3 PC Software)
17	Collet	ER20
18	X,Y Resolution	<0.01mm
19	Software Compatibility	Type3/UcancameV9 Software
20	Running Environment Temperature	0 - 45 Centigrade

Features
1), 2.2kw water cooling spindle(top brand in China), big strength, long life, and low noise.
2),Popular DSP controller, it’s with USB interface, no need connecting to PC,both easy operation and convenient.
3),Double separate heads, much bigger strength than one head, it’s suitable for wood doors, windows, or other wood furniture with symmetrical patterns.
4),Taiwan TBI linear guide, imported from Taiwan. It’s high precision, long life and top pressure-tolerant performance.

Applications
Strong functions, easy operation, durable, reliable performance, high efficiency, applicable to batch process any wooden products, antique furniture, crafts gifts, relief processing.
1). WoodFurniture Industry:Wave Plate, fine pattern, antique furniture, wooden door, screen,MDF, craft sash, composite gates,cupboard doors, interior doors, sofa legs, headboards and so on.
2). Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3). die industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4). relief sculpture and 3D engraving.

Other informations
1. Guarantee & After-Sales Service
1.1 One year warranty under normal use and we supply maintenance for life for free.
1.2 24 hours technical support by phone, e-mail, SKYPE, MSN or Remote.
1.3 Free trainings to make sure you master the operation of cnc router.
1.4 English operation manual, popular and easy to understand.
2. Delivery Time (Production procedure)
2.1 For ELE 3 axis machine with standard specification, usually 20 days.
2.2 For ELE 4 axis machine with standard specification, usually 60 days.
2.3 For ELE 5 axis machine, OEM or non-standard models, usually 120 days.
3. Payment Terms
3.1 T/T in advance.
3.2 Western union: we can accept small payment (below $3000), but the banking charges shall be paid by the buyer.
3.3 L/C is acceptable if the amount is big. Please issue the L/C draft for our confirmation first.
4. How to Order?
Consult: we will recommend the most suitable machines to you after being informed by your requirements.
Quotation: We will supply you with our detail quotation according to our consulted machines, with the best quality and competitive price

Price

Price Condition EXW
Price USD 4500 / set

Packaging & Shipping

- PackingStandard cnc router plyewood case
- Delivery Lead Time 7 working days after receive payment
- Minimum Order1 set
- Supply Ability200/month
- Delivery PortQingdao
