Nitrogen closed loop spray dryer Inert gas atomization dryer
Description:

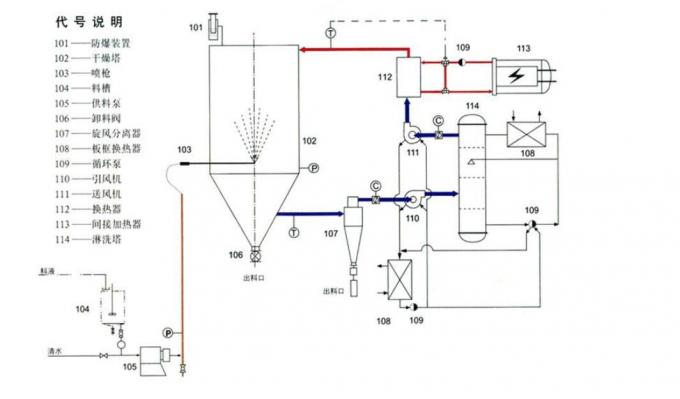

First of all, filling the nitrogen to be heated into the tower, the liquid materials to be dried are transported to the centrifugal atomizer, then they are rotatied in a high speed, and fially, they become the fine droplets, droplets in the drying tower fully heat exchange with nitrogen.
The liquid parts have been instant evoperated, the solid parts become powder materials down to the bottom of the drying tower, and the last, the dried powder discharge from the bottom of the tower.
Among them, evoparated organic solvent through the cyclone seperator, bag dedustor to remover the powder in the role of the blower, and then by the condenser, the dust removered saturated organic solvent gas into liquid discharge from the condenser.
In case the liquid be carried out, there has addied a gas-liquid separator. Among them, as a drying medium for the inert gas being heated as a dry carrier in the system used to re-cycle.
Explosion-proof closed cycle centrifugal spray drying system is working in a confined environment, drying medium is inert gas (like nitrogen), positive pressure operation in the drying tower.
If the internal pressure decreased, the pressure transmitter can control the nitrogen amout entered into the drying tower automatically, to ensure system pressure balance.medium like nitrogen has a affact of bearying moisture, demoval moisture and cycle -transmission, the media can be used cycled.
Application:
Chemical industry: Sodium fluoride (potassium), basic dyes and pigments, dye intermediates, compound fertilizers, formaldehyde silicic acid, catalysts, sulfuric acid agents, amino acids, white carbon black, etc.
Plastic resin: AB, ABS emulsion, urea-formaldehyde resin, phenolic resin, dense rubber (urea) formaldehyde resin, polyethylene, polyvinyl chloride, etc.
Food industry: Rich fat milk powder, grain, cocoa milk powder, milk substitute powder, egg white (yellow).
Food and plant juice: Oats, chicken juice, coffee, instant tea, spices, meat, protein, soybean, peanut protein, hydrolysate, etc.
carbohydrate: Corn syrup, corn starch, glucose, pectin, maltose, etc. ceramics: Alumina, ceramic tile materials, magnesium oxide, talcum powder.
Technical parameters
| Specifications | XLP-5 | XLP-10 | XLP-25 | XLP-50 | XLP-100 | XLP-150 |
| Inlet air temperature | | 90-140°C,adjustable | |
| Exhaust air temperature | | 60-80°C, depending on the product to be dried, and URS | |
| Nominal water evap.capacity(Kg / h) | 5 | 10 | 25 | 50 | 100 | 150 |
| Heating method | | Steam | |
| Drying tower diameter (mm) | 1300 | 1500 | 2000 | 2500 | 3200 | 3600 |
| Overall dimensions (m) | | According to the configuration and URS | |
| Product yield | 99-99.99%,varies with the product features and configuration |
Widely used in the pharmaceutical, chemical industry, foodstuff, spray dry powder process.ect.
Product Features
Uniform quality
Complete control of moisture content, particle structure, particle size distribution, solubility, and wettability, and retention of natural aromas and flavors.
Unbeatable performance /cost ratio
Energy efficient components, continuous and rapid drying, ease of operation and process automation provide complete control over yield and costs.
Versatility
Customized plant design based on many years of experience in a wide range of applications is your assurance of complete compliance with individual requirements.
Long service life
Top-quality, reliable components, efficient and straightforward CIP and expert engineering increase service life and availability for maximum performance.
Traceability
Automated process control enables end-to-end traceability in compliance with current food standards and regulations.
