Compact Piezo Controller Custom Piezo Actuator Driver Circuit Controller-CoreMorrow

Add to Basket Share to :

Price

US$ 2000

Min Order Quantity1 Piece
Payment Terms 2
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name CoreMorrow Ltd.
Membership Free member
Registration Date2012.06.08
Country/RegionChina
CityHaerbin
Contact CoreMorrow(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name CoreMorrow
- Model Number E53.D
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color black
- Related Keywords piezo controller, piezo actuator controller, piezo stage controller

Description by Manufacturer

Models	E53.A1K-H2	E53.B1S-H2	E53.C1K-H1	E53.D1S-H2
Channels	1
Control input voltage (V)	0~10
Output voltage (V)	0~120（Optional 0~150）
Peak current(A)	1
Ave. current(mA)	60
Bandwidth(kHz)	10
Ripple(mVpp)	10(2.2μF)
PZT connector	LEMO single core
Input connector	SMB connector
Sensor
Sensor type	-	SGS	-	SGS
Servo characteristic	-	Analog P-I+Notch filter +Low pass filter	-	Analog P-I+Notch filter +Low pass filter
Sensor connector	-	LEMO 4 cores	-	LEMO 4 cores
Sensor output connector	-	SMA connector	-	SMA connector
Interfaces and operation
Communication interface	-	-	USB, RS-422, RS-232
Processor	-	-	32Bit 168MHz
D/A converter	-	-	16Bit
A/D converter	-	-	16Bit
Others
Operating temperature(°C)	0~50
Output current, short-circuit (mA)	60
Overcurrent indication	Overcurrent indicator lights when output ave. current > 60mA
Static power(W)	1.8	<4	<5	<5
Size(mm)	L85×H27.5×D80	L123×H27.5×D80	L148×H27.5×D80	L148×H27.5×D80
Mass(kg)	0.24	0.28	0.35	0.35
Power supply	24V(20V~30V)DC/1A

Price

Price US$ 2000 / Piece

Packaging & Shipping

- Packingcarton
- Packaging Size250 x 360 x 140 ( Millimeters)
- Minimum Order 1 Piece
- Total quantity in Stock151 – 300
- Shipping Career

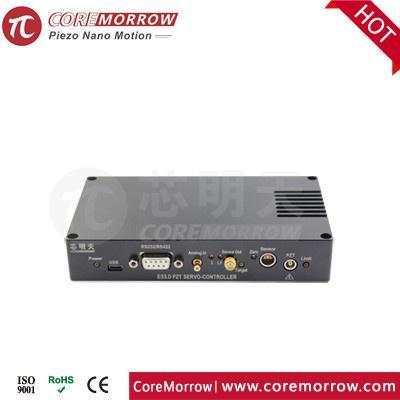

Product Image

Compact Piezo Controller Custom Piezo Actuator Driver Circuit Controller-CoreMorrow

Compact Piezo Controller Custom Piezo Actuator Driver Circuit Controller-CoreMorrow 2

Compact Piezo Controller Custom Piezo Actuator Driver Circuit Controller-CoreMorrow 3

Piezo Controller Related Products

Main Export Markets

- CoreMorrow Ltd. is mainly exporting to Asia, Europe, North America, South America, Australia, Africa

Company Profile

About CoreMorrow Ltd.

Membership Free member
Registration Date2012.06.08
Country/RegionChina
CityHaerbin
Contact CoreMorrow(Mr.)

CoreMorrow Ltd. is a high-tech company supplying piezo actuators, nanopositioners and controllers. And it is official distributor of Noliac group, piezomechanik Gmbh.

Self research and developed products
piezo actuators (stack type piezo actuators)
Piezo actuators with casings (open loop, closed loop)
1-6 degree Precision motion and positioning stages with nanometer resolution
Piezo Z/Tip/Tilt Platform
PZT Drivers/Amplifiers
PZT closed loop Controllers
LVDT dial gauge

Standard products including: Piezo materials, Piezo components, Piezo actuators, piezo sensor, piezo generator, piezo transducer, high accuracy piezo stages etc. we can design any nonstandard piezo prodcucts according to customers requirements.
