Product Attributes

- Brand Name Rosefinch
- Model Number TPS110M-6000W
- Place of Origin China
- Supply Type manufacture
- Condition New
- Related Keywords tether power station, tethering power supply sy, 100m tether station

Description by Manufacturer

Comprehensive Protection 6000W Tethered Drone Power Station 6000w Output Power

How UAV tethered power works

The tethered power system consists of ground module, cable, and air module which are transmitted through cables to provide continuous power to the UAV.

KEY FEATURES

Support flight altitude:	110m, 160m or 220m
Input voltage of Ground power module	190-240Vac
Output voltage of Ground power module	600~810Vdc adjustable
Size and weight of Ground power module	450 × 360 × 286mm, 17.5KG.
Output voltage of Air module	50.5 ± 0.5Vdc
Output power of Air module	6000W
Size and weight of Air module	200× 150× 68mm,2200G.

I,Typical Characteristic

1.Small size,light weight and backpack storage.it is easy to carry.

2.Simple operations,the entire process of drone taking off and landing does not require the operation of ground module .

3.Comprehensive input /output protection,fault elimination and self recover.

4.Fully automatic take up and pay off function,the wire can be rewound under power loss.

5.The air module power supply has a constant voltage output,and the back up battery has no charging and discharging phenomenon.

II,Adapted drone

1.Supporting flight altitude	≥100/200m(tethered cable length 110/220m,Reserve safe length.)
Supporting takeoff weight	20~30kg(UAV force effect varies, this data is for reference only.)
Supporting flight duration	≥48h(The system can support working hours depending on the structure of the UAV and the electrical fatigue resistance.)

III,Function characteristics

1.Protection functions:separate design for strong and weak electricity.input over voltage and under voltage protection,output over voltage ,output over current,output circuit,output over temperature protection,input and output voltage resistance≥3000VDC,tethered cable insulation voltage resistance≥3500VDC.

2.Data communication:wired and wireless communication function,Support remote display and control,client-side data viewing and downloading.Optional fiber optic communication

3.Data display function:The touch screen displays data such as output voltage,output current,output power, cable outlet length,working duration,installation temperature,total power consumption,fault record,and working status information.

4.Set and adjustment:the display screen supports setting and adjustment the parameters such as take-up and payoff tensile and speed,data and time,output voltage,safety lengths,warning temperature,ect...,and support the switching between Chinese and English.

5.Alerts and reminds:Failure the screen displays the contents of the fault,the buzzer strong sound reminder.

6.Automatic take-up and payoff:following take off and landing of the drone to synchronously tethered cable take-up and payoff,adjusting the tension auto management,and manually press the button to reaction the cable while power cut off.

7.Carry and transport:The box is equipped with a handle and foot pads, optional folding trailer, trolley wheels for transportation.

8.Power supply is optional 9800W/10000Wh,outdoor mobile power or 8000W/25L gasoline inverter generator (specification attached).

IV,Parameters

items		Technical parameters
Model		TPS110M-6K	TPS220M-6K
Cable length		110M	220M
Ambient temperature		-20~45ºC(working),-40~65ºC(storage)
Relative humidity		10~80%RH(working),5~90%RH(storage)
Altitude		≤3000m
Ground power module	Input voltage	190~240Vac wide range input,single-phase 220Vac,frequency 50/60Hz
	Output voltage	600~800Vdc adjustable,Factory Default 800Vdc
	Output power	≥7000W(Rated Long-Time Output),≥8000W(peak value≮30s)
	take-up and payoff speed	0~2m/s,adjustable
	take-up and payoff tensile	0~15N,adjustable
	interface	Input aerial plug, bollard output XT60 connector, fiber optic FC port (optional)
	Button and switch	AC Switches, high voltage on/off buttons, cable take-up buttons, power backup switches
	Protection level	IPx4
	Size	D450×W360×H280±0.5mm,excluding foot pads and external accessories
	Weight	17.5±0.5kg,excluding tethered cable
Tethered cable	Material	Silver-plated lightweight high-temperature resistant aircraft wire, composite fluoroplastic insulation, high-modulus tensile aerospace-grade fiber braid
	Fiber optic communication	The tethered cable is an optoelectronic composite cable containing tightly wrapped single-mode fiber with optional fiber optic communication.
	Current	7~10A
	DC resistance	4.6±0.2Ω,100m@20ºCloop
	Resistance Tensile strength	≥150kg,resistant to repeated reaction and release times≥1000
	Insulation strength	≥3500Vdc,1min, no breakdown
	Cable length	standard equipment 110m,optional 220m
	Outer diameter	3.5±0.1mm
	Weight	21±1g/m
Air module	Input voltage	580~810Vdc wide range input
	Output voltage	50Vdc±1% or 58Vdc±1%,constant voltage output,support voltage customization
	Output power	≥6000W(rated long-term output),≥7000W(peak value≮10s)
	Protection function	Input over voltage,under voltage protection,output over voltage,over current,short circuit,and over temperature protection
	Communication function	Optional CAN communication to report voltage, current, temperature data and operating status information.
	Isolation voltage	≥3000V(Vin-Vout),1min,Current leakage 5mA,no breakdown,flying arc and corona phenomena
	Installation method	Pre-mounted lugs, screwed in
	Heat dissipation	External fan for active cooling, reserved air ducts for forced air cooling
	Interface	Input XT60,output XT90×3
	Protection level	IP54
	Size	200×150×68±0.5mm,excluding connector
	Weight	2.2±0.1kg,excluding outer connector and wire
packages	Size	wheeled suitcase:720×500×420±5mm(Wheels not included)
	Weight	48±2kg,Storage of ground power module, air module, trailer (optional), Annexes and documents

For drone tethered power system,you can choose several types from below form:

DJI Mavic 3 Tethered Power System
DJI M30 Tethered Power System
DJI M350 Tethered Power System V2
DJI M350 Tethered Power System V1
DJI Flycart30 Tether power system
600W Universal Tethered Power System
2000W Universal Tethered Power System
3000W Universal Tethered Power System V3
3000W Universal Tethered Power Station V2
3000W Universal Tethering Power Station V1
6000W Universal Tethered Power System
12000W Universal Tethered Power Supply System
18000W Universal Tethered Power Supply System

Main Applications of Drone Tethered Power System

-Day and night missions
-Radio relay
-Crisis management
-Site protection
-Traffic surveillance
-Large-scale events security
-Forest surveillance
-Industry monitoring
-Air-quality monitoring

Important safety notice of Drone Tethered Power System

More rotor unmanned aerial vehicle (UAV) is of certain danger and destruction, improper operation may cause personal injury or property damage, please use the product in strict accordance with the operating manual
The operator should receive professional training and examination, untrained personnel do not handle this product
Don't be drunk, poor state of fatigue, sick when handling this product
Must keep personnel with safe distance between unmanned aerial vehicle (UAV), constantly to prevent the possibility of danger
Please fly under the safe take-off weight, in case of any risks.
Please not fly under strong electromagnetism interference circumstance
Please follow the local laws and regulations and not fly in no-fly zone
Please not keep close or touch the rotating motor or propeller, in case cut by the rotating propellers.
Please charge the two batteries full before install them to the uav, and make sure their differential pressure less than 0.1 V
The battery long time no use, please store it in ventilated dry place with 60% electricity

Our service
Our Main Solutions
1. Mapping, surveying and 3D modeling
2. Surveillance
3. Inspection
4. Delivery
5. Customization according to application and client's requirements

Q1: Do you support OEM/ODM?
A1: Yes. We can print your logo on the product.
Q2: About samples.
A2: Under normal circumstances, samples will be ready within 7 days, and 10-20 days for OEM/ODM orders. Sample fee and shipping will be charged.
Q3: What is the delivery time?
A3: For regular orders, we can ship within 15 days, for OEM/ODM, we can ship within 25-45 days (depending on the quantity). In the event of delays, we will notify you in advance of the status and resolution.
Q4: What is the minimum order quantity?
A4: There is no MOQ for wholesale (1 piece accepted), including OEM/ODM.
Q5: Can you reduce the shipping cost?
A5: When calculating the shipping cost for you, we always choose the cheapest and safest express. Although we have partnerships with shipping companies, we can't keep costs down because it's not us who get paid. If you think it's expensive for you. You can always make your own choice.

If you look for Tethered Drone manufacturers & suppliers of Drone Tether Systems for UAV, Quadcopters, UAS & ground stations,please contact us freely.

Price

Price US$ 15000 / Set

Product Image

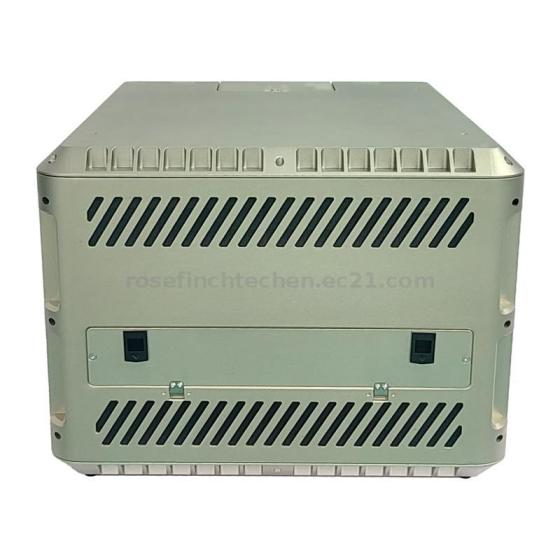

Comprehensive Protection 6000W Tethered Drone Power Station 6000w Output Power
