Product Attributes

- Brand Name LITUO
- Model Number LT-LLN02-AS
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Power Electronic
- Usage Universal Testing Machine
- Related Keywords Tensile Testing Machine, Servo System, Tensile Testing

Description by Manufacturer

Technical parameters

1. The maximum tension stress LOAD yuan LOAD: 10 kg, 20 kg, 50 kg, 100 kg, 200 kg, 500 kg, 1000 kg, 2000 kg

2. Unit switching: all kinds of international units can be arbitrarily switched

3. Resolution: 1/100,000, accuracy level 0.5

4. Can do tension, extension, stress, strain, and show the curve, holding pressure, bending

5. Maximum stroke: 1000mm(including fixture), left and right span: 410mm(standard machine)

6. Protection device: including up and down stroke control switch, the program sets the maximum load maximum extension automatic shutdown emergency switch drive motor is servo motor, the speed and stroke are all controlled by the computer, different traditional AC and DC motors are controlled by voltage, the control accuracy is poor in different sections.

7. Test speed: 0.001 ~ 500mm/min

8. Power supply: 1 wire,AC220V,15A

9. Fixture: one set of stretching fixture (test for stretching, tearing, stripping)

Accessories: operation manual, product warranty card, factory inspection certificate, machine standard accessories

10. Functions: test results of stretching, tearing, stripping, bending, etc. Computer software automatically calculates the results and displays the curve diagram

11. Force precision: within ±0.3%

12. Motor: panasonic servo motor, Japan

13. Software system: universal high-precision economic system independently developed by leto

14. Support double column: advanced aluminum alloy material

15. Host color: army green

16. Screw: Taiwan TBI ball screw

The product description

This series of tensile testing machine, the use of the Load Cell induction digital display, can accurately test the longitudinal and transverse tensile strength, tensile, compression, bending, shear, tear, peel test for mechanical properties of, also can realize constant stress, constant strain, creep, relaxation and closed loop test, after the special device can complete the reverse, cupping test items, etc. This machine is suitable for testing the properties of fabric, plastic film, composite film, woven bag, soft packaging material, adhesive, adhesive tape, adhesive, rubber, paper, etc. Different fixture can be used for different tests.

Conform to the standard
GB528-2009.	GB529-2008.		ISO 37
GB15254-1994.	GB2790		GB/T2570-1995
ISO8510	GB 13022		GB/T7124-2008
GB 8808	GB 1040		JCT547-2005.
GB 4850	GB 7753		ASTM D5748
GB 7754	GB 453		ASTM D882
GB/T 17200	GB/T 16578		ASTM D638
GB/T 7122	GB/T 2790		JC887-2001.
GB/T 2791		GB/T 2792
GB/T 17590		JIS P8113
QB/T 2358		QB/T 1130

Product features

1. Excellent appearance design. Our company has been paying great attention to the appearance of products for many years, and developed many products comparable to foreign models, the surface of which is electrostatic jet.

2. Key components. International famous brand, such as panasonic servo system, nano-controlled photoelectric encoder.

3. Arc-toothed synchronous belt deceleration system has the advantages of high efficiency, long life, low noise and no maintenance. At present, many domestic counterparts are still continuing to use worm gear reducer. The main reason is that their servo system is still using the analog speed control mode, because the analog control inherent zero drift, imbalance, can not achieve the absolute zero speed, so must use the worm gear self-locking effect of stopping. We use a pure digital PLL position pulse control mode, no zero drift, no misalignment.

4. High precision ball screw for loading, stable loading, long life of the testing machine, good long-term stability and energy saving.

5. Multiple protection measures. Such as: power link of all kinds of electrical protection, software part of the overload, overdisplacement protection, mechanical force safety limit protection.

6. Simple, reliable and powerful user interface.

7. The printer can print the tension curve displayed by the computer, without additional x.y recorder. The program can be operated under WINDOWS to be controlled by mouse and control the format of the screen.

8. In the batch test, the software can be automatically stored at the end of one sample test and automatically entered into the next test, so that the whole batch test can be completed automatically

9. With the function of curve superposition, the curves of the same group of tests can be superimposed and compared with multiple colors.

10. Equipped with overload protection and automatic stop function, it can automatically judge the sample fracture and stop the machine.

11. Real-time measurement and display of test force, peak value, displacement, deformation and other signals; Realized the real-time acquisition and control under the Win2000, WinXP mode platform; Accurate timing and high speed sampling are realized.

12. Management by permission, operators at different levels have different operating permissions, and the menu and other contents are also different. Simple, convenient and quick operation for ordinary operators; The operation of the management personnel increased the adjustment and other professional operation content, effectively protected the whole system.

13. In addition to the random basic configuration, different materials can be customized in different forms of jig, jig made of high quality alloy steel, precision heat treatment, strong and durable, novel design, reasonable structure, surface rust treatment, with interchangeability, users can choose according to their own needs.

Price

Price US$ \ 6000 ~ 13300 / Set

Packaging & Shipping

- PackingWooden Packing
- Delivery Lead Time30+35 days
- Minimum Order 1 Set
- Supply Ability100 set per Month
- Delivery PortGuangzhou
- Shipping Career

Product Image

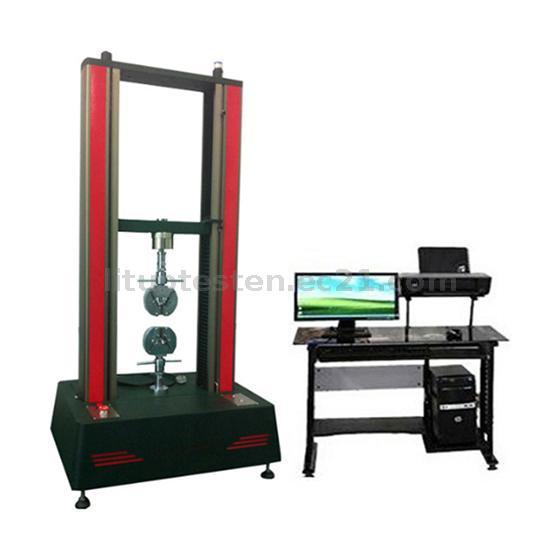

Computer Servo System Double-Column Tensile Testing Machine
