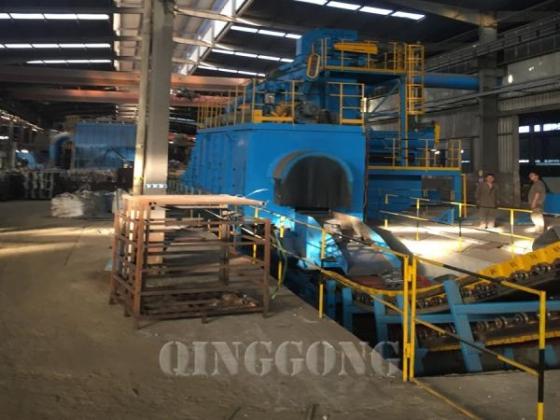

Rocker Barrel Continuous shot blasting machine is automatic, continuous, dust-free tumble shot blasting machine , with a high degree of flexibility to meet the changing production requirements. It can quickly adapt to the production efficiency, processing technology and market demand changes. It can be easily integrated into the production line with other processing equipment, which can realize the automatic production process. This can ensure the whole production process line reach to the high production efficient and low-cost operation while improving the working environment.
Continuous Rocker Barrel Shot Blasting Machine Basic Specification
|
Type |
DT-11-350 |
DT-14-450 / DT-14-650 / DT-14-850 / DT-14-1050 |
DT-17-650 / DT-17-850 |
DT 20-650 / DT 20-850 |
|
Max. workpiece diagonal (mm) |
400 |
850 |
980 |
1150 |
|
Throughput rate (t/h) |
2-5 |
8-25 |
15-33 |
15-38 |
|
Max. workpiece weight (kg) |
30 |
150 |
150 |
150 |
|
Number of blast wheels |
3 |
4-10 |
6-10 |
6-10 |
|
Power per blast wheel (kW) |
45 |
37-45 |
37-45 |
37-45 |
FEATURE:
Shaker Blast / Rocker Barrel Machine
Greatly reduced workforce, no workers are required to transport castings
Comfortable and safe working conditions
Compact layout is possible requiring only about half the space of an equivalent batch type machine
Reduced lead time-continuous blasting minimizes time loss
Rocker Barrel system
After in-line sand shakeout and cooling, the castings are delivered to the Rocker Barrel via an inclined belt and shaker load conveyor, providing process improvements to the overall automated operation. The drive that rocks the barrel is controlled from a touch screen on the operator panel. An adjustable range of rocking motion ensures different shaped castings can be tumbled satisfactorily. A separate mechanism sets the adjustable decline angle for controlling the flow of castings through the machine. The control system allows both manual and automatic selection of the work conveyor parameters to compensate for changes in part configurations and cleaning requirements. The combination of a variable decline angle and rocking angle for the work conveyor barrel provides a high degree of control for achieving effective blast coverage.
Application
Removing sand and cores from castings
Descaling castings and forgings
Handling mixed and single products run
Cleaning cluster
Keeping the blast cleaning performance at a consistently high level, regardless of any fluctuations in production rates
As one of the most professional shot blasting companies , QINGGONG MACHINERY’s activity is sales of shot blasting machine China and shot blasting supplies. If you want to know more details or want a quotation, just feel free to contact us!
