Product Attributes

- Brand Name Techwin
- Model Number D24Y4
- Place of Origin China
- Related Keywords Control Line protector, signal protector, surge protector, signal lightning arrester

Description by Manufacturer

Details:

The signal SPD is applicabe to overvoltage protection for the computer network digital signal equipment and analog signal equipment in audio, video and monitoring system. This signal SPD series in for diferential and common mode protection, the balance circuit and non-balance circuit, low speed circuit and high-speed circuit, fine protection and combined protection. This product series can meet the demands in protection of different networks.

Model D24Y4
Max continuous operating voltage 24V
Nominal discharge current (8/20µs) 3kA
Max discharge current (8/20µs) 5kA
Limiting voltage ≤100V
Response time (ns) 1ns
Transmission rate (Mbps) 10Mbps
Insertion loss (dB) ≤0.5dB
Interface form Compression plug
Protection way (couple) 4
Dimension (mm) 84×25×25mm

Working conditions Temperature: -40~+85 degree, Relative humidity: ≤95%

Application: Used for the protection not only in equipment such as industry control network, RS422/485 connection, special line, automatic control and instrument line, data line and telephone service and fax, but also for the sensor in the current ring and the secondary instrument.

MORE INFORMATION PLEASE CONTACT US!

Certificates

- CE TB09096288

Price

Price Condition FOB

Packaging & Shipping

- Delivery Lead Time3-7days
- Minimum Order100 pcs
- Supply Ability70000pcs per month
- Delivery PortShenzhen

Product Image

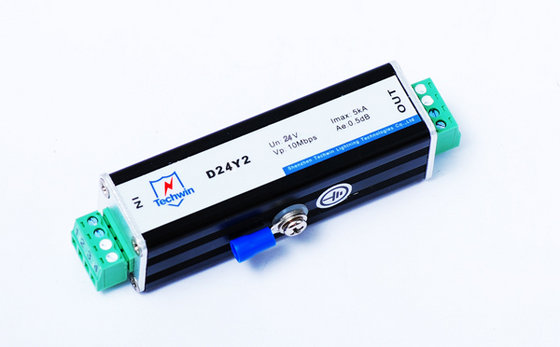

Control Line Protector/ Signal Protector/Signal SPD

Main Export Markets

- Shenzhen Opplei Technologies Co., Ltd. is mainly exporting to China (Mainland), Asia, Europe, North America, South America, Australia, Africa

Download Product Brochure

Latest Product catalog of Shenzhen Opplei Technologies Co.,Ltd11_PDF.pdf (9.7 Mb)

Company Profile

About Shenzhen Opplei Technologies Co., Ltd.

Membership Free member
Registration Date2012.09.14
Country/RegionChina
CityShenzhen
Contact RENY(Ms.)

Shenzhen Opplei Technologies Co., Ltd is a professional manufacturer and exporter dedicated to the field of lightning protection and surge suppression. With years of industry experience, we provide comprehensive solutions to safeguard electrical and electronic systems against lightning strikes and power surges.

Our Products
We offer a full range of surge protective devices (SPDs) to meet diverse application needs, including but not limited to:

AC Power Distribution Systems
DC Power and Photovoltaic (Solar) Systems
Data, Signal, and Telecom Lines
EV Charging Stations

Certifications & Quality Control
Quality and safety are at the core of our operations. All our products are designed and manufactured in strict compliance with international standards. We hold a comprehensive portfolio of certifications, including:

CE (Conformit Europenne)
ROHS (Restriction of Hazardous Substances)
FCC (Federal Communications Commission)
ISO 9001 (Quality Management System)
IEC 62305 (Protection against lightning International Standard)

These certifications ensure that our products deliver reliable performance, durability, and environmental safety for global customers.

OEM & ODM Services
We understand that different markets have unique requirements. Therefore, we offer flexible OEM (Original Equipment Manufacturing) and ODM (Original Design Manufacturing) services. We can customize product appearance, packaging, and technical specifications to build your exclusive brand.

Partner with us for reliable protection and professional service. Contact us today for more information or to request a quote.
