Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Mixing Equipment

Description by Manufacturer

Essential details

Mixer Type:: Homogenizer

Barrel Volume (L):: 5500

Material Processed:: Plastics, Chemicals, Food, Medicine

Max. Loading Volume (L):: 5000 L

Max. Loading Capacity:: 5L-5000L

Weight (KG):: 1200 KG

Material:: SUS316, Stainless Steel 304 / SUS316L

Condition:: New

Product Type:: Cosmetic

Application:: Viscous Fluid, Food Processing

Place of Origin:: Jiangsu, China

Brand Name:: APVR

Power (kW):: 48 kW

Warranty:: 1 Year

Key Selling Points:: Automatic

Applicable Industries:: Food & Beverage Factory

Showroom Location:: None

Marketing Type:: New Product 2023

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Warranty of core components:: 1 Year

Core Components:: Motor, PLC

After-sales Service Provided:: Online support, Video technical support

After Warranty Service:: Video technical support

Performance&feature

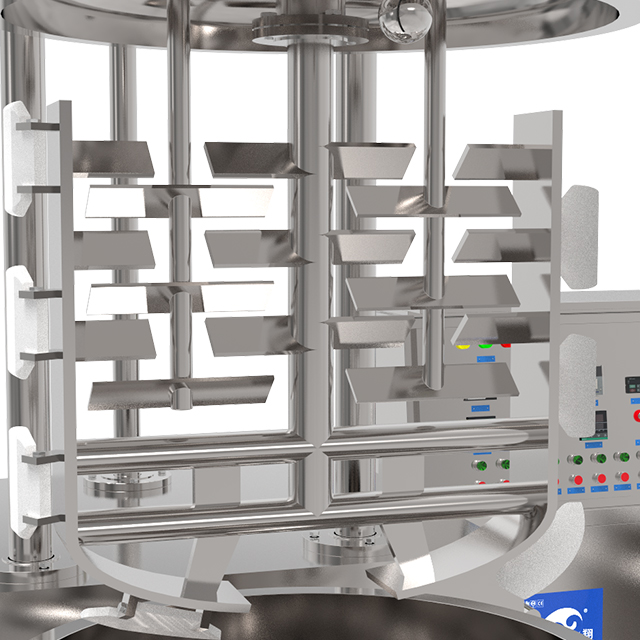

Composite scraper impeller is for all kinds of complex formula, optimizing energy efficiency

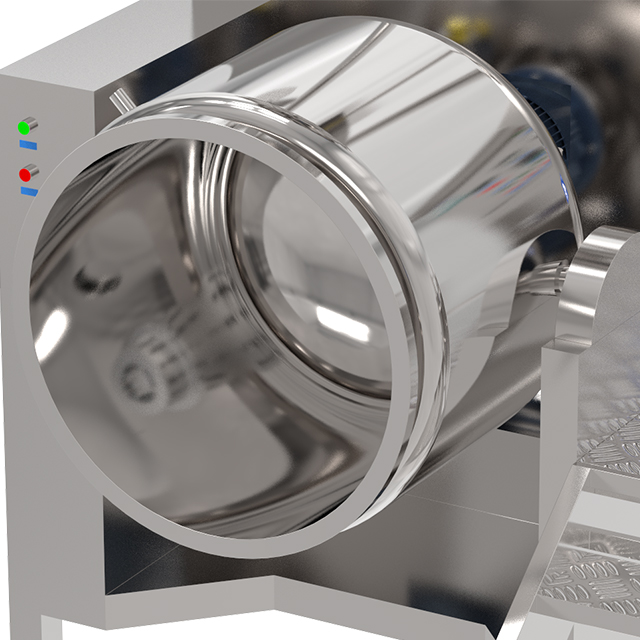

Ptfe scraper caters to agitation of tank, scraping the pot wall efficiently.

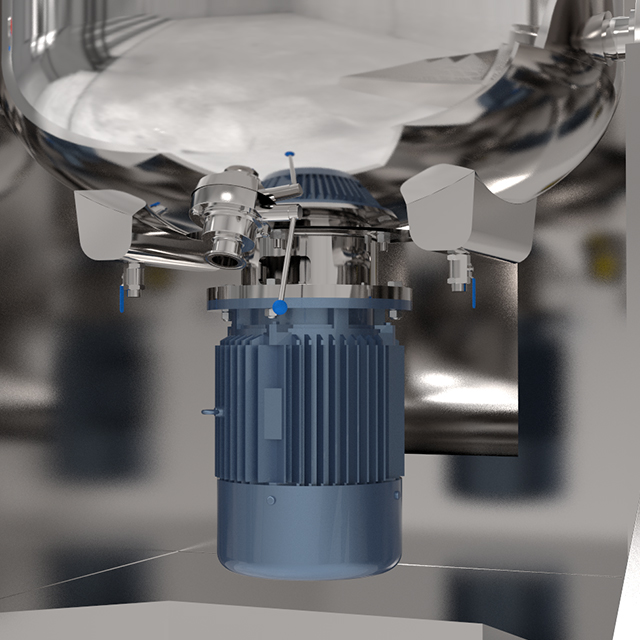

Homogenizer is installed at the bottom of the pot, increasing the power of the motor more thoroughly and more powerful. It could also give full play to the effect of homogeneous for a small amount of production.

Motor with strength balanced isotactic curve and accordingly stator could realize high energy shear fluid, grinding, centrifugal, ensuring paste is exquisite, smooth; Pot body and pipe surface mirror polishing is 300 mesh (health), conforming to the cosmetic and the requirements of GMP.

Homogenizer with frequency control of motor speed is optional, the highest rotating speed of which is 4500r/min.

Technical Parameter

Model	Main pot	Water pot	Oil pot	Main pot power		Water oil pot (power×2)(kW)	Hydraulic system (kW)	Vacuum pump power
Model	Volume(L)			Wall scraping	Homogenizer	Water oil pot (power×2)(kW)	Hydraulic system (kW)	Vacuum pump power
5L	5L	-	-	0.18	1.1	-	0.75	0.55
10L	10L	8	5	0.18	1.1	0.18	0.75	0.75
20L	20L	18	10	0.37	1.5	0.18	0.75	0.75
50L	50L	40	25	0.75	4-7.5	0.75	1.5	1.5
100L	100L	80	50	1.5	4-7.5	1.1	1.5	1.5
200L	200L	170	100	2.2	7.5-11	1.5	1.5	2.2
300L	300L	250	150	2.2	7.5-11	1.5	1.5	2.2
500L	500L	420	250	4	11	2.2	1.5	2.2
1000L	1000L	820	500	5.5	15	2.2	2.2	3

Note: In case of inconformity of the data in the form due to the technical improvemnt or customization, the real object shall prevail.

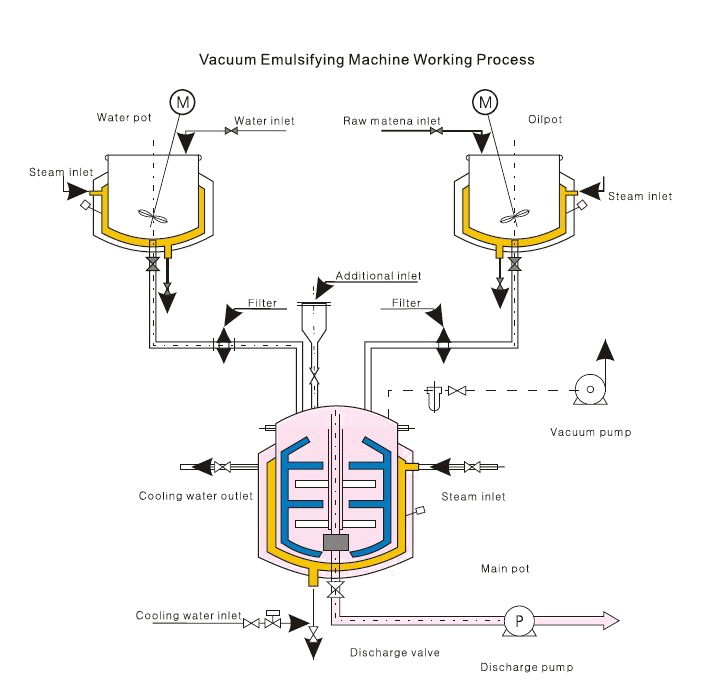

Flow chart

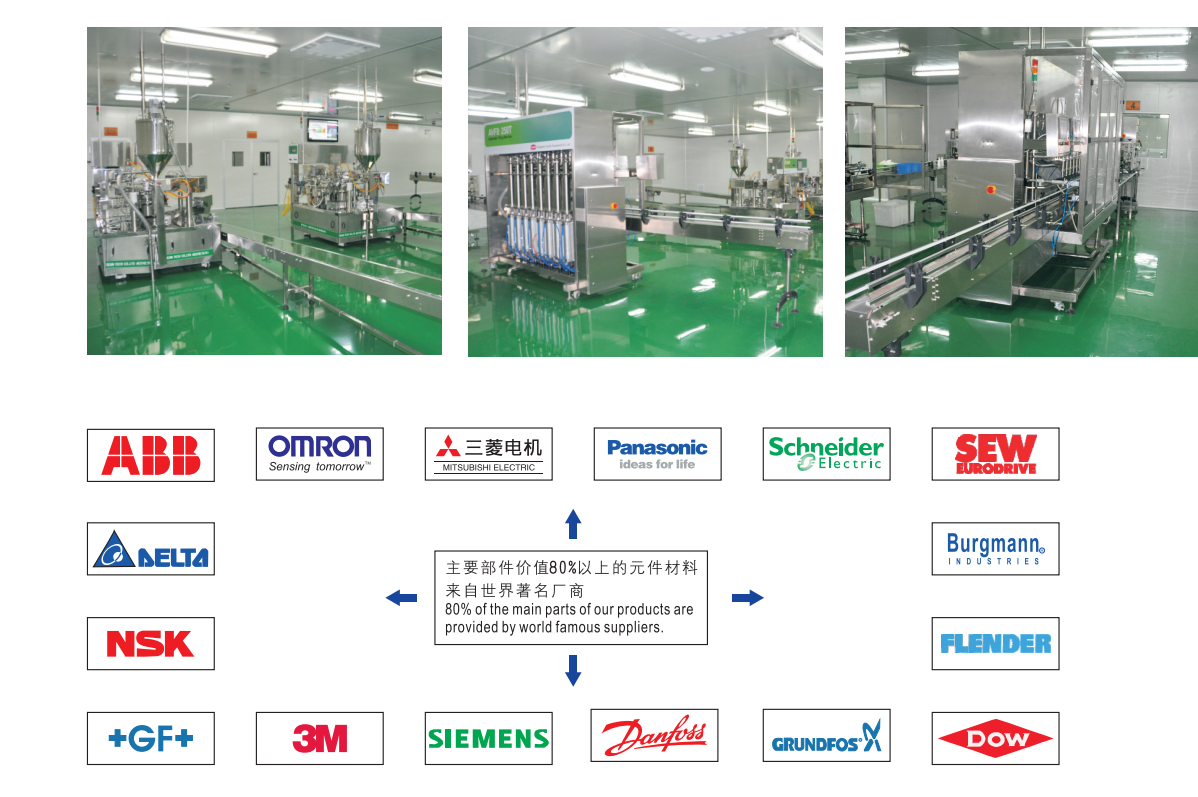

Accessories Supplier

Packaging & Shipping

Price

Price US$ 3900 / Set

Product Image

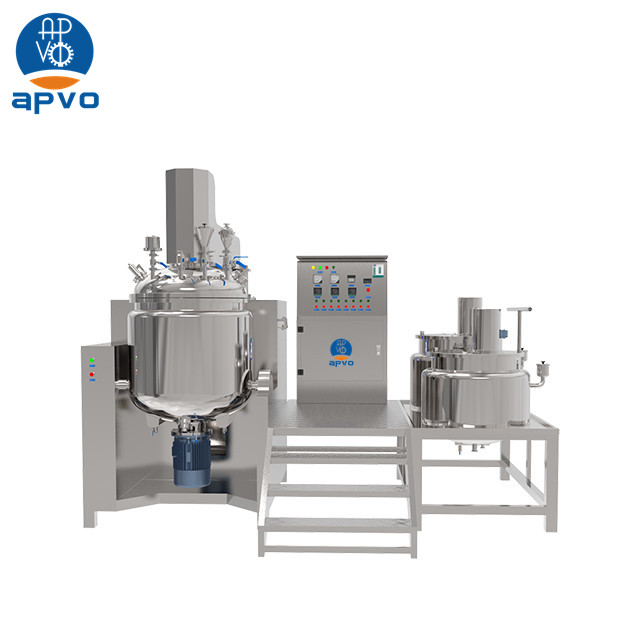

Cosmetics Vacuum Emulsifying Homogenizer Mixing Machine

Cosmetics Vacuum Emulsifying Homogenizer Mixing Machine 2

Cosmetics Vacuum Emulsifying Homogenizer Mixing Machine 3

Cosmetics Vacuum Emulsifying Homogenizer Mixing Machine 4

Cosmetics Vacuum Emulsifying Homogenizer Mixing Machine 5

Cosmetics Vacuum Emulsifying Homogenizer Mixing Machine 6

Mixing Equipment Related Products

Main Export Markets

- Yangzhou Aipuweier Automation Equipment Co.,Ltd is mainly exporting to China (Mainland), Asia, Europe, North America, South America, Australia

Company Profile

About Yangzhou Aipuweier Automation Equipment Co.,Ltd

Membership Free member
Registration Date2023.01.22
Country/RegionChina
CityYangzhou
Contact XU SHUYI(Mr.)

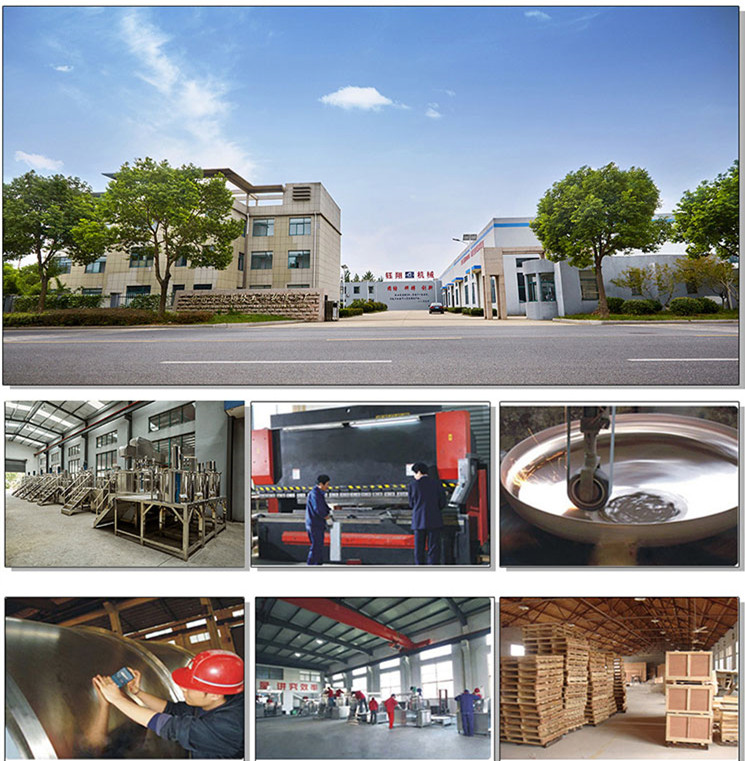

Yangzhou Aipuweier Automation Equipment Co., Ltd. main responsible for sell machines to domestic and oversea. Our factory covering an area of 10,000 square meters, it was founded in the year of 2000 with a registered capital RMB4000, 000. It's located in Jiangsu Province, China, the number of employee is 60, include 6 departments, sales department, quality department, technical department, production department, personnel department, finance department. As a Top 10 enterprise in the field of cosmetics, pharmaceutical, food [GMP] standard equipment, we are always insisting in quality first, credibility-oriented, management-oriented, sincere service.Our factory has owned advanced production equipment, Lathe (5 sets), milling machine (1 set), polishing machine (1 set), welding machine (10 sets), drilling machine (12 sets) and completed sets of measuring equipment. Main produce competed GMP standards sets of cream, lotion making production line; shampoo, liquid soap making production line; Perfume making production line; toothpaste making production line, etc. Reverse osmosis pure water treatment, vacuum emulsifying machine, liquid soap mixer, filling machine, labeling machine, packing machine and so on.We have more than 10 years experienced in machinery manufacturing and domestic and overseas marketing. The diverse products of high quality can meet various needs of industries mentioned above.We not only provide installation service, but also help customers design and select right equipment according to existing sites, support professional technical on the formula cream, lotion, shampoo, liquid soap and so on;
