Crane Busbar / Insulated Peanut Type

Add to Basket Share to :

PortBusan
Delivery Lead Time3 weeks on FOB Korea terms
Payment Terms 1

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Kumoh Corporation
Membership Free member
Registration Date1999.07.22
Country/RegionKorea
CityBucheon-si,
Contact Sang-Keun Lee(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name EC Brand
- Place of Origin Korea
- Supply Type In-Stock Items
- Condition New
- Related Keywords Crane Bar, Trolley Bar, Busbar, Power Conductor Bar

Description by Manufacturer

** Crane Busbar (Trolley Bar, Power Conductor Bar) **

1. Type

- Insulated Peanut Type

2. A complete set of Peanut-type crane busbar as a power feeding system for Overhead Crane consists of:

* Insulated trolley bar, End cover, Hanger Clamp, Joint Cover, Joint keeper, Expansion Section, Power Collector, Hanger with Insulator, Power Feeder, etc.

* Used as one of power feeding systems fitted with light & medium duty of overhead cranes traveling at manufacturing shops, warehouses, material storge yards, etc.

3. Technical Specifications ;
3-a) Crane Busbar by Amperage;
* Amperage / Length(mm) / Weight(g) / Standard Type(70 C.) / Special Type(110 C.) / Connection Method *
* 60 A / 3,000 / 2,400 / ET-1-007 / ET-2-007 / Pin connection
* 90 A / 3,000 / 2,750 / ET-1-001 / ET-2-001 / Pin connection
* 160 A / 3,000 / 3,000 / ET-1-009 / ET-2-009 / Pin connection
* 200 A / 3,000 / 3,000 / ET-1-003 / ET-2-003 / Pin connection
* 300 A / 3,000 / 3,150 / ET-1-005 / ET-2-005 / Pin connection

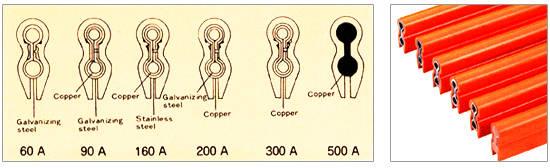

3-b) Kinds of Materials by Amperage;
* Amperage / Materials Used / Direct Current Resistance(Ohm/m) *
* 60 A / Galvanized Steel(100%) / 0.0018
* 90 A / Galvanized Steel(85%) + Copper(15%) / 0.00032
* 160 A / Copper(50%) + Stainless Steel(50%) / 0.00032
* 200 A / Galvanized Steel(50%) + Copper(50%) / 0.00032
* 300 A / Copper(100%, Hollow) / 0.00019
** Note: 160A crane bar is of acidproof type.

4. Technical Specifications of Major Components;
4-a) Power Feeder
* 60A, 90A, 160A & 200A(Standard Type:70 C.) / EP-1-001 / 140g / 50m-installation spacing for 60A,90A and 160A
* 300A(Standard Type:70 C.) / EP-1-002 / 1000g / 100m-installation spacing for 200A & 300A
4-b) Expansion Section
* 90A & 160A: Every 50m for installation of expansion section
* 200A & 300A: Every 35m for installation of expansion section. Gap between sections: 13mm/30 degrees in C, 19mm/20 degrees in C, 25mm/10 degrees in C.

4-c) Hanger Clamp
* For indoor Use / Galvanized Steel / 110g / EH-1-001
* For Outdoor Use / Gal Steel+Epoxy Insulator/ 210g / EH-2- 001
4-d) Joint Cover
* 60A to 300A / Standard 70 C / 25g / EJC-1-001
4-e) Joint Keeper
* 160A, 200A & 300A / Copper / 10g / EJC-1-001
4-f) Power Collector for Hoist Type(H-type)
* 60A / For straight & curve / Min.1250mm for curve radius / ECH-1-002 / 820g

* 90A / For straight / ECH-1-003 / 835g

4-g) Power Collector for Crane Type(C-Type)
* 60A / For straight & curve / Min.1250mm for curve radius / ECC-1-002 / 1,350g
* 90A / For straight / Min.1250mm for curve radius / ECC-1- 003 / 1,370g
* 160A / For straight / Min.1250mm for curve radius / ECC-1- 004 / 1,650g
* 200A / For straight / Min.1250mm for curve radius / ECC-1- 005 / 1,700g
4-h) Power Collector for Tandem Type(AL-Type)
* 160A / For tandem / ECT-1-001 / 2,740g

5. Terms & Conditions
5-a) Price
- Our price is available upon receipt of your inquiry specifying a) Quantity (Length of Bay: Distance of Traveling Runways), b) Number of Row (3 or 4 rows), c) Number of Cranes travelilng on the same railways at the same bay, etc.
5-b) Delivery: Two (2) weeks after signing the contract on the basis of FOB Korea.
5-c) Payment: By Telegraphic Transfer (T/T)
5-d) Packing: By wooden box type

5-e) Seller:Kumoh Corporation, Korea

Packaging & Shipping

- PackingWooden Box Packing
- Delivery Lead Time3 weeks on FOB Korea terms
- Delivery PortBusan
- Shipping Career

Product Image

Crane Bar Related Products

Main Export Markets

- Kumoh Corporation is mainly exporting to Asia

Download Product Brochure

Kumoh Corporation.pdf (1.96 Mb) Kumoh Corporation.pdf (4.29 Mb) Kumoh Corporation.pdf (1.91 Mb) 2015.pdf (8.22 Mb)

Company Profile

About Kumoh Corporation

Membership Free member
Registration Date1999.07.22
Country/RegionKorea
CityBucheon-si,
Contact Sang-Keun Lee(Mr.)

1. Major Business Items (Export)
1-a) Overhead Crane & Gantry Crane:
* Lifting capacity: 10tons/set-500tons/set
* Span: 5m-50m
* Lifting Height: 6m-100m
* Speed Variations controlled by Inverters
1-b) Crane Components & Parts
1-b-1) Busbar System (Trolley Bar, Power Conductor Bar) as power feeding system
* Copper Headed Steel Rail Type(Copper)/Steel Mill, Stacker & Reclaimer/300A-3200A
* Insulated Peanut Type(Copper)/General Manufacturing Shop/60A-300A
* Insulated UB-Bar Type(Copper)/Heavy Industries Co./300A-2000A
* Insulated Aluminum Heavy Bar Type(Aluminum)/Shipbuilding Yard/500A-1500A
* Insulated H-Bar Type(Aluminum,Copper&Stainless Steel)/Shipbuilding Yard/500A-1500A
1-b-2) Hoist (Electric Wire Rope & Chain)
1-b-3) Wire Drum & Hook
1-b-4) End Carriage (Gear Reducer)
1-b-5) Lifting Magnet
1-b-6) Cable Reel System for Gantry Crane
1-b-7) Cabin
1-b-8) Rail

2. Senior Executives (Directors):
* Sang-Keun Lee (CEO & President)
* Sang-Hoon Lee (Marketing Director)
* Hyun-Ju Kim (General Affairs Director)

3. Communications:
* Tel: 82-32-3215647, 6535648, 6125640
* Fax: 82-32-3215648
* Mobile (S.K.Lee): 82-10-32365884
* Mobile (S.H.Lee): 82-10-23297836
* Mobile (H.J.Kim): 82-10-32943022

4. Major Countries for Export Since 1998:
Italy, Turkey, Yordan, Egypt, Saudi Arabia, U.A.E., Bahrain, Iran, Iraq, India, Bangladesh, Myanmar, Singapore, Vietnam, Philippines, China, Mongolia, U.S.A., Japan, Peru, etc.

5. Major Domestic Business Associates/Manufacturers in Korea:
5-a) Overhead Crane & Gantry Crane
- Kumoh Heavy Industries Co.(1987)
5-b) Hoist
- Sungdo Machinery Co. (1984)
- Hyundai Hoist Co., (1980)
5-c) Crane Busbar System (Trolley Bar)
- Eunchang Industry Co. (1980)
5-d) Cable Reel System
- Koreel Co., Ltd. (1981)
5-e) End Carriage (Gear Reducer)
- Taeyoung Precision Machinery Co. (1991)
5-f) Lifing Magnet
- Sungsung Industrial Machinery Co. (1985)
5-g) Wire Drum & Hook
- SBSTech Co., (1990)
