Cree CXA3070 High Power LED Arrays 117w Good Quality LED Lamp Beads High Power

Add to Basket Share to :

Price

US$ 175

Min Order Quantity10 Piece
Supply Ability100000pcs per week
Portshenzhen
Delivery Lead Time3-5 working days
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shenzhen Xiansheng Lighting Technology Co., Limited
Membership Free member
Registration Date2017.11.29
Country/RegionChina
CityShenzhen
Contact Amy Kwin(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Amy Kwin

Shenzhen Xiansheng Lighting Technology Co., Limited

* Buying Product

Category : Other Lights & Lighting Products

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Cree
- Model Number CXA3070
- Place of Origin China
- 27.35 mm x 27.35 mm 4000K, 5000k, 5700K, 6500
- Related Keywords cree CXA3070, cree cob cxa3070, cxa3070 cob led, cxa3070 led cob

Description by Manufacturer

CXA3070 High Power LED Arrays 117w Good Quality Led Lamp Beads High Power0K, 6500K Available

The Cree XLamp CXA3070 LED array expands Cree's family of high flux, multi die integrated arrays, offering high performance in an easy-to-use platform. With XLamp lighting class reliability, the CXA3070's uniform emitting surface enables both directional and non-directional lighting applications and luminaire and lamp designs. Available in 2 step and 4 step color consistency, and featuring a 23mm optical source, the CXA3070 brings new levels of flux and efficacy to this form factor.

Features

--Available in 4-step and 2-step EasyWhite bins at 2700 K, 3000 K, 3500 K, 4000 K and 5000 K CCT

--Available in ANSI white bins at 4000 K and 5000 K CCT

--Available in 70- and 80 minimum CRI options

--Forward voltage: 38.5V

--85 °C binning and characterization

--Maximum drive current: 2800mA

--115° viewing angle, uniform chromaticity profile

--Top-side solder connections

--Thermocouple attach point

--NEMA SSL-3 2011 standard flux bins

Applications

--Directional

--Non-Directional

--Downlights

--Low & High - Bay

Product Description

Manufacturer Part #:CXA3070-0000-000N00AD50F

Product Category:	High Power LEDs - White
Manufacturer:	Cree, Inc.
RoHS:	Yes
Package / Case:	COB - Chip-on-Board
Illumination Color:	White (Cool White)
Wavelength/Color Temperature:	5000 K
Luminous Flux/Radiant Flux:	9000 lm
Color Rendering Index - CRI:	70
Viewing Angle:	115 deg
Lens Color/Style:	Tinted, Clear
If - Forward Current:	1925 mA
Vf - Forward Voltage:	38.5 V
Power Rating:	117 W
Mounting Style:	SMD/SMT
Length:	27.35 mm
Width:	27.35 mm
Height:	1.7 mm
Maximum Operating Temperature:	+ 85 C
Minimum Operating Temperature:	- 40 C
Series:	CXA3070
Packaging:	Tube
Brand:	Cree, Inc.
Color Temperature:	5000 K
LED Size:	27.35 mm x 27.35 mm x 1.7 mm
Lens Dimensions:	23 mm
Lens Shape:	Round Flat
Factory Pack Quantity:	100
Type:	High Power LEDs
Vr - Reverse Voltage:	-

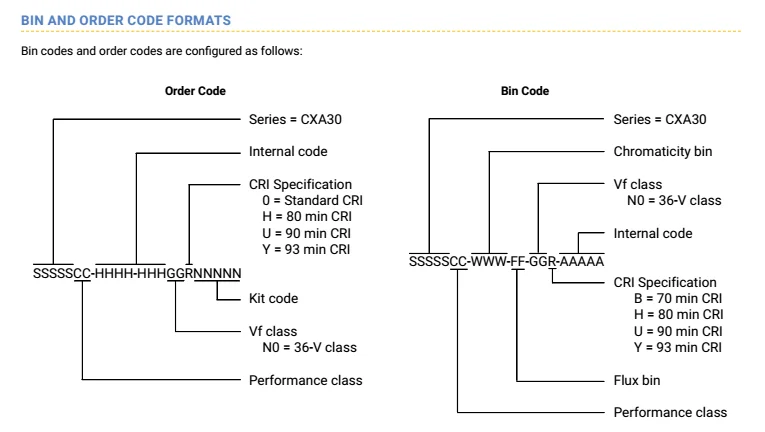

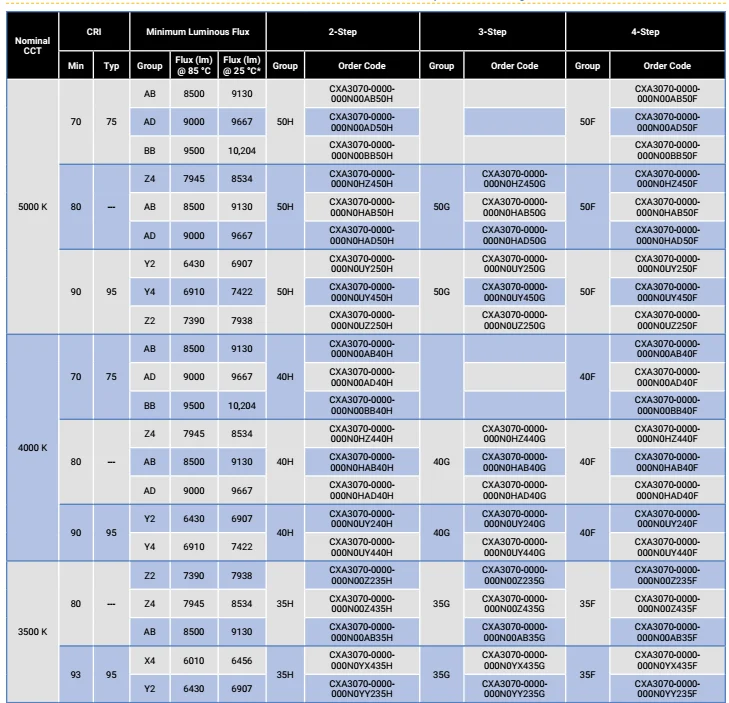

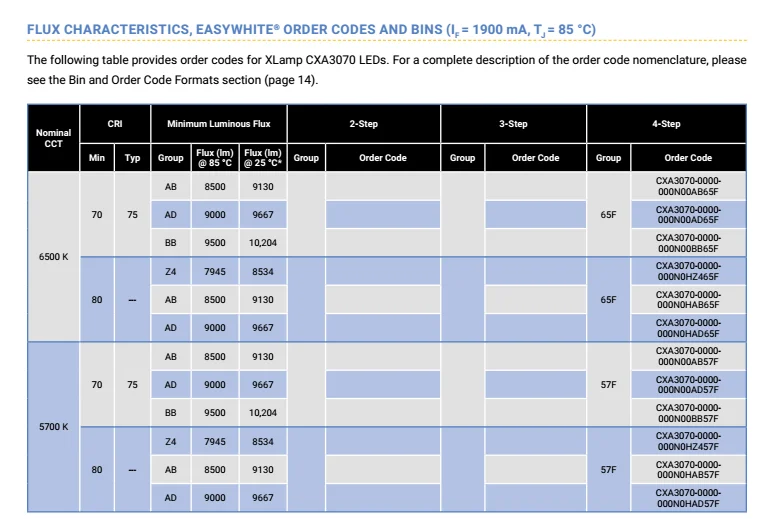

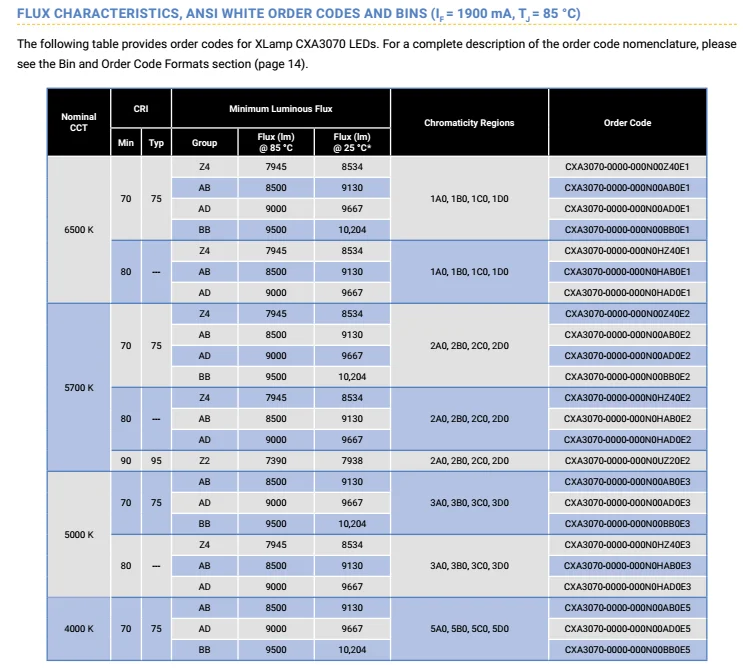

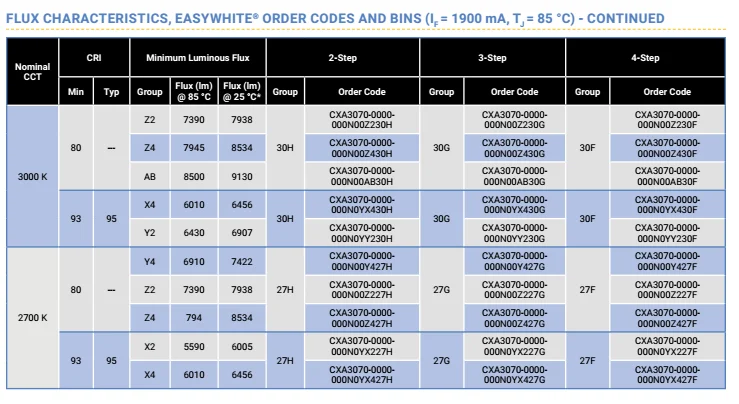

Order Code for Cree XLamp CXA3070 LEDs:

Advantages
> 100% original packing
> Steady & sufficient stocks
> High-end service quality
> Prompt delivery

Shipping Ways

Contact Person: Amy Kwin
Mob/WhatsApp: 0086-15986670753
Skype: amy.longgreat

Price

Price US$ 175 / Piece

Packaging & Shipping

- Packingoriginal cree packing
- Delivery Lead Time3-5 working days
- Minimum Order 10 Piece
- Supply Ability100000pcs per week
- Delivery Portshenzhen
