Product Attributes

- Brand Name rongxing
- Model Number WGP
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color Dark Blue
- Related Keywords Rigid Coupling, rigid shaft coupling, Fittings Rigid Flexible

Description by Manufacturer

GⅡCL Drum Gear Coupling Suitable for connecting two horizontal coaxial axis drive shaft system, with a certain Angle to compensate the relative offset performance of two shafts drum tooth coupling, working environment temperature -20 ~ +80C, transmission nominal torque is 0. 4-4500KN-m

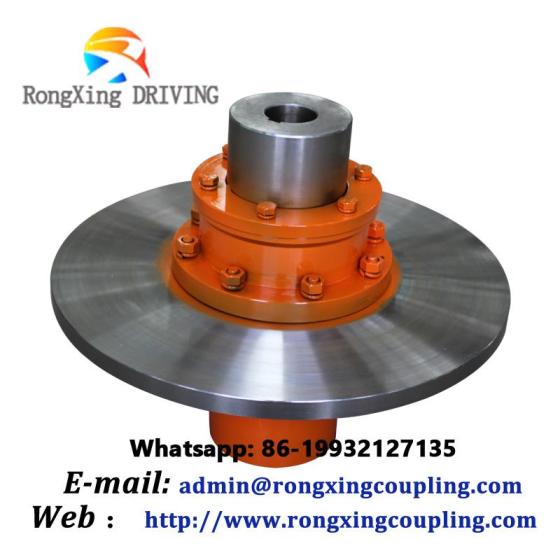

WGP Brake Wheel Drum Gear Coupling

Type	Nominal Torque TnKN・m	Allowable Speed [n] r/mi n	Shaft Hole Diameter d dz mm	Shaft Hole Length L	%	D	D,	d2	B	N	C	C,	c2	Inertia Moment kg • m~	Weight kg
Type	Nominal Torque TnKN・m	Allowable Speed [n] r/mi n	Shaft Hole Diameter d dz mm	Y J, Z,	%	D	D,	d2	B	N	C	C,	c2	Inertia Moment kg • m~	Weight kg
WGP1	0. 71	4000	12 〜42	32 〜112	315	122	98	60	58	38	3/30	19/29	12/18	0. 008	5.7
WGP2	1.25	4000	22 〜56	52 〜112	315	150	118	77	68	38	3/20	23/29	16	0. 02	10
WGP3	2.5	3550	22 〜63	52 〜142	355	170	140	90	80	49	3/33	23/36	16/25	0. 05	17
WGP4	4.5	2500	30 〜80	82 〜172	400450500	200	160	112	90	45	3/13	29/41	17	0. 1	26
WGP5	7. 1	2500	30 〜90	82 〜172	400450500	225	180	128	100	45	3/23	29/41	19	0. 17	35
WGP6	10	2000	32 〜100	82 〜212	560630710	245	200	145	112	44	5/35	28/48	20	0.3	52
WGP7	14	1700	32 〜110	82 〜212	560630710	272	230	160	122	44	5/45	38/48	20	0.5	68
WGP8	20	1700	55 〜125	107〜212	560630710	290	245	176	136	44	5/29	38/48	20/34	0.7	80
WGP9	25	1600	65 〜140	107〜252	630710800	315	265	190	140	58	5	38/53	28/38	1	107
WGP10	40	1600	75 〜160	132〜302	630710800	355	300	225	165	58	5/28	43/63	20/38	1.8	160
WGP11	56	1400	80 〜180	167〜302	710 800 900	412	345	256	180	58	8/15	51/66	32	3.7	215
WGP12	80	1400	120〜200	167〜352	710 800 900	440	375	288	207	58	8	51/76	32/45	6.4	305
WGP13	112	1400	140〜220	202〜352	800900	490	425	320	235	58	8	56/76	32/38	11	395
WGP14	160	1200	160〜260	242〜410	9001000	545	462	362	265	65	10	68/78	10/32	18	530

Note: 1. The weight and moment of inertia in the table are not calculated for the brake disc, and their values are shown in Table 2. 2.

Brake Disc Main Size, Weight And Moment Of Inertia

Disc diameter D。	T	K	S	D3max		Inertia Moment kg ・ m2		Weight kg
Disc diameter D。	T	K	S	I	II	I	II	I	II
315	15	10	42	180	155	0. 116	0. 11	8.5	6. 7
355	15	10	54	200	175	0. 192	0. 178	11.4	9. 9
400	15	14	54	255	230	0. 32	0. 29	15.2	12.4
450	15	16	54	305	280	0. 55	0. 46	19.7	15.6
500	15	18	54	325	295	0. 83	0.71	25	20
560	15	18	54	350	320	1.28	1. 13	30. 7	25.6
630	15	20	54	400	360	2. 06	1.83	38.8	33
710	15	20	54	480	420	3. 32	2.9	46.5	39.4
800	15	24	70	540	500	5. 87	4.8	67.8	52.7
900	15	24	70	600	560	9.3	7.9	86.6	70.3
1000	20	30	80	620	560	17.4	15. 7	128.8	115. 1
