DAA2 General Purpose Lighting Application EMI Filter 250VAC 1A-10A

Add to Basket Share to :

Price

US$ 1

Min Order Quantity1 Piece
Payment Terms 1
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Chengdu Mengsheng Electronic Co., Ltd.
Membership Free member
Registration Date2023.01.09
Country/RegionChina
CityChengdu
Contact Eric(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name DOREXS
- Model Number daa2
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color White
- Related Keywords DAA2, EMI FILTER

Description by Manufacturer

DAA2 series filters provide industry-leading performance by leveraging innovations in materials and design to ensure compliance with the most stringent restrictions and requirements. 1A-10A rated current selection range, 220V rated voltage, single-stage or double-stage filter design, a wide range of electronic and electrical equipment applications. DAA2 series filters support customization to meet your special parameter requirements.

Features of DAA2 Series

Two-stage filters are designed for easy and fast chassis mounting
DAA2 versions EMI filter without capacitors to earth comply to 1MOP for ME (medical equipment) acc
Two-stage filters are designed with good low frequency attenuation
DAA2 EMI filters are also available with two common mode choke configuration
All filters provide a high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior

Technical Parameters

Product Name:DAA2 EMI filter
Rated Current:1A-10A
Rated Voltage:110VAC-250VAC
Working Frequency:50/60HZ
Temperature Range:-25℃~85℃
Withstand Test Voltage:1500VDC(line/line)，2150VAC(line/ground)
Fire Resistance：UL 94V-0

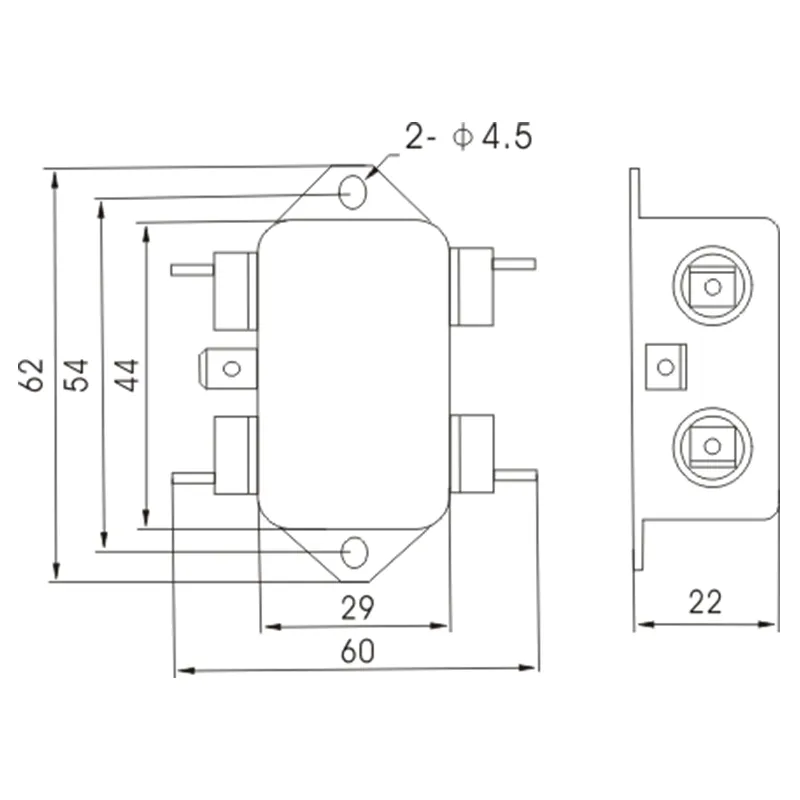

DAA2 Overall Dimension（±1mm)

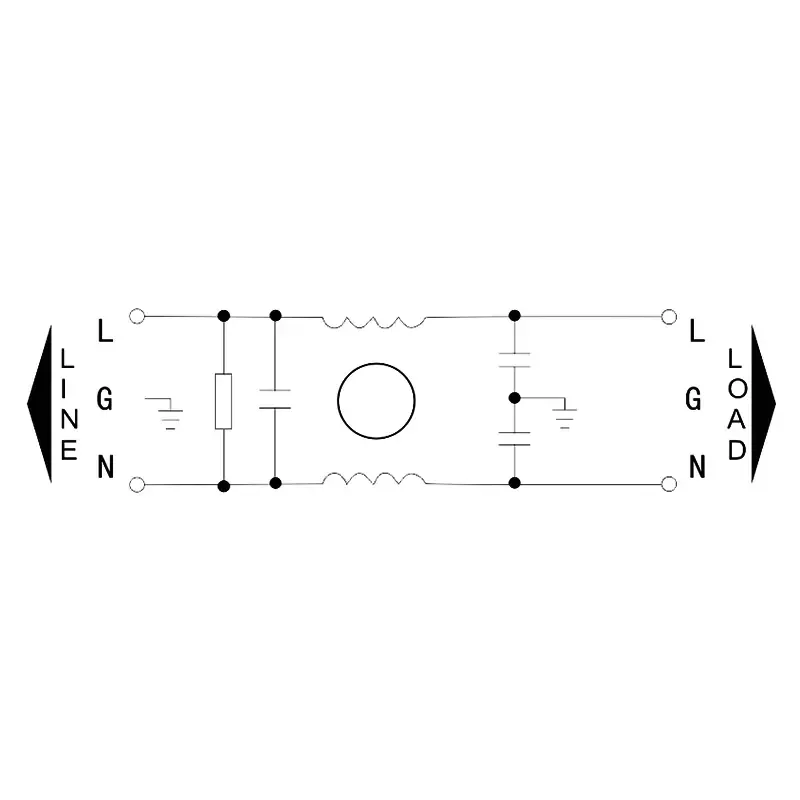

DAA2 Circuit Diagram	Approvals and Compliances

DAA2 Applications

Lighting equipment
LED drivers
Industrial and architectural lighting
Household electrical appliances
Electronic and electrical equipment
Office equipment

DOREXS offers more power line noise filter options, please contact us.
