Diameter 50mm High Power DC Motor Powder Coating Frame 50ZYT in Ambulance Pump

Add to Basket Share to :

Payment Terms 1

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Retek Motion Co., Limited
Membership Free member
Registration Date2023.08.08
Country/RegionChina
CitySuzhou
Contact Zhou Zhongyan(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Related Keywords DC Motor

Description by Manufacturer

PRODUCT DETAILS

Optional Voltage	DC 12V/24V/36/V/48V/120V/230V	Powers	10W~100W
Pole	2, 4	Application	Chargable Tools, Automated Device
Custom Made	Accept Custom-Made	Pricing	Competitive
Original	China
High Light	industrial dc motor , electric vehicle dc motor

PRODUCT DESCRIPTION

φ50mm OD: D50 Series 50ZYT DC Motors for Automobile, Grinder, Ambulance pump,Breathing Machine

Typical Application:
Gearmotor, linear actuator,power tool, spreader,auger,automations,ambulance pump, breathing machines, air purifiers and so on.

Features:
Low Noise, Long lifespan, Cost less and Save more for your benefits.

1. Dia.optional: 50mm, 51mm, 52mm.
2. Number of Poles:2
3. Magnet material:Hard Ferrit
4. Insulation Grade: Class F
5. Shaft Material: SS303/SS304, 40Cr, #45 Steel.
6. Frame: Powder Coating, Electroplating,Electrophoresis surface treatment.
7. Armature Design: Skewed Slots Rotor Design for smooth running.

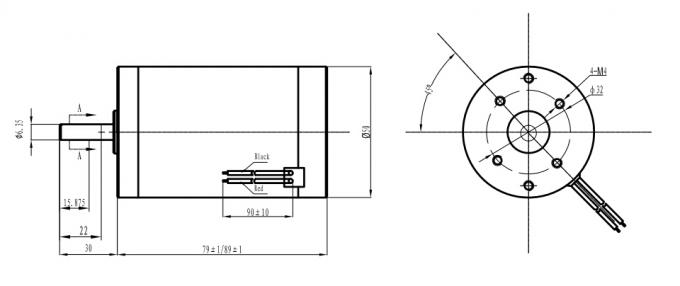

Drawing:

Diameter 50mm High Power DC Motor Powder Coating Frame 50ZYT In Ambulance Pump 0

Technical Performances:

Type	Rated Voltage (VDC)	No-load Speed (r/min)	No-load Current (mA)	Rated Speed (r/min)	Rated Torque (mN.m)	Output Power (W)	Rated Current (A)	Stall Torque (mN.m)	Stall Current (A)
D5085A-12	12	4490	0.58	3790	90	35.7	4.5	577	28.9
D5085A-24	24	4200	0.28	3600	100	37.7	2.3	700	16.1
D5085A-48	48	4280	0.17	3680	100	38.6	1.3	713	9.3

Diameter 50mm High Power DC Motor Powder Coating Frame 50ZYT In Ambulance Pump 1
Shipping:

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!

Our advantage:
1. Our products have a competitive advantage.
2. We have a team of professional engineers to solve various technical problems and provide you with more professional advice.
3. Good working environment and corporate cohesion.
our service:
1. Your inquiry about our products or prices will be answered within 48 hours.
2. Well-trained, experienced staff answer all your questions in fluent English.
3. Check the goods before shipment.
4. We respect your feedback after receiving the goods.

Our company is a manufacturing company specializing in the production of motors. If you have any needs, please contact us, we will protect your sales area, design concept and all private information.
The above motors are a small part of our products for your reference and viewing.
If you want to know more about the product, please contact us!
