Product Attributes

- Brand Name COLABLE
- Model Number COL5100
- Place of Origin China
- video input SDI,HDMI,CVBS,S-video
- video encoding h.264
- stream output 2ASI,IP
- power consumption 17.6w
- weight 5kg
- Related Keywords video encoder, sdi encoder, hdmi encoder, hd encoder

Description by Manufacturer

COL5100 HD H.264 Encod

Outline

COL5100 HD H.264 Encoder adopts the most advanced H.264 audio encoding algorithm. This device can encode and transmit high-quality audio & video under the low bit-rate. Also can support AAC (optional), it has several analog and digital video input interfaces (CVBS, YPbPr, SDI, and HDMI), and audio input interfaces (RCA, XLR, HDMI, AES and EUB). Its high integrate and cost effective design gives users excellent digital video encoding solution.

Features

üMPEG1 Audio Layer 2 ,AAC(optional)

üCVBS, S-Video, YPbPr analog video input support

üH.264/AVC High Profile Level 4.0 and H.264/AVC High Profile Level 3.0 encoding support, advanced video pre-processing algorithms

üHDMI, HD/SD-SDI digital video input support

üAES/EBU, HDMI, HD/SD-SDI digital audio input support

üXLR (balance), RCA (unbalance) analog audio input support

üPAL, NTSC SD video format support

ü720P, 1080I HD video format support

üNMS support

üUDP media transmission protocols & unicast/multicast output support

Specifications

Video input			1 × Analog CVBS, BNC interface
			1 ×S-Video Analog YPbPr input, BNC interface
			1 × YPbPr video input, BNC interface
			HD/SD-SDI, BNC interface
			HDMI interface
Audio input			Analog stereo audio(balanced), XLR interface
			Analog stereo audio(unbalanced), BNC interface
			AES / EBU digital audio, XLR interface
			HD/SD-SDI embedded audio
Video	Resolution		1920x 1080p, 1920 x 1080p
			1920×1080i , 1920×1080i
			1280×720p, 1280×720p
	Encoding		AVC/H.264 High Profile Level 4.0 for HD AVC/H.264 High Profile Level 3.0 for SD
	Bit-rate		0.8Mbps~20Mbps
	Rate Control		CBR/VBR
	GOP Structure		IBBP
	Advanced Pretreatment		De-interlacing, noise reduction, sharpening
Audio	Encoding		MPEG-1 Layer 2
	Sampling rate		48KHz
	Resolution		24-bit
	Bit-rate		32Kb/s~384Kb/s
Stream output			2×ASI outputs, BNC interface
			SPTS over UDP, 10/100Base-T Ethernet interface (UDP unicast / multicast)
System function			LCD/keyboard operating, NMS support Chinese-English control interface
			Ethernet software upgrade
General		Dimensions	480mm×456mm×45mm
		Approx weight	5Kg
		Temperature range	0~45°C(Operation), -20~80°C(Storage)
		Power requirement	AC110V±10%, 50/60Hz AC 220V±10%,50/60Hz
		Power consumption	17.6W

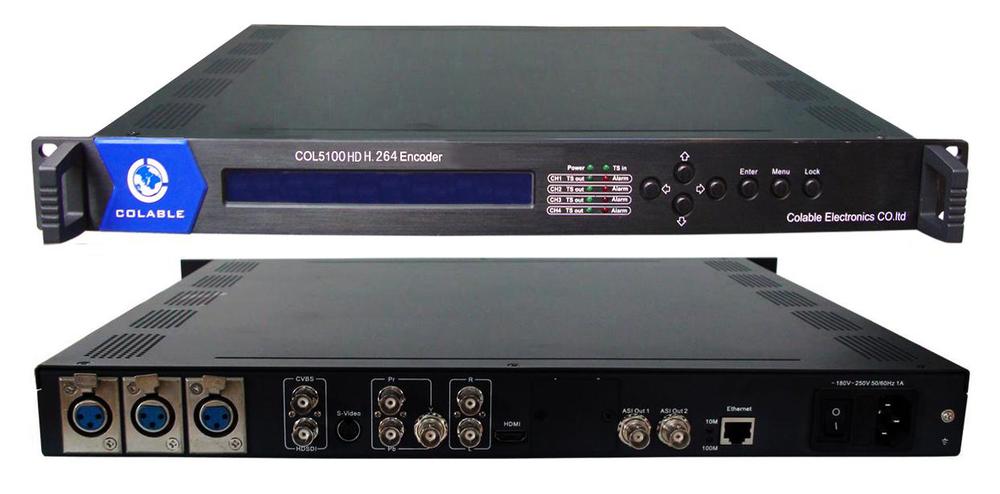

	LCD display screen
	Indicator LED	Power:the device is working
		TS output:The output stream is TS
		SD/HD:SD/HD signal indicator
		Encode Start:The device starts to encode
		Encode Error:The device has encoding error
		CVBS :CVBS input indicator
		S-VIDEO:S-VIDEO input indicator
		YPbPr:YPbPr input indicator
		HDMI:HDMI input indicator
		HD/SD-SDI:SDI input indicator
	Up/Down/Left/Right Arrow
	Enter:Confirm key
	Menu:Menu key
	Lock:Lock key

	Digital audio input interface: AES/EBU, XLR
	CVBS input interface
	HD/SD-SDI input interface
	S-VIDEO input interface
	YPbPr input interface
	Analog audio input interface
	HDMI input interface
	Two same ASI output interface
	10M/100M Ethernet interface
	Power switch and socket
	Ground pole

Price

Price Condition FOB

Packaging & Shipping

- Packingcarton
- Packaging Size480 x 456 x 45 ( Millimeters)
- Package Weight 5 ( Kilograms )
- Delivery Lead Time2-5days after payment confirmmed
- Minimum Order1
- Supply Ability5000set
- Delivery PortChengdu

Product Image

Digital 1 Channel Video Encoder with SDI HDMI CVBS Input COL5100

Video Encoder Related Products

Company Profile

About Colable Electronics.,Ltd

Membership Free member
Registration Date2015.06.01
Country/RegionChina
CityChengdu
Contact Dana Zhang(Mr.)

As the outstanding supplier of Digital broadcasting and TV network, Colable electronics is expert in transforming television system from analogue to digital, or building new digital system with lest cost and most effective way. What we can offer is total solution of DVB-C/S/T from headend to user end with the way of cable, MMDS, DTH. And our projects relate to different areas, such as city or village coverage, hotel, hospital, university, casino etc.
Colable develops well all the time because it owns one excellent technology and sales team. And the most important point is colable can always provide the most suitable solution to clients from traditional to advanced. Calable’s products include: IRD, satellite receiver, MPEG2/4 /H.264 encoder, TS multiplexer, standard alone scrambler, QAM/QPSK/COFDM modulator, CAS&SMS, EPG, DVB-C/S/T set top box, MMDS transmitter, antenna, EoC ( Ethernet over Coaxial ) Data Access System based on two-way HFC network, Epon. We also integrate NVOD, PPV and CATV Equipments: optical transmitter, receiver, amplifier, tap, splitter, fiber, cable etc to the clients who require.
Colable’s perfect products and service win good commend at home and abroad, we will redouble our efforts to meet the next brilliance.
