Essential details
Material:
Stainless steel, Bronze, Nitronic 60, Inconel X 750, Nimonic 90
Type:
Wire thread insert
Size:
As design
Place of Origin:
Henan, China
Brand Name:
Thaishell
Model Number:
ISO Metric Coarse, Fine/Unified UNC, UNF
Product name:
Wire Thread Insert, Helical Coil Insert, Wire Sleeve
Thread Form:
ISO Metric Coarse, Fine/Unified UNC, UNF
Certificate:
ISO9001:2015, IATF16949:2016
Dye Color:
Original, red, green, blue
Customized:
Available
Packing:
Plastic Bag+cartons
Service:
OEM ODM
Delivery time:
3-7 Days
Thread Size:
Metric M2-M60, Unified #4-40 to 1 1/2"-6 (Other sizes on request)
Application:
Automotive, General Industry, Heavy Industry, Electronic
Supply Ability: 100000 Piece/Pieces per Day
Donghai Thaishell Wire Thread Insert Heli Coil Insert Screw Fasteners Stainless Steel M6*1.5*1.5d Available Unified UNC, UNF
The description of threaded inserts:
Wire thread inserts are also called threaded sheaths, stainless steel threaded sleeves, wire sleeves, and braces. Produced from Stainless Steel wire, which is cold drawn (profiled) to form a diamond shaped wire. The wire is helically coiled to produce a wire thread insert. The finished insert provides a high performance, heat and corrosion resistant internal thread which is far stronger than parent materials such as Aluminium and Magnesium alloys.
The application of threaded inserts:
Threaded Inserts are designed to improve the strength of assemblies by distributing forces from the fastener over a large area in the base material, thus increasing the load-bearing capability. For metals such as aluminum, this means full utilization of high-tensile-strength fasteners. In plastics, Threaded Inserts avoid wear and cold-flow problems encountered with thread-forming screws. Threaded Inserts offer both engineering and cost economies.
The benefits of wire thread inserts:
Corrosion resistant
Combat wear in threaded components
Resist the effects of temperature
Maintains bolt tension under severe vibration conditions
Permanent wear-resistant screw threads exceeding parent material strength
You can have any length, pitch or material.
Special lengths, pitches and materials can be manufactured to meet individual customer requirements.
Material & Plating of threaded inserts:
Product Name | Temperature Resistance |
Nitronic 60 Wire Thread Insert Helicoils Insert M5 M6 M8 M10 M12 M14 | Stainless steel: 425°c short-time, 315°c long-time Phosphor Bronze: 300°c short-time, 250°c long-time Nitronic 60: 425°c short-time, 315°c long-time Nimonic 90: 750°c short-time, 550°c long-time |
Materials | Available surface treatment |
Stainless Steel 304, 321, 316L; Phosphor Bronze (CuSn6, C51900, C5191); Nitronic 60 (AISI/ASTM Alloy 218, UNS S21800, HPA 50); Inconel X 750 (UNS N07750); Nimonic 90 (UNS N09901) | No plating
dry lubricating film
cadmium plated
silver plated |
Application |
Can be used in virtually any material including aluminum, cast iron, steel, plastics. |

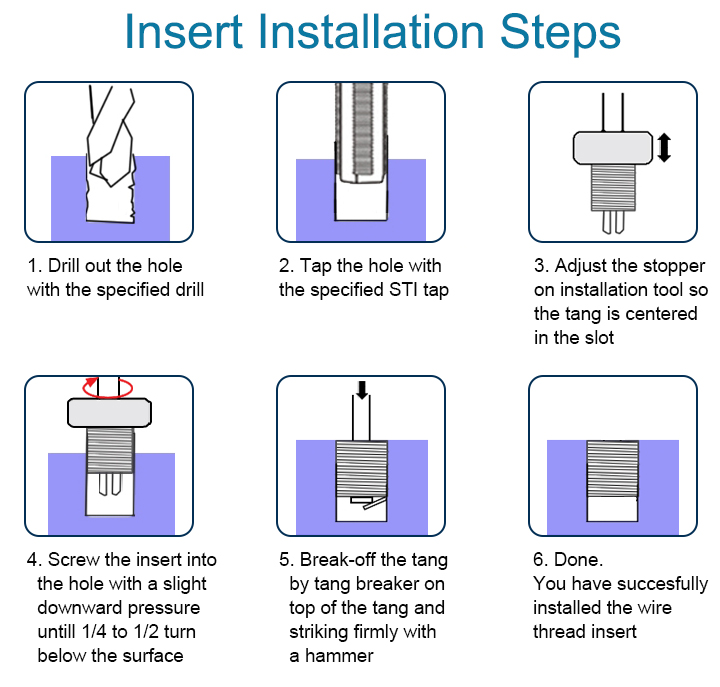

Insert Installation Instruction:1. Drill and prepare the base hole in the parent material using certain proper size drill bit to Donghai recommended dimensions.
2. Tap the drilled hole using STI tap we supplied.
3. Place the insert onto the insertion tool, be sure the tang is properly engaged in the driving contour.
4. Position the insert and tool squarely over the tapped hole, and ensure the installation tool is perpendicular to the hole axis.
5. Rotate the installation tool, exerting slight pressure until insert is located 1/4-1/2 turn below the surface.
6. Break off thetang at the notch in the insert bottom coil with supplied tang break-off tool.

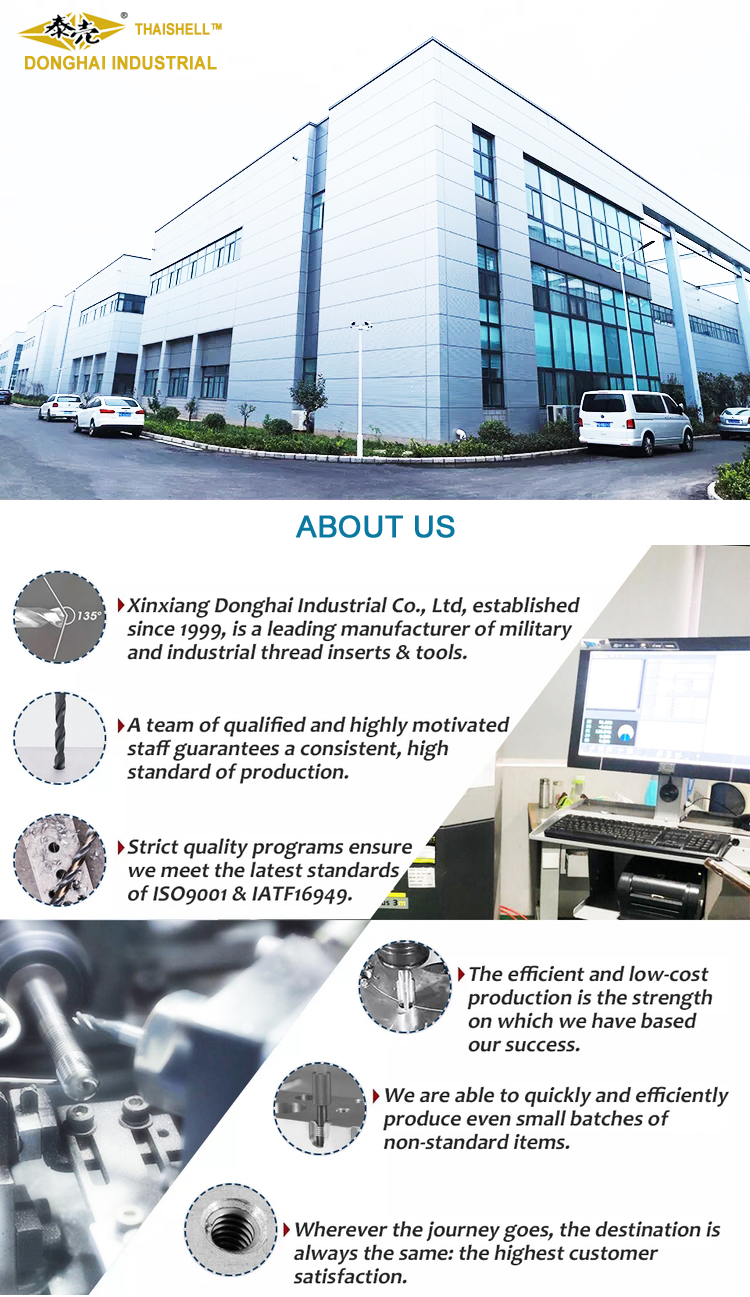

Xinxiang Donghai Industry Co., Ltd. is located in the Hi-Tech Zone , which is the center of highly skilled talents of Xinxiang City. We specialized in manufacturing the different series of Wire Thread Inserts according to National Standard, MS Standard,ZIN Standard, Unified Thread Standard and it also maktes all kinds of related tools. We registered the self-owned brand Thaishell in 2014.Our research and development team consists of young and middle-aged experts having rich experience in fastener industry. We strict controls product quality and management system, to provide individualized product solutions.

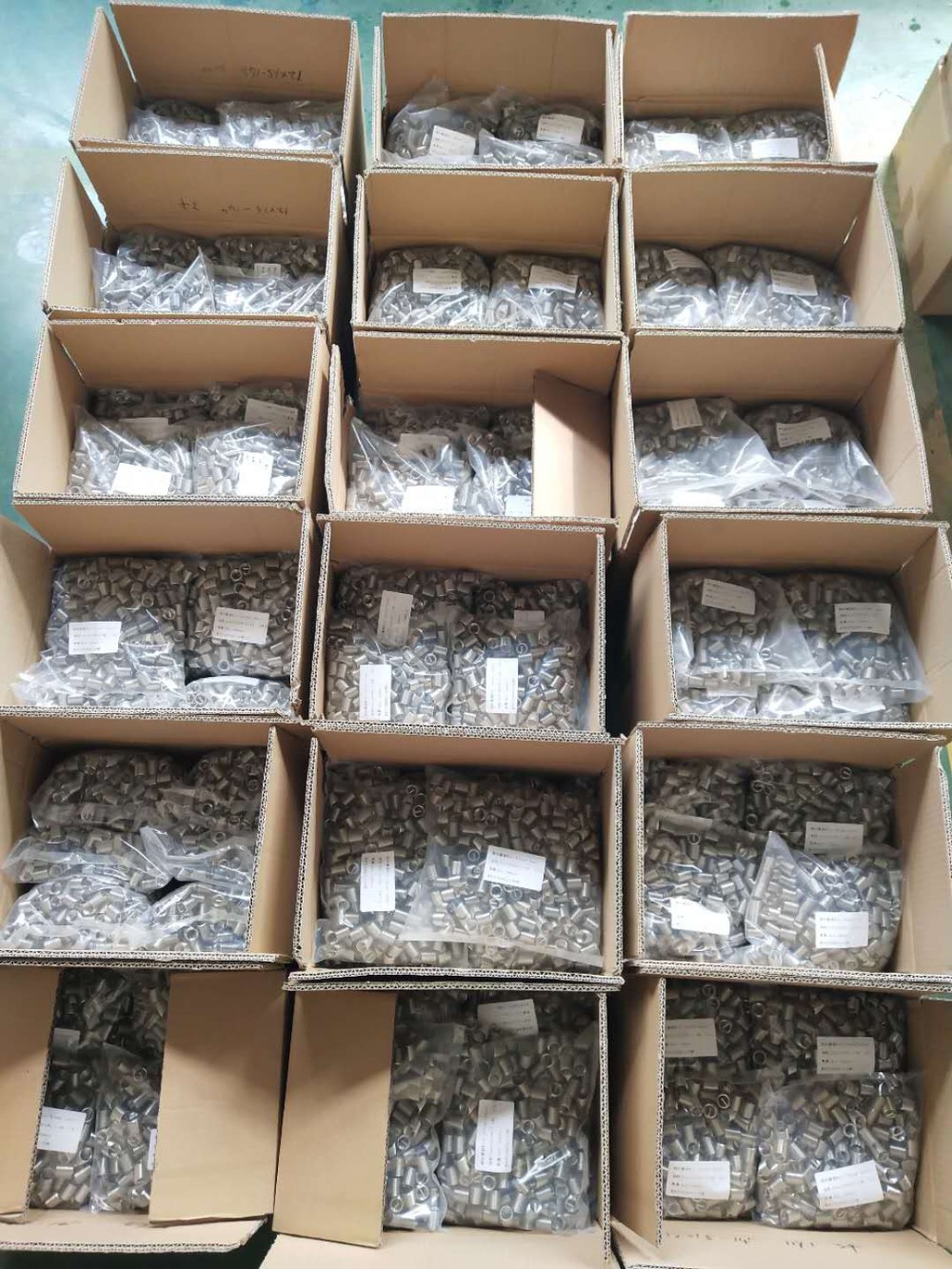

Packing: Usually packed in boxes or bags, can be packed according to customer requirements.
Delivery: 3-5 working days after receipt of payment. If the customer does not have a forwarder in China, we will choose a fast, cheap and safe shipping method for the customer.
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is7days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples for free, but no shipping fee.
Q: What are your payment terms?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Welcome to other terms.
Q: What are your price terms?
A: EXW/FOB/CIF/CFR/FCA/CPT/CIP etc.
Q: What is your product range?

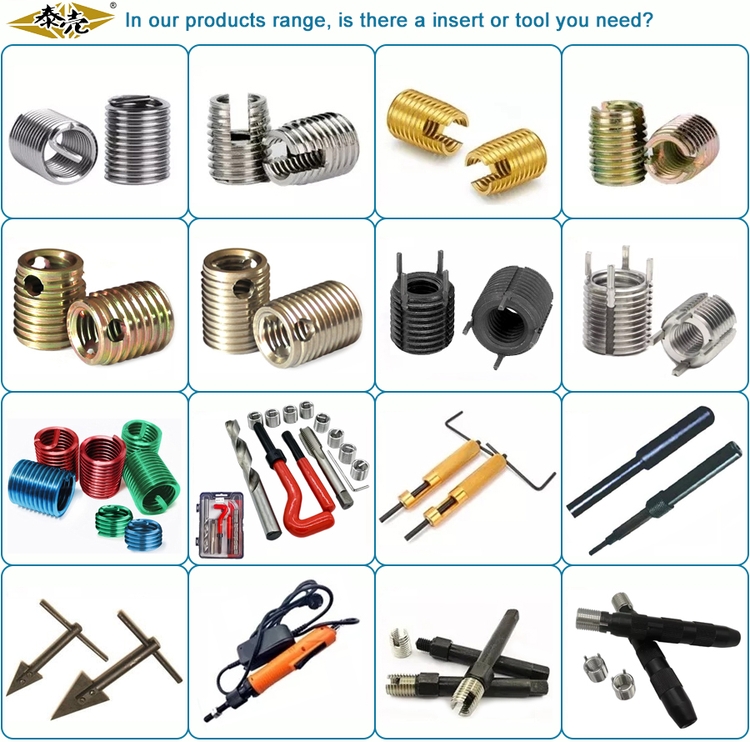

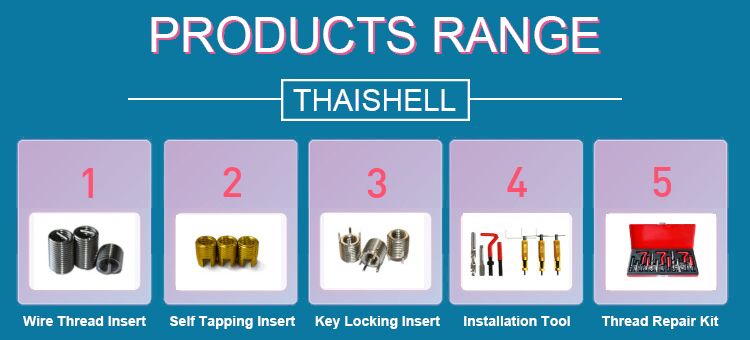

A: Our product range includes wire thread insert, self taping thread insert, key insert, tap, heavy duty keensert, etc. We strictly implement various quality standards such as GB, ISO, DIN, JIS, AISI NFE, BSW, etc., and also accept non-standard products.
Q: Why should I choose you? What are your advantages? What industry do you serve?
A: We are a professional manufacturer with many years of production and management experience in the field of fasteners. We can provide our customers with good solutions in terms of production design, production technology, packaging and after-sales service. Customer satisfaction is our only pursuit.
Thank you for your time! Your satisfaction and good feedback are our eternal pursuit!
If you have another question, pls feel free toContact Us.
