Double Serial Device RS232 RS485 RS422 Ethernet Server Modbus Multi-host Polling

Add to Basket Share to :

Price

50 - 199
US$ 125
200 - 499
US$ 120
≥500
US$ 115

Min Order Quantity50 Piece
PortBeijing
Payment Terms 1
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name GPSENKE Network ICT
Membership Free member
Registration Date2021.04.19
Country/RegionChina
CityBeijing
Contact Jonas(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name GPSENKE
- Model Number GP-C6004
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color Black
- Related Keywords serial device server, RS232/RS485, serial server, serial device supplier

Description by Manufacturer

Introduce

GP-C6004 serial device server provides a function that converts RS-232/485/422 serial ports into TCP/IP network interfaces, enabling transparent bi-directional data transmission between RS-232/485/422 serial ports and TCP/IP network interfaces. Enables serial devices to immediately have TCP/IP network interface functionality.

Key Features

With metal housing and multiple mounting design, suitable for industrial applications

Wide power input (12~48VDC), suitable for different power supply methods U

p to 4* RS232/RS485/RS422 ports for multi-serial applications

Wide baud rate range of 300-921600bps, suitable for inter-device applications

Support multiple operation modes: VCOM, MCP, TCP SERVER, TCP CLIENT, UDP

Support Remote Pair mode, Modbus TCP SERVER, Modbus TCP CLIENT, MQTT.

Support secondary development of software, to meet the special applications of different scenarios.

Support for Web firmware upgrades for special applications in different scenarios

Technical parameters

Model	GP-C6004	GP-C6004MT
Processor	32bit 400MHZ
Storage	128M
Ethernet interface	10/100M() auto MDI/MDI-X Ethernet interface, interface RJ45	10/100M（Built-in 1.5KV electromagnetic isolation）auto MDI/MDI-X Ethernet interface, interface RJ45
Serial Standard	RS-232, RS-485, RS-422	RS-485, RS-422
Serial Connector	4×RJ45	4×4Pin 3.81mm terminals
Indicator light	PWR light RUN	Power indicator light PWR, Running indicator light RUN
Power connector	DC-005 DC socket or 3Pin 5.08 terminal for power supply, with built-in protection against reverse connection, to avoid damage to the equipment by wrong positive and negative connection
Power range	DC12~48V
Function buttons	1 factory reset button RESET
Max.power consumption	2W
Housing	Metal housing, protection level IP30
Operating environment	Storage temperature: -40~85°C Operating temperature: -40~85°C Relative humidity: 5 ~95% (Non-condensation)
Dimensions L×W×H	161mm×91mm×37mm（Without mounting parts）
Net. Weight	350g

Software Parameter

Operating System	Based on Linux
Protocol support	ARP,IP,ICMP,UDP,TCP,HTTP,DHCP,SNMP,MQTT,MODBUS
Configuration method	Web browser, VCOM Utility(Virtual COM Only Windows)
Operating Mode	VCOM,MCP,TCP SERVER,TCP CLIENT,UDP,Remote Pair mode,Modbus TCP SERVER,Modbus TCP CLIENT,MQTT
Baud rate	300-921600bps
Data Bits	5,6,7,8
Stop Bits	1,2
Check Bits	None,Odd,Even
Flow Control	RTS/CTS,DTR/DSR,XON/XOFF（Only RS-232）

Price

Price US$ 115 ~ 125 / Piece

Product Image

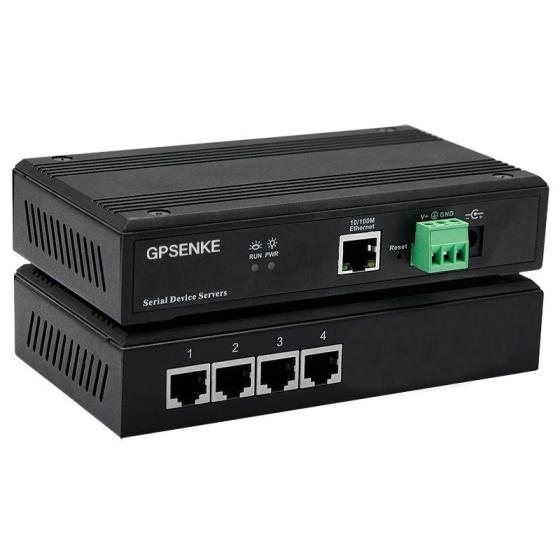

Double Serial Device RS232 RS485 RS422 Ethernet Server Modbus Multi-host Polling
