Drying production line
The drying production line is a complete set of equipment for heat drying and screening sand or other bulk materials. It consists of the following parts: wet sand hopper, belt feeder, belt conveyor, burning chamber, rotary dryer (three-cylinder dryer, single-cylinder dryer), cyclone, pulse dust collector, draught fan, vibrating screen, and electronic control system.
The sand is fed into the wet sand hopper by the loader, and be conveyed to the inlet of the dryer through the belt feeder and conveyor, and then enters the rotary dryer. The burner provides the drying heat source, and the dried sand is sent to the vibrating screen by the belt conveyor for screening (usually the mesh size is 0.63, 1.2 and 2.0mm, the specific mesh size is selected and determined according to actual needs). During the drying process, the draught fan, cyclone, pulse dust collector and pipeline constitute the dust removal system of the production line, and the whole line is clean and tidy!
Because sand is the most commonly used raw material for dry mortars, the drying production line is often used in conjunction with the dry mortar production line.

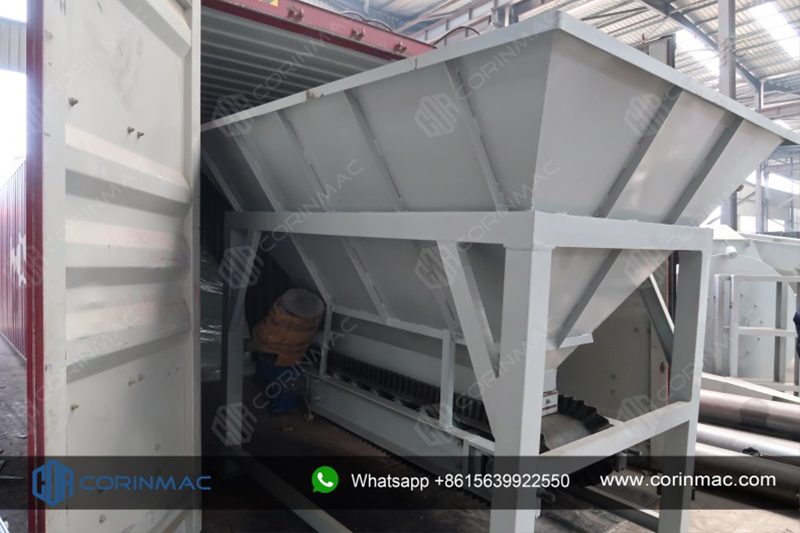

Wet sand hopper

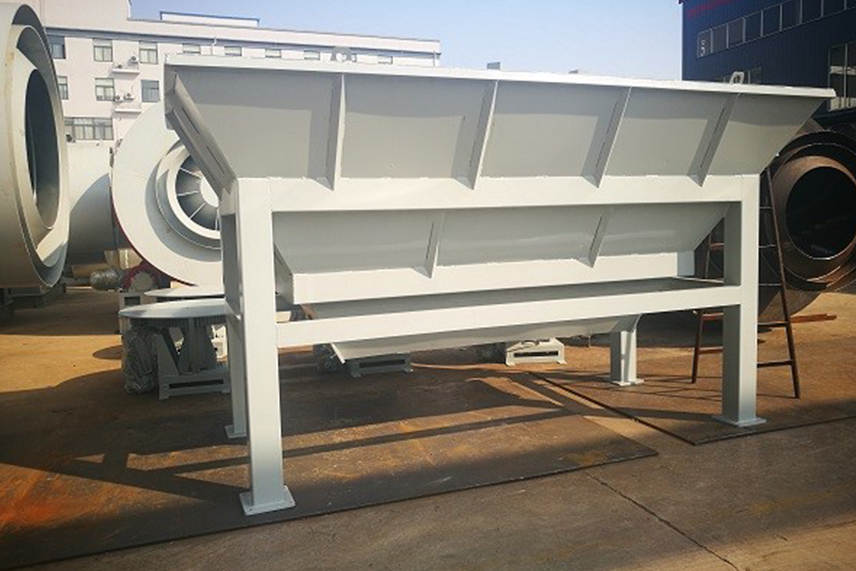

The wet sand hopper is used to receive and store the wet sand to be dried. The volume (standard capacity is 5T) can be customized according to user needs. The outlet at the bottom of the sand hopper is connected to a belt feeder. The structure is compact and reasonable, strong and durable.

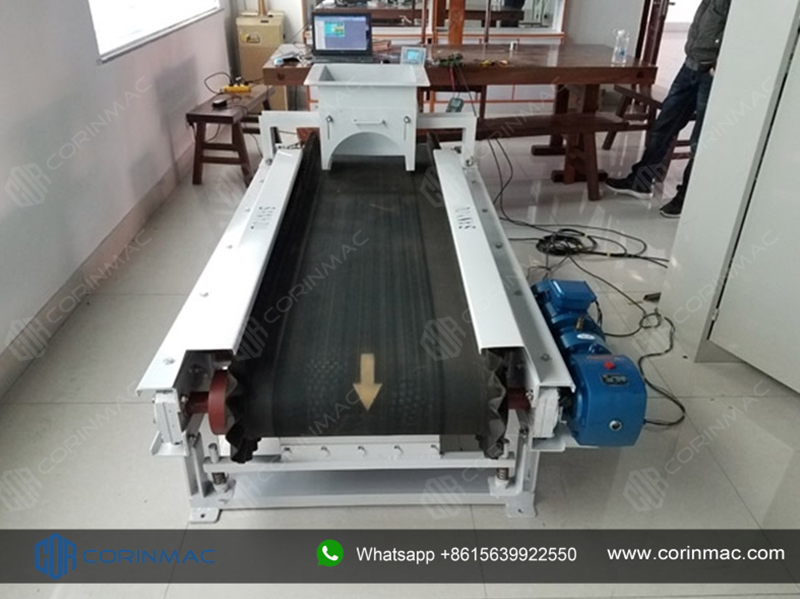

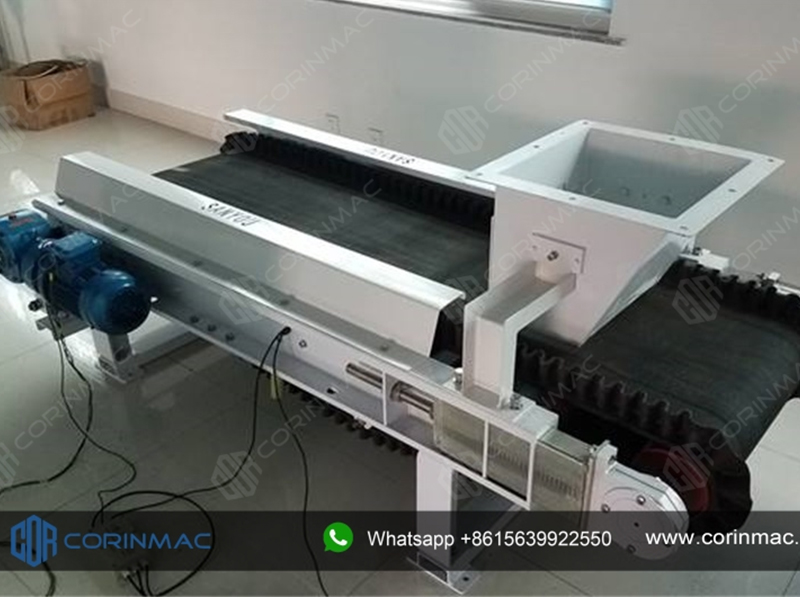

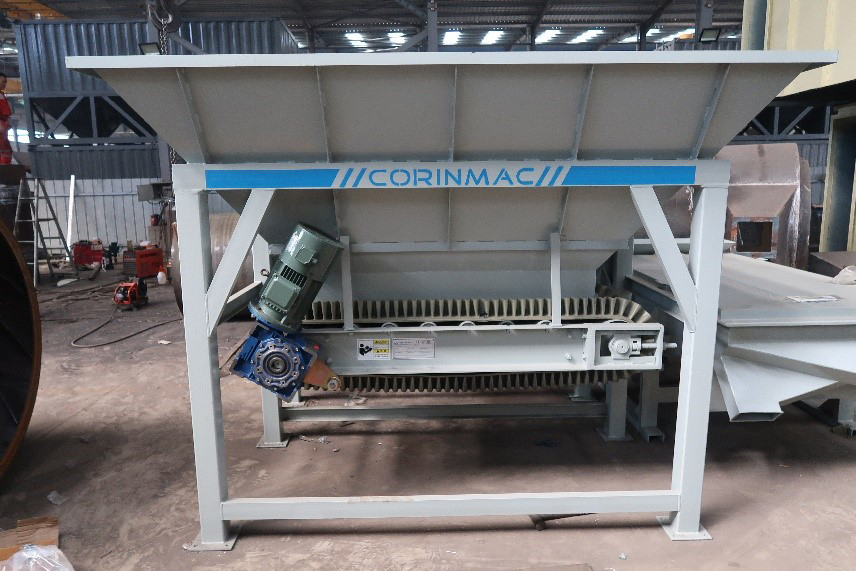

The belt feeder is the key equipment for evenly feeding the wet sand into the dryer, and the drying effect can be guaranteed only by feeding the material evenly. The feeder is equipped with a variable frequency speed regulating motor, and the feeding speed can be adjusted arbitrarily to achieve the best drying effect. It adopts skirt conveyor belt to prevent material leakage.

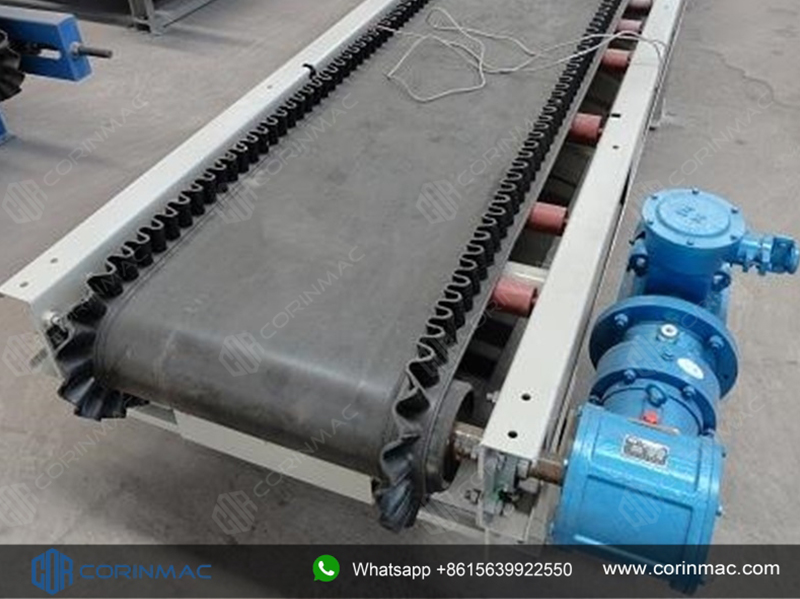

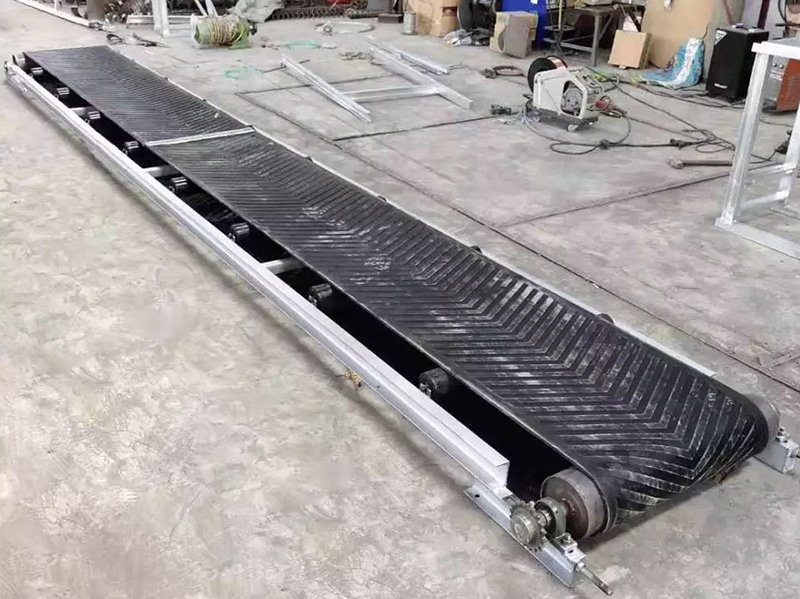

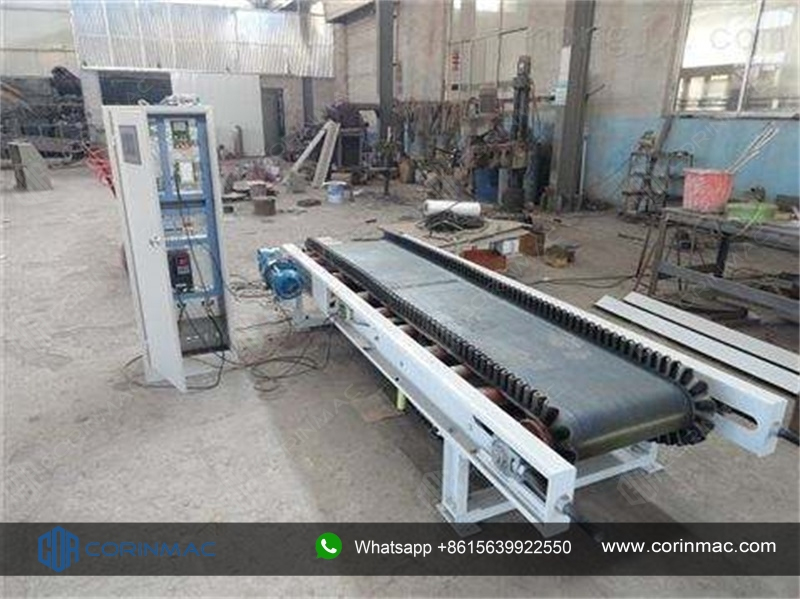

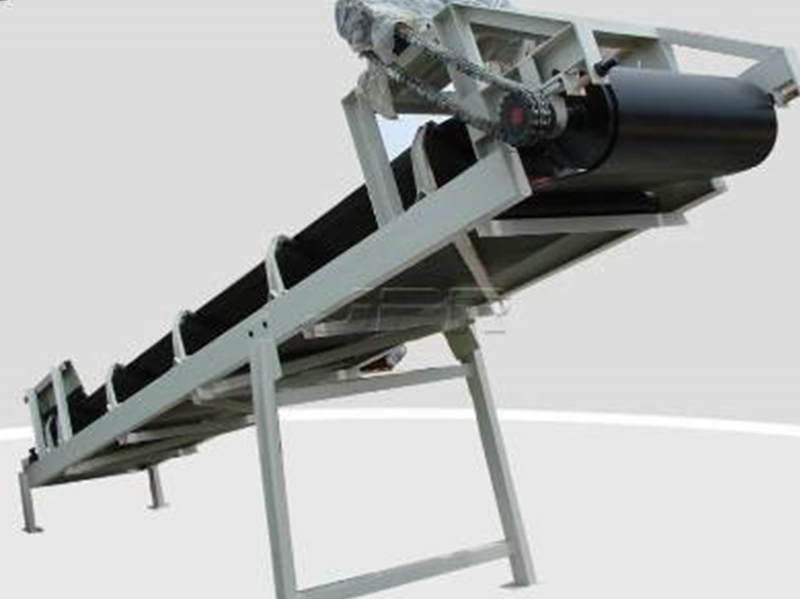

Belt conveyor
Belt conveyor is used to send the wet sand to the dryer, and convey the dried sand to the vibrating screen or any designated position. We use nylon conveyor belt, which has high strength, impact resistance and long life.

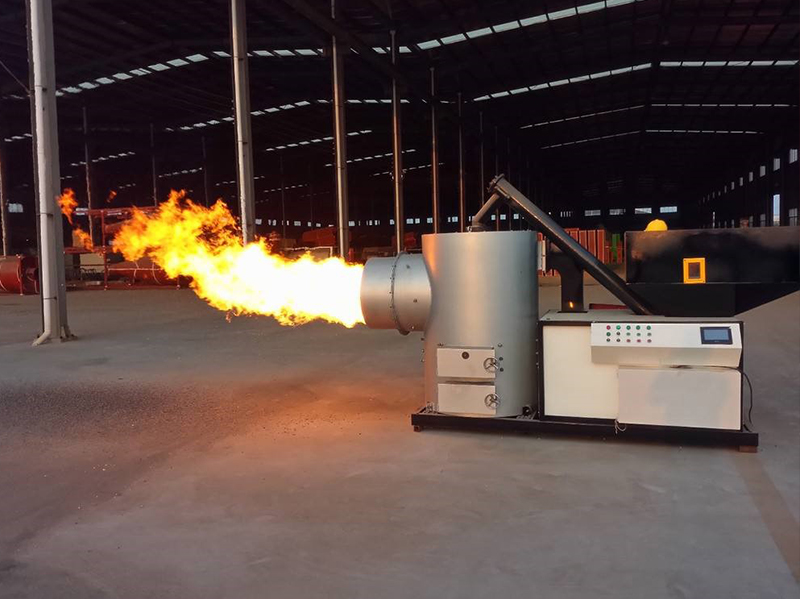

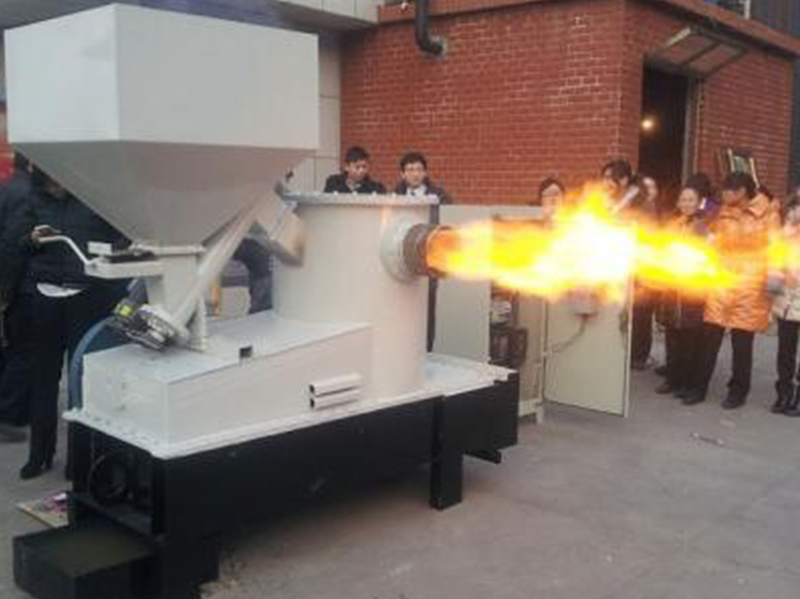

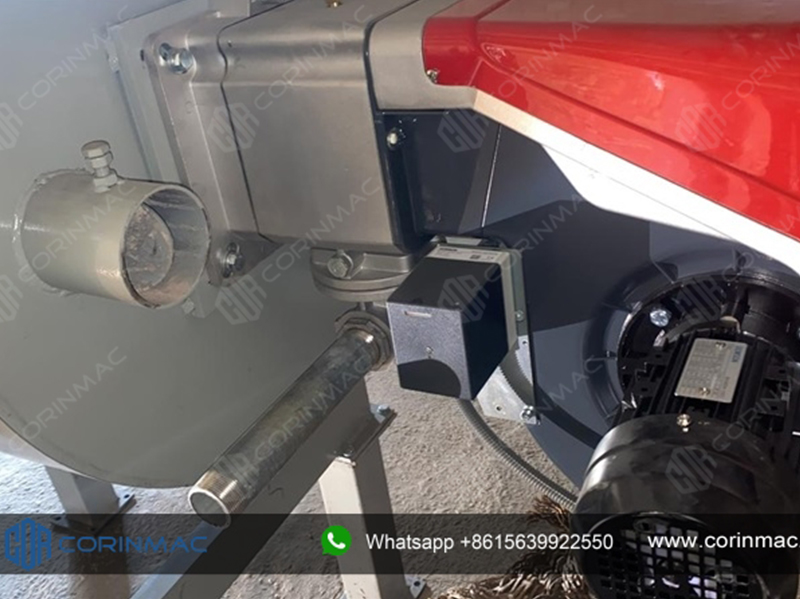

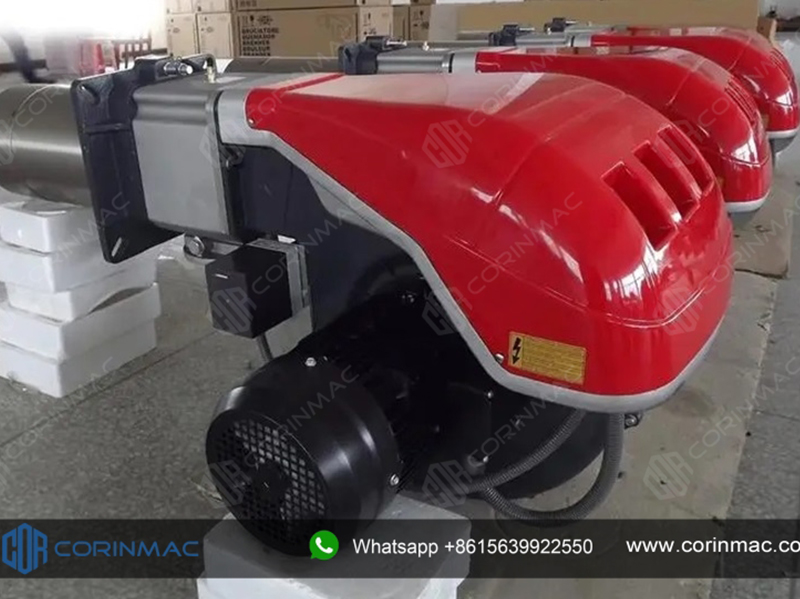

Depending on the user's fuel, we can provide gas burners, light oil burners, heavy oil burners, pulverized coal burners, and biomass pellet burner, etc.

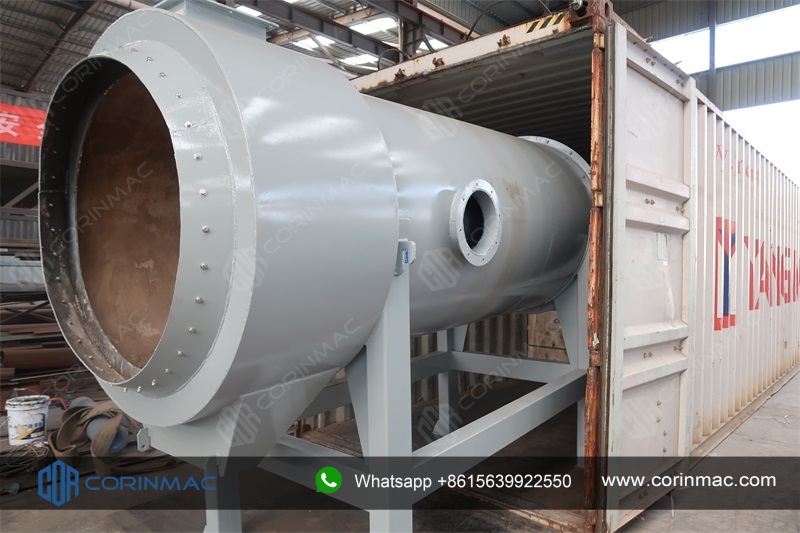

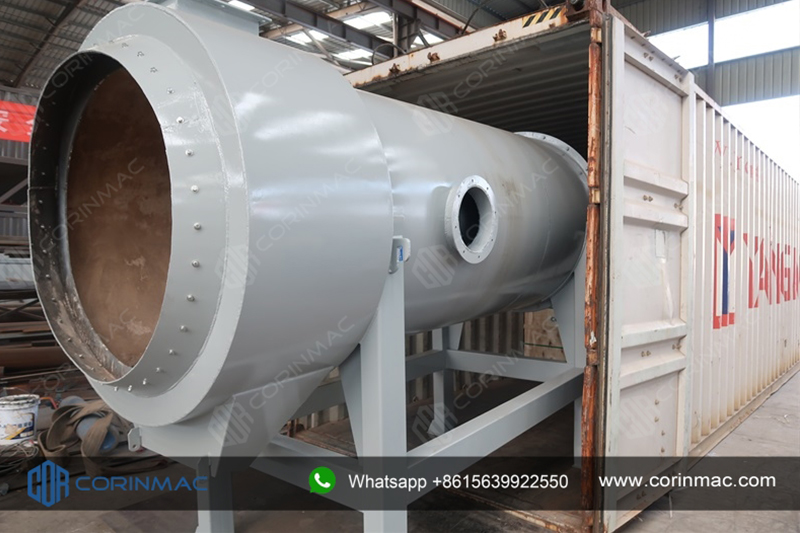

Burning chamber
Provide space for fuel combustion, the end of the chamber is provided with an air inlet and an air regulating valve, and the interior is built with refractory cement and bricks, and the temperature in the burning chamber can reach up to 1200 ℃. Its structure is exquisite and reasonable, and it is closely combined with the dryer cylinder to provide sufficient heat source for the dryer.

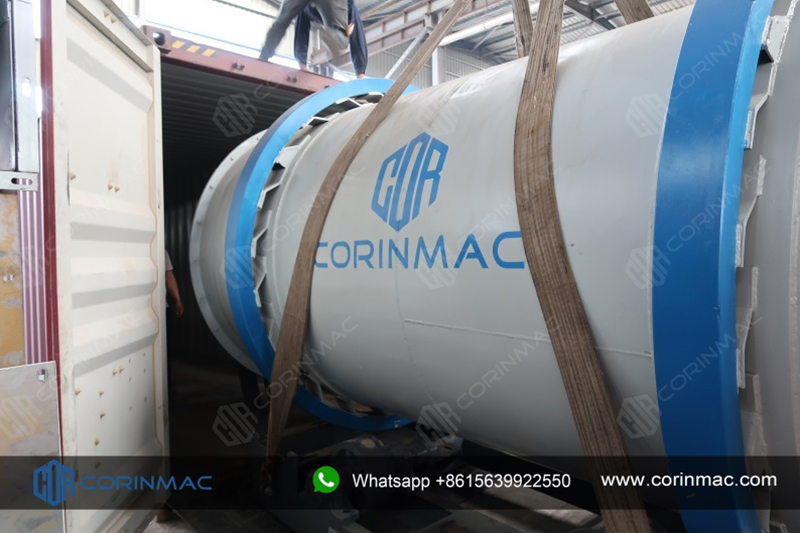

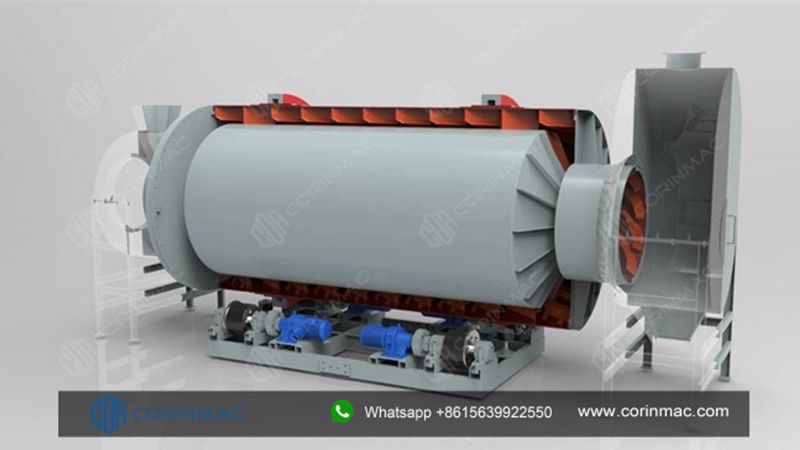

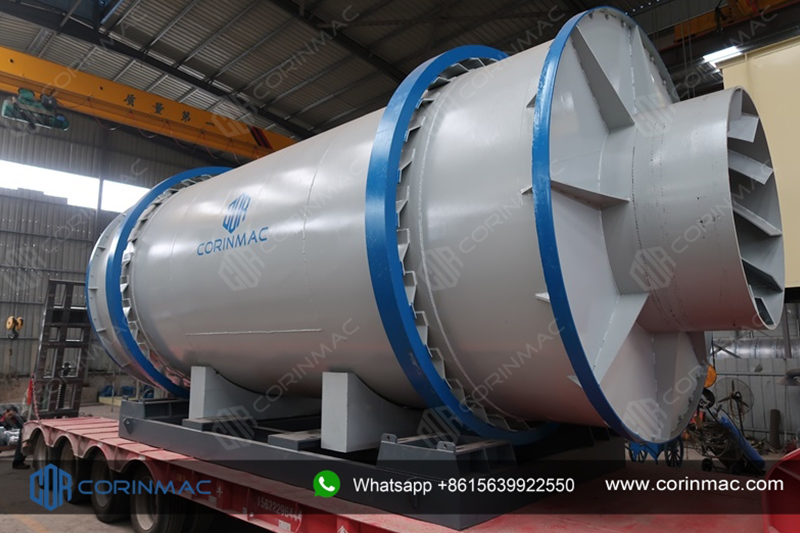

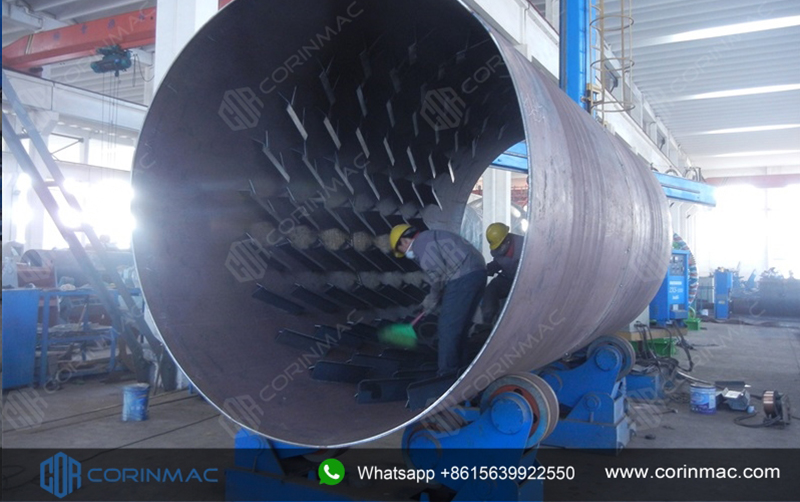

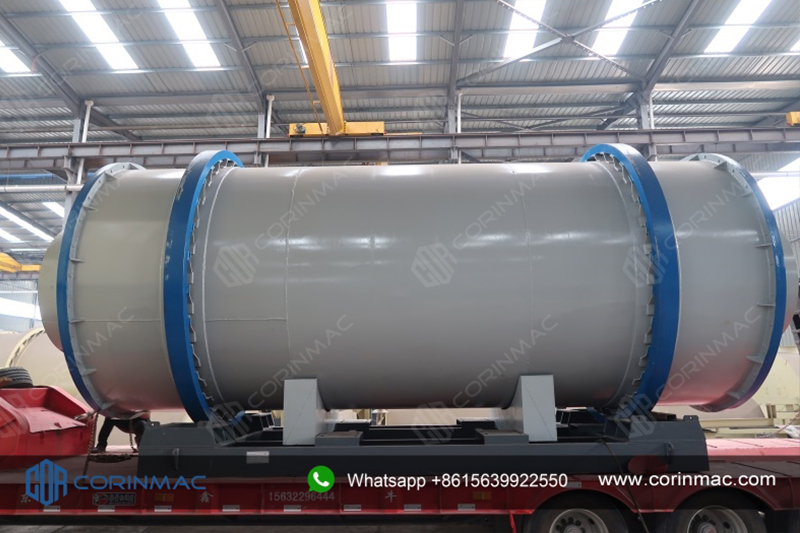

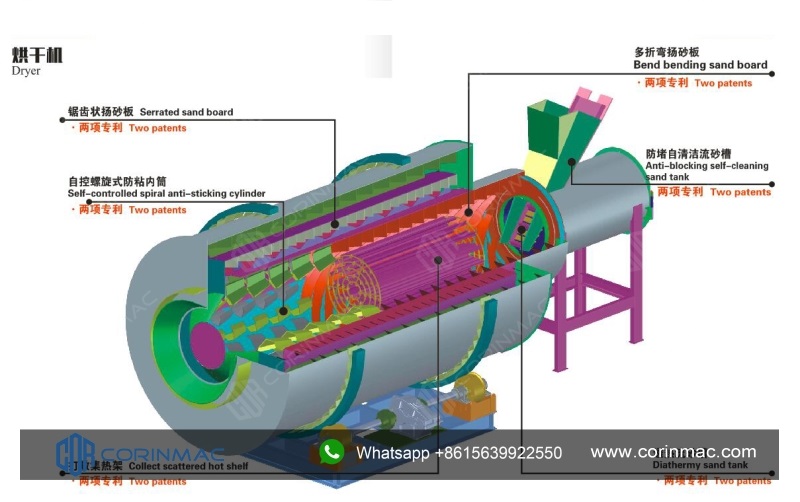

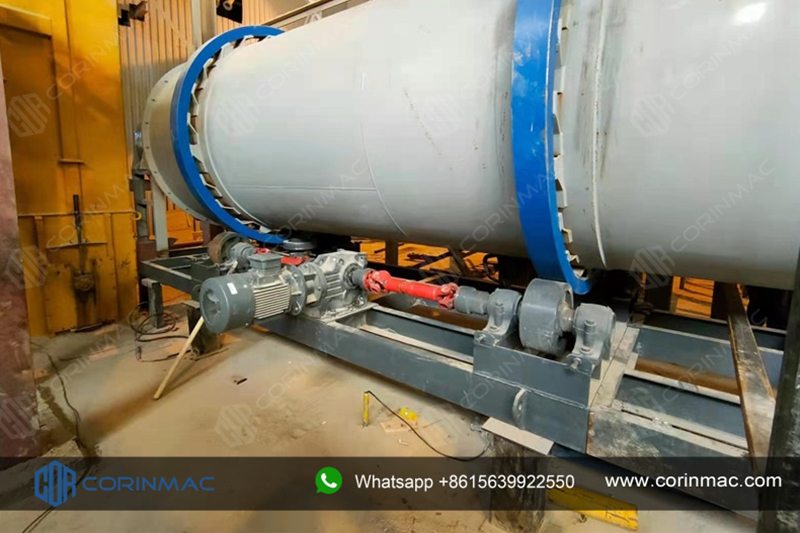

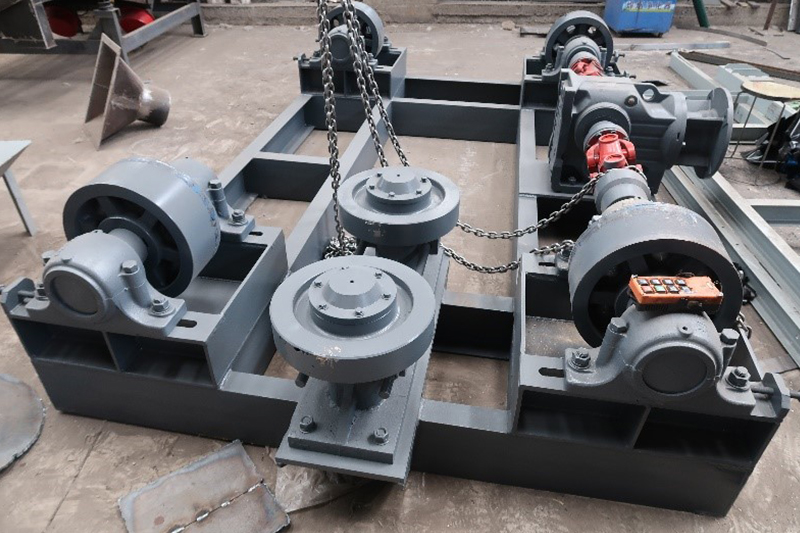

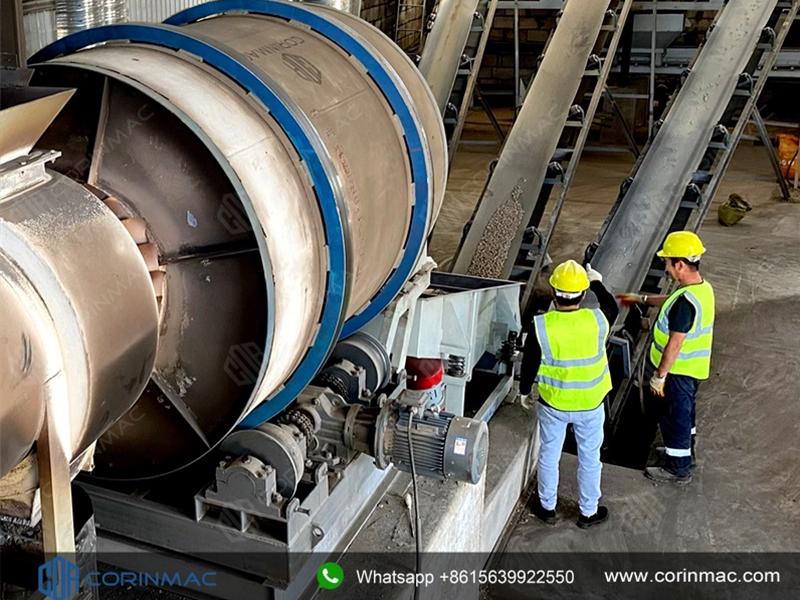

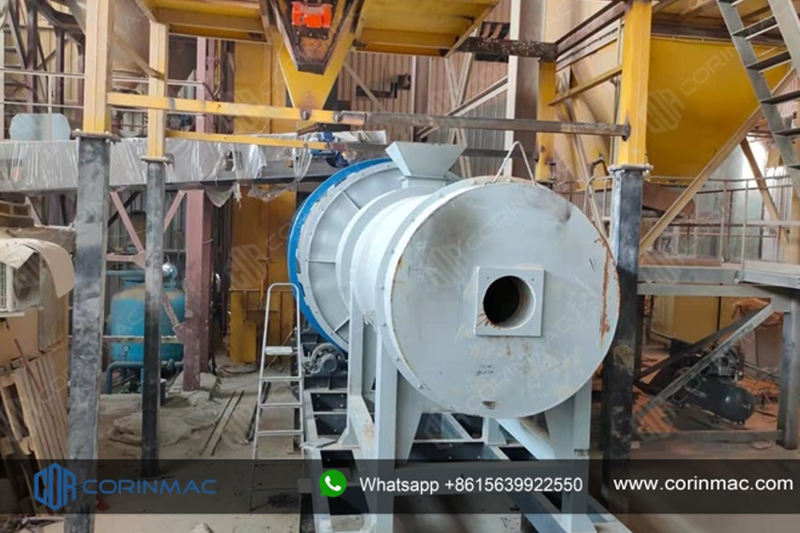

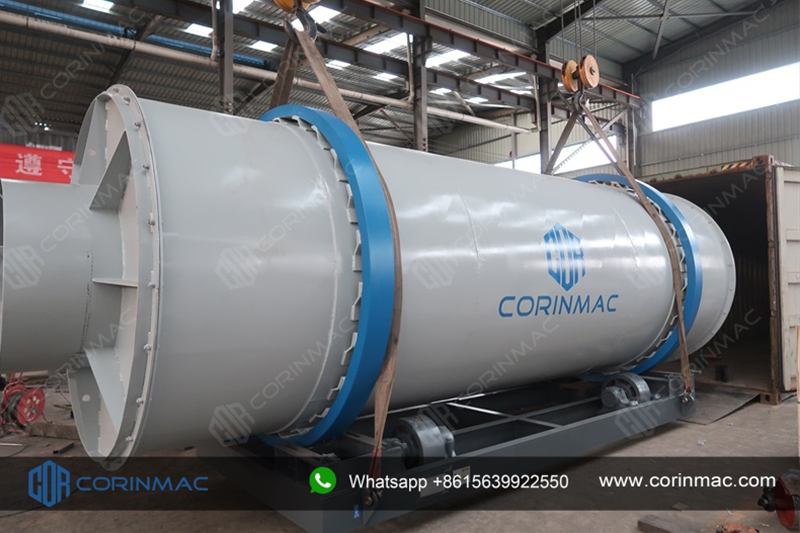

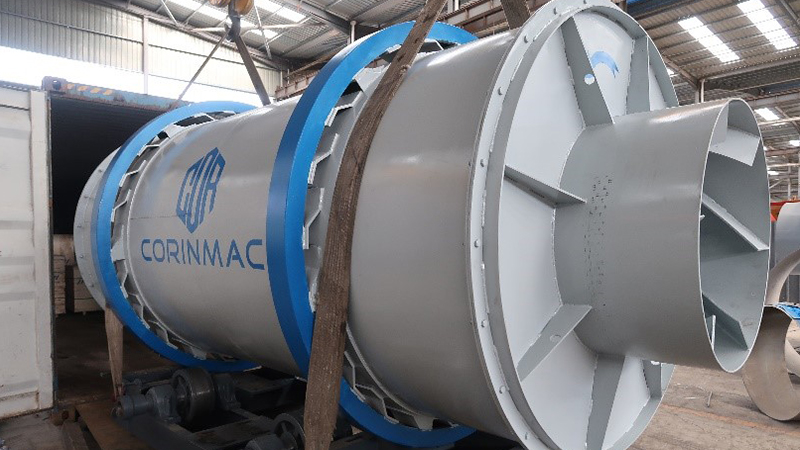

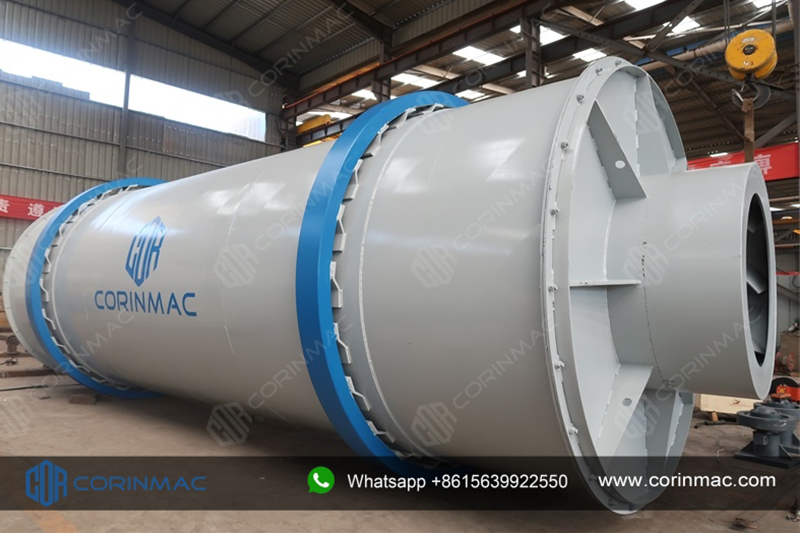

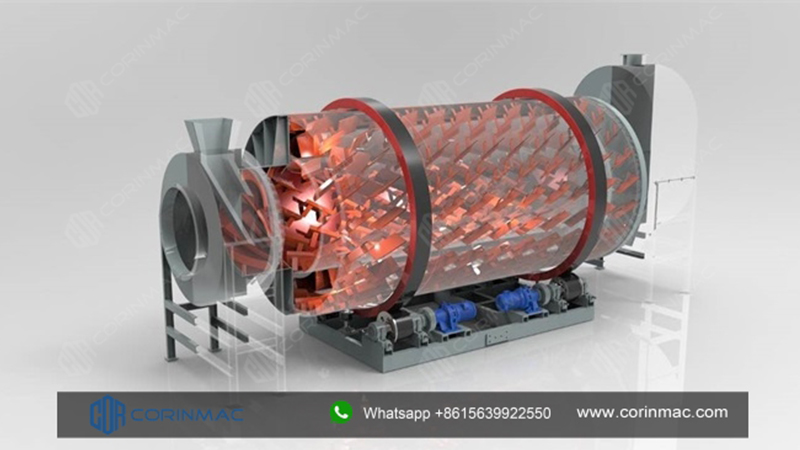

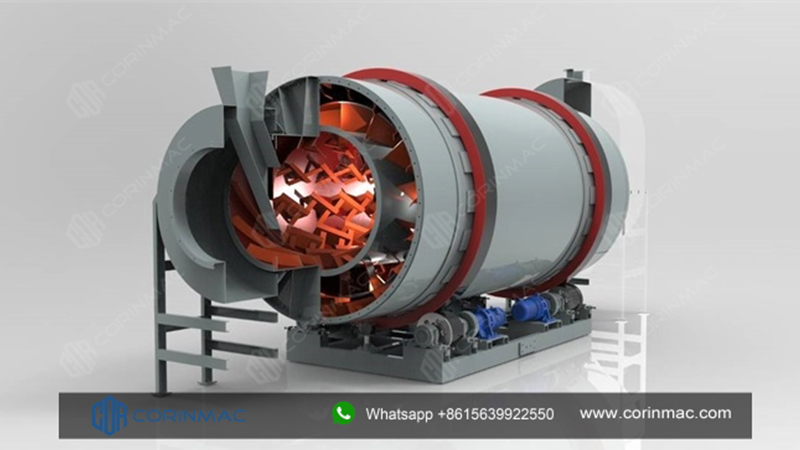

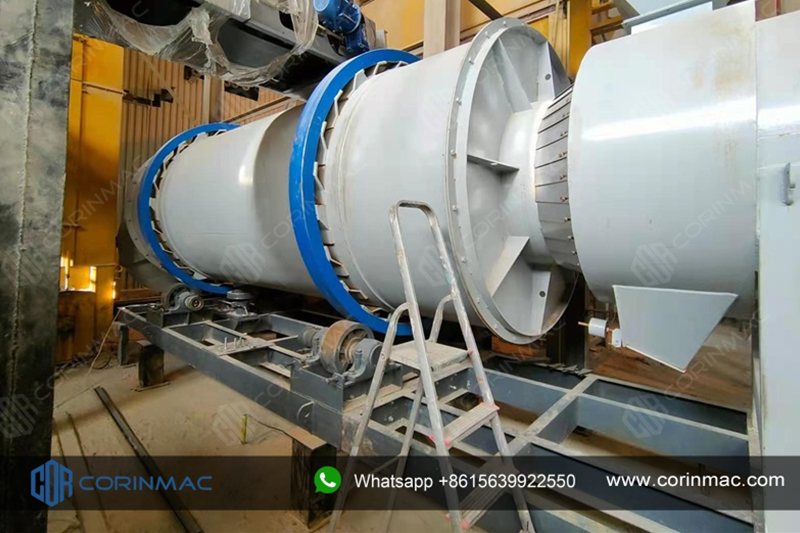

Three cylinder rotary dryer
The three cylinder rotary dryer is an efficient and energy-saving product improved on the basis of the single-cylinder rotary dryer.

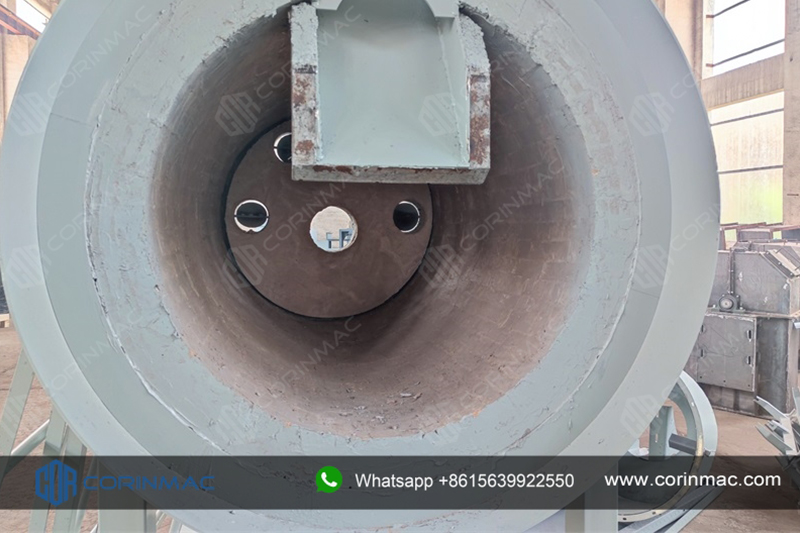

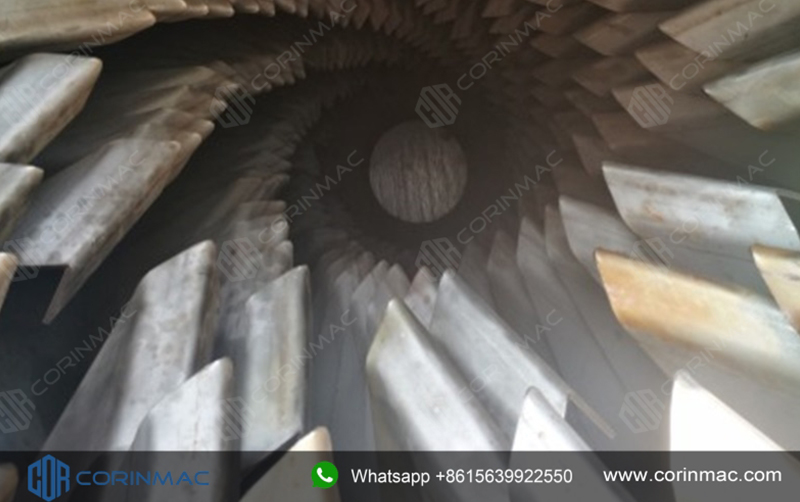

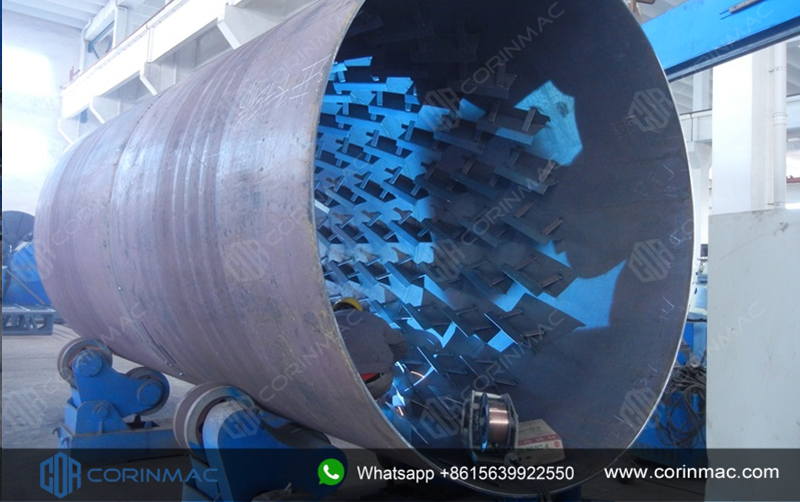

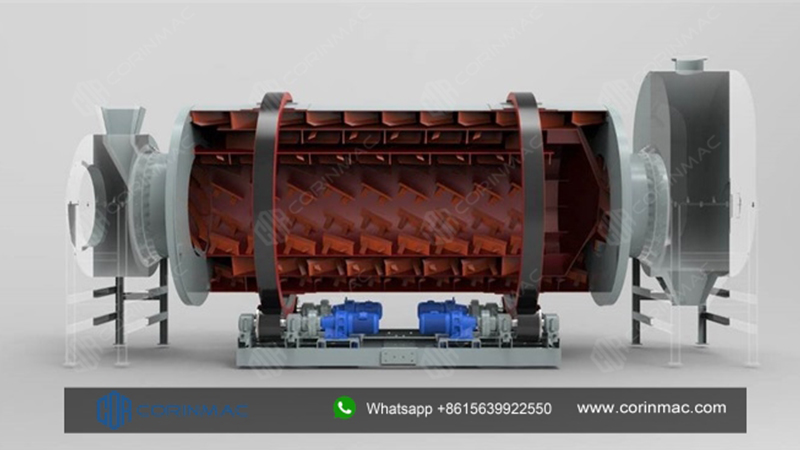

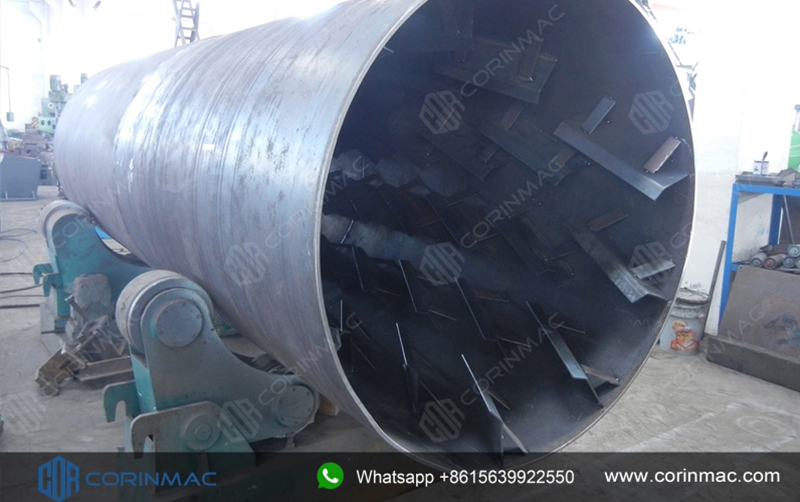

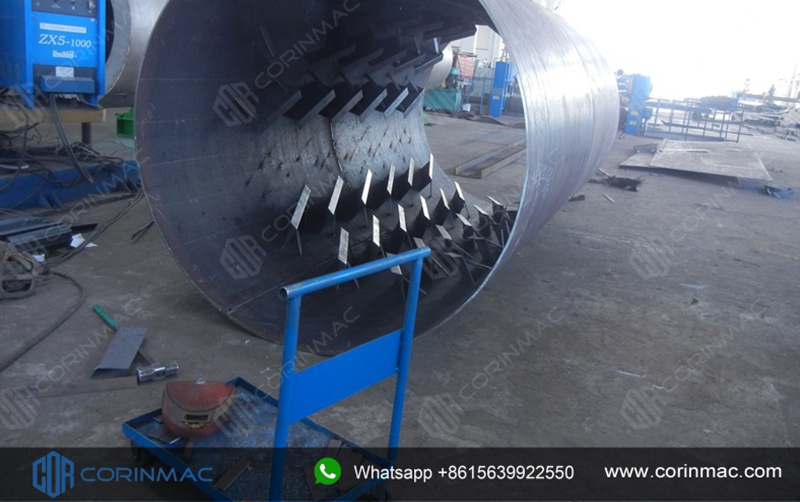

There is a three-layer drum structure in the cylinder, which can make the material reciprocate three times in the cylinder, so that it can obtain sufficient heat exchange, greatly improve the heat utilization rate and reduce power consumption.
Working principle
The material enters the dryer inner drum of the dryer from the feeding device to realize downstream drying. The material is continuously lifted up and scattered by the inner lifting plate and travels in a spiral shape to realize heat exchange, while the material moves to the other end of the inner drum then enters the middle drum, and the material is continuously and repeatedly raised in the middle drum, in the way of two steps forward and one step backward, the material in the middle drum fully absorbs the heat emitted by the inner drum and absorbs the heat of the middle drum at the same time, the drying time is prolonged, and the material reaches the best drying state at this time. The material travels to the other end of the middle drum and then falls into the outer drum. The material travels in a rectangular multi-loop way in the outer drum. The material that achieves the drying effect quickly travels and discharges the drum under the action of hot air, and the wet material that has not reached the drying effect cannot travel quickly due to its own weight, and the material is fully dried in this rectangular lifting plates, thereby completing the drying purpose.
Advantages
1. The three cylinder structure of the drying drum increases the contact area between the wet material and the hot air, which reduces the drying time by 48-80% compared with the traditional solution, and the moisture evaporation rate can reach 120-180 kg/m3, and the fuel consumption is reduced by 48-80%. The consumption is 6-8 kg/ton.
2. The drying of the material is not only carried out by the hot air flow, but also carried out by the infrared radiation of the heated metal inside, which improves the heat utilization rate of the whole dryer.
3. The overall size of the dryer is reduced by more than 30% compared to ordinary single-cylinder dryers, thereby reducing external heat loss.
4. The thermal efficiency of the self-insulating dryer is as high as 80% (compared to only 35% for the ordinary rotary dryer), and the thermal efficiency is 45% higher.
5. Due to the compact installation, the floor space is reduced by 50% and the infrastructure cost is reduced by 60%.
6. The temperature of the finished product after drying is about 60-70 degrees, so that it does not need an additional cooler for cooling.
7. The exhaust temperature is low, and the life of the dust filter bag is extended by 2 times.
8. The desired final humidity can be easily adjusted according to user requirements.
|
Model
|
Outer cylinder dia.(м)
|
Outer cylinder length (м)
|
Rotating speed (r/min)
|
Volume (m³)
|
Drying capacity (t/h)
|
Power (kw)
|
|
CRH1520
|
1.5
|
2
|
3-10
|
3.5
|
3-5
|
4
|
|
CRH1530
|
1.5
|
3
|
3-10
|
5.3
|
5-8
|
5.5
|
|
CRH1840
|
1.8
|
4
|
3-10
|
10.2
|
10-15
|
7.5
|
|
CRH1850
|
1.8
|
5
|
3-10
|
12.7
|
15-20
|
5.5*2
|
|
CRH2245
|
2.2
|
4.5
|
3-10
|
17
|
20-25
|
7.5*2
|
|
CRH2658
|
2.6
|
5.8
|
3-10
|
31
|
25-35
|
5.5*4
|
|
CRH3070
|
3
|
7
|
3-10
|
49
|
50-60
|
7.5*4
|
Note
1. These parameters are calculated based on the initial sand moisture content: 10-15%, and the humidity after drying is less than 1%
2. The temperature at the inlet of the dryer is 650-750 degrees.
3. The length and diameter of the dryer can be changed according to customer requirements.

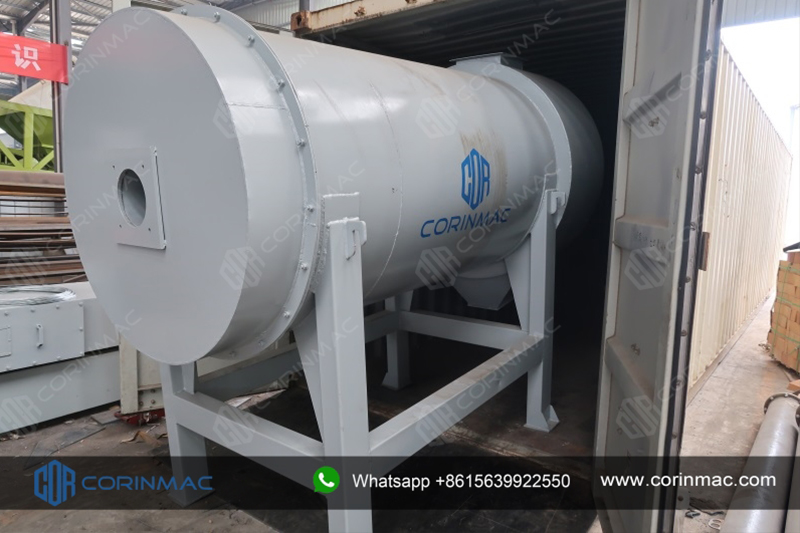

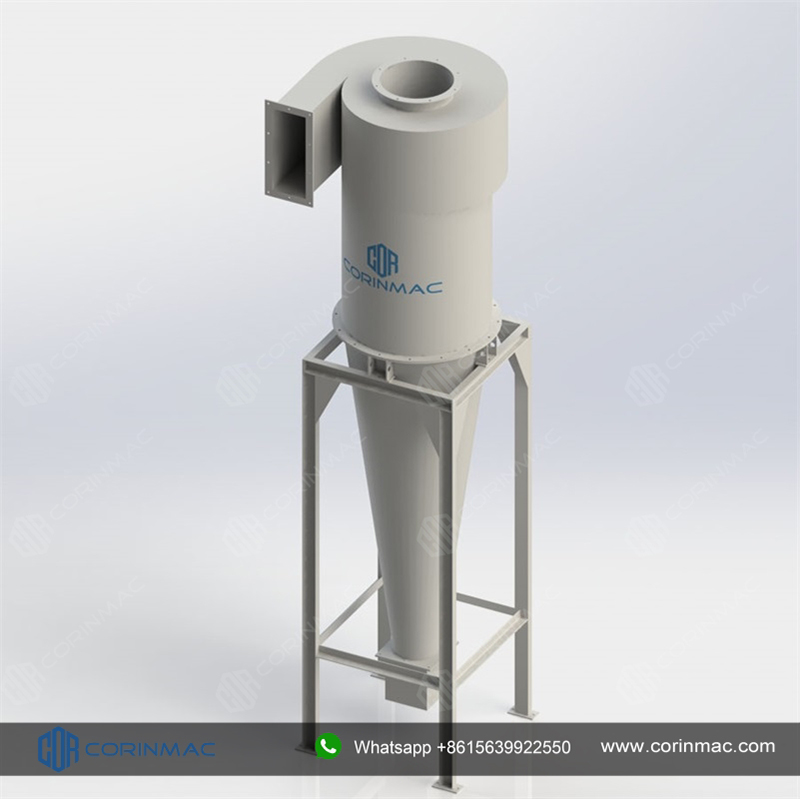

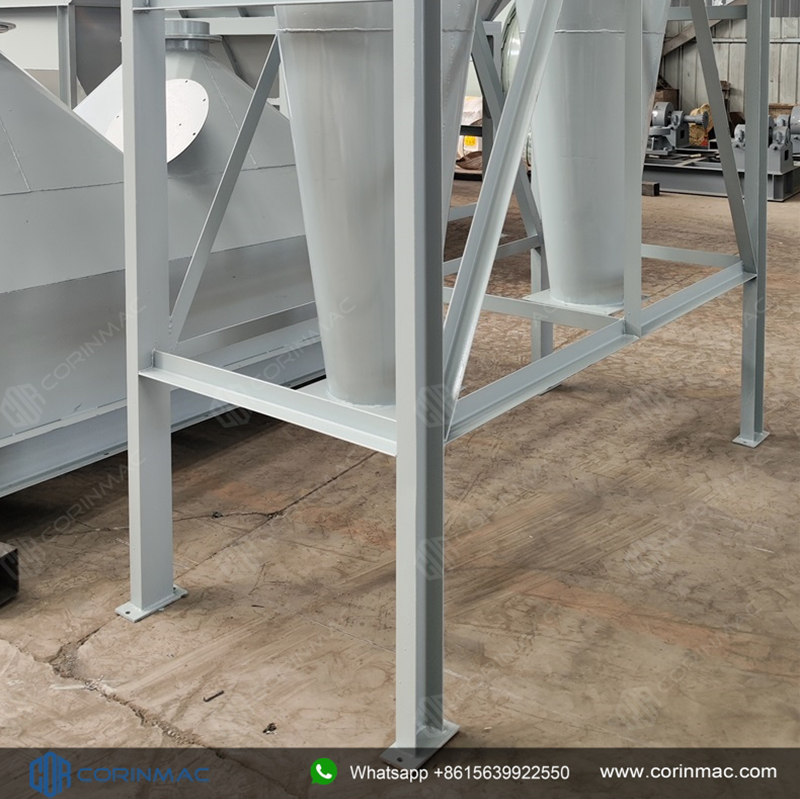

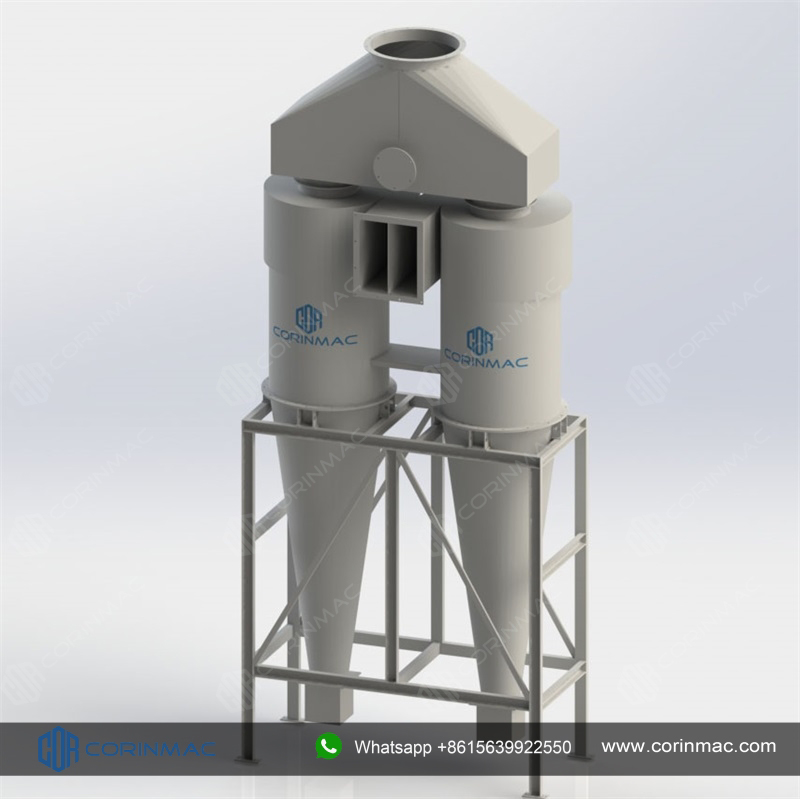

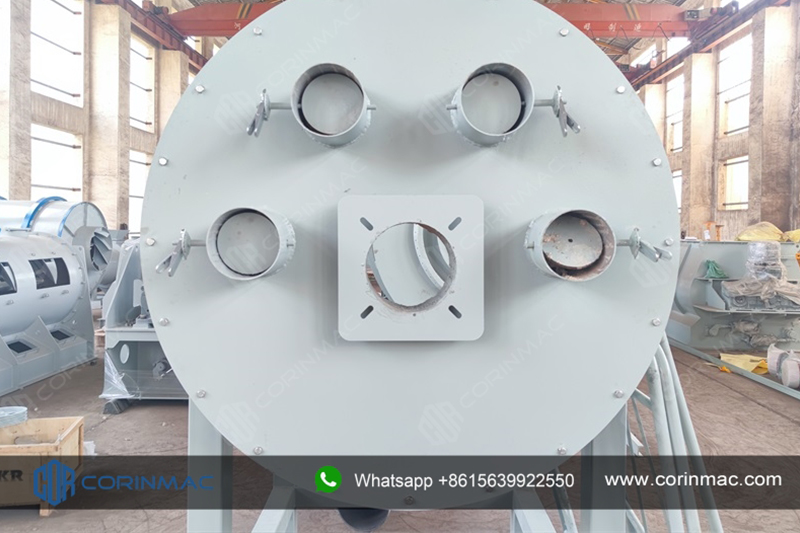

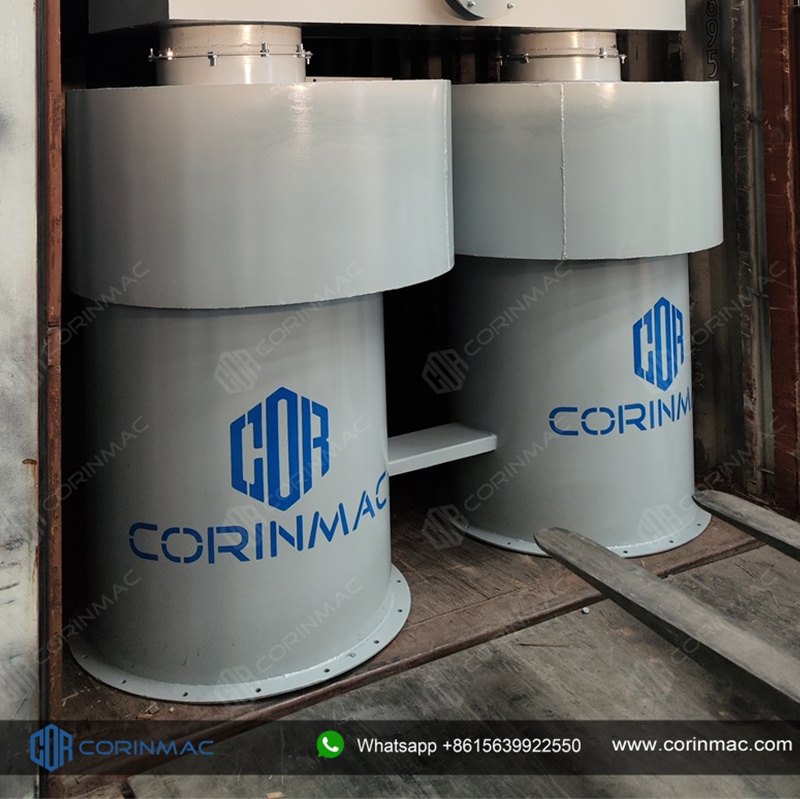

It is connected to the air outlet of the dryer end cover through a pipeline, and is also the first dust removal device for the hot flue gas inside the dryer. There are a variety of structures such as single cyclone and double cyclone group could be chosen.

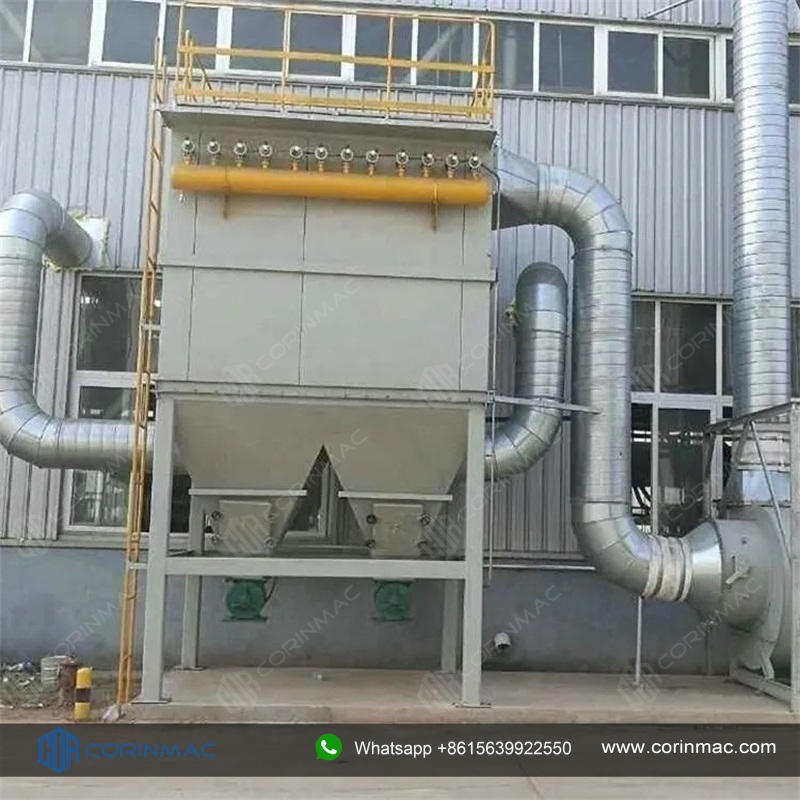

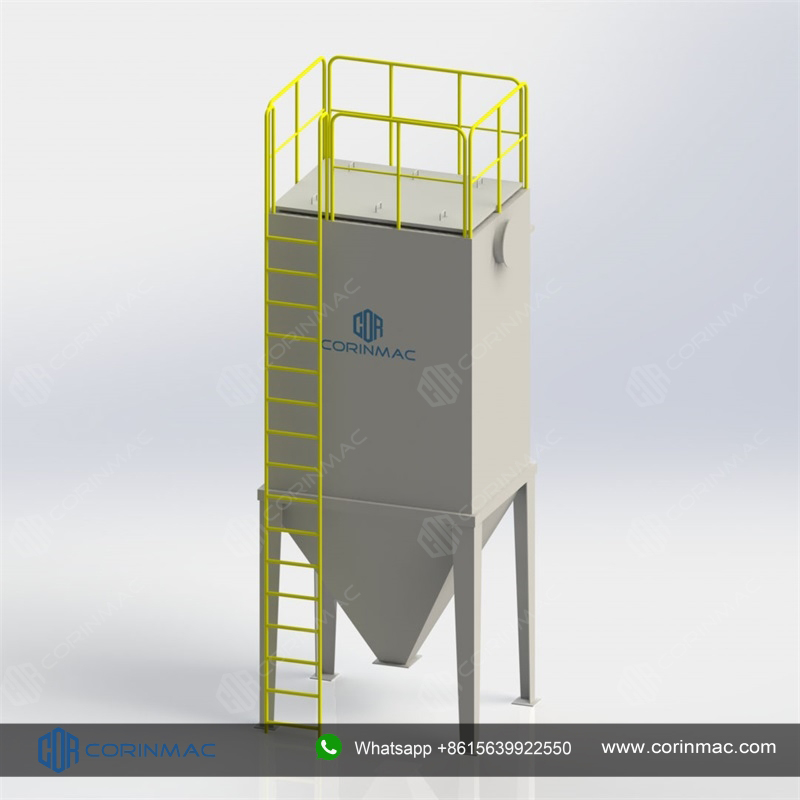

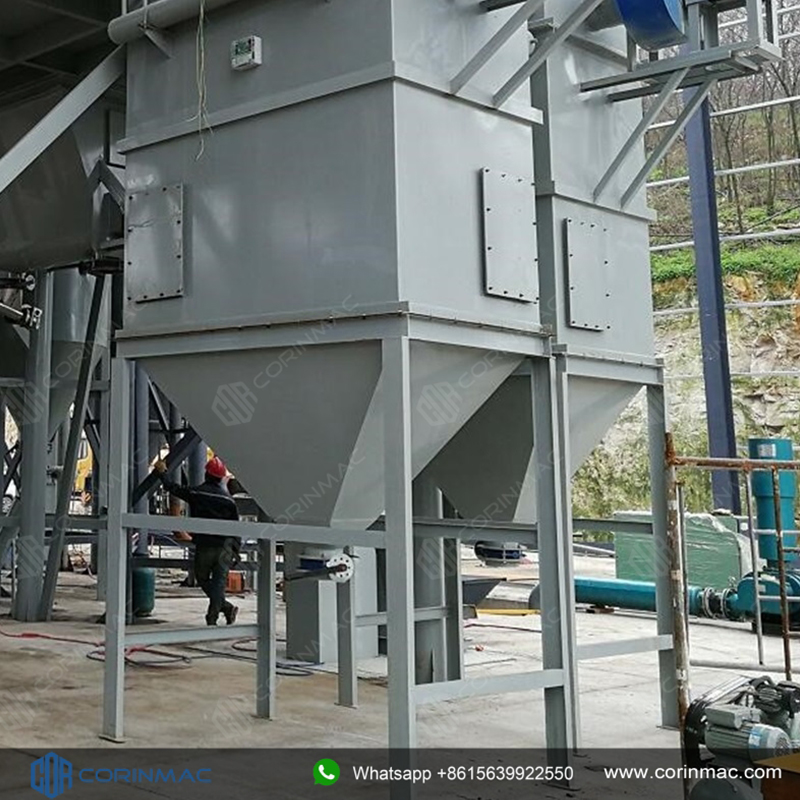

It is another dust removal equipment in the drying line. Its internal multi-group filter bag structure and pulse jet design can effectively filter and collect dust in the dust-laden air, so that the dust content of the exhaust air is less than 50mg/m³, ensuring that it meets the environmental protection requirements. According to the needs, we have dozens of models such as DMC32, DMC64, DMC112 for selection.

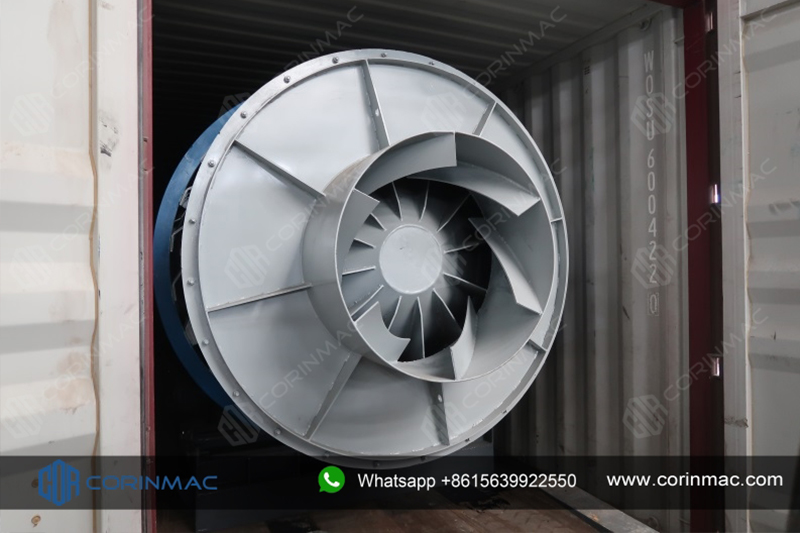

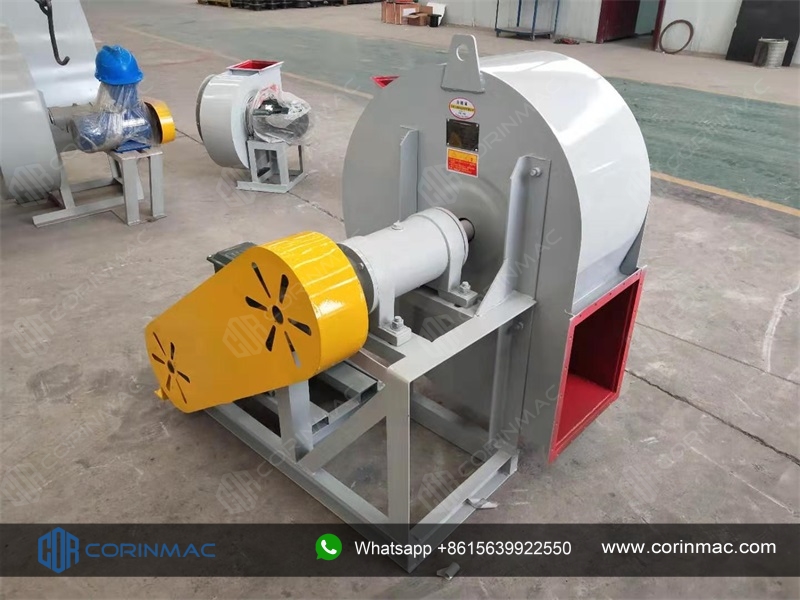

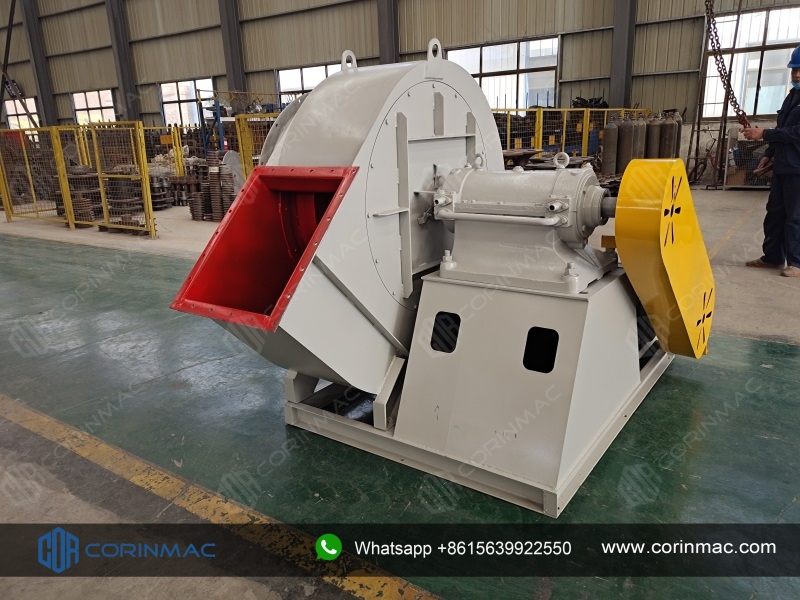

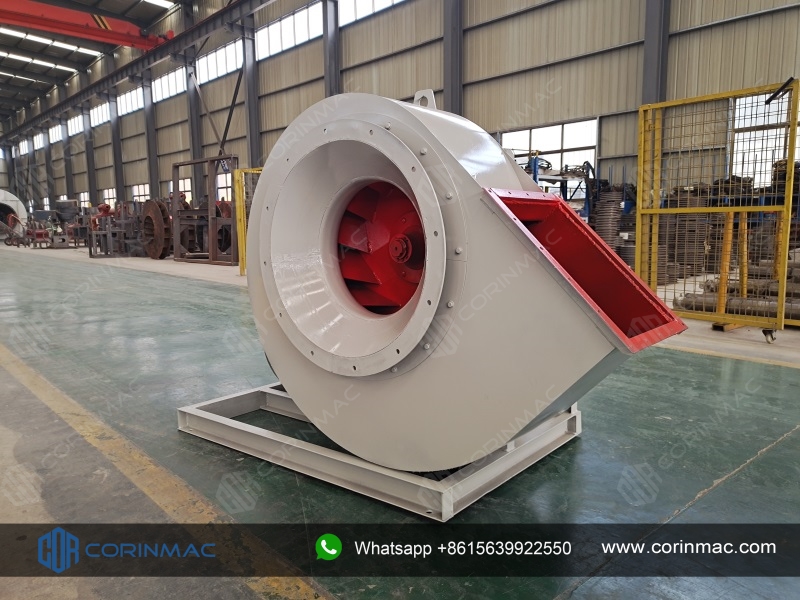

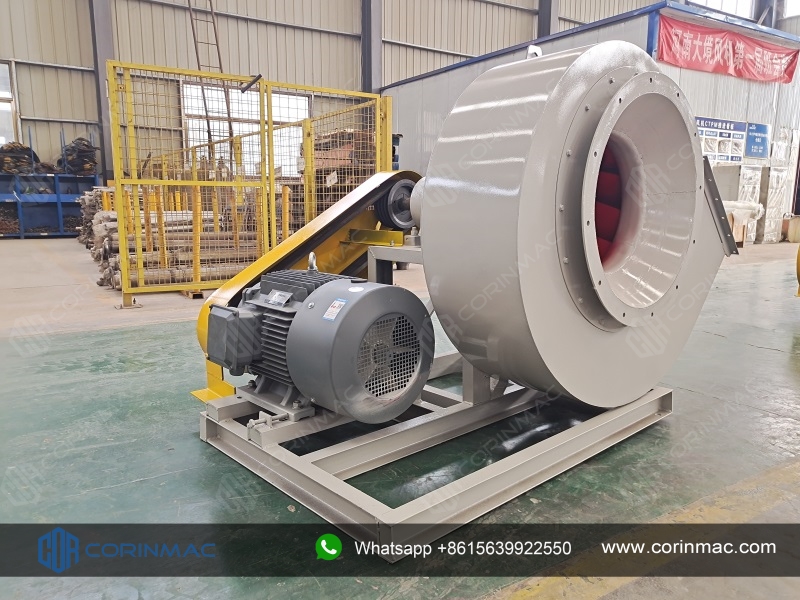

The draught fan is connected to the impulse dust collector, which is used to extract the hot flue gas in the dryer, and it is also the power source for the gas flow of the entire drying line.

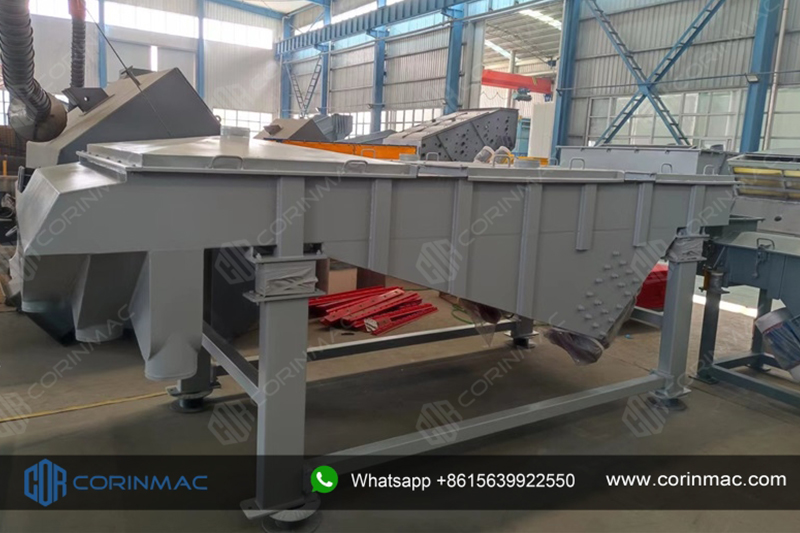

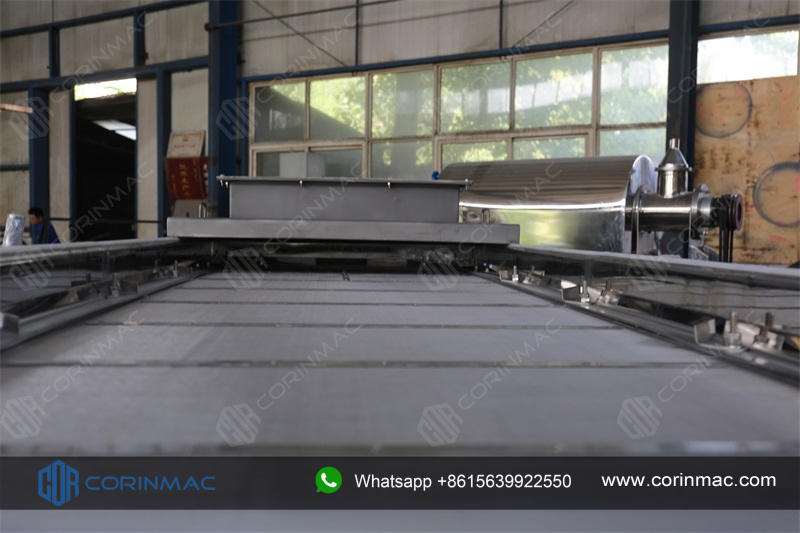

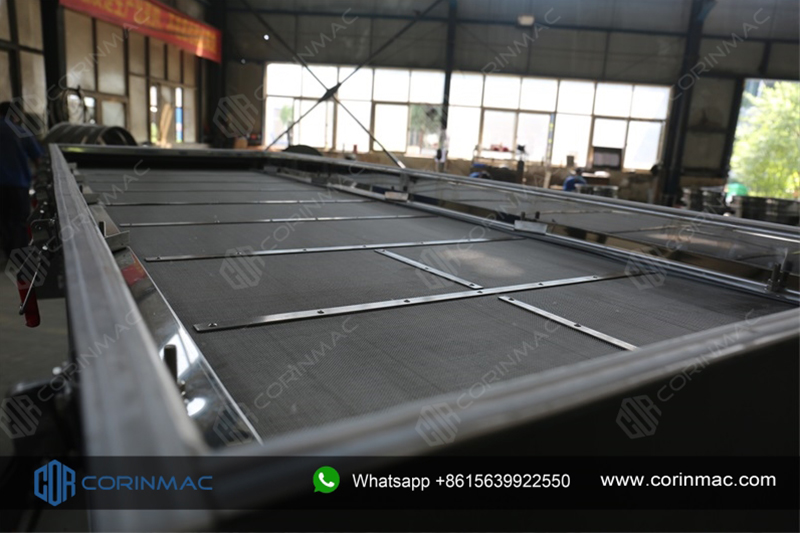

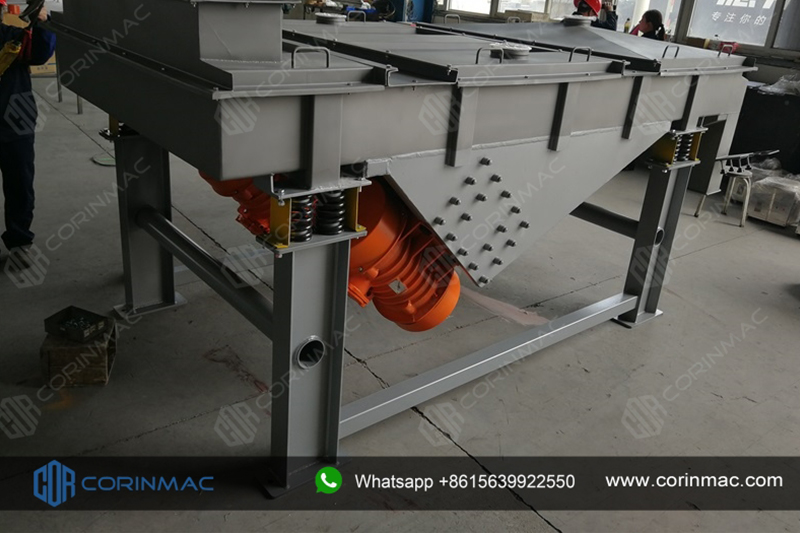

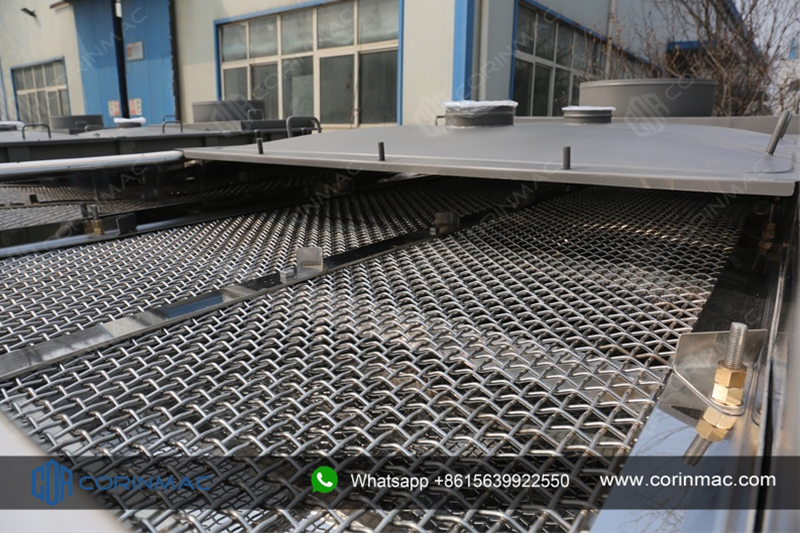

After drying, the finished sand (water content is generally below 0.5%) enters the vibrating screen, which can be sieved into different particle sizes and discharged from the respective discharge ports according to the requirements. Usually, the size of the screen mesh is 0.63mm, 1.2mm and 2.0mm, the specific mesh size is selected and determined according to actual needs.

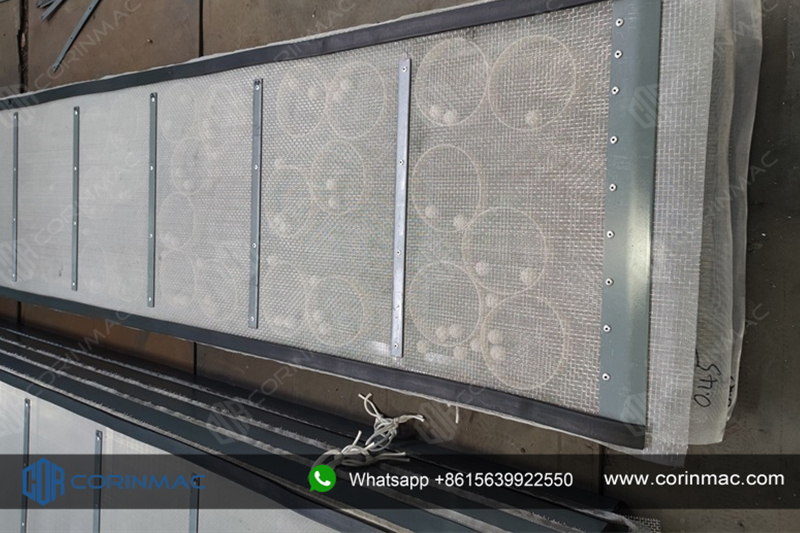

All steel screen frame, unique screen reinforcement technology, easy to replace the screen.

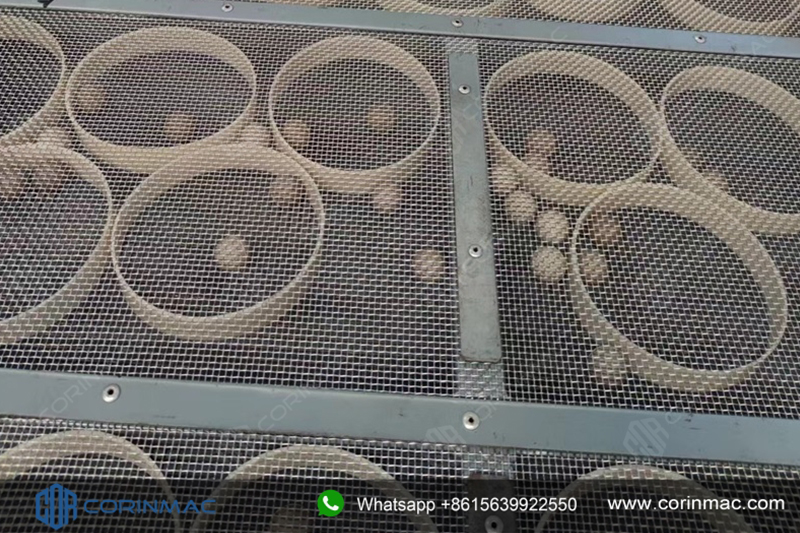

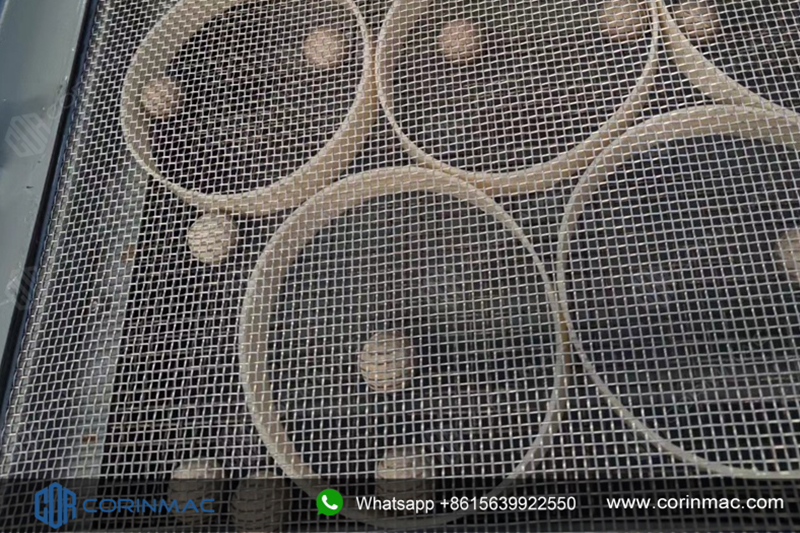

Contains rubber elastic balls, which can automatically clear the screen blockage.
Multiple reinforcing ribs, more robust and reliable

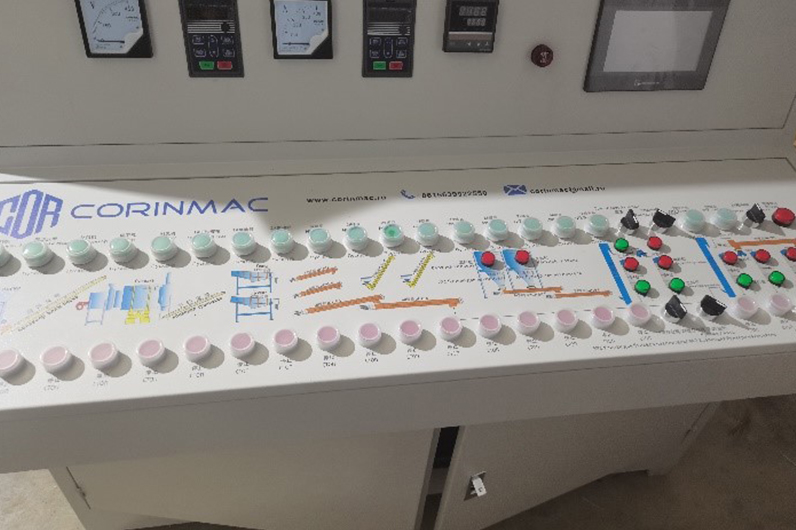

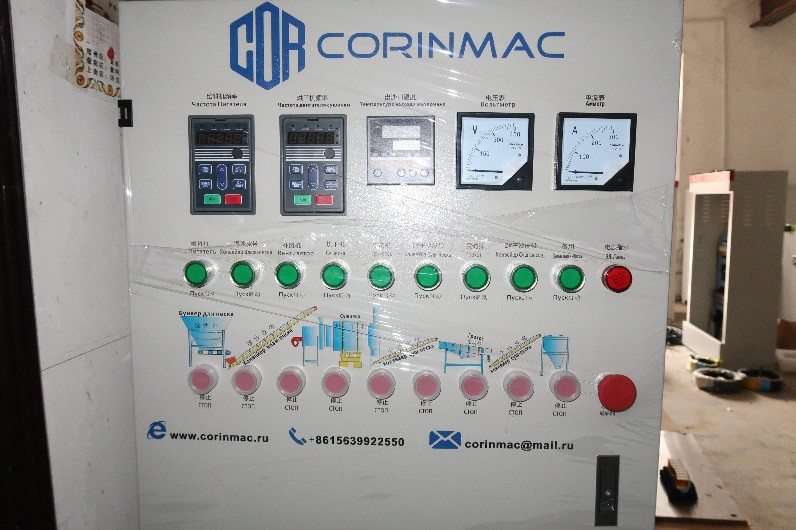

Electronic control system
The entire production line is controlled in an integrated manner, with a visual operation interface, through frequency conversion to adjust the speed of the feed and drying drum rotates, intelligently control the burner, and realize intelligent temperature control and other functions.
|
Equipment list
|
Capacity（ Humidity is calculated according to 5-8% ）
|
|
3-5TPH
|
8-10 TPH
|
10-15 TPH
|
20-25 TPH
|
25-30 TPH
|
40-50 TPH
|
|
Wet sand hopper
|
5T
|
5T
|
5T
|
10T
|
10T
|
10T
|
|
Belt feeder
|
PG500
|
PG500
|
PG500
|
Ф500
|
Ф500
|
Ф500
|
|
Belt conveyor
|
В500х6
|
В500х8
|
В500х8
|
В500х10
|
В500х10
|
В500х15
|
|
Three cylinder rotary dryer
|
CRH6205
|
CRH6210
|
CRH6215
|
CRH6220
|
CRH6230
|
CRH6250
|
|
Burning chamber
|
Matched (including refractory bricks, cement)
|
|
Burner (Gas / Diesel)
Thermal power
|
RS/RL 44T.C
450-600kw
|
RS/RL 130T.C
1000-1500 kw
|
RS/RL 190T.C
1500-2400 kw
|
RS/RL 250T.C
2500-2800 kw
|
RS/RL 310T.C
2800-3500 kw
|
RS/RL 510T.C
4500-5500 kw
|
|
Product belt conveyor
|
В500х6
|
В500х6
|
В500х6
|
В500х8
|
В500х10
|
В500х10
|
|
Vibrating screen（ Select the screen according to the particle size of the finished product ）
|
DZS1025
|
DZS1230
|
DZS1230
|
DZS1540
|
DZS1230（2台）
|
DZS1530（2sets）
|
|
Belt conveyor
|
В500х6
|
В500х6
|
В500х6
|
В500х6
|
В500х6
|
В500х6
|
|
Cyclone
|
Φ500mm
|
Φ1200 mm
|
Φ1200 mm
|
Φ1200
|
Φ1400
|
Φ1400
|
|
Draught fan
|
Y5-47-5C
(5.5кw)
|
Y5-47-5C (7.5кw)
|
Y5-48-5C
(11кw)
|
Y5-48-5C
(11кw)
|
Y5-48-6.3C
22кВт
|
Y5-48-6.3C
22кВт
|
|
Pulse dust collector
|
|
|
|
|
|
|

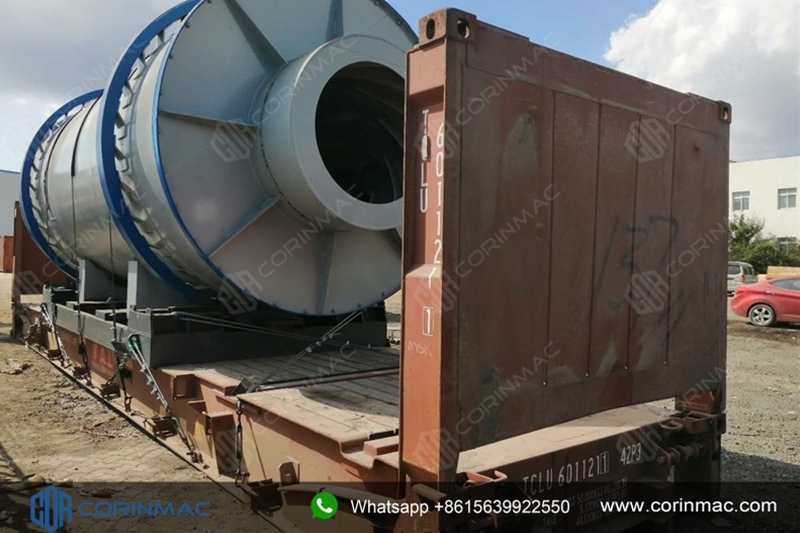

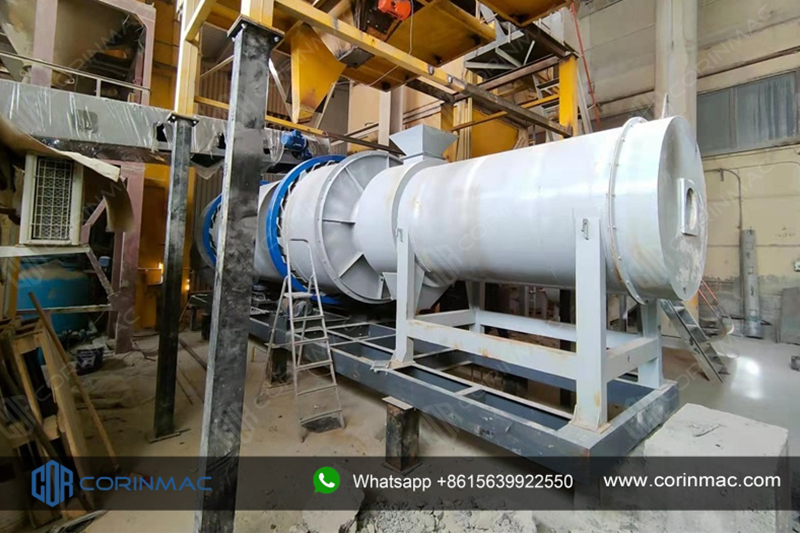

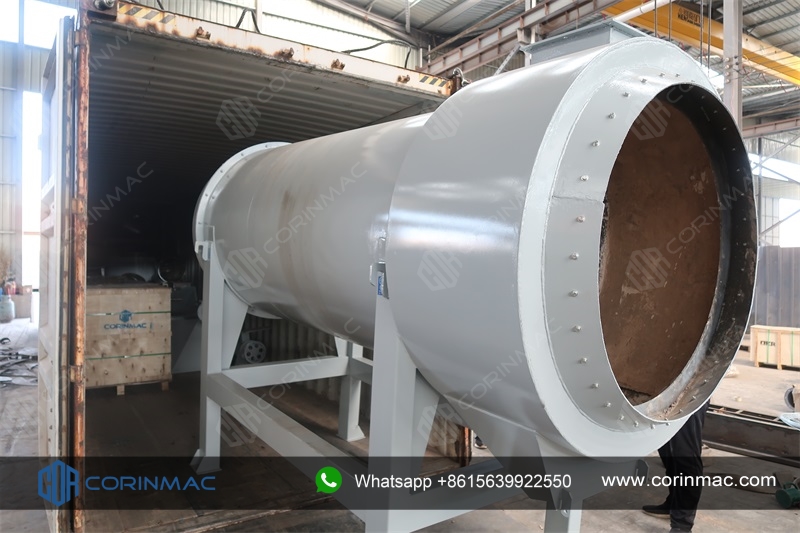

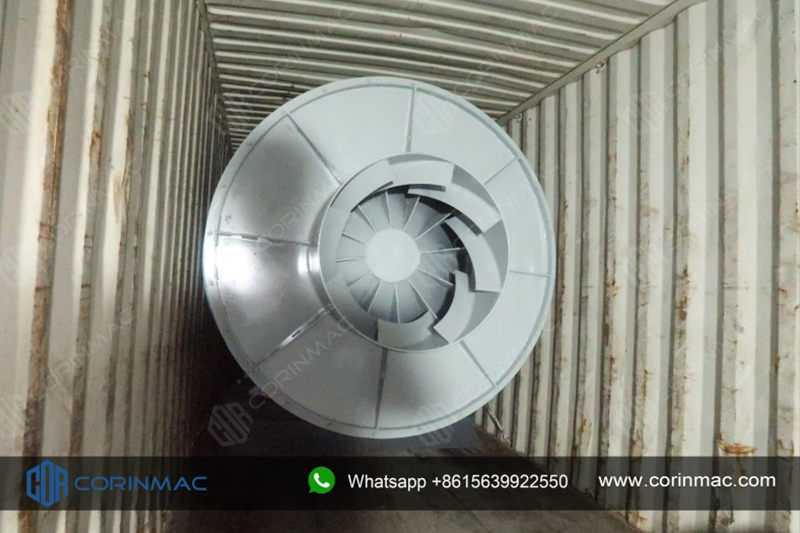

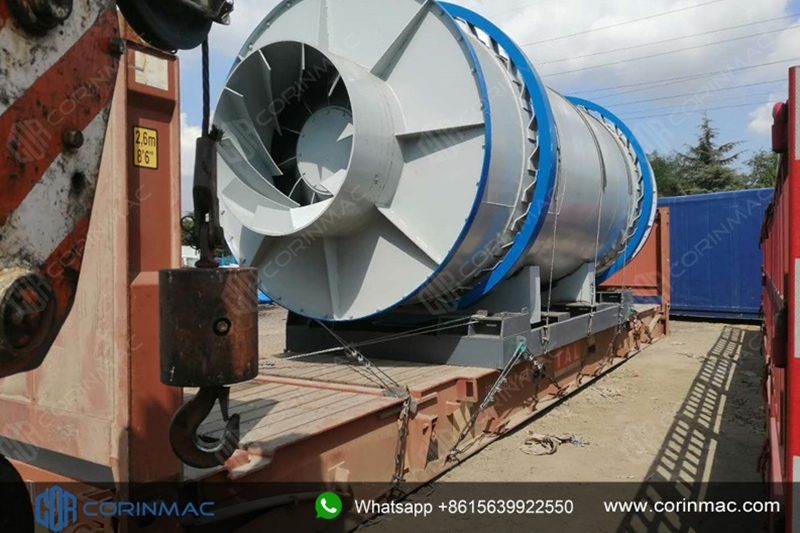

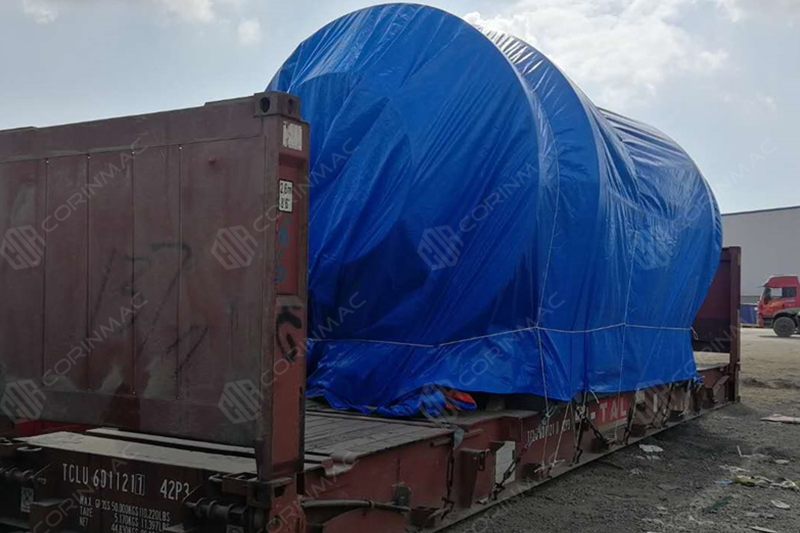

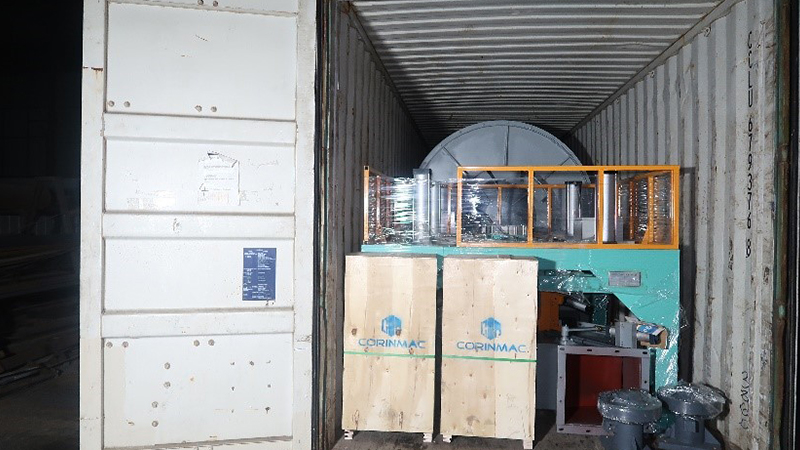

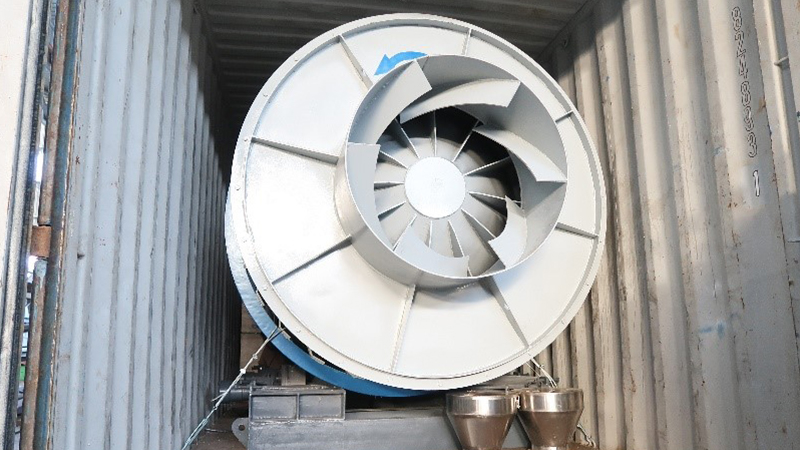

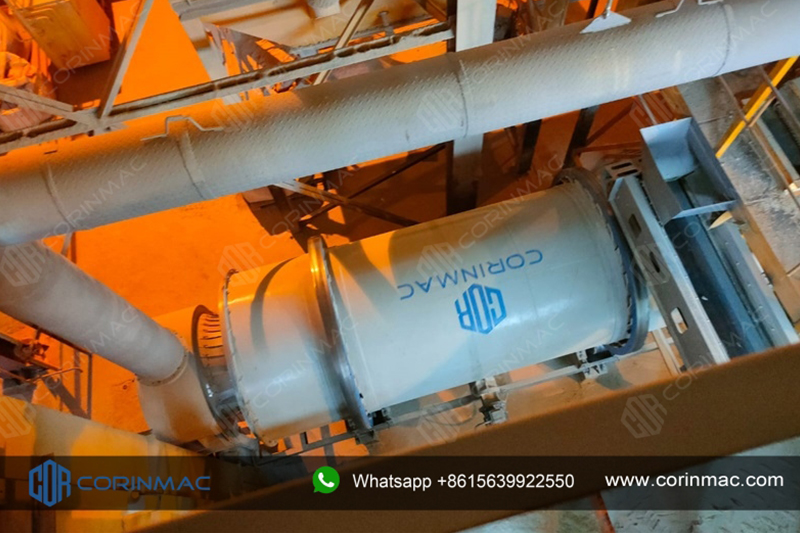

50-60TPH rotary dryer to Russia.

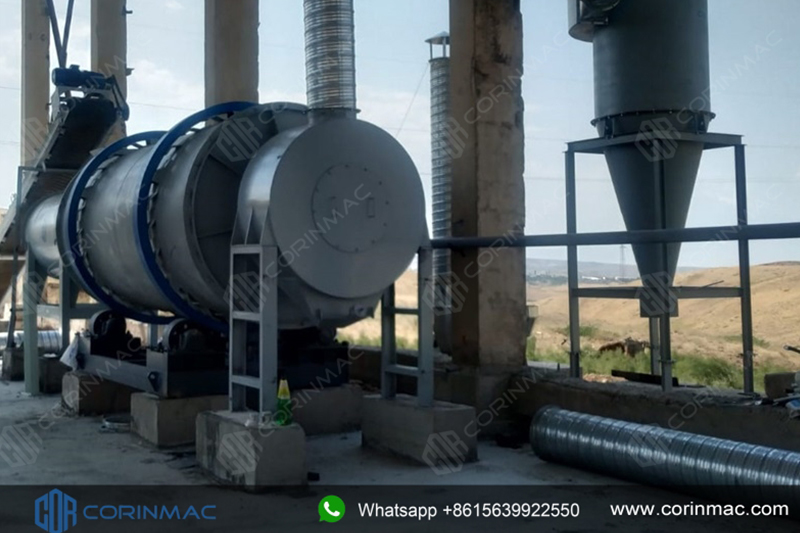

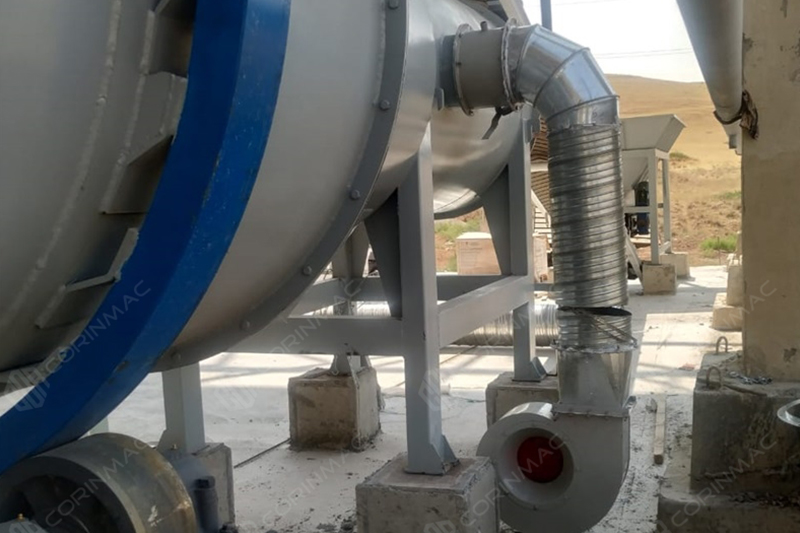

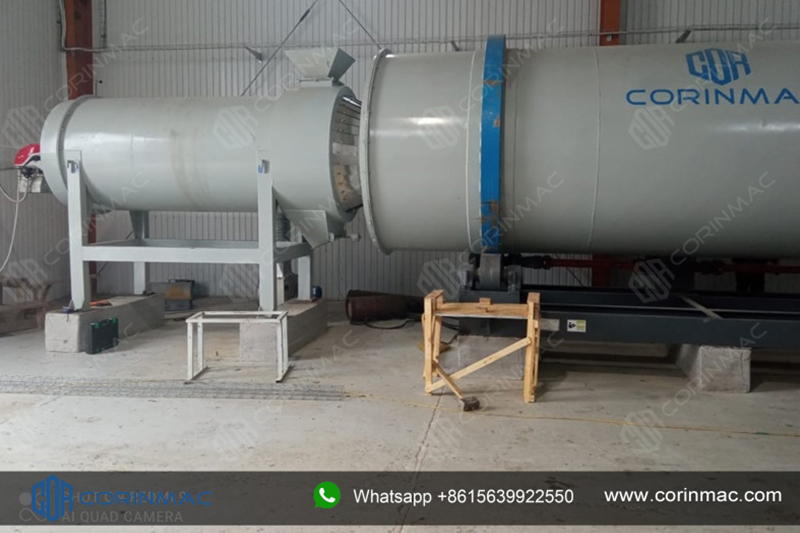

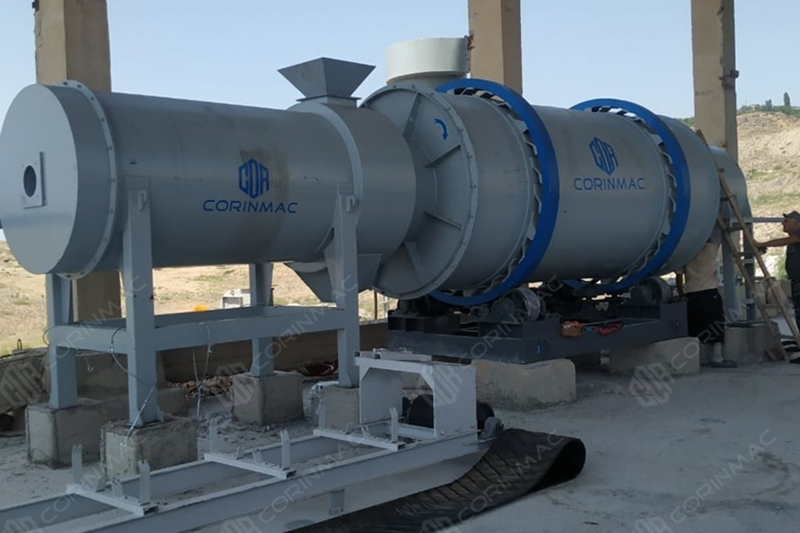

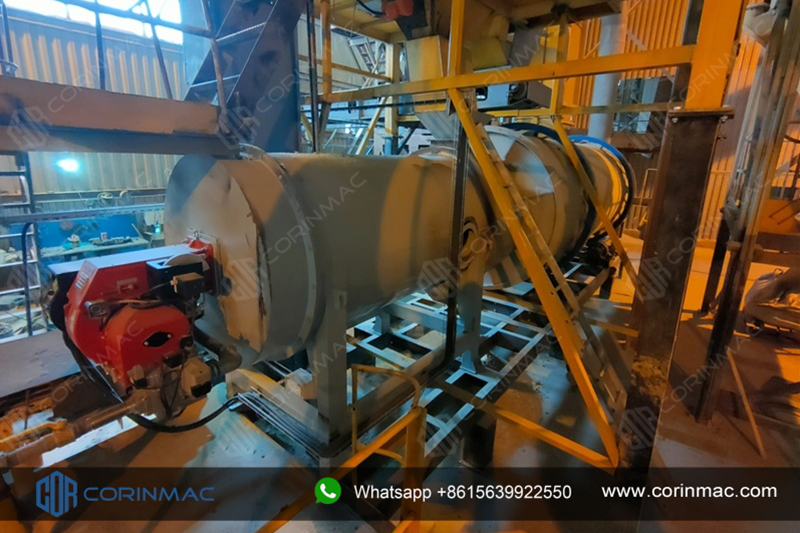

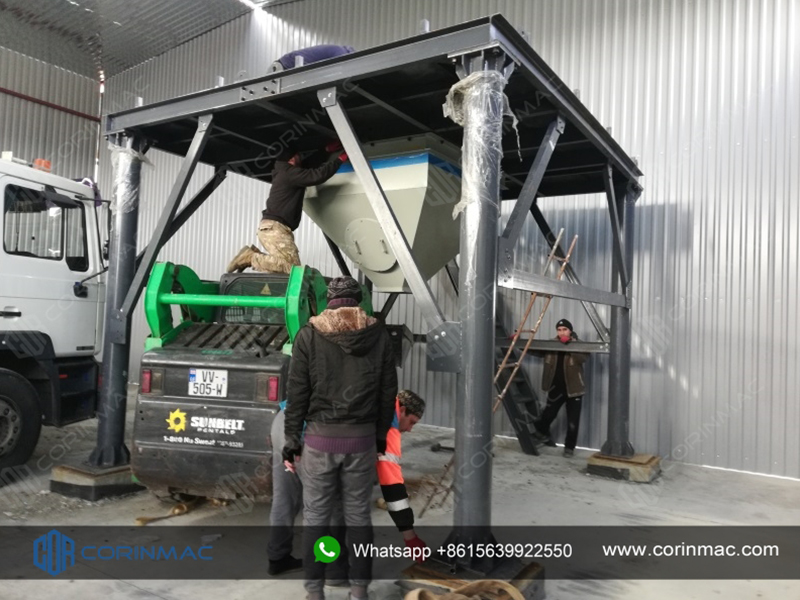

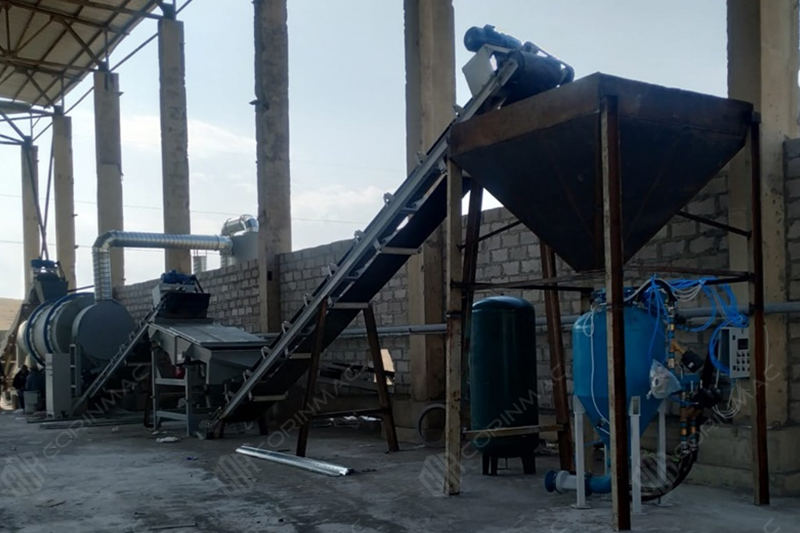

Armenia 10-15TPH sand drying production line
Russia Stavrapoli - 15TPH sand drying production line
Kazakhstan-Shymkent-Quartz sand drying production line 15-20TPH.

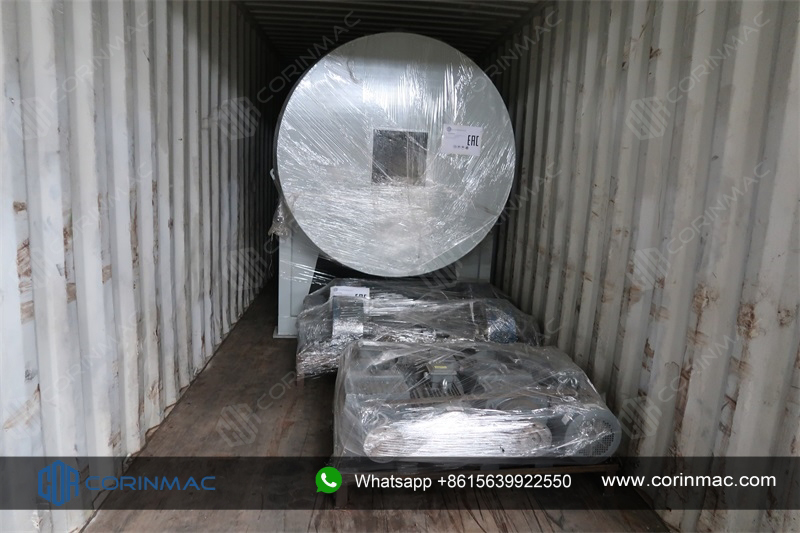

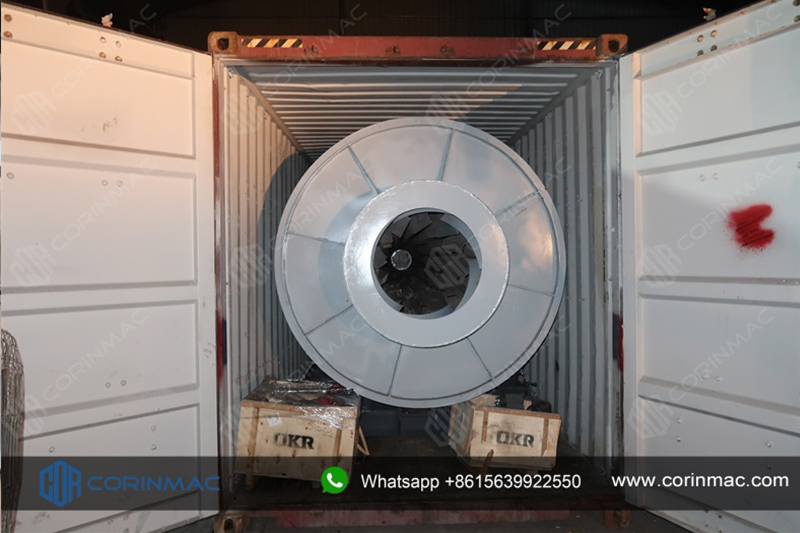

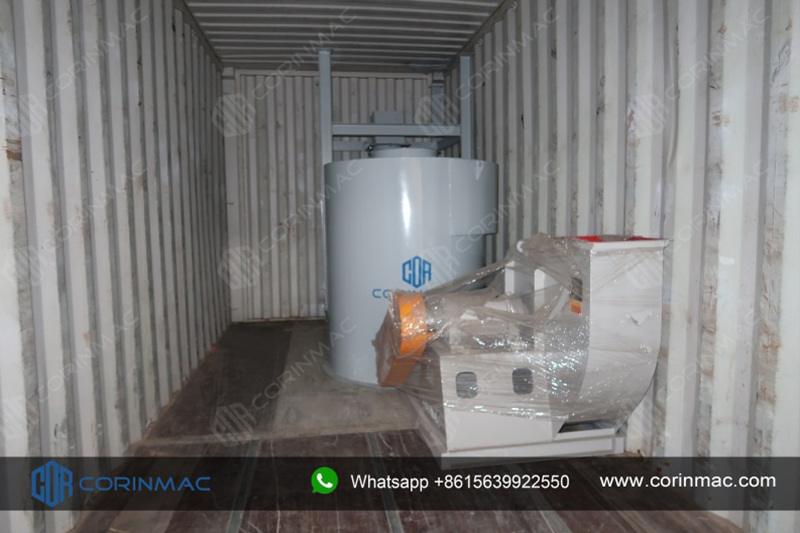

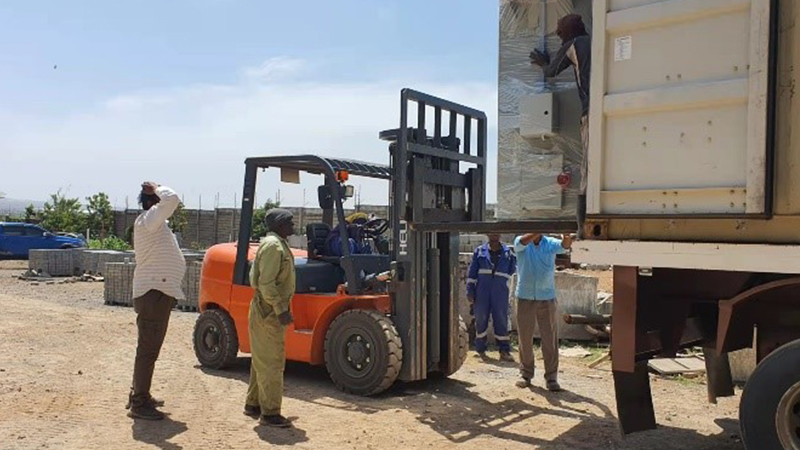

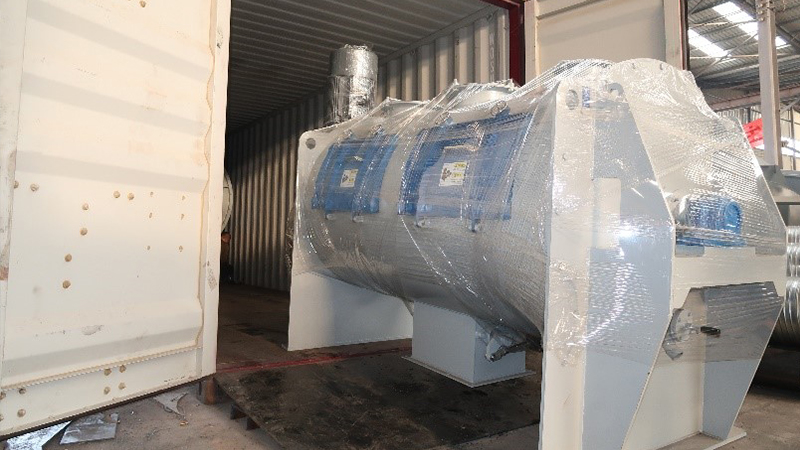

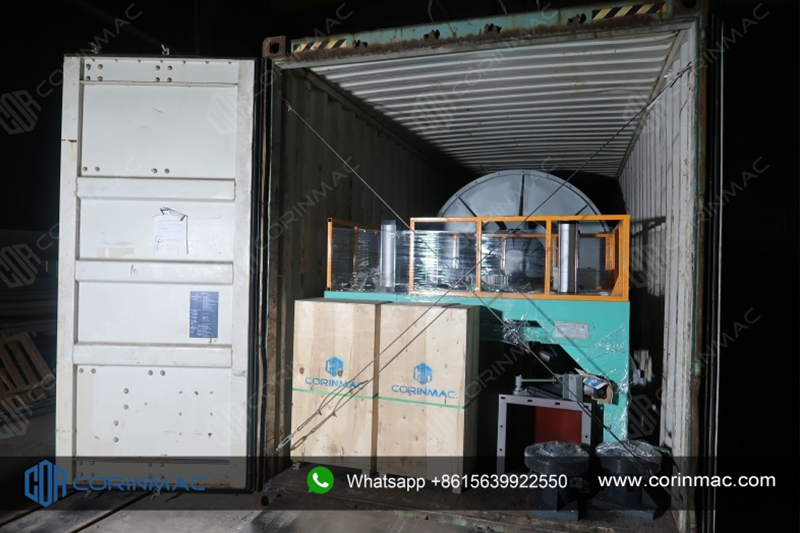

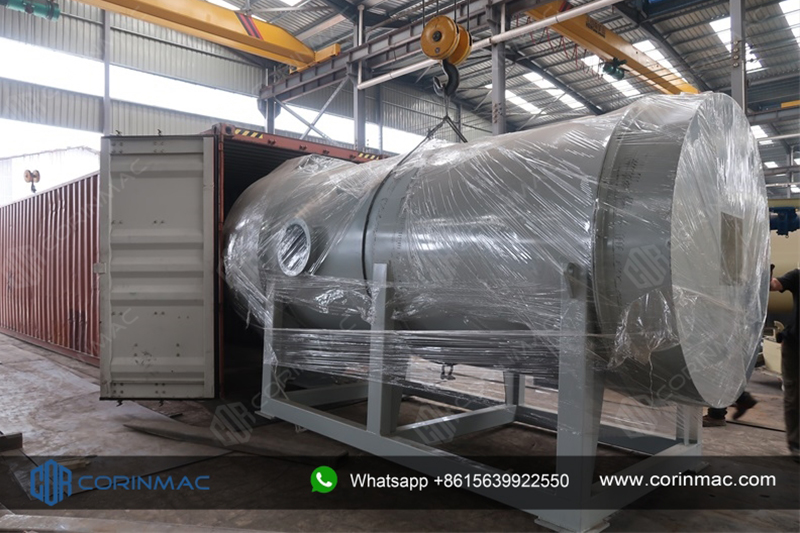

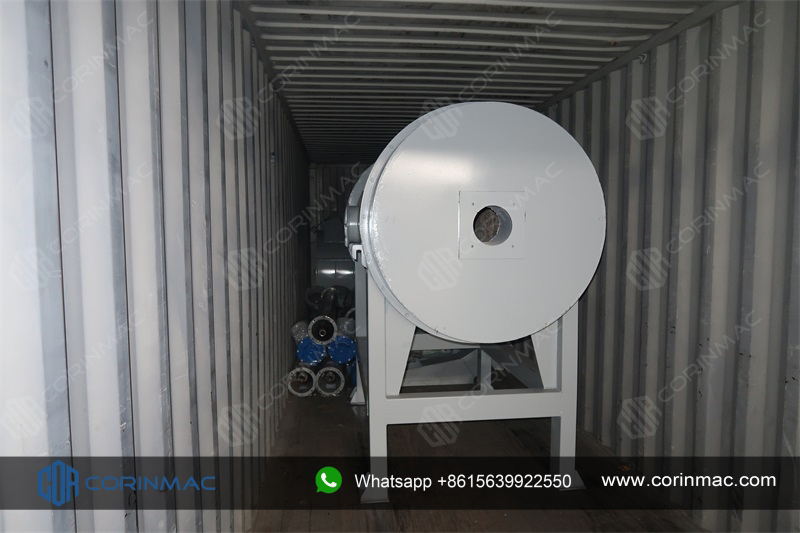

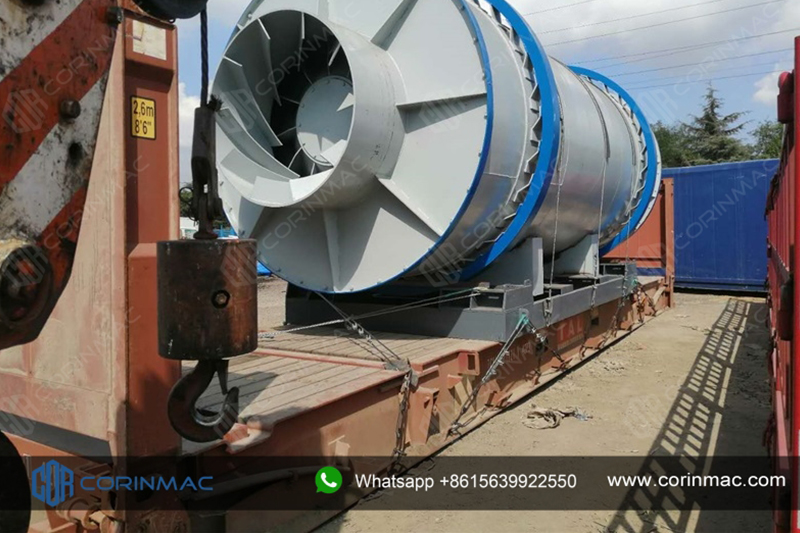

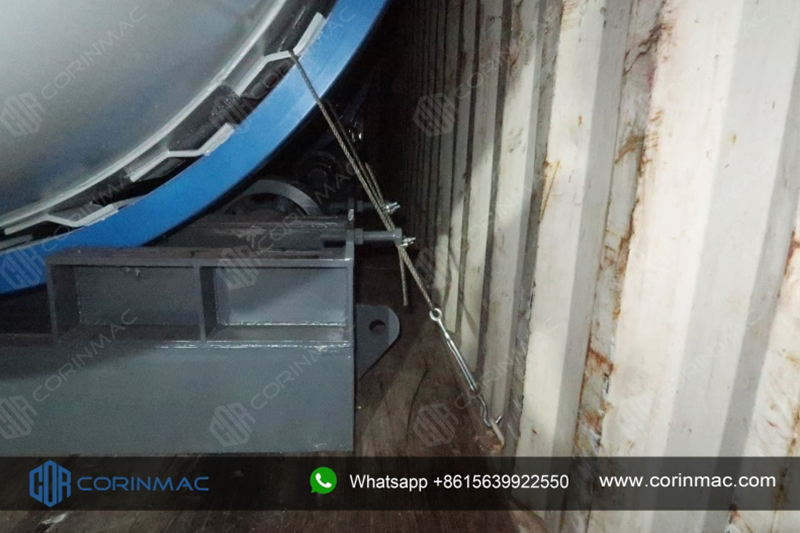

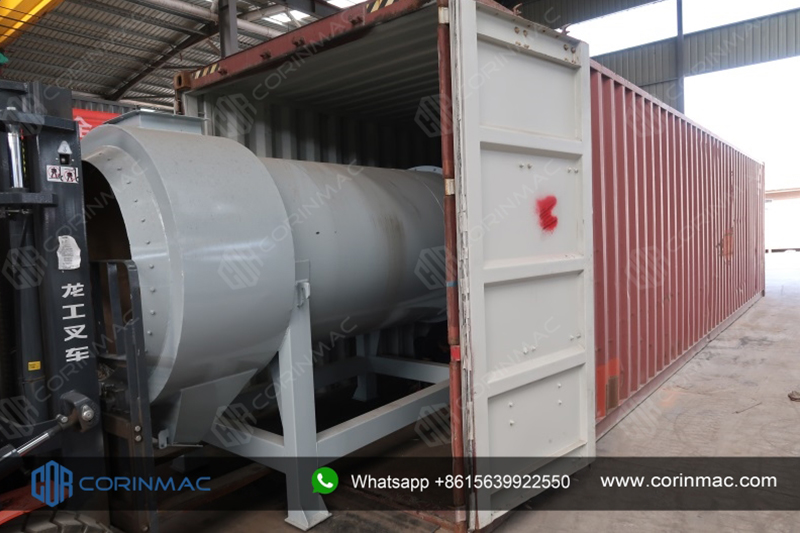

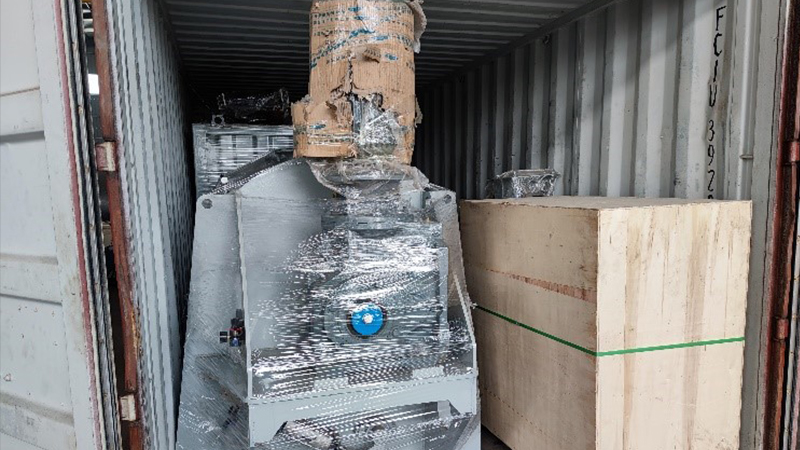

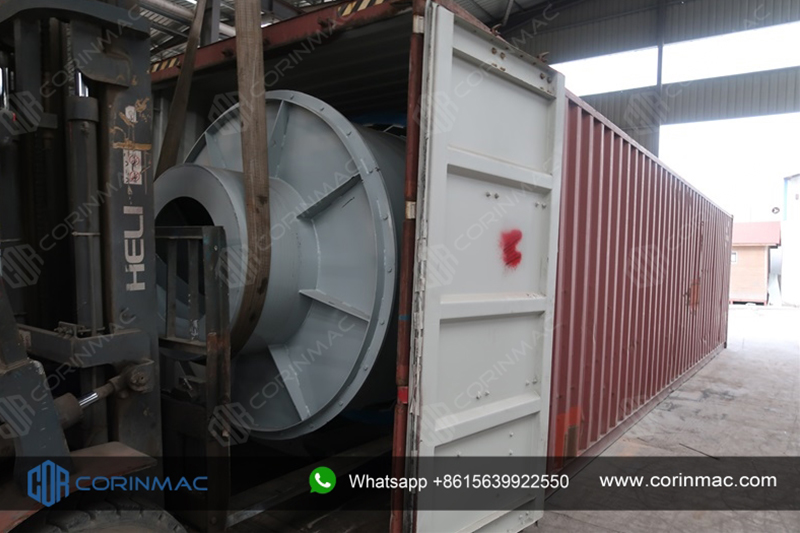

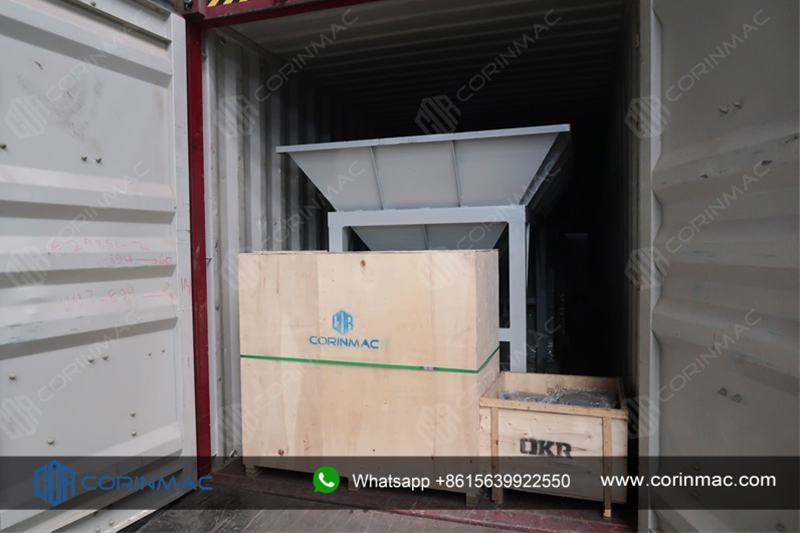

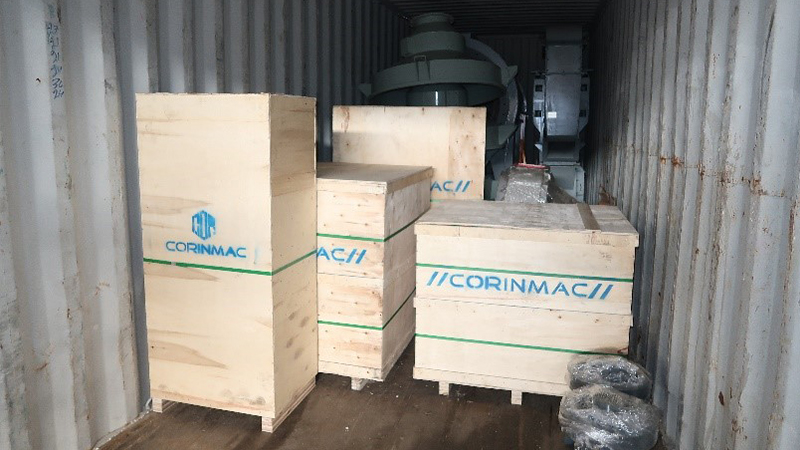

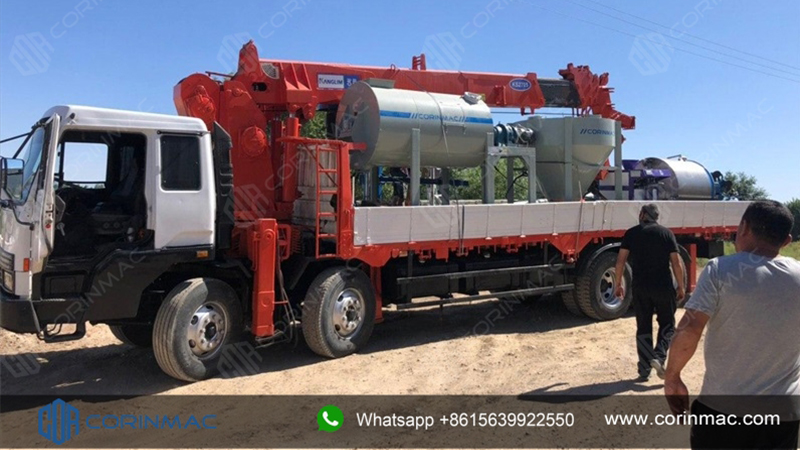

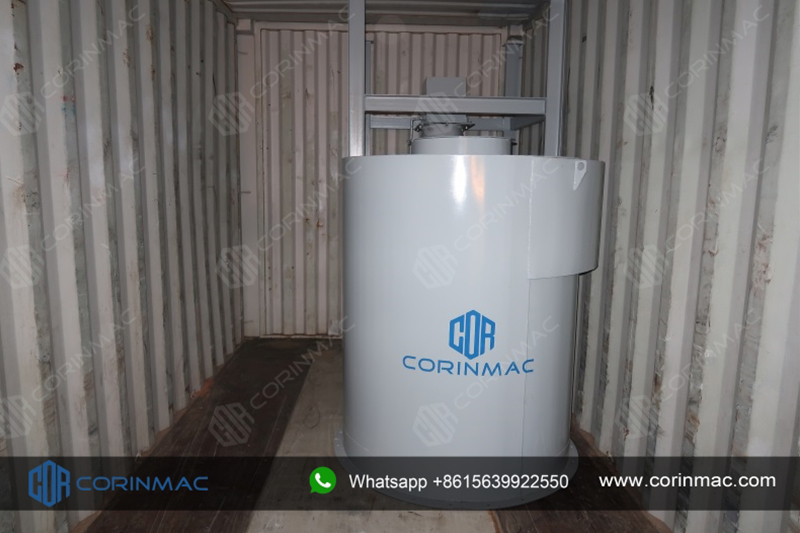

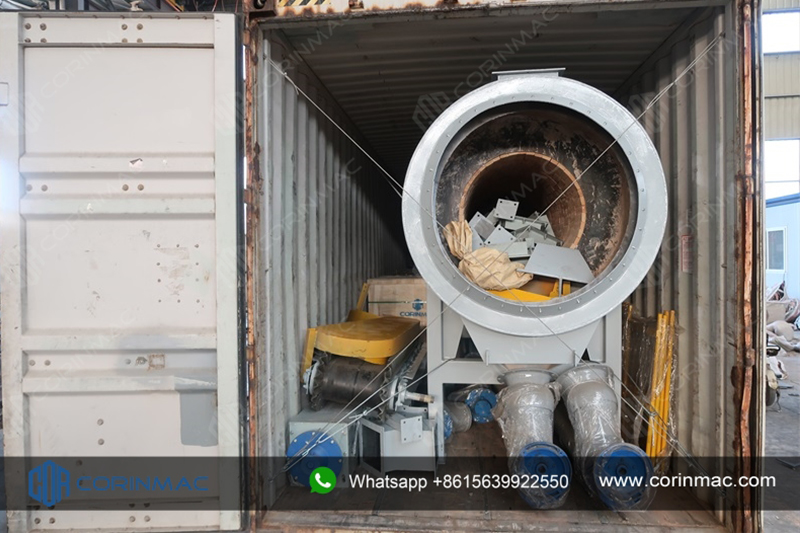

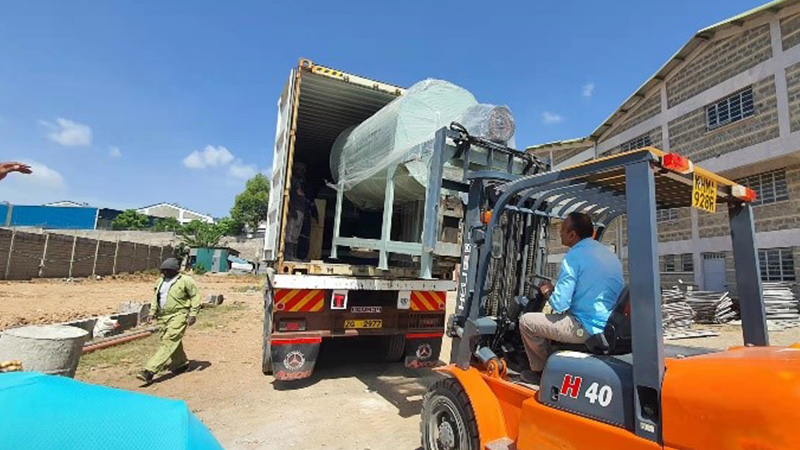

CORINMAC has professional logistics and transportation partners who have cooperated for more than 10 years, providing door-to-door equipment delivery services.

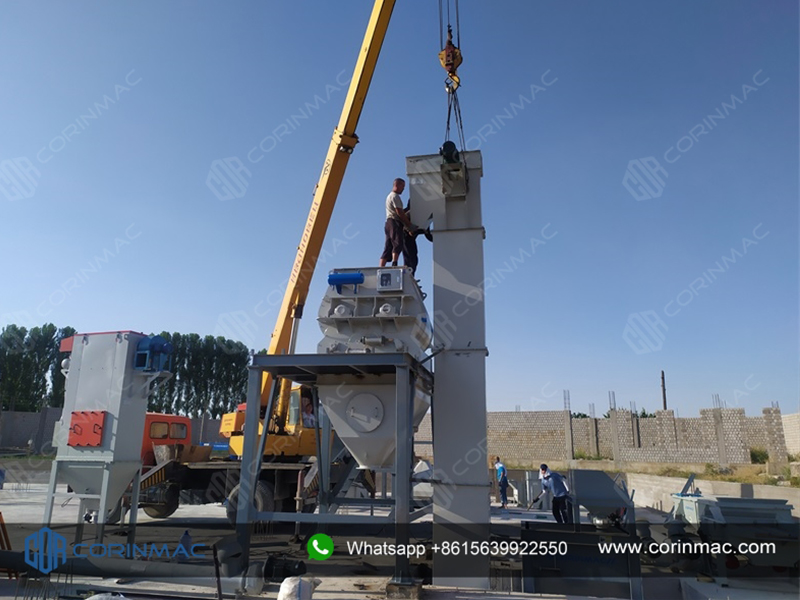

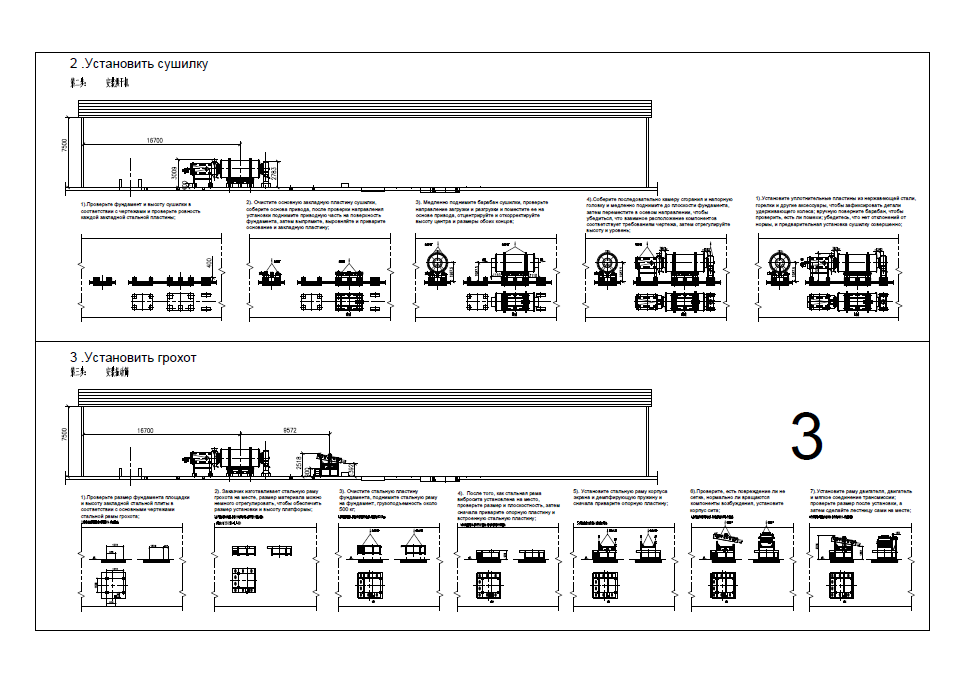

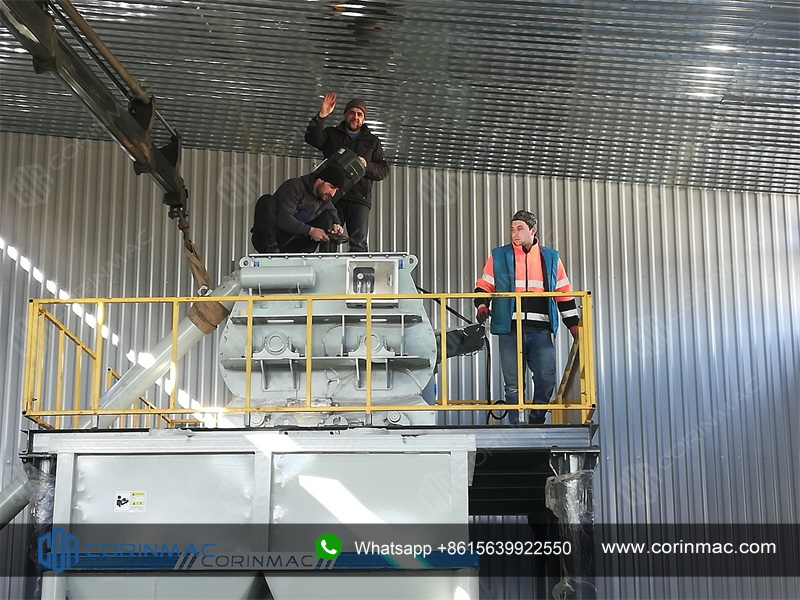

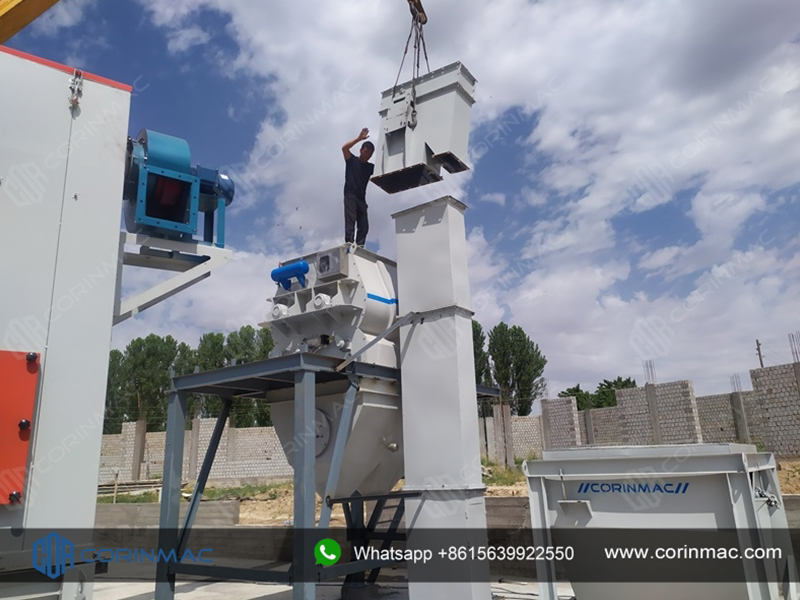

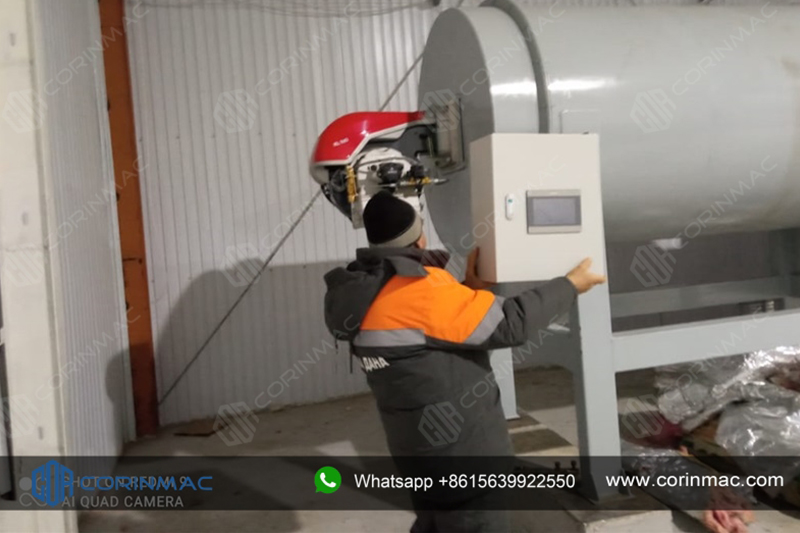

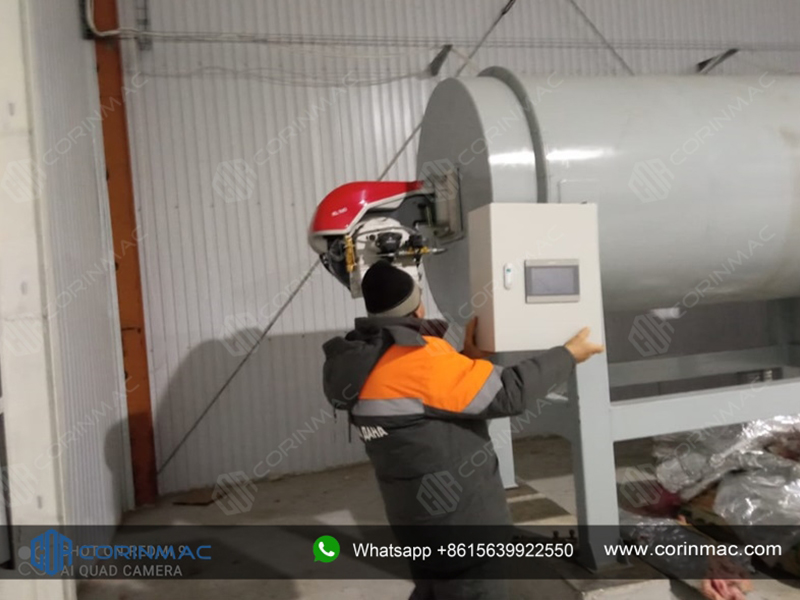

CORINMAC provides on-site installation and commissioning services. We can send professional engineers to your site according to your requirements and train on-site personnel to operate the equipment. We can also provide video installation guidance services.
-
We have never been engaged in mortar production, don't have experience, and do not understand mortar production lines. Can you provide technical and process guidance?

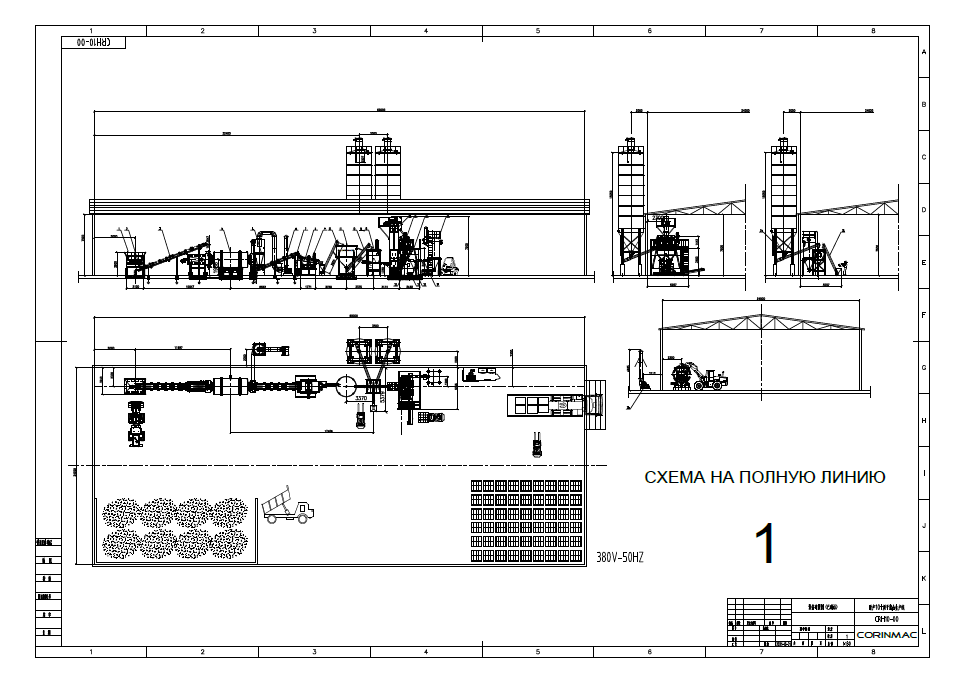

Yes, we have rich experience in mortar production process and production line technology, and we will customize the production plant according to your needs and provide a full range of project guidance. We can design the Production Line Layout and Site
Planning according to the size of your work shop, and provide technical support for mortar formulas.
-
Are you a Factory, a Design company, or a Trading company?

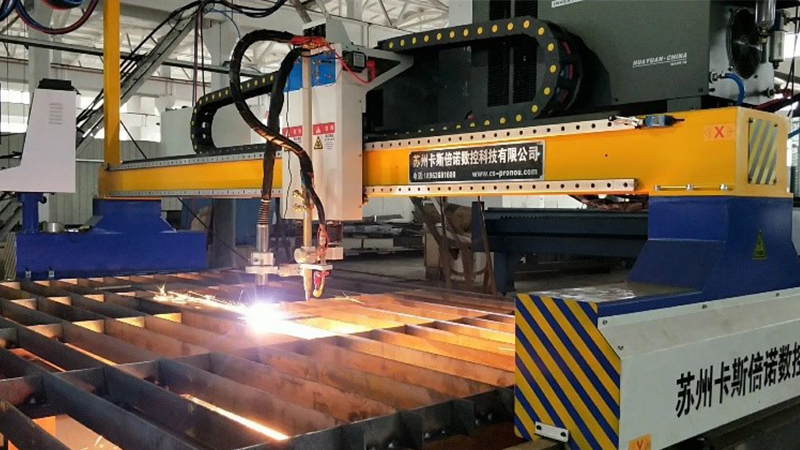

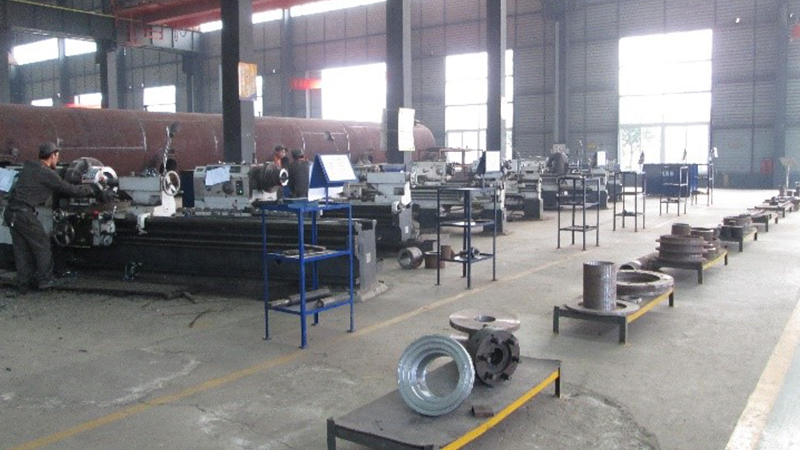

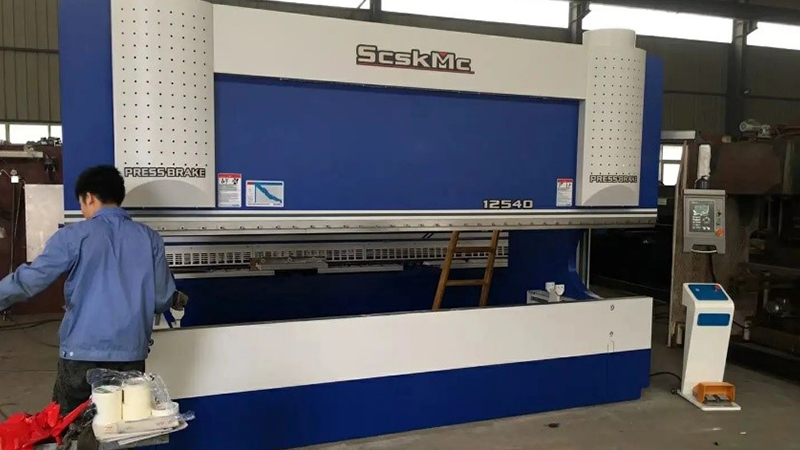

We are a factory with our own mechanical design engineers and project design engineers, and have a production workshop of 10,000 square meters.
We can provide customized solution design according to customer needs, and full-process services such as early project communication, scheme design, equipment selection, equipment production, site planning, equipment layout, transportation and delivery,
installation and commissioning.
-
Can I visit your factory?
Welcome to visit our factory, we can provide you the invitation letter required for visa application. We will meet you at the airport or station and provide professional business reception services.
-
What is the positioning and cost performance of your products?
We have professional engineers, skilled production workers, high-standardd quality inspection process, and sales and after-sales service teams with barrier-free communication. We can assemble and test all the equipment and pack them carefully before delivery.
Maybe our prices is not the lowest, but we are definitely your most suitable and trustworthy partner.
-
What certificates and certifications do you have?
We have ISO9001 quality management system certification. And we can also provide relevant certification according to the requirements of the customer's country, such as: SGS, EAC certification, etc.
-
Can you produce customized equipment according to our requirements?
We can produce customized products according to customer needs. The users of the equipment are more aware of the problems in the use of the equipment, so we humbly accept the customer's suggestions and improve the equipment.
-
How long is the delivery time and shipping time?
According to the production task, the general equipment production period is about 20-30 working days. After the equipment production is completed, you can come to our factory in person, send someone to our factory, or ask we to provide photos and videos
of the finished product for inspection.
The transportation methods include railway, sea, sea-rail combined transportation, etc. The transport time of different countries is different: Southeast Asia: 7-15 days, Central Asia: 20-30 days, Middle East: 20-40 days, Africa & America countries: 30-50 days, Russia
and European countries: 25-40 days. We will provide photos and videos of equipment loading throughout the delivery process, as well as official customs clearance information.
-
How long is warranty period, how to guarantee after-sales service, and how to solve equipment quality problems?
The warranty period of our equipment is 12 months, but it usually takes about 30 days (1 month) to transport from China to the customer's site, and installation and commissioning time also takes about 30 days (1 month). Therefore, our warranty period
for foreign customers is extended to 18 months from the date of delivery (except for wearing parts). We will provide customers with necessary wearing parts when delivering the goods. If it is necessary to replace the parts, we will send
the parts to the customer's site by air, and all cost will be borne by us.
-
Can engineers be sent to our site for installation and training?

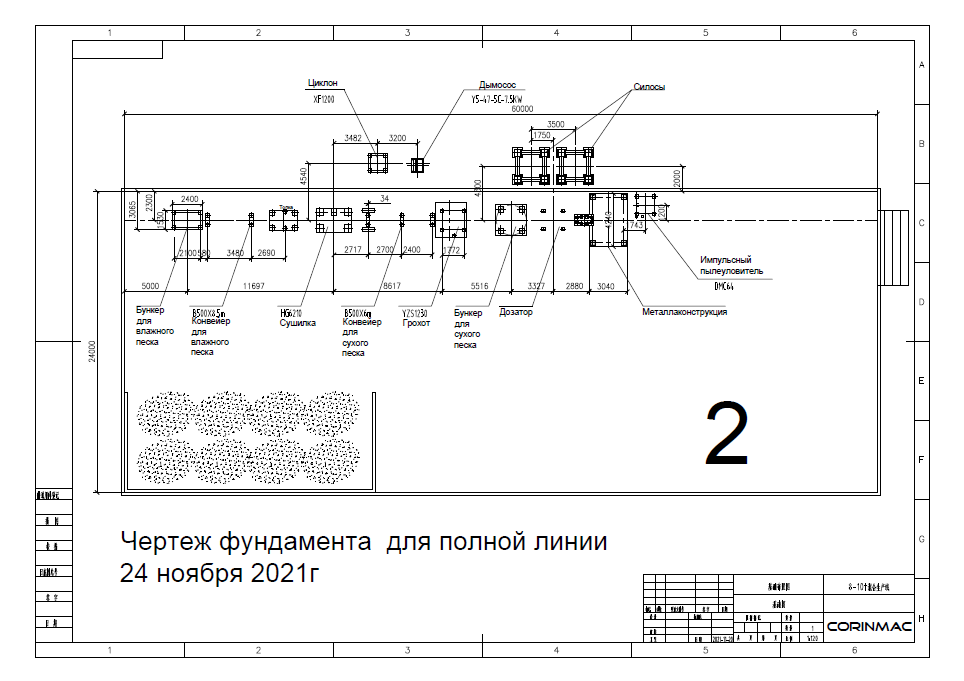

We can send experienced engineers to the customer's site to guide equipment installation, debug the production line until it is put into production, we will also provide installation instructions, layout drawings, assembly drawings, etc. If the customer

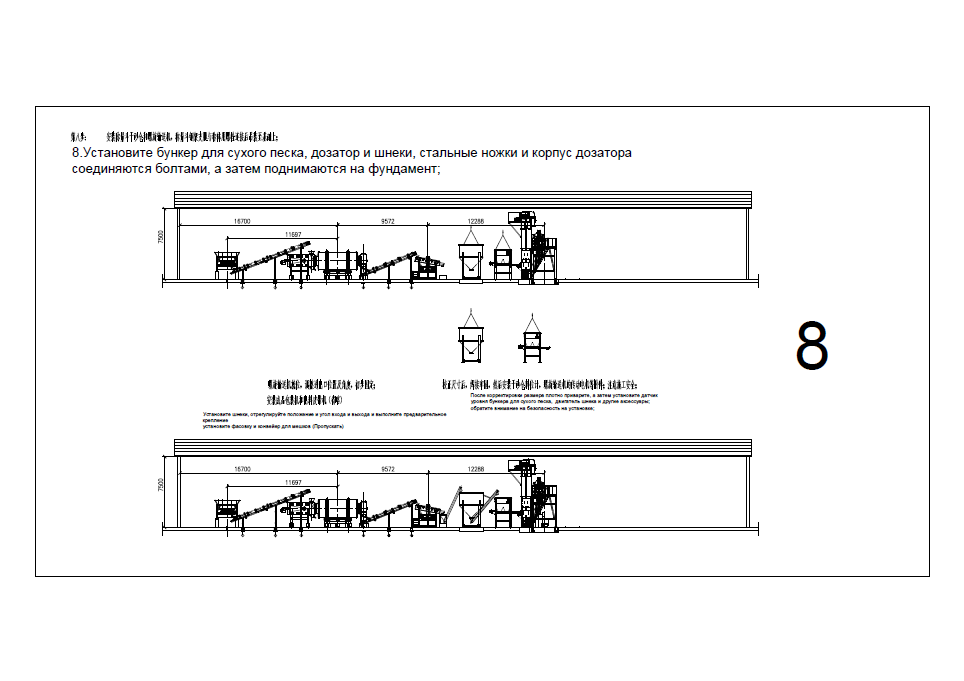

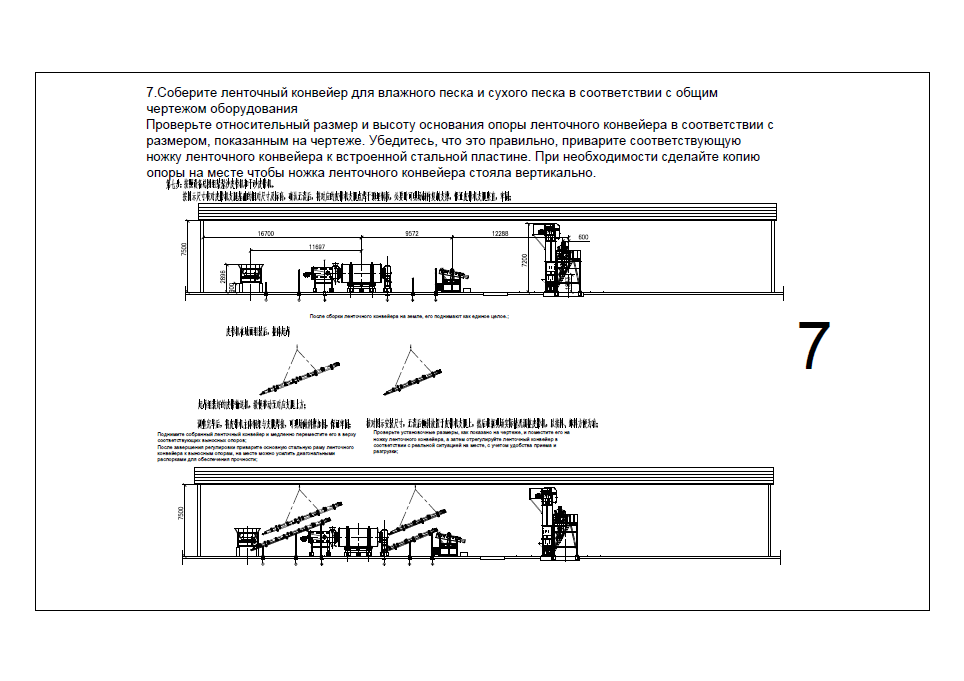

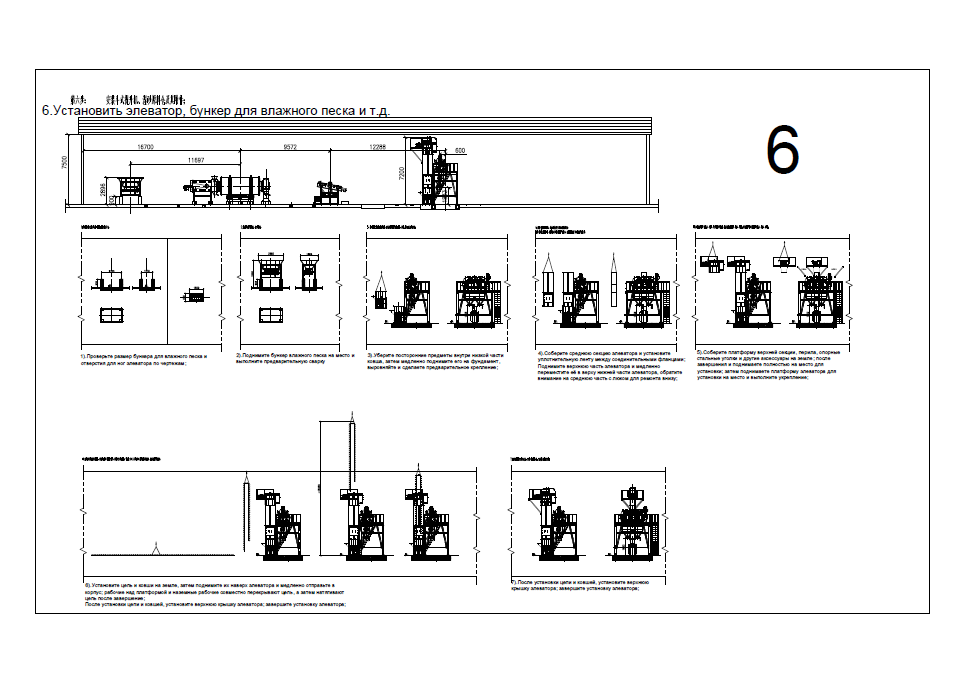

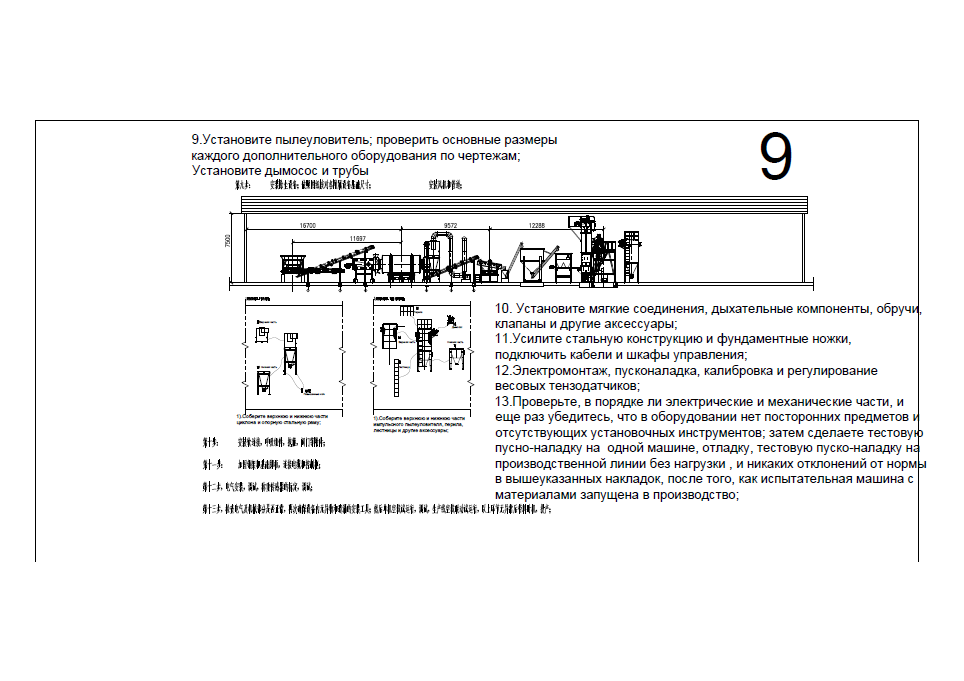

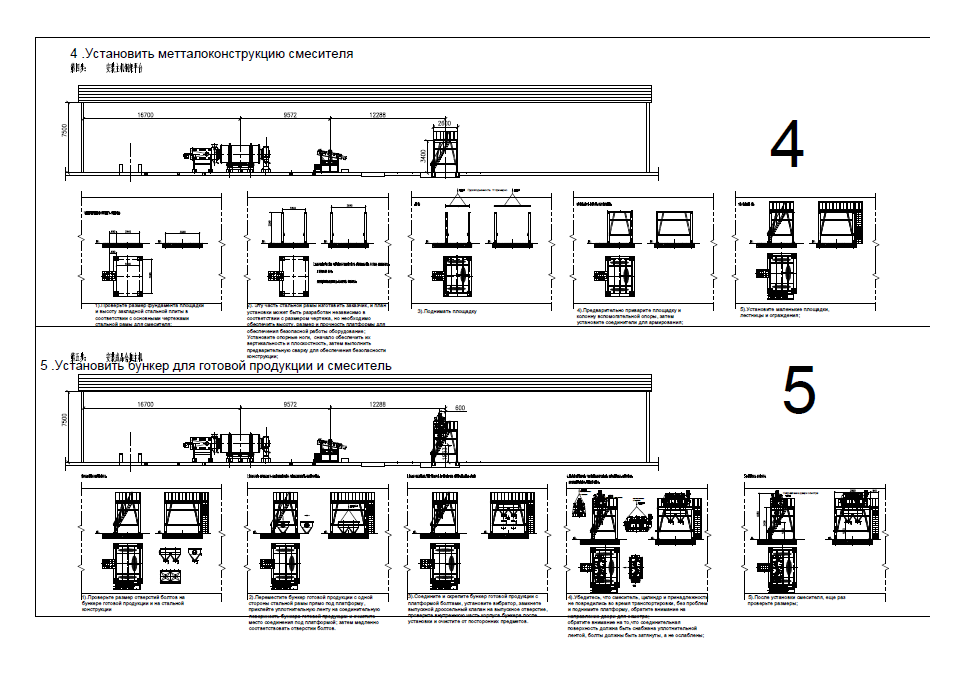

has his own engineer, he can install the equipment according to the installation steps drawings we provide, and we can also guide the installtion with online videos.
