Simple Introduction
This document describes the electrical characteristics, RF performance, dimensions and application environment of the HC952. Under the introduction of this document, end users or developers can quickly understand the hardware functions of HC952.

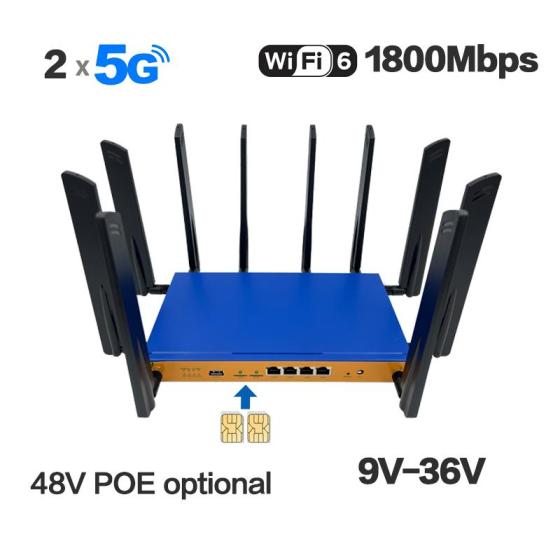

HC952 is a Gigabit Dual Band Wifi6 Dual 5G 4G Router. It accesses the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, then shares the Internet network through wireless WiFi 6 and 1000Mbps wired LAN.
Product Feature
--Using MT7621A MIPS dual-core CPU, main frequency is up to 880MHZ
--Using independent WIFI6 chip, MT7905D and MT7975D, wireless rate is up to 1800Mbps
--Using 16MB Nor Flash+256MB DDR3 RAM, Max up to 32MB Flash+512MB DDR3 RAM
--1 Gigabit WAN Port+3 Gigabit LAN Ports, support Auto MDI/MDIX, 1 USB 3.0 Port --Built-in two M.2/PCIE slot, support two 5G/4G mobile connections
--2 SIM card (Nano SIM Card) interface and built-in eSIM (QFN-8 6mmx5mm) card interface, support SIM/USIM card --Support 9V-36V power supply, 48V POE in as optional
--External high-gain WIFI antenna, wireless signal 360 degrees without dead angle
Product Datasheet
|
Ports |
1*10/100/1000Mbps WAN Port(Auto MDI/MDIX) IEEE 802.3/802.3u/802.ab |
|
3*10/100/1000Mbps LAN Port(Auto MDI/MDIX) IEEE 802.3/802.3u/802.ab |
|
|
SIM slot |
2* Nano SIM slot, 2*QFN-8(6mmx5mm) eSIM, Support SIM/USIM |
|
USB Port |
1*USB 3.0 port |
|
Power |
12V 3A DC5.0*2.1MM power adapter, support 9V-36V power , 48V POE in as optional |
|
Button |
1*Reset button |
|
Antennas |
2*Omni- directional External 5dbi Wifi antennas |
|
8*Omni -directional External 5dbi 5G/4G antennas |
|
Processor |
MT7621A MIPS Dual Core CPU, 880MHZ main frequency |
|
WIFI chipset |
MT7905D+MT7975D, IEEE 802.11n/g/b/a/ac/ax, max speed up to 1800Mbps |
|
RAM |
DDR3 256MB (Max.512MB) |
|
Flash |
Nor Flash 16MB (Max. 32MB) |
|
NAND Flash (Reserved Design) M ax. 1GB |
|
Working temperature |
-20℃ - 60℃ |
|
Storage temperature |
-40℃ - 70℃ |
|
Working humidity |
10% - 90%RH, Non condensing |
|
Storage humidity |
5% - 90%RH,Non condensing |
Product Key Feature
Two versions
2 x 5G Router with Dual SIM Card slots2 x 4G Router with Dual SIM Card slots
Support 9V-36V power, 48V POE in as optional
