Product Attributes

- Brand Name LNEYA
- Model Number SUNDI-6 series
- Place of Origin China
- heating and refriger heating and cooling temp
- Related Keywords heating cooling machine, process temperature control system

Description by Manufacturer

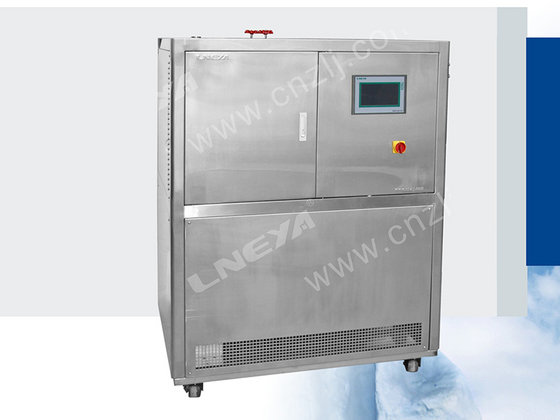

Heating and cooling temperature system offer rapid heat-up and cool-down function,with wide temperature range ,mainly applied to the glass reactor ,metal reactor, jacketed reactor, precise temperature control system for science,research and industry.

FEATURES :

1. The circulation system is cloosed

2. Temperature control of digital temperature adjustment and indication

3. The system for precisely controlling the temperature of applications and processes of jacketed reactor.

4. The system is a closed liquid circulation system with the expansion of container

5. Without the need to change media operation throughout the entire temperature range

6.Multi-alarming devices (over-temperature alarm, sensor alarm, high pressure alarm, overheat alarm compressor)

Model		SUNDI-6A25W	SUNDI-6A38W	SUNDI-6A60W	SUNDI-6A95W	SUNDI-6A130W
Temperature range ℃		-60℃~250℃
Controller		Feed forward PID +Our special dynamic control calculation, PLC controller
Communication		MODBUS RTU Protocol, RS 485 Interface
Temp. control		Process temperature control mode
Program Editor		20 programs, each program can edit 45 steps.
Temperature feedback		Heat-conducting medium feedback PT100, (oil outlet temperature, oil inlet temperature and heater temperature), Three temperature measuring points.
Process Temperature feedback		Raw material process feedback PT100 or 4~20mA input (optional)
Temp. accuracy		±1℃	±1℃	±1℃	±1℃	±1℃
Heating power		25kW	38kW	60kW	95kW	130kW
Cooling capacity	250℃	25kW	38kW	60kW	95kW	130kW
	100℃	25kW	38kW	60kW	95kW	130kW
	20℃	25kW	38kW	60kW	95kW	130kW
	0℃	25kW	38kW	60kW	95kW	130kW
	-20℃	25kW	38kW	56kW	80kW	90kW
	-40℃	18kW	22kW	30kW	45kW	56kW
	-55℃	6kW	7.5kW	11kW	15kW	19kW
Circulation pump		Max110L/min 2.5BAR	Max150L/min 2.5BAR	Max250L/min 2.5BAR	Max250L/min 2.5BAR	Max250L/min 2.5BAR
Compressor		Copeland	Copeland	Copeland	Bock	Bock
Evaporator		KAORI Plate heat exchanger
Oil separator		Emerson
Expansion valve		Emerson
Operation panel		Optional 7-inch color touch screen controller, temperature curve record, data export to excel format.
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.
Refrigerant		R-404A R23 mixed Refrigerant
Connection size		DN25 PN10	DN32 PN10	DN40 PN10	DN40 PN10	DN40 PN10
Water-cooled type W (cooling water at 30℃)		8.5m³/h 1.5bar~4bar	14m³/h 1.5bar~4bar	20m³/h 1.5bar~4bar	29m³/h 1.5bar~4bar	38m³/h 1.5bar~4bar
water-cooled condenser		Shell and tube exchanger(standard)
Dimension		150010001750	180012001750	205014501750	230014501750	275016001850
Weight		980kg	1150kg	1380kg	1750kg	2280kg
Power		AC 380V 50HZ 38kW (max)	AC380V 50HZ 58kW (max)	AC 380V 50HZ 85kW (max)	AC 380V 50HZ 30kW (max)	AC 380V 50HZ 180kW (max)
Case material		SUS 304	SUS 304	SUS 304	SUS 304	SUS 304
Optional		Optional Ethernet interface , configure the computer operating software
Optional		Water condenser use plate heat exchanger (request for high quality water)
Optional power		440V~480V 60HZ three-phase

Price

Price Condition FOB

Packaging & Shipping

- Packing1 pcs per wooden case
- Delivery Lead Time20 working days
- Minimum Order1 pcs
- Supply Ability200 pcs/month
- Delivery Portshanghai
