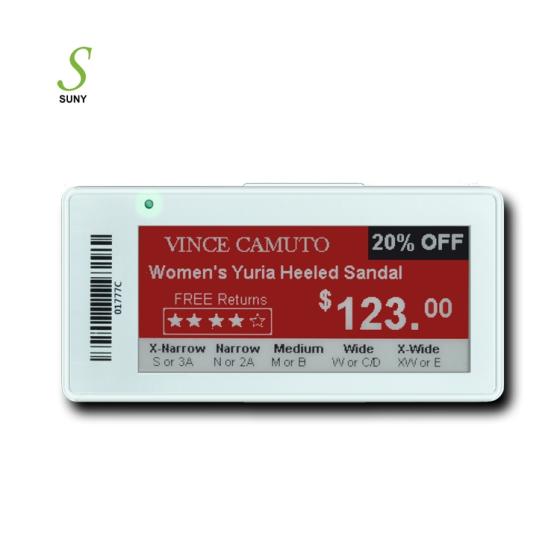

Electronic Shelf Label System Digital Price Tags Wireless E Ink Display

--->>Click here to get more details

Application Area

--->>Click here to get more details

Our Customer Feedback

--->>Click here to get more details

What is Suny Electronic Shelf Label?

Our Electronic Shelf Label System make up by three parts: Electronic Shelf Label, Base Station, Software.

Working principle : PC(software) control Station by LAN, Station control price tag by

Wireless(433MHz).

Here is the cover range of our ESL wireless base Station, one station can control 65,000 pcs ESL in R=75M (max, open environment).

But in the real using environment, we only suggest the customer calculate one station can control the ESL tag in R=16~24M, 800 ~ 1,800 M3 area.

--->>Click here to get more details

Model	1.54 inch	2.13 inch	2.9 inch	4.2 inch	7.5 inch
Dimensions,L*H*T(mm)	47*35*14	66*36*14	88*43*14	104*98*14	183*128*9
Resolution,H*V	152*152	212*104	296*128	400*300	640*380
Display Active Area      L*H(mm)	27.5*27.5	48.6*24	67*29	86*64	163*98
Power	1*CR2450	2*CR2450	2*CR2450	3*CR2450	6*CR2450
Weight	25g	34g	44g	93g	185g
Display	Dot-matrix E-ink Epaper Display
Display Color	Black+White / Black+White+Red / Black+White+Yellow
LED Light	3colors up to 7combination(R,G,B,C,M,Y,W)/
Frequency	433MHz Sub-GHz ISM
Protocol	Private
Response Speed	5s (2colors ESL) / 10s (3colors ESL)
Viewable Angle	Close to 180°
Replacement Battery	Quick-Release
Battery Life	≥ 5 years
Cache	4 pages
Temperature Monitoring	Support
Voltage Monitoring	Support
Operate Temperature	0℃-40℃
Operate Humidity	5% - 80% (no condensation)

--->>Click Here to view the datasheet

--->>Click here to get more details

--->>Click here to get more details

Q1:Do you offer a demo kit for testing?

A:Yes. Demo kit is available, which includes all sizes of ESL, software, base station, and some tag accessories.

Q2:Do I necessary to use your software to make the tag work?

A:Not necessary. We will offer the SDK to you, you can develop your own software or integrate your own system(POS/ERP).

Q3:Did you offer SDK ?

A:Yes. Our SDK is in .Net version and .Net core version.

Q4:Could we get a sample of electronic shelf label?

A:Sample is available, but the price tag can't work without necessary software and hardware.

Q5:Which language could I display on the labels? Is there a way to send a png/jpg         programmatically to base station which then sends it to e-tag?

A:Our electronic shelf label is the dot-matrix epaper display, it can display any information that you need.

Q6:Can you explain why the label has LED light colors on the left hand side ?

A:The function of LED light:

a.Remind the information is update completed

b.Product Promotion

c.Inventory Reminder

Q7: How long does the battery life last on standby mode (when not changing display) ?

A: The label's battery life can be up to 5 years (based on one day update). The battery of our ESL is a non-rechargeable and quick release.

Q8: I want to place an order,how can I make the payment?

A:The payment term is Alibaba trade assurance payment, it is support credit card and TT.

Q9:When will you ship the goods?What shipping company method do you use ?

A:We will ship the goods 1-4 workday after payment. Generally, we’ll choose these three delivery companies: DHL, UPS or FedEx.

Q10:The system is OEM?

A: We can OEM the tag and the software for you or you can develop software by yourself.

Q11:If the software is demo mode, which is the limitation?

A:Demo version VS Commercial version. Demo version software no database, can't store the goods' information, only can control 50 pcs tag.

Q12:Does the software require access to the external internet or Suny servers?

A:The software can access to your intranet or access the external internet, no need to connect to suny servers.

Q13:Do you sell the module or just the screen? Is it WIFI?

A:We are selling the label and it is WIFI.

Q14:Does it has humidity and temperature sensor?

A:Yes,it has temperature sensor.
