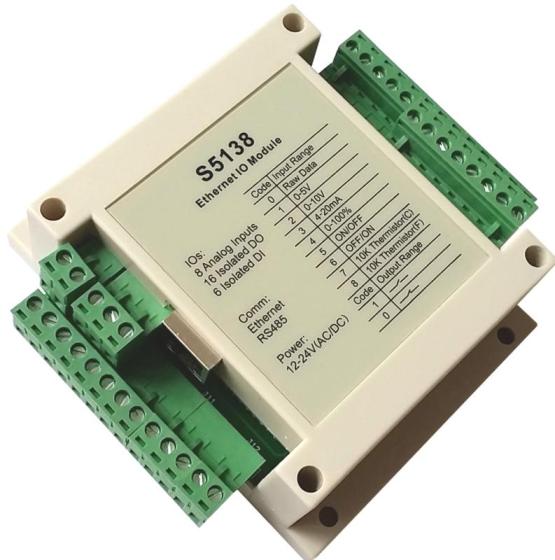

S5138 is a high quality and low cost analog data acquisition module with 8
universal analog inputs. Each input can be 0-5V,0-10V,0-20mA,thermistor,dry
contact, open-collector input,6 isolated digital input and 16 channels isolated
open-collector digital output. The digital input can be dry contact, wet
contact and open-collector, each input also can be 32-bit counter.S5138 has
RS485 and rj45 two type interface,rs485 support standard Modbus RTU protocol
and RJ45 support Modbus Tcpip protocol.It can easy integrate with PLC and
labview with standard Modbus/Modbus Tcpip protocol
Highlights:
l
Surge-protected analog inputs with
12-bit resolution and 100k sample speed
l
Input can be any combination of
0-5V,4-20mA,0-10V,NTC 10K thermistor, open-collector and dry contact
l
The channel number is
configurable, can be set up from 1 channel through 8 channels, for analog input
and set up from 1 to 6 for digital input, improve sample rate for small count
input
l
Isolated digital inputs can be
configured as counter input, total 32 bits,1000Hz
l
Total 16 channels isolated open-collector
digital output
l
Standard ModBus TCPIP
protocol,easy work with PLC
l
Standard ModBus protocol allows
for up to 254 unique devices on one RS485 network
l
A lot of spare FLASH can be used
to store user’s parameters
l
Can update your firmware via ISP
through RS485 network, can provide any hex file to help you finish some logic
control
l
DIN support available
Application:
ü Remote data acquisition
ü Process monitoring
ü Industrial process control
ü Energy management
ü Supervisory control
ü Security systems
ü Laboratory automation
ü Building automation
ü Product testing
ü Direct digital control
Technical
data:
Analog Input Resolution--------------------------------------------------------------------------------12-bit
Analog Input Channel
Number------------------------------------------------------------------------------8
Analog Input
range----------------------0-5V,0-10v,0-20mA, thermistor, dry contact,open-collector
Analog Input Protection---------------------------------------------------------------------Lightning,static
Analog Input Accuracy---------------------------------------------------------------------------------±0.1%
Analog Input Zero drift-----------------------------------------------------------------------------±3uV/℃
Analog
Input Sample Rate-----------60 sample/second(8 channels),900 sample/second(1
channel)
Digital Input Channel Number----------------------------------------------------------------------------- 6
Digital Input
Range-------------------------------------------------------------------------------+4V~+36V
Digital Input Signal----------------------------------------------wet
contact, dry contact, open-collector
Digital Input Counter Frequency-------------------------------100Hz@6channels;1000Hz@1channel
Digital Input Counter Length---------------------------------------------------------------------------32-bit
Output channel
number-----------------------------------------------------------------------16
Output
signal---------------------------------------------------------------------open-collector
Output
current----------------------------------------------------------------maximum
40mA
Output
BUS----------------------------------------------------------------------------------Ethernet/RS485
RS232/RS485 protocol--------------------------------------------------------------MODBUS/RTU
Ethernet
protocol------------------------------------------------------------------MODBUS/TCPIP
Output
Protection-----------------------------------------------------------------------------Lightning,static
Power
input----------------------------------------------------------------------------------15~24V(AC/DC
Power
consumption------------------------------------------------------------------------------------<0.6W
Ambient
temperature:
Operation--------------------------------------------------------------------------
-20~85℃(-4~185℉)
Storage----------------------------------------------------------------------------------------
-40~125℃(-40~257℉)
Ambient
humidity-----------------------------------------------------------------------------------------------10%~90%RH
Material,enclosure-----------------------------------------------------------------------Flame
proof plastic
Enclosure
rating--------------------------------------------------------------------------------------------IP31
Colour----------------------------------------------------------------------------------------------White/Black
Size---------------------------------------------------------------------------------------------115*90*43 mm
