Flexible Graphite Packing
Flexible graphite packing are braided from flexible graphite
yarns, which are reinforced by cotton fiber, glass fiber, carbon fiber, etc.
It has a very low friction, good thermal and chemical resistance and high elasticity.
Typical Application
> Flexible graphite packing is a multi-service packing capable of a wide variety of uses throughout a plant.
> It can be used in valves, pumps, expansion joints, mixers and agitators in high-pressure and temperature.
>Effective sealing is vital.
Prime Features
>Reinforced with glass fiber: high strength, lower cost
>Good thermal and chemical resistance and high elasticity.
Technical Data
|
Material
|
100% Expanded Graphite Yarn
|
|
|
Temperature Range
|
-200 up to +555 ℃ atmosphere;
-200 up to +650℃ in Steam
|
|
|
Process
|
Rotating: 3Mpa
|
|
|
Reciprocating
|
10 Mpa
|
|
|
Valves
|
20 Mpa
|
|
|
Shaft Speed
|
20m/s in rotary
|
|
|
PH
|
0~14
|
|
|
Density
|
1.3~1.5 g/cm3
|
|

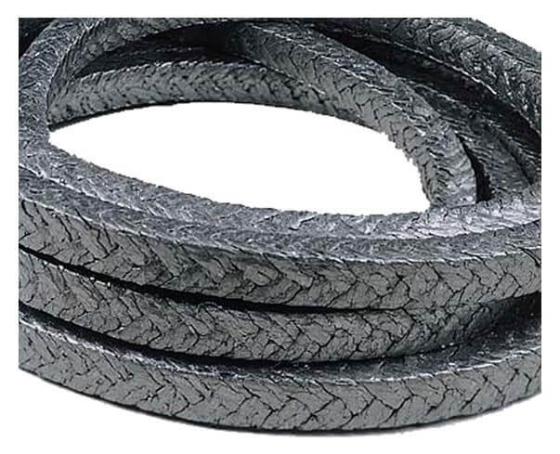

Graphite Packing Reinforced with Metal Wire
Graphite packing reinforced with wire is braided from expanded
graphite yarns, reinforced with metal wire, normally reinforced with inconel wire.
It retains all the inherent benefits of flexible graphite packing.
The wire reinforcement provides greater mechanical strength, used for high pressure
and temperatures.
Corrosion inhibitor acts as a sacrificial anode to protect the valve stem and the stuffing box.
Typical Application
>Flexible graphite packing is a multi-service packing capable of a wide variety of uses throughout a plant.
>It can be used in valves, pumps, expansion joints, mixers and agitators in high-pressure and temperature.
>Excellent for use in steam turbines, high temperature motor-actuated valves
>High temperature and high pressure valve applications in general.
Prime Features
>It can be reinforced with nickel, stainless steel, copper, etc.
> Wide variety of uses throughout a plant
> Precaution: in oxidizing environment may use with anti-extrusion packing rings.
Technical Data
|
Material
|
100% Expanded Graphite Yarn and Metal Wire
|
|
Temperature Range
|
-200 up to +555 ℃ atmosphere;
-200 up to +650℃ in Steam
|
|
Process
|
Rotating
|
5 Mpa
|
|
Reciprocating
|
15 Mpa
|
|
Valves
|
30 Mpa
|
|
Shaft Speed
|
23m/s in rotary
|
|
PH
|
0~14
|
|
Density
|
1.5 g/cm3
|
Graphite Packing with Carbon Fiber Corners
Graphite packing with carbon fiber corners is a multi-fiber packing,
braided from expanded graphite yarns and carbon fibers, the diagonally braided
from graphite yarn, reinforced in all four corners with carbon fibers.
The corners and body make the packing three times more resistant to extrusion
and increase the pressure handing capabilities compared to traditional graphite
packings.
There are multi inconel wires reinforced to create the packing with increased extrusion resistance capability.
Typical Application
>It can be used in many demanding applications, both dynamic and static
>Particularly suited for high temperature and high pressure service in valves, pumps, expansion joints, mixers and agitators of pulp and paper, power station and chemical plant etc.
Prime Features
>More resistant to extrusion
>Increase the pressure handing capabilities.
Technical Data
|
Material
|
100% Expanded Graphite Yarn
|
|
Temperature Range
|
-200 up to +555 ℃atmosphere;
-200 up to +650℃ in Steam
|
|
Process
|
Rotating
|
3 Mpa
|
|
Reciprocating
|
10 Mpa
|
|
Valves
|
28 Mpa
|
|
Shaft Speed
|
18m/s in rotary
|
|
PH
|
0~14
|
|
Density
|
1.5 g/cm3
|
Graphite Packing With PTFE Impregnated
Graphite Packing with PTFE Impregnated is braided from
Expanded graphite yarns which impregnated with PTFE as a blocking
agent thus creating a non-straining packing. The yarns are reinforced
by textile fibers.
Typical Application
> Can be used in many demanding applications, both dynamic and static
>Particularly suited for high temperature and high pressure service in valves, pumps, expansion joints, mixer and agitators of pulp and paper, power station and chemical plant etc.
Prime Features
>Excellent cross-section tightness, structural strength
>Very lo friction-valve, wear resistant, yet gentle to shaft and stem.
Technical Data
|
Material
|
100% Expanded Graphite Yarn and PTFE oil
|
|
Temperature Range
|
-200 up to +280℃
|
|
Process
|
Rotating
|
3 Mpa
|
|
Reciprocating
|
10 Mpa
|
|
Valves
|
20 Mpa
|
|
Shaft Speed
|
22m/s in rotary
|
|
PH
|
0~14
|
|
Density
|
1.5 g/cm3
|
Jacketed Graphite Packing
Jacketed Graphite Packing braided from graphite yarns with metal
alloy and glass fiber casing like the socks outside. Used in any steam
valves applications.
Typical Application
>It is the ideal choice for high pressure, high temperature steam valves service.
Prime Features
>Highest pressure, and temperature
>Good thermal and chemical resistance and high elasticity.
Technical Data
|
Material
|
100% Expanded Graphite Yarn and Metal Socks
|
|
Temperature Range
|
-200 up to +555℃ atmosphere;
-200 up to +850℃ in Steam
|
|
Process
|
Valves
|
55 Mpa
|
|
PH
|
0~14
|
|
Density
|
1.75 g/cm3
|
Super Graphite Valve Packing
Super Graphite Packing specially for high pressure valves, braided
from expanded graphite yarns with corrosion inhibitor, reinforced with inconel
wire. Each yarn is round braided with inconel mesh outside again.
The mesh is jacketed.
Description
Flexible graphite packing braided from expanded graphite yarns, reinforced of cotton fiber, glass Super Graphite
Packing specially for high pressure valves, braided from expanded graphite yarns with corrosion inhibitor, reinforced with inconel wire. Each yarn is round braided with inconel mesh outside again. The mesh is jacketed.The jacketed materials: stainless steel, inconel, copper, etc.
Graphite packing wrapped with Aramid Mesh
Each yarn is wrapped with aramid filament. The high strength aramid mesh make the packing three times more resistant to extrusion and increase the pressure handing capabilities.
Typical Application
> It can handle most chemical, acids and alkalis
> Excellent for use in steam turbines, high temperature motor-actuated valves and for high temperature and high pressure valve applications in general.
Prime Features
>The exclusive packing is formable, yet tough.
>Cost-effective as well as a confident
Technical Data
|
Material
|
100% Expanded Graphite Yarn and Metal Mesh (Aramid Mesh)
|
|
Temperature Range
|
-200 up to +555 ℃atmosphere;
-200 up to +850℃ in Steam
|
|
Process
|
Reciprocating
|
30 Mpa
|
|
Valves
|
48 Mpa
|
|
PH
|
0~14
|
|
Density
|
1.5~1.75 g/cm3
|
High-temperature High-pressure Valves Special Graphite Packing
Description
This style graphite packing is braided from graphite yarn with metal alloy wire and glass fiber casing like shell outside.
All-metal coated structures greatly increased the erosion resistant of packing, make packing more compact, more robust, long life.
It is competent to ultra-high temperature, high pressure conditions of the steam valve sealing.
Applicable
>Electric power plant combustion furnace door;
>Chemical plant high-pressure valve sealing;
>Not suitable for highly oxidizing agents.
Jacketed woven materials
>SS304, SS316, Inconel, etc.
Technical Data
|
Material
|
External Woven Wire Mesh Cloth Graphite Stuffing
|
|
Temperature Range
|
-200 up to +650 oC
-200 up to +950 oC in steam
|
|
Process
|
60 Mpa in valves
|
|
PH
|
3 ~ 13
|
|
Density
|
Appr. 1.80 ~ 2.0g/cm3
|
Package
5kgs/roll, 10kgs/roll.
Or, following your request.
