Product Attributes

- Brand Name RINGDER
- Model Number FC-110C
- Place of Origin China
- Related Keywords Foot Sauna Temperature Controller, Foot Spa Temperature Controller

Description by Manufacturer

Digital Temperature Controller Especially design for Foot Massager Foot Spa Mini Sauna Room FC-210C

Features:

LCD blue tape crystal display
Power down memory function(optional)
Control Massager function

Parameters:

Temperature measuring range: 0~100°C
Temperature controlling range: 18~65°C
Resolution: 0.1°C
Accuracy: ±1°C
Power: 220VAC±10%, 50HZ
Input: 1 NTC sensor
Output: one 5A relay output controls heating; the other 5A relay controls motor (The difference between FC-110C and FC-210C is that FC-210C has one more output to control the massager)
Consumption :≤3 w
Cut-out size: approx. 104×64(mm); Screen size: 70×29(mm); Panel: 122×74.5×4.6(mm)
Ambient requirements: temperature: -10~60°C; humidity: 20~85% (No condensate)

Package Included:

1 x temperature controller
1 x User manual

Buttons Operation Description:

Power: On/Off by single click

SET: Single click, enter into setting mode, the temperature value flash and can be adjusted by clicking . Single Click SET button again, time value flash and can be adjusted by clicking . Single click SET button to confirm and exit.

: In the non setting mode, single click to switch motor on or off.

Functions Menu:

Functions	Setting Range	Default	Adjusting Step	Unit
Temp. Setting	18~65	40	1	°C
Time Setting	0~99	60	1	Minute

Output explanation:

Conditions of heating output
Power-on, then click to turn on	Time countdown > 0	Measuring Temp. ≤ Setting Temp.-3°C
Conditions of stopping heating output
Measuring Temp. ≥Setting Temp.	Time countdown = 0	Click to turn off
Massage output: In the non setting mode, single click “Massage” button to switch motor on or off.

The Fault Code Table:

Code	Display	Reasons
HHH	fast flash	Sensor short circuit or exceed upper limit
LLL	Ditto	Sensor open circuit or exceed lower limit

Price

Price Condition FOB

Product Image

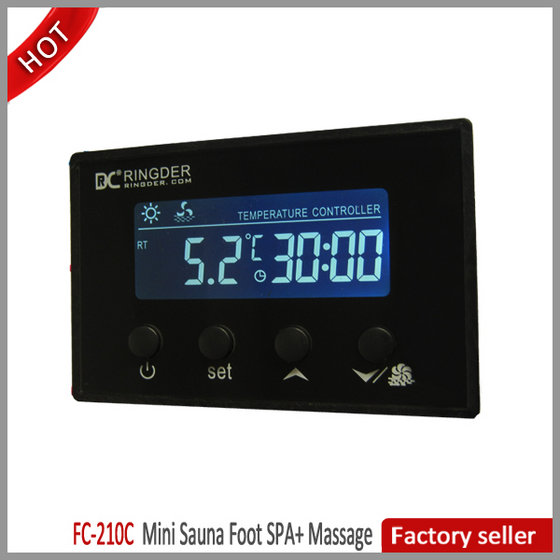

FC-210C Digital LCD Temperature Controller Especially Design for Foot Spa Mini Sauna Room Thermostat
