Product Attributes

- Model Number FS-IR82
- Place of Origin China
- Related Keywords Optical level sensor, water level sensor, oil level sensor, liquid level sensor

Description by Manufacturer

Features

1. No mechanical moving components and with high reliability.

2. Small in size and low in cost.

3. High liquid level control precision and can be installed from any direction.

4. Satisfying the requirements in Safety Standards.

5. The sensor itself satisfies RoHS requirements.

6. Waterproofing standard IP68.

7. Accuracy is between ±0.5mm.

8.The sensor can be installed on the top, bottom, side and inclined direction.

Application

Can be used in:Water dispenser, water heater, humidifier, coffee machine, medical devices or equipment, electrical appliances and equipment’s etc. requiring liquid-level control.

Parameter

Electrical Specification (Ta=25°C )
Parameter		Symbol	Limit	Units
Infrared transmitter tube	Forward Current	I F	10	mA
	Reverse Voltage	V R	5	V
	Power Dissipation	P D	45	mW
Photosensitive receiving transisto	C-E Voltage	V CEO	30	V
	E-C Voltage	V ECO	5	V
	Collector current	I C r	20	mA
	Power Dissipation	P D	75	mW
Operating Temperature		Topr	−20~+85	°C
Storage Temperature		Tstg	−20~+70	°C
Working Life		Life	50000	h
Output Parameters (Ta=25°C )
Parameter		True value	Output (V)	Output C(mA)
Output	Full liquid level	0	<0.3	<12
Output	Low liquid level	1	>4.5	<12

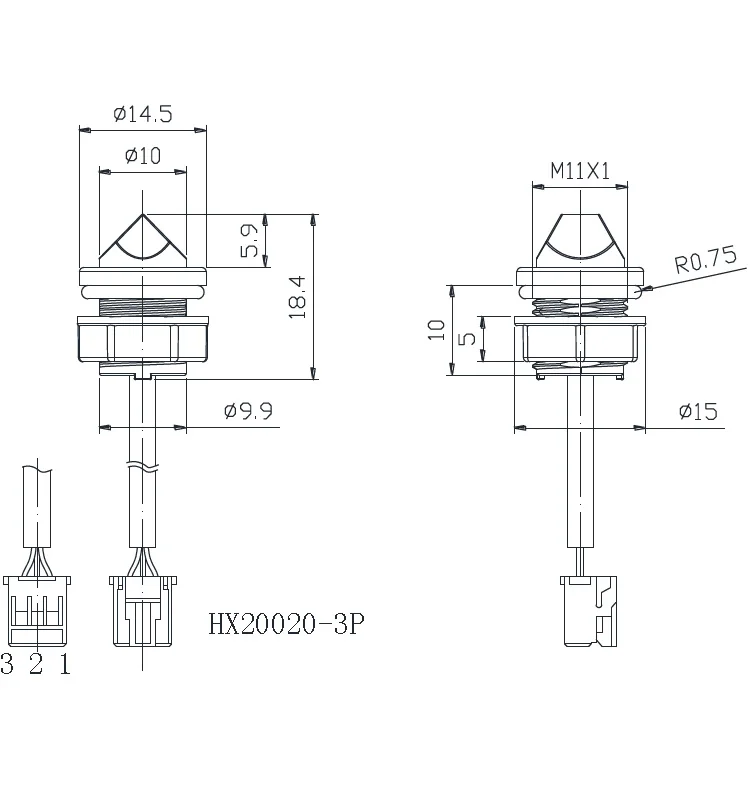

Product Dimension

Hot sale FS-IR82 niveau sensor water fluid level sensor washing machine water level sensor

Certificates

- CE LH170602535C
