Factory Direct Narrow Beam Angle Side Light 12v 1.5w SMD 3030 Edge Lit Double Sided LED Module

Add to Basket Share to :

Price

US$ 0.63

Min Order Quantity1000 Piece
Supply Ability2000
PortShenzhen
Delivery Lead Time3-5 days
Payment Terms 4
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Adled Light Limited
Membership Free member
Registration Date2019.06.26
Country/RegionChina
CityChangsha
Contact Nico Liu(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name Adled
- Model Number LED SMD3030
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color White
- Related Keywords LED Module

Description by Manufacturer

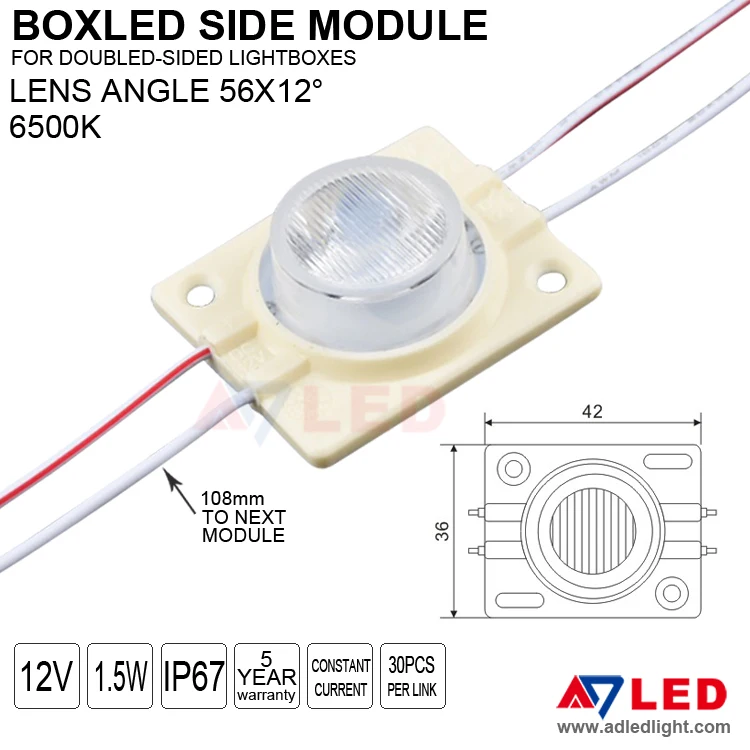

Factory direct narrow beam angle side light 12v 1.5w smd 3030 edge lit double sided led module

Parameters:

Name	Factory direct narrow beam angle side light 12v 1.5w smd 3030 edge lit double sided led module
Led type	LED SMD3030
Power	1.5W
Driven mode	Constant Current
Beam Angle	56*12°
IP Grade	IP67
Lumen	125lm
Modules per meter	5pcs
Size	423615 mm
Package	30pcs per chain
Warranty	5 years
HS code	9405409000
Other service	OEM & ODM,One to One communication, Free Samples
Application	Recommended depth 6-12cm double-sided light box

Features:

1. Powered by Epistar 3030 led
2. Injection molding process
3. DC12V low-voltage power supply
4. Driven by constant current
5. Durable ABS fill for waterproof rating with IP67

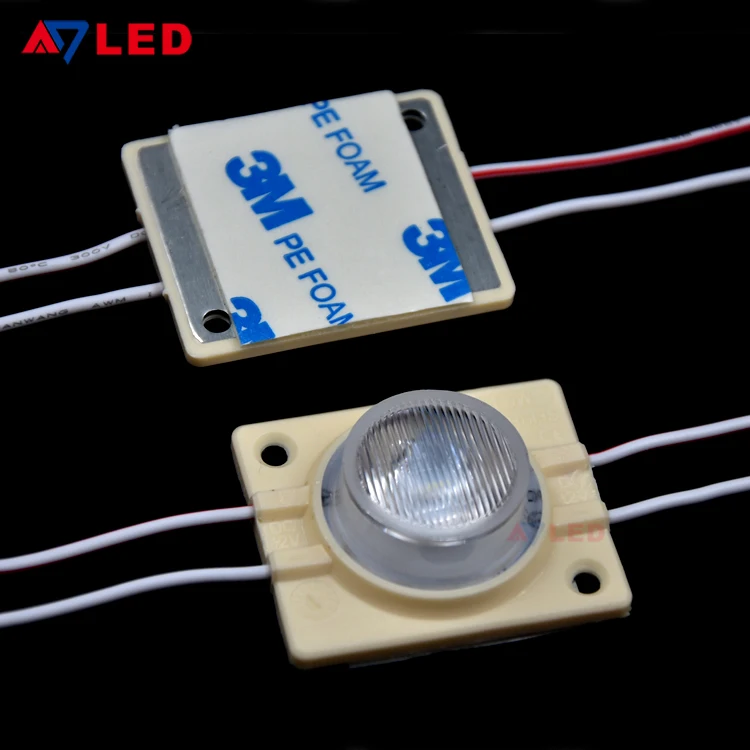

6. With double-sided adhesive and screw two installation methods.

Factory direct narrow beam angle side light 12v 1.5w smd 3030 edge lit double sided led module

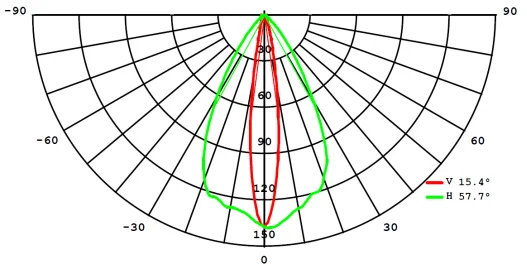

Led module light distribution graph:

Factory direct narrow beam angle side light 12v 1.5w smd 3030 edge lit double sided led module

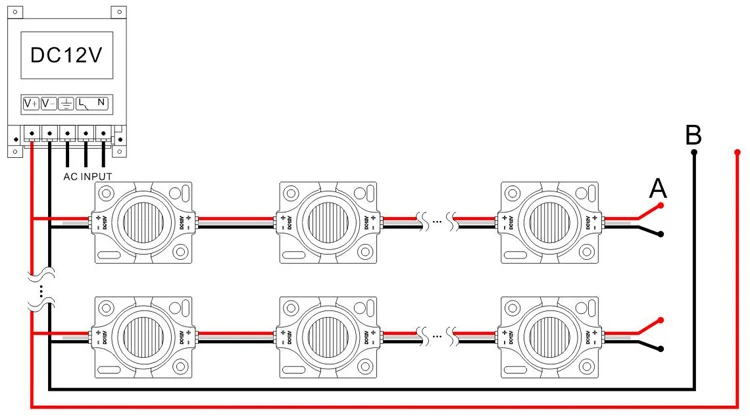

Mode of connection:

Factory direct narrow beam angle side light 12v 1.5w smd 3030 edge lit double sided led module

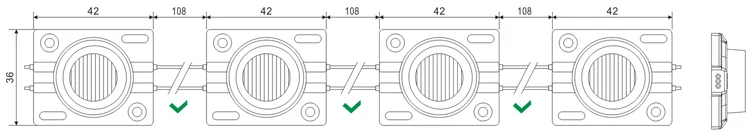

Boxled side module, each module can be cut, 30pcs per series

Factory direct narrow beam angle side light 12v 1.5w smd 3030 edge lit double sided led module

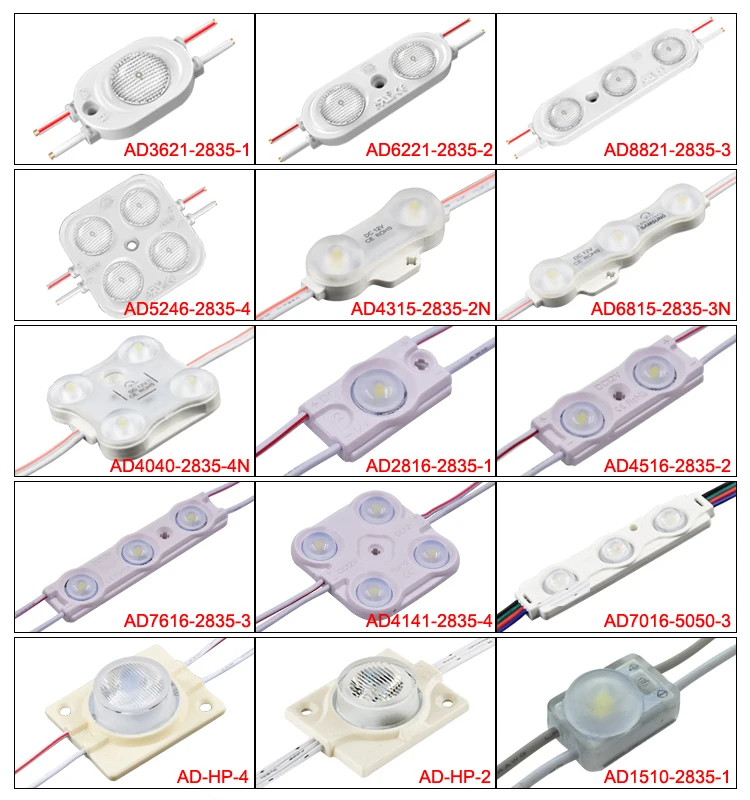

Related Products:

Applications:

Boxled side module suitable for double-sided light box

Led fairy module suitable for round coner advertising light box

Edge led module suitable for outdoor advertising signs

Edge light led module suitable for light box lighting source

Side emitting led module suitable for exhibition show

Edge led module suitable for ceilling roof lights

Box led module suitable for institution building

Led lightbox module suitable for commercial lighting

Edge lit lightbox led module suitable for hotels

Edge lighting led module suitable for decoration

Factory direct narrow beam angle side light 12v 1.5w smd 3030 edge lit double sided led module

FAQ

1. What is MOQ?

We can support you any quantity, including the samples order.

2. Can I get free samples?

Yes, we are glad to send you one type sample or mixed types samples.

3. What is delivery time?

For our hot products, we have in stock. Other products takes around 5-7days.

4. Can I also buy LED Power supply from you?

Yes, we are one stop solution provider of illuminated advertising signs, we can supply Mean Well led power

supply and other led transformers.

5. How can I get the best solution for light box?

Please advise your channel letter or light box size to our sales, they will send you the best solution for illuminated signs within 24 hours.

Official website:

http://www.adledlight.com

Certificates

- CE BST16043109A0001Y1EC1

Price

Price US$ 0.63 / Piece

Packaging & Shipping

- Packing60pcsbag
- Delivery Lead Time3-5 days
- Minimum Order 1000 Piece
- Supply Ability2000
- Total quantity in StockOver 5000
- Delivery PortShenzhen
- HS Code94054090
- Shipping Career

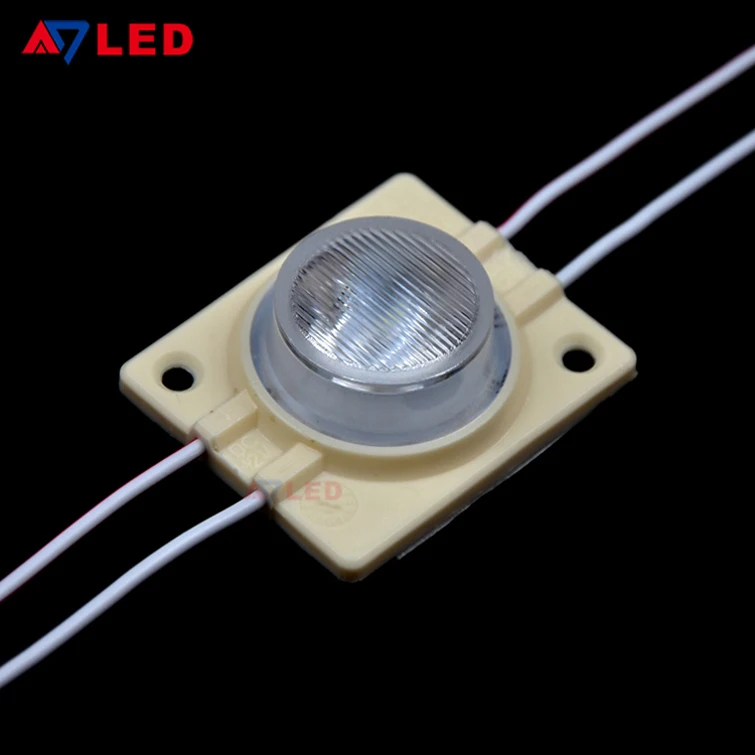

Product Image

Factory Direct Narrow Beam Angle Side Light 12v 1.5w SMD 3030 Edge Lit Double Sided LED Module

LED Module Related Products

Company Profile

About Adled Light Limited

Membership Free member
Registration Date2019.06.26
Country/RegionChina
CityChangsha
Contact Nico Liu(Ms.)

Adled Light Limited is expert of providing LED advertising signs and illuminated light box solutions. ADLED have strong technical power and advanced development and manufacturing equipments. Our main products include led module, led backlight strip, led edgelight strip, led flexible strip light, led power supply etc. They are widely used in LED Advertising light box, illuminated channel letter, linear lighting, anti-cove lighting and backlit decorative lighting, etc.
ADLED strictly enforce the ISO9001 / 2000 quality management system. All products are 100% aging-tested before release and CE-certified and RoHS compliant. Our products are widely exported to Europe, America, Oceania, Southeast Asia, etc. ADLED provide fast delivery, competitive pricing, customized services and technical support.
