Factory Price Optic Splicing Machine Factory Cst Model SA1 Optical Fiber Fusion Splicer

Add to Basket Share to :

Price

US$ 580 ~ 650

Min Order Quantity1 Piece
Supply Ability50,000 Unit/ Units per Year
PortShenzhen
Delivery Lead Time35 days for OEM, 12 days for ready goods
Payment Terms 7
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Huizhou YHT Broadband Equipment Co., Ltd.
Membership Free member
Registration Date2023.11.16
Country/RegionChina
CityHuizhou
Contact Rika Ning(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Rika Ning

Huizhou YHT Broadband Equipment Co., Ltd.

* Buying Product

Category : Fiber Optic Equipment

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name CSYHT
- Model Number SA1
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color Red
- Related Keywords Fiber Fusion Splicer, optical time domain, OTDR, Small Form Pluggable

Description by Manufacturer

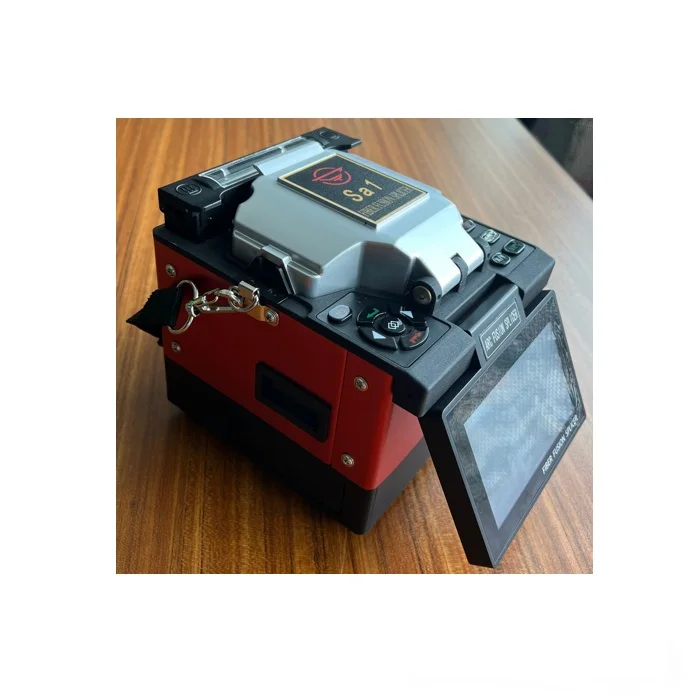

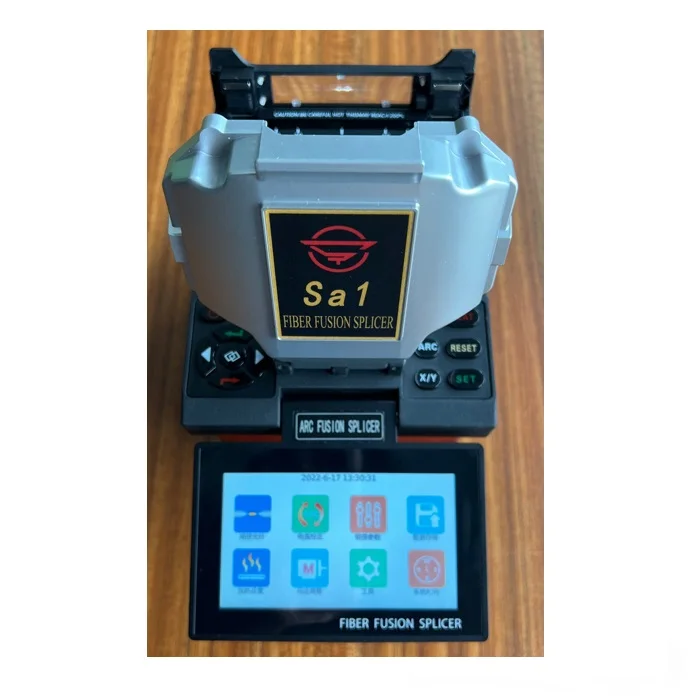

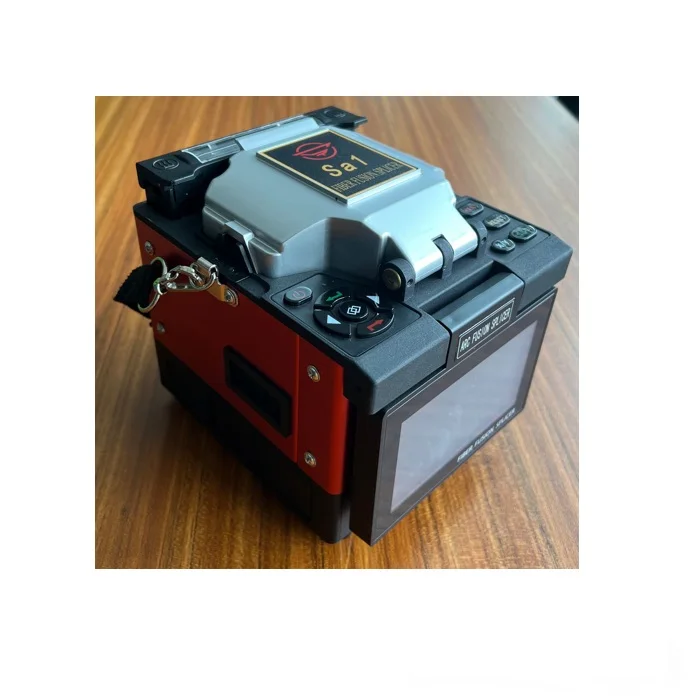

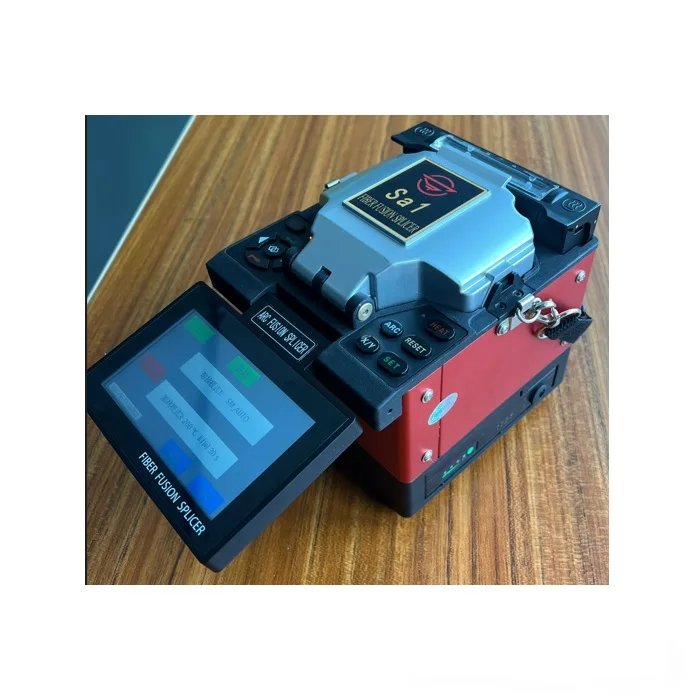

Core Alignment 6 Motors Fiber Optical Splicing Machine Fusion Splicer FTTX Splicer Device

Product Description

Features:

High-power dual-LED lighting,Convenient for night operation and easier to place optical fiber
3 in 1 Universal fiber holder suitable for bare fibers, drop cables, pigtails
Stable and Precise core to core alignment,low loss
4.3-inch HD touch screen, easy to operate and flexible.
small size 130*154*132mm and light weight only 1.95kgs(Include battery)
With preheating function, shorter heat shrinkage time
Removable battery,equipped with 5200mAh battery, can splice and heated for more than 200 times

Specification:

Model	Sa1
Dimension	130154132mm
Weight	1.95kg (with battery)
Fiber holder	Muti-function, suitable for bare fibers, drop cables, pigtails, etc.
Applicable fiber	SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Alignment Method	Core to core
Diameter of fiber	Cladding:80-150μm, coating:100-1000μm
Fiber cleaved length	8-16mm
Splicing time	8s
Tube heating time	20s
Splicing program	Many(self-regulation)
Tube heating program	Many(self-regulation)
Protection sleeve length	60mm, 40mm
Storage of splice result	3000 results
Typical splice loss	SM:0.02dB, MM:0.01 dB, DS:0.04dB, NZ DS:0.04dB, BI:0.02dB
Return Loss	>60dB
Test of end-face	available
Loss evaluation	available
Operating condition	Altitude: 0-5000m, Humidity: 0-95%, Temperature: -20℃~+50℃;Wind speed: max 15m/s
Storage temperature	Humidity: 0-95%, temperature: -40-+80℃
Fiber view magnification	300X(X or Y view), 100X(X and Y view)
Terminals	Mini USB, Ethernet
Electrode life	5000 ARC discharges
Power supply	Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V; battery capacity:5200mAh

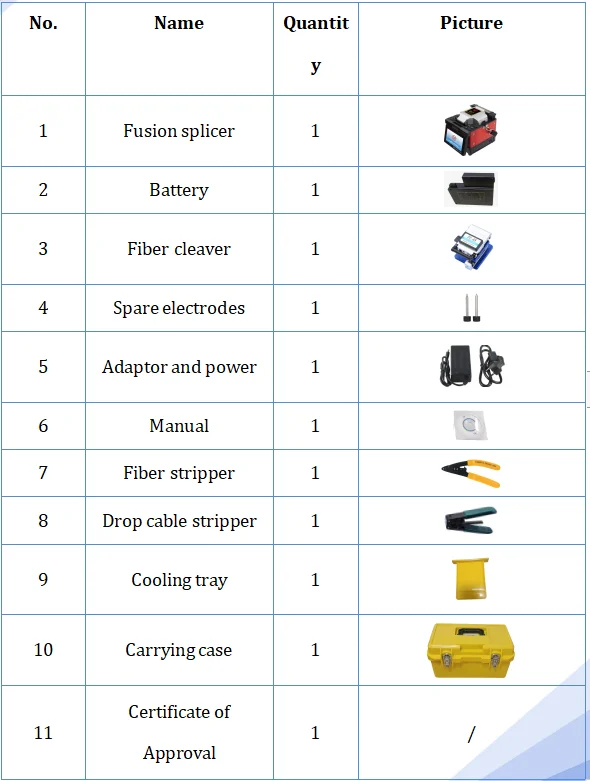

Accessories:

Core Alignment 6 Motors Fiber Optical Splicing Machine Fusion Splicer FTTX Splicer Device

Key Attributes

Industry-specific attributes

Type

Fiber fusion splicer

Other attributes

Model Number

SA1

Place of Origin

Guangdong, China

Brand Name

CSYHT

Use

Splicer

Warranty Time

2 Years

Network

None

Product Name

Fiber Fusion Splicer

Battery

5200mAh

Weight

1.95KGS

Fiber cleaved length

8-16mm

Splicing Time

Tube heating time

20S

Protection sleeve length

60mm, 40mm

Storage of splice result

3000 results

Return Loss

>60dB

Typical splice loss

SM:0.02dB, MM:0.01 dB, DS:0.04dB, NZ DS:0.04dB, BI:0.02dB

Packaging and Delivery

Packaging Details

Fiber Fusion Splicer
Carton Box;
10KGS/pcs

Selling Units:

Single item

Single package size:

47X32X30 cm

Single gross weight:

10.000 kg

Lead Time

Quantity (sets)	1 - 20	> 20
Lead time (days)	15	To be negotiated

Samples

Maximum order quantity: 1 set

Sample price:

$580.00/set

Customization

Customized logo

Min. order: 200

Customized packaging

Min. order: 200

Graphic customization

Min. order: 200

For more customization details, message or email supplier!

Price

Price US$ \ 580 ~ 650 / Piece

Packaging & Shipping

- Packing1 pieces per box
- Delivery Lead Time35 days for OEM, 12 days for ready goods
- Minimum Order 1 Piece
- Supply Ability50,000 Unit/ Units per Year
- Total quantity in StockOver 5000
- Delivery PortShenzhen
- HS Code8536700000
- Shipping Career

Product Image

Factory Price Optic Splicing Machine Factory Cst Model SA1 Optical Fiber Fusion Splicer
