Robot Welding !!! Electric Single Girder 2 Ton Overhead Crane Price 5 Ton
Company Information
HENAN MINE CRANE CO.,LTD
|
DEVELOPMENT HISTORY:
> 1984 established.
> 2002 be a joint-stock industrial enterprise.
> 2008 been top best factory in China crane filed.
> 2010 engage in exporting and servicing to the world.
> 2016, the new type double girder crane produce line finished
|
ADVANTAGES:
> 68 million square meters.
> 2700 employees; 180 engineer;
> 2.3 billion RMB annual sales ;
> 1300 units of all kinds of processing equipment.
> CE, BV, GOST.
|
 |

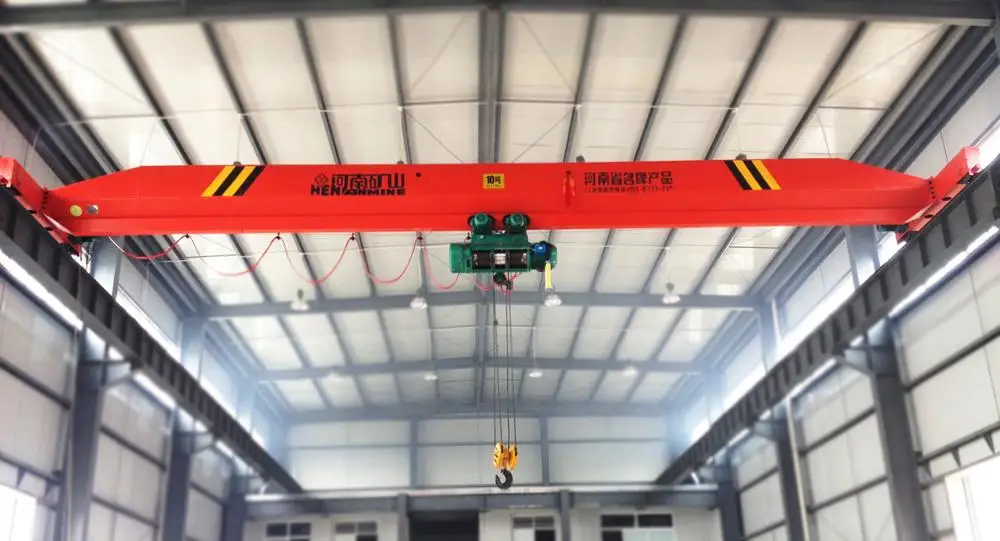

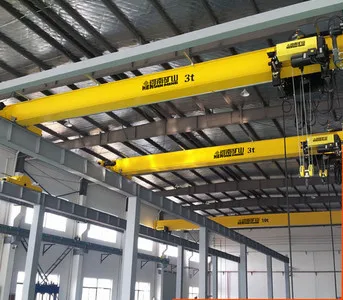

Product Description
LD electric single girder crane is composed of girder weld by steel plate andI-beam ,end girder, electric hoist and travelling
mechanism. The electric hoistruns along the lower flange of the I-beam of the girder to accomplish article hoisting. It features
light structure and easy installation and maintenance.

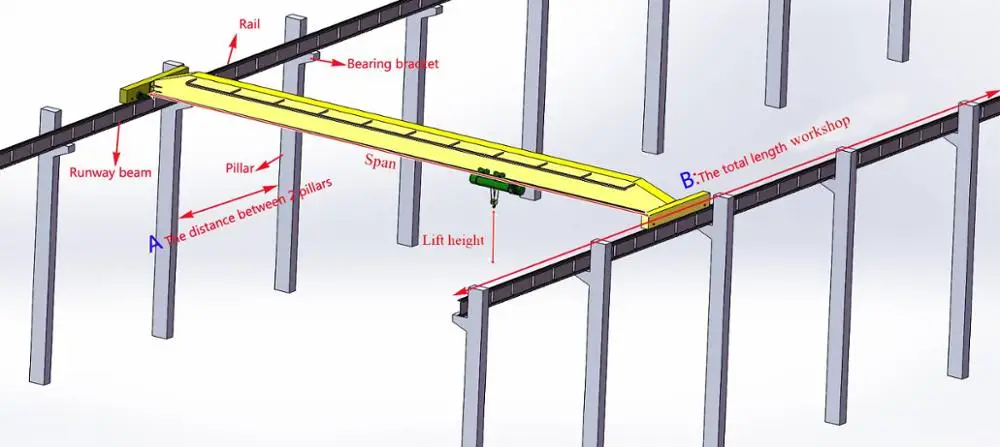

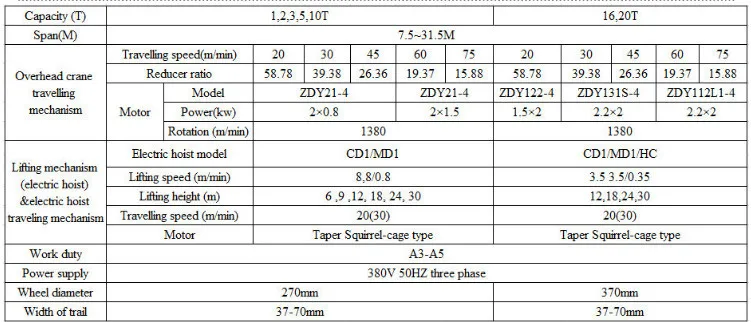

Sketch & Parameters-- Bridge Crane
Detail Show -- Bridge Crane
1) Main Beam--
1. We adopt the Q235 or Q345 steel plate, but if the load is large, we will choose plate with higher steel strength.
2. Single beam main beam U groove without butt weld can eliminate the welding seam of the main beam.
3. Reinforcing plate and bar improve the strength, rigidity & comprehensive carrying capacity of beam
4. Shot-blasting make the steel’s surface rough, eliminate steel material’ s surface oxide skin,and increase products use life and
paint coating quality.

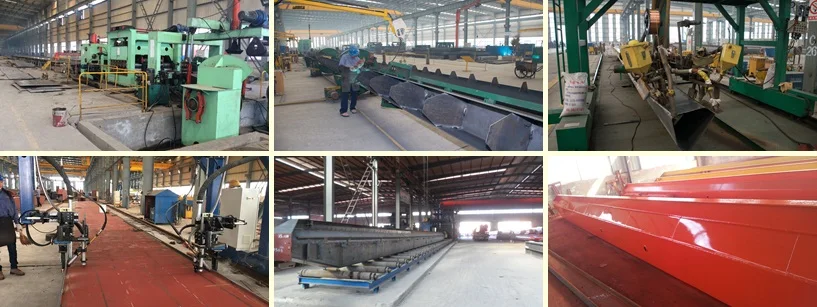

Process of main beam
2) End Carriages --The device feature simple structure, small size, large starting torque, frequent starting, running speed,
low noise, use of safe, reliable, easy to install and maintain, elegant and so on.
3) Electric Hoist—It is small lifting equipment ,featuring small volume, light dead weight, easy operation and convenient use.
It is used for such place as industrial and mining establishment and warehouses and wharfs. It has two main model: CD Model
and MD Model.
- Lifting and traveling motor: Nanjin Factory (China top brand)
- Metarial of cover and shell: HT200. (High vibration resistance)
- Shell of reducer is thicker 2cm than market standart.
- Hoist adopt the automatic stoving varnish (enhance film adhesive).
- Reducer shall be experienced the Tightness test.
- Hoist shall be performed the Dynamic and static, up and down Test, before delivery.

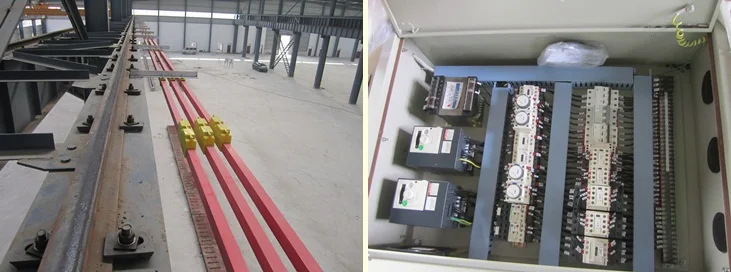

4) Electric System-- Modular design, ease to install and maintain, reliable operation,fuse less circuitry, ducted wiring and
compact terminals. Motor overload protection to prevent overloading.
Product Comparison
|
KSCrane—LD Type
|
European Crane
|
|
Item
|
European Crane
|
KSCrane
|
|
Crane Traveling Motor
|
ABM OR SEW (Germany)
|
Nanjing Factory (China Top1)
|
|
Hoist Traveling Motor
|
ABM (Germany)
|
Nanjing Factory (China Top1)
|
|
Lifting Motor
|
ABM (Germany)
|
Nanjing Factory (China Top1)
|
|
Electric Hoist
|
KSCRANE
|
KSCRANE
|
|
Crane wheel
|
KSCRANE
|
KSCRANE
|
|
Reducer
|
ABM OR SEW (Germany)
|
KSCRANE
|
|
Main Electric Components
|
Schneider (France)
|
Schneider (France)
|
|
Converter
|
Schneider (France)
|
Schneider (France)
|
|
Steel Plate
|
Angang,Rizhao Steel
|
Angang,Rizhao Steel
|
|
Wire rope
|
France
|
France
|
Shipment&Install
Shipment
Installation
Our Team
Quality inspection Dept:
Installation service team:
Company Culture:
FAQ
In order to make a very quick offer and saving your time, it’s better to fill the information below. Copy
and send us the information together with the inquiry.It’s better to send us a drawing,sketch or show us
data and then our engineer can work out a full suitable solution just for you.
|
Load capacity
|
( )
|
Tips:1t 2t 3t 5t 10t 16t 20t 30t
|
|
Span
|
( )
|
Tips:7.5m-40m
|
|
Lift height
|
( )
|
Distance from Hook center to ground
|
|
voltage
|
( )
|
Tips: 380V 50Hz AC 3-phase or please note
|
|
Duty class
|
( )
|
Tips:please note the average load
|
|
Hours per day
|
( )
|
operation frequency each hours, how many hours per day.
|
|
Control way
|
( )
|
Tips: remote control, cabin control or pendent control
|
|
Lift speed
|
( )
|
Tips:single speed or double speed
|
|
Cross &long travel speed
|
( )
|
If any special demand, please note.
|
|
Rail supply needed
|
( )
|
Tips:if yes please note the length
|
|
Power supply needed
|
( )
|
|
|
Your nearest port
|
( )
|
|
