Fast Delivery New Design Broken Tap/Drills/Bolts Removal

Add to Basket Share to :

Price

1 - 1
US$ 1580
≥2
US$ 1343

Min Order Quantity1 Set
Supply Ability300 sets / month
PortShanghai/Beijing
Delivery Lead Time3 days for ready goods
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Luoyang Xincheng Precision Machinery Co.,Ltd
Membership Free member
Registration Date2015.04.15
Country/RegionChina
CityLuoyang
Contact Rita(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Rita

Luoyang Xincheng Precision Machinery Co.,Ltd

* Buying Product

Category : Other Electric Power Tools

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name SFX
- Model Number EDM-8C
- Place of Origin China
- Input Power 800w
- Weight 18kg
- Electrode diameter(m 0.8-10(mm)
- Can Remove Taps Size M2-M20
- Power Frequency 50Hz
- Related Keywords broken tap removal, Portable EDM, Tap burner, Tap Buster, Tap disintegrator

Description by Manufacturer

FAST DELIVERY NEW DESIGN BROKEN TAPS/ DRILLS/ BOLTS REMOVAL

Fast delivery New Design broken tapdrillsbolts removal (3)

Xincheng's broken tap removal, adopt the electric erosion principle to remove the broken taps, drills, drifts, screws etc.
Non- contact processing, so no force to the work-piece and won't damage to the work piece.

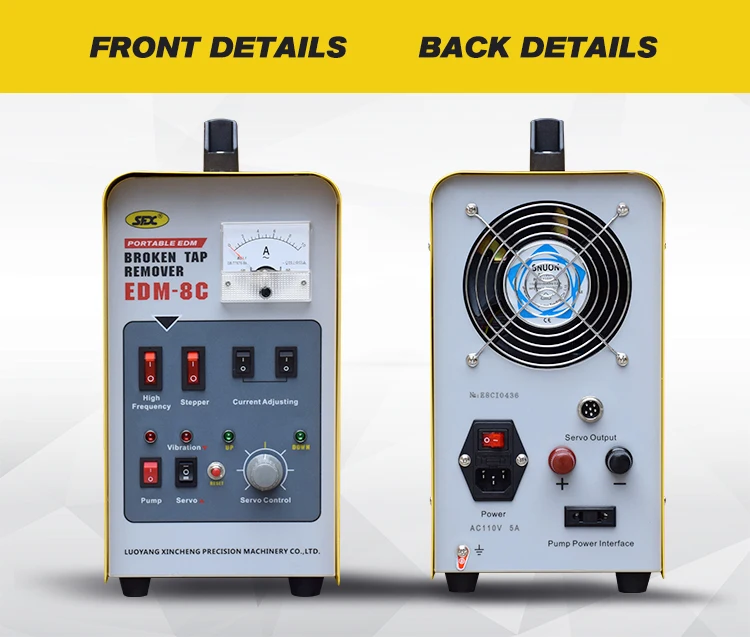

Specification Item:EDM-8C

Product name: Fast Delivery New design broken taps/drills/bolts removal

Input Voltage: AC220V/110V±10%

Input Power(W): 800W

Electrode Chuck Diameter(mm): 0.8-10mm

Working Liquid: Ordinary tap water

Max Processing Depth of Spindle Servo(mm): 70mm

Max Processing Speed(mm/min): 1mm/min

Gross Weight: 18kg

Adjustable Current: Stepper

Set Depth: Alarm Automatically at certain depth

Power Box Size(mm): 380*160*300mm

Packing Size(mm): 498*308*392mm

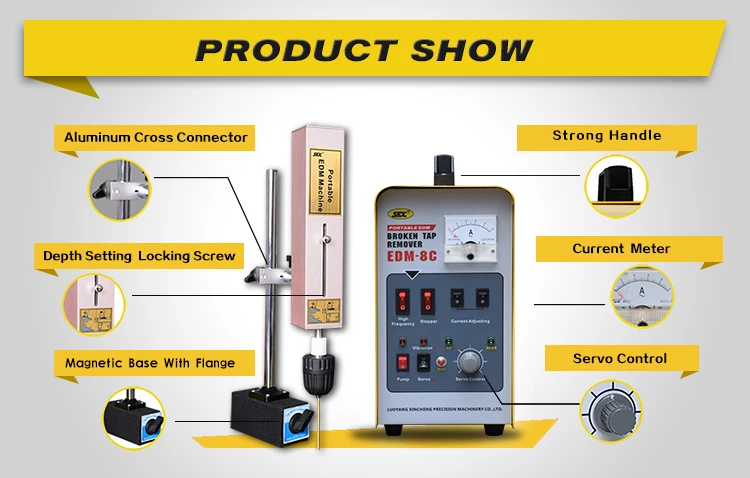

Product Details and Accessories

Fast delivery New Design broken tapdrillsbolts removal (9)

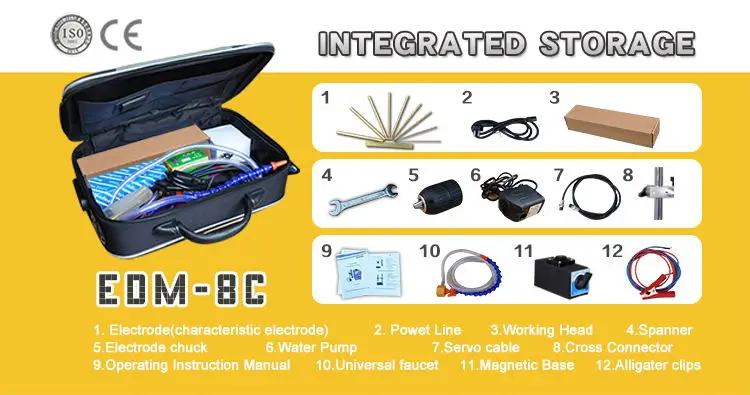

Components of the broken taps/drills/bolts removal: Power box, operation panel, work head, water pump, magnetic base.

Assist devices of the broken taps/drills/bolts removal: Power cable, high-frequency cable, control

cable, waterpipe, magnetic external water supply pipe, electrode chuck, adapter sleeve, etc.

Consumptive materials of the broekn taps/drills/bolts removal : brass tube, brass bar, hexagon electrode, brass sheet.

Processing Case Fast delivery New Design broken tapdrillsbolts removal (2)

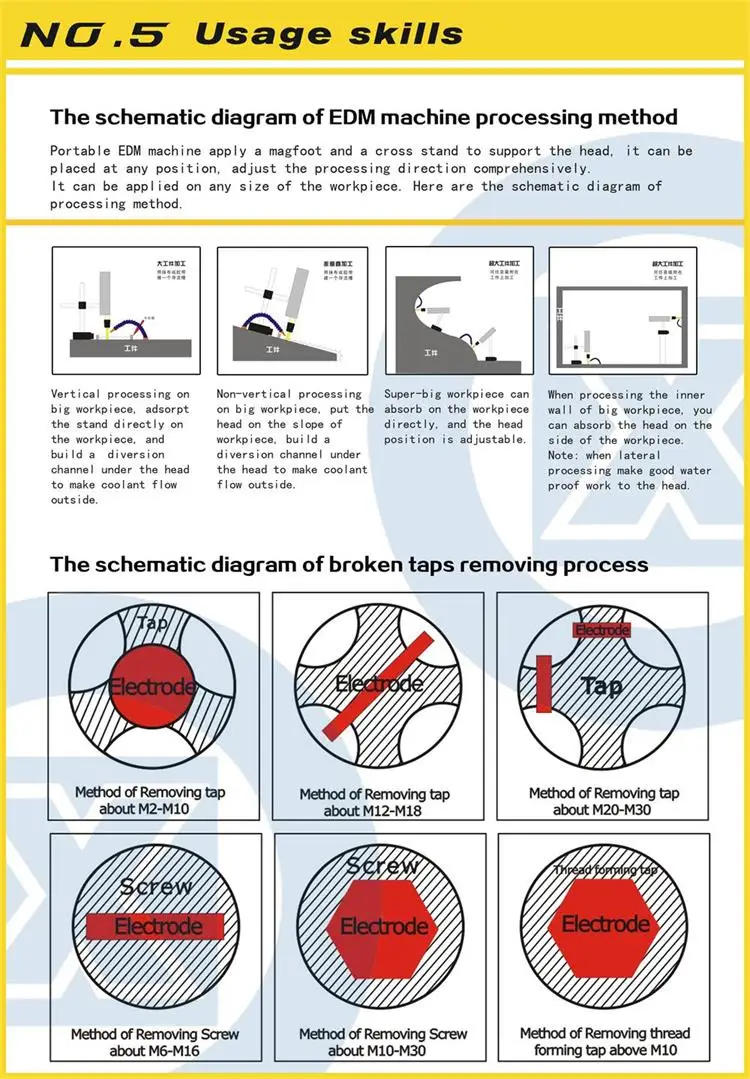

The Methods to Remove the Broken Taps

Package Fast delivery New Design broken tapdrillsbolts removal (1)

Certifications Fast delivery New Design broken tapdrillsbolts removal (7)

Testing Before the Products Leaving the Factory

Fast delivery New Design broken tapdrillsbolts removal (5)

Company Information Fast delivery New Design broken tapdrillsbolts removal (11)

Exhibition show

Fast delivery New Design broken tapdrillsbolts removal (6)

Warehouse

FAQ:

Fast delivery New Design broken tapdrillsbolts removal (10)

1. Will your machine could operate on 110V/60HZ input voltage?

Answer: Sure, the standard equipment is for AC 220V/110V, 50/60HZ input voltage,vary from different country requirements.

2. If the chucks rotate when they are machining?

Answer: The chuck won't rotate when machine working.

3. What's your delivery method?

Answer: The machine will be delivered by internatiol express such as TNT, Fedex, DHL, etc

4. What about the delivery time?
Answer: The machine will be delivered from our factory within 72 hours after the 100% deposit checked.

5. What's the payment terms?

Answer: We accept T/T, Western Union, Paypal, etc payment terms.

Warranty Policies

First of all,our product will have to go through a thorough quality exam process to ensure that our devices won’t have any glitch before delivery.

Secondly,the warranty period is usually around one year and within this time frame,if there are any technical problems,we would repair them for free including the new parts that needed for the repair.

PS:we would offer free repair only when the damages are caused by technical deficiencies of the product itself, not man made errors, namely,the damages were done by mishandling the machine.repair.

Contact us Fast delivery New Design broken tapdrillsbolts removal (13)

Certificates

- CE IT040944XC150817S

Price

Price US$ 1343 ~ 1580 / Set

Packaging & Shipping

- Packingcarton
- Packaging Size498 x 308 x 392 ( Millimeters)
- Package Weight 18 ( Kilograms )
- Delivery Lead Time3 days for ready goods
- Minimum Order 1 Set
- Supply Ability300 sets / month
- Delivery PortShanghai/Beijing

Product Image

Fast Delivery New Design Broken Tap/Drills/Bolts Removal

Product Video

Broken Tap Removal Related Products

Main Export Markets

- Luoyang Xincheng Precision Machinery Co.,Ltd is mainly exporting to Asia, Europe, North America, South America, Australia

Download Product Brochure

English catalog.pdf (2.2 Mb)

Company Profile

About Luoyang Xincheng Precision Machinery Co.,Ltd

Membership Free member
Registration Date2015.04.15
Country/RegionChina
CityLuoyang
Contact Rita(Ms.)

In Feb 2004 Luoyang Xincheng Precision Machinery Co.,Ltd was founded;
Got ISO9001-2000 product quality certification in 2007;
In 2008, our competitive product CNC Pull Stud began to be well sold within the industry;
In 2009, it obtained self-supporting import and export qualifications.;
Structural Balanced ER Nut was successfully developed with the help of our customer in 2012;
In the end of 2012, our patent product Broken tap remover was come into being;
Joined in the Alibaba in 2014.
Nowadays our patent product broken tap remover have successfully occupied the domestic market , and we believe that we will see our product all over the world in the near future.
Quality products move the world.
We specialized in the portable edm machine, the quality and service we provide will surely make you satisfied. we have a set of feedback service, we guaranteen the quality of our portable edm machine, There's a solemn promise about our machine model SFX-4000, If the machine could not work for any major problems of the quality, please contact us immediately. Once the case is verified, please destroy the machine and record the destruction video. After we authenticate the video, we would issue a full refund.
