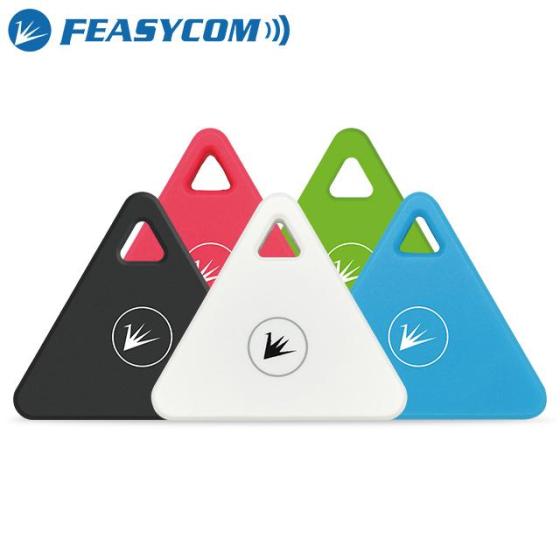

Feasycom's FeasyBeacon FSC-BP103B is a Bluetooth 5.1 low-energy smart beacon, it supports iBeacon, Eddystone (such as URL, UID,TLM), AltBeacon for broadcasting, and can promote up to 10 advertising frame slots.
With the iOS & Android FeasyBeacon SDK, the developers can take advantage of the flexibility of the SDK and focus on their own application, such as Broadcast, Proximity Marketing, Digital Signage, Indoor and Outdoor Location, Asset Tracking, Vehicle Tracking, etc.
Features
- Advertising distance up to 160m (open area)
- Bluetooth 5.1 Compliant
- Pre-programmed with Feasycom Standard Beacon Firmware
- Up to 10 slots of Advertising Frames
- Portable Small-sized Beacon with 3 Year Battery Life (by Default Settings)
- Variety of Additional Components (e.g. Button, G-sensor, Optional Buzzer)
- Configurable by Free FeasyBeacon Mobile App and SDK
- Customizable Color, Logo, Hardware, Software
R&D Background:
The quantity of automotives, esply cars and car keys is quite big in dealerships.
It will take long time to find the related car and keys if you want to find the right ones.
Customization of Car and Car key Bluetooth BLE tags:
In order to improve the working efficiency, Feasycom developes the car and carkey finding keychain Bluetooth BLE tags to help to locate, track and find the car and carkeys in big warehouse of dealerships. We provide one-stop solution including beacons, gateways and cloud server.
The beacons are wearable and can also be put on the rear mirror of the cars to make your car broadcasting bluetooth signal. The bluetooth BLE tags is designed with press button and flashing lights.
We support customization of bluetooth beacons totally according to your applications.
Besides the firmware development, we can disable the button and customize the broadcasting time per trigger of the bluetooth tags.
With motion sensor, it can track the movement trace of beacons. Besides the inventory application, the tracking bluetooth beacon with motion sensor can be applied in many fields, such as dealership, supermarket, Campus and so on.
Functional Specifications |
Item | Description |
Advertising Format | Eddystone (URL/ UID/TLM), iBeacon, AltBeacon |
Configuring Method | FeasyBeacon SDK compiled app (e.g. FeasyBeacon app) |
Advertising Interval | Default 1300 ms, range from 100 ms to 10000 ms |
Security | Access password required, Default Pin Code 000000 |
Max Number of Broadcast | 10 Slots configurable advertising frames |
Default Broadcast Interval | 1300 ms for iBeacon & Eddystone |
System Compatibility | iOS 7.0+, Android 4.3+ |
Advertising Distance | Up to 160m (open area) |
Firmware Upgrading | OTA (upgrade firmware over the air) |
|
Item | Description |
Chipset | Renesas / Dialog DA14531 |
Bluetooth Version | Bluetooth 5.1 |
TX Power | -19.5 dBm to +2.5 dBm |
Antenna | PCB Coil antenna |
Button | Long press central area for power on / off |
G-Sensor | Optional |
Buzzer | Optional |
Power Supply | Ansmann Lithium Coin cell CR2032 (230mAh) |
Battery Life | 3 Year (ADV Interval = 1300 ms; TX Power = 0 dBm) |
Material | ABS plastic |
Color | White or customized |
Size | 37.8 * 33.8 * 7.9 mm |
Net Weight | 6.4 g |
Protection | IP40 |
Operating temperature | -20°C to +60°C |
Widely Applied Long Range Advertising and tracking Bluetooth beacons.
The applications of the beacons have been changing. Recently, the application of the beacons are used to people or asset tracking, animal or pet tracking, such as:
1. Location of Car and Car Key finding beacon in Car dearship;
2. People's location tracking beacon;
3. Pet tracking beacon;
4. Cow tracking beacon;
5. Advertising beacon;
6. Marketing proximity beacon.
Feasycom focuses on the researching and developing of IoT (internet of things) products, including Bluetooth Modules,Bluetooth&Wi-Fi modules and beacons. With more than 10-year experiences in the wireless connectivity, which ensure us have the ability of R&D, manufacturing, QC and shortening product customization cycle to thousands of diverse customer worldwide.
Feasycom's engineering and design services include:
* SDK
* APP Support
* PCB Design
* Development Board
* Firmware Development
*Depth Customization
* Certification Request
* Turn-Key Production Testing & Manufacturing
Our products and services mainly apply to Automotive, Point of Sale, Home Automation, Healthcare and Engineering, Banking, Computing, Vending Business, Location,
Lighting and more. Aiming at "Make Communication Easy and Freely", Feasycom is dedicated to design and develop high-quality products, efficient services to customers, for today, and all days to come.
FAQ
Q1.Are you a manufacturer or a trading company?
A1:We are a manufacturer.
Q2.Can you do ODM or OEM for us?
A2:We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.
Q3.What payment mothods do you accept?
A3:Paypal,TT,WU,Bank Transfering,Credit Card,Trade Assurance Payment,etc.
Q4.Lead time for sample ordersmass production orders?
A4:Samples,within 3 working days; Mass production,within 15 working days usually.
Q5.What shipping methods do you use?
A5:For samples,DHLUPSFEDEXTNT,etc; For bulk orders,Air shipping and others.
