Description by Manufacturer

Product descriptions from the supplier

Hot sale screw  Glass Bottle Beer/wine/liquid filling Machine bottling filling production line with good quality

Item	Parameters	Item	Parameters
Washing heads	16	Vacuum pump	0. 20m3/h
Filling heads	16	Power	main motor: 1.5KW hopper motor: 0 .18KW vacuum pump motor:1.1KW chain motor: 0.75KW
Capping heads	6	Dimensions	Accoring to the machine
Capacity	2000BPH	N.W.	2500kg
Bottle type	height:150~ 300mm bottle neck:50~85mm bottle diameter: 50-75mm	Working voltage AC	It can be customized by the customers'electrical conditions.
Air consumption	0.15m3/min(0.4~0.6Mpa)	Control voltage DC	It can be customized by the customers'electrical conditions.
CO2consumption	1.6kg/l000L	Frequency converter	SIEMEMS
Water consumption	0. 8m3/h	PLC	SIEMEMS
Touch screen	PLC	Pneumatic element	SMC

16-16-6 Glass Bottle Fillng Machine description :
The 16 heads filling machine designed by HEM Company adopts the counter pressure filling technology which can perfectly realize the requirments of twice vacuum, Co2 injection. The machinealso adopts 3in 1 compact design, easy to operate and maintain.

Product Description :

Automatic beer bottle rinsing, filling , capping triblock machine main parts are automatic electronic control filling
valve, vacuum, preparation of pressure (Co2), the photoelectric liquid level detection, automatic filling process,
CIP cleaning system, bottle deformation pieces, easy-won parts.

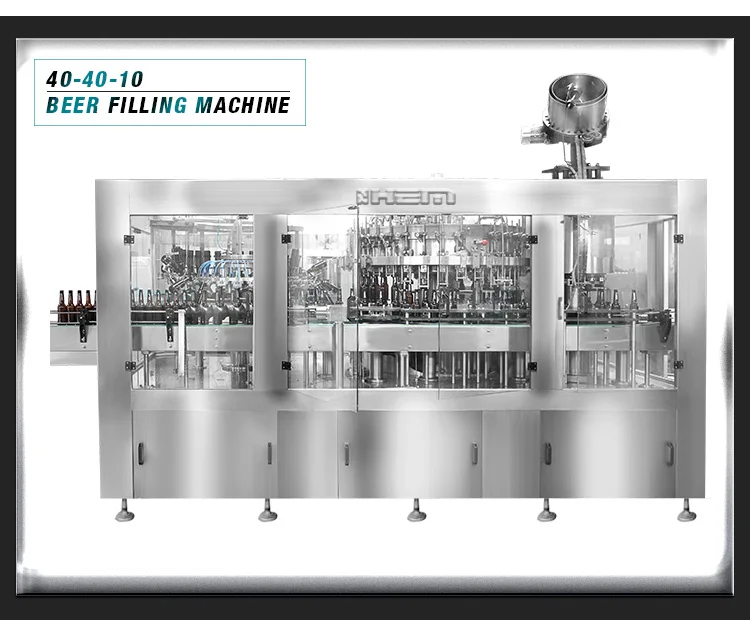

40-40-10 Glass Bottle Beer Filling Machine

The machine is adopts counter pressure filling technology, this machine is specially designed for beer filling.
The machine has the advantages of high speed, reliable output, compact design and stable operation. The
machine suitable for medium or large capacity breweries.

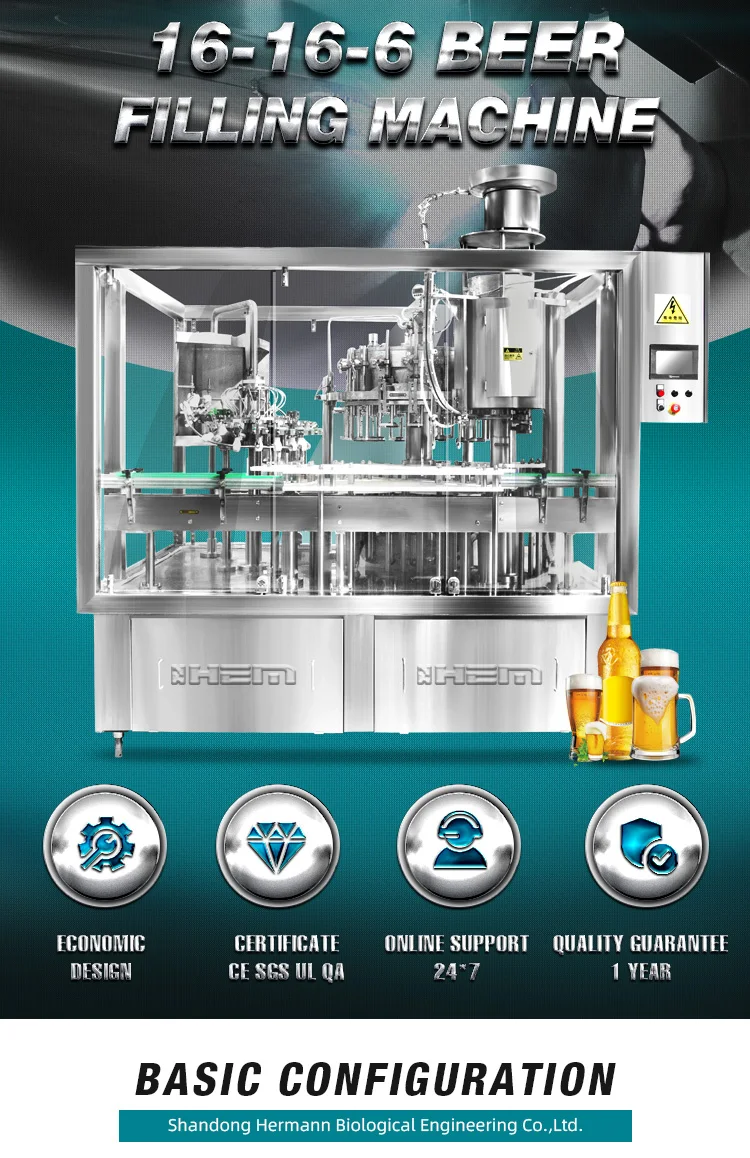

16-16-6 Glass Bottle Beer Filling Machine

The 16 heads filling machine designed by HEM Company adopts the counter pressure filling technology which
can perfectly realize the requirments of twice vacuum, Co2 injection. The machinealso adopts 3in 1 compact
design, easy to operate and maintain.

6-6-1 Glass Bottle Filling Machine

6-6-1 type beer bottle washing filling capping monoblock is designed combined with the actual situation in
our country after the introduction and absorption that comes from Germany technologies. It adopts isobaric
filling principle and filling valve adopts high precision mechanical valve. It has advantages of taking small
space, high precision in liquid level. Adopt Siemens automatic controlling system, realizing trinity of the
machines, and control the rinsing , filling and capping process.

Advantage :

1). The machine is our patent product.
2). The machine adopts the counter pressure filling technology which can realize the requirements of twice vacuum, co2 injection.
3). The machineadopts 3 in 1 compact design, easy to operate and maintain.
4). Using the external filling valve can ensure the quality of beer Using mechanical gland instead of pneumatic gland improves the quality and stability of gland. All mechanical transmission, basically reaching zero failure rate.
5). Two times of vacuumizing and two times of carbon dioxide filling can minimize the amount of oxygen dissolved and maintain the taste of beer. Equal pressure filling makes the filling process more stable.
6).The application of the sensor realizes filling only when there is bottle, no bottle, no filling, and the beer scrap rate is less than 0.8%. All cables are installed on the top of the equipment, making it safer to use.

Item	Production capacity	Filling method	Material	Dimensions
HEM-4-4-1	240-360BPH	Isobaric filling	SUS304	15505501750mm
HEM-6-6-1	500-800BPH	Isobaric filling	SUS304	152011252350mm
HEM-8-8-3	800-1000BPH	Isobaric filling	SUS304	185016002500mm
HEM-16-16-6	2000BPH	Isobaric filling	SUS304	230019002500mm
HEM-40-40-10	8000-10000BPH	Isobaric filling	SUS304	420030002700mm

1.Q:Does your company have foreign installation experience?
A: Yes, our company has installation experience in USA, Canada, Europe, Australia, Malaysia, Myanmar, South Africa etc.
2.Q: Do you have a professional engineer or after-sales team in our country?
A: Yes, our equipment is sold to 150 countries and areas and we have our local after-sales service personnel in Europe, America and Asia.

3.Q:How can you guarantee the delivery date of the equipment after we place the order?
A: The delivery time can be ensured through Alibaba Credit Insurance orders.

4.Q:What payment methods are supported?
A：T/T, L/C, Credit Card, VISA, Apple device, Western Union.

5. Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries. 1 Year warranty for filling machine.

6.Q: How about the installation and training?
A: We can supply the installation and training. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.

7.Q: Can I be your company's sales agent?
A: Yes, it’s our pleasure. We very much welcome you to join us. Please contact us to discuss specific details.
8). The price does not include electrical appliances, etc.

Product Image

Filling Machine Bottling Filling Production Line

Filling Machine Bottling Filling Production Line 2

Filling Machine Bottling Filling Production Line 3

Filling Machine Bottling Filling Production Line 4

Filling Machines Related Products

Download Product Brochure

3N240812.SHBQW22 ECM.pdf (0.31 Mb) 3J240319.SHBUQ83 ECM.pdf (0.33 Mb)

Company Profile

About Shandong Hermann Biological Engineering Co.,Ltd.

Membership
Registration Date2024.11.22
Country/RegionChina
CityJinan
Contact Manager Shi(Mr.)

Hermann Biological Engineering is an equipment manufacturer focusing on biological fermentation industry, major engaged in beer brewing equipment, providing high-end integrated services from product design, production, processing, installation and technical process training for large, medium, micro breweries, hotel restaurants, bar brewing enthusiasts.
