This multicore control cable can be used as power and connecting cables in mechanical engineering for tooling machinery, control unit, production lines, transportation equipment, conveyor and assembly lines as well as in plant construction under the circumstance that the rated voltage is up to 450/750V AC.
2. Characteristics
1. the long-term working temperature: PVC and PE insulated should not be above 70°C, pvc insulated should not be above 90°C. 2. Rated voltage: 450/750V and below
Armored layer or copper tape shielded ≥ outer diameter of cable 12 times
Shielded layer soft cable ≥ outer diameter of cable 6 times
3. Specification
Type
Name
Section Area(mm2)
No. of Core
Application Site
KVV
Copper Conductor,PVC Insulated and Sheathed Control Cable
0.75 1.0 1.5 2.5
2-16
Permanent installation indoors,in cable ditches or pipes
4 6
2-14
10
2-10
KVVP
Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable
0.75 1.0 1.5 2.5
2-61
Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6
2-14
10
2-10
KVVP2
Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable
0.75 1.0 1.5 2.5
4-10
Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6
7-61
10
4-10
KVV22
Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable
0.75 1.0 1.5 2.5
7-61
Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force
4 6
4-14
10
4-14
KVVR
Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable
0.5-2.5
4-61
Installation indoors where flexibility and movability are required
KVVRP
Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable
0.5 0.75 1.0
4-61
Installation indoors where flexibility shielding and movability are required
1.5 2.5
4-48
KYJV
Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable
0.75 1.0 1.5 2.5
2-16
Permanent installation indoors,in cable ditches or pipes
4 6
2-14
10
2-10
KYJVP
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable
0.75 1.0 1.5 2.5
2-61
Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6
2-14
10
2-10
KYJV22
Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable
0.75 1.0 1.5 2.5
7-61
Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force
4 6
4-14
10
4-10
KYJVP2
Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable
0.75 1.0 1.5 2.5
7-61
Permanent installation indoors,in cable ditches or pipes where shielding is required
4 6
4-14
10
4-10
KYJVR
Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable
0.5-2.5
4-61
Installation indoors where flexibility and movability are required
KYJVRP
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable
0.5 0.75 1.0
4-61
1.5 2.5
4-48
Installation indoors where flexibility shielding and movability are required

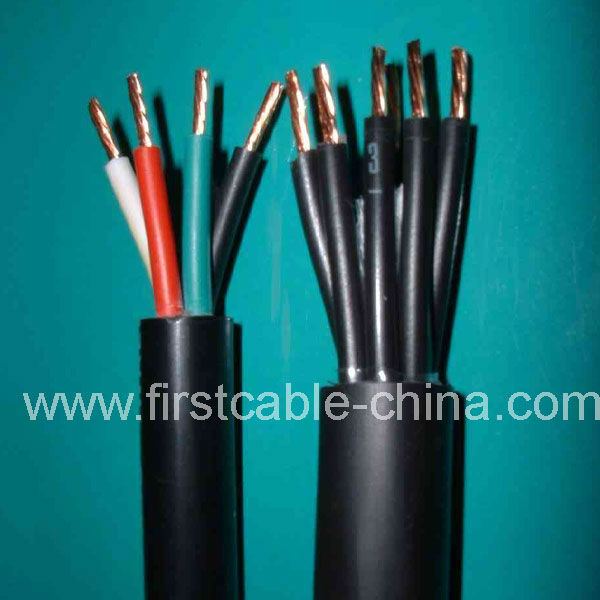

4. Finished products
Our Services
1) Your inquiry will be replied within 3 hours.
2) Your label design will be ready in 2 days according to your requirements.
3) 25 years experience
4) Goods are sold with rerun or refund grarantee due to quality issue!

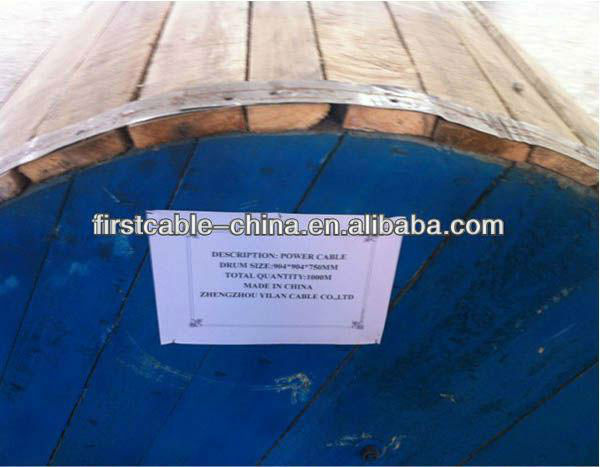

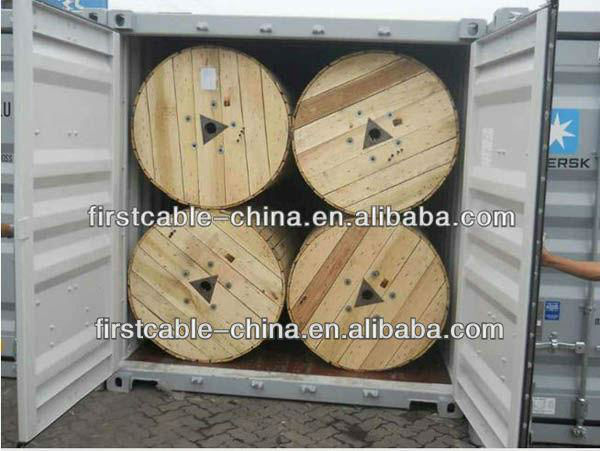

5) Prompt shipment by reputed shipping line and professional documents.
6) Cargoes photo will be sent after finishing production.
7) 10 years after-sale service
FAQ
1. Q: Are you a factory or trading company? A: We are a 25 years factory with more tah 50 engineers.
2. Q: Where is your factory located? How can I visit there? A: Our factory is located in Zhengzhou City, Henan Province, China,.You can fly to Xinzheng airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: How can I get some samples? A: We are honored to offer you samples according your inquiry.
4. Q: How does your factory do regarding quality control? A: "Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end.
Wholesale PVC insulated Copper conductor braided shieled eletrical control cable for pipe installation
Application
Used as power and connecting cables in mechanical engineering for tooling machinery, control unit, production lines, transportation equipment, conveyor and assembly lines as well as in plant construction under the circumstance that the rated voltage is up to 450/750V AC.
