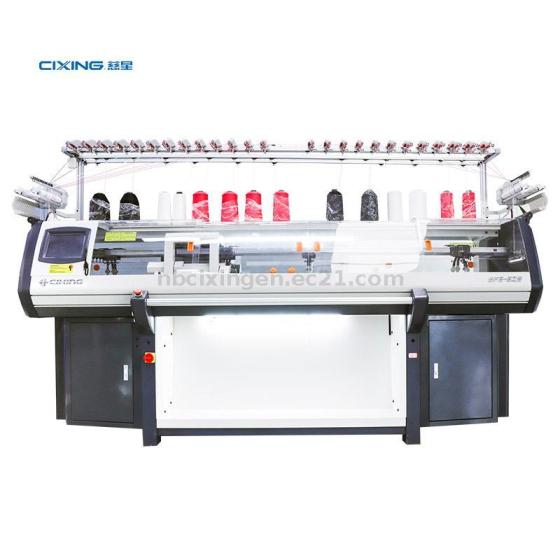

The Flyknit Shoes Making Machine type is single carriage with triple systems. Full motor 5.2-inch ultra-small carriage, motorized transfer cam, rapid return, carriage does not wait when transfer needles, effectively reducing carriage route and course, greatly improving machine stability and efficiency. The new two-stage stitch, without increasing the number of motors, realizes the independent control of the main and auxiliary stitch. Compared with the dynamic stitch, Flyknit Shoes Making Machine can achieve 1 needle stitch change and a wider density range, so as to meet the higher requirements of different customers for fabrics. The adjustable tight tuck function can meet the tight tuck density and tightness control of the vamp, and enhance the three-dimensional feeling of the vamp. The Sinkers can be crossed, it can realize the function of start knitting without waste yarn and save yarn cost; When it used together with the presser yarn device, it can fill the vamp fuller and thicker.
Product Parameters( Specification ) of the Flyknit Shoes Making Machine
Gauge
14G
Width
36 Inches / 52 Inches / 72 Inches
Knitting system
Single carriage with double systems / three systems
Knitting speed
Max speed 1.6 m/sec
Racking
Motor drive, the maximum racking within 2 inches
Needle actuator
8 section electronic needle actuator
Sinker system
The sinker system with independent intellectual property rights is controlled by 6 stepping motor, different sinking pressure ls used based on different knitting methods of fabric for different systems, achieving various shaping and adding.
Protection
Automatic stopping device if broken yarn, yarn knot, batching, striking, completion, overload, designated starting and stopping, program error
Yarn forward device
Yam feeder and yarn storage device (optional), accurate control of yarn tension, to ensure the quality of the overall quality of the fabric
Safety device
The whole machine cover to reduce noise and dust , the protecting Cover is equipped with stopping sensor, emergency stopping, power off device
Roller device
high-order roller , subsection adjustment
Motor connecting rod
Driven by motor connecting rod, reversing more accurately
Tight tuck
Tight hanging triangle is controlled by the motor, to achieve different degrees of tight hanging
Voltage: AC 220V/380V Frequency: 50HZ/60HZ Power: 1.5KW
Production Details of the Flyknit Shoes Making Machine
Display Screen
This Flyknit Shoes Making Machine adopts industry LCD displayer with graphic touch control, multi-color, The data of knitting amount, time, speed, roller, density, yarn carrier, etc.
Yarn Storage
The positive yarn provider can effectively reduce the yarn feeding resistance, especially suitable for multi strand low elastic yarn tight stitch woven uppers, let the uppers are smoother, and machine is less needle loss.
Servo Motor
Machine system use CAN communication control servo driver, realize the high-speed operation of the machine carriage, the extremely fast carriage return is stable, and the carriage knitting efficiency is improved by 2%.
Stitch Motor
With dynamic stitch function, using high speed stepping motor, multi-segment stitch function can be achieved in one course.
Motorized Inversion Bar
Stepper motor drive inversion bar, it reduces carriage return distance and improves carriage return accuracy and efficiency.
Adjustable Tight Tuck
Adjustable tight tuck function, according to the actual needs to achieve tight knitting and tight tuck function, reflecting different uppers’ styles.
Design of Ultra-small Carriage
Further optimize the size of the machine carriage, reduce the carriage return distance, and improve the efficiency 5-8%.
Design of Motorized CAM
The motor drive is used instead of electromagnet to control CAM action and effectively detection, which can age caused avoid the mechanical sticking. Needle damage caused by the CAM mechanical sticking.
