Fully Automatic Large-scale Factory Assembly Line Production 12-heads Nozzles Filling Machine

Add to Basket Share to :

Price

US$ 33000

Min Order Quantity1 Set
Supply Ability2 sets per month
PortGuangzhou or Shenzhen
Delivery Lead Time30 working days
Payment Terms 5
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Dongguan Yide Machinery Co., Ltd.
Membership Free member
Registration Date2024.07.29
Country/RegionChina
CityDongguan
Contact MiaoMiao Li(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.MiaoMiao Li

Dongguan Yide Machinery Co., Ltd.

* Buying Product

Category : Other Manufacturing & Processing Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name YD
- Model Number YD-1-12
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color Silver
- Related Keywords candle filling machine, candle pouring equipment, wax filling machine

Description by Manufacturer

Product Description

Name	Automatic candle making production line
Power	26KW
Voltage	380V 60hz three phase
Filling nozzle	12 nozzles*2 sets
Filling Speed	8000-10000pcs/hour
Filling volume	0-1000g
Convey belt size	Standard 24Meter length*1.2m width
Material	machine body ss201 and contact material ss304
Machine Size	2400012001700MM
Weight	5Ton
Customize	Yes

Automatic candle making production line

The line is used for the production of glass candles i.e. tealight or votive ,glass cup candles.

It is a fully automated machine which the main element is a mesh conveyor. The conveyor transports several containers in a row at the same time, directly under the set of dosing nozzles, fixed in the dosing station, connected with the paraffin melter. As a standard, the line is equipped with two dosing stations that operate the main chamber and the so-called refills. The filled containers are cooled with efficient fans, optionally air-conditioning system may be used. The length and width of the sequence (number of nozzles in a row) is adjusted individually to the needs and size of the Customer's production plant.

Possible configuration:
•	wick inserting machine;
•	automatic line loading and unloading system;
•	swivelling wheels and conveyor belts;
•	container pre-heating system;
•	mesh conveyor;
•	dosing stations with melters;
•	fan stations;
•	mesh cleaning system from paraffin;
•	labelling machine;
•	packing machine.

Detailed Images

Tea wax automatic production line scheme

Design a fully automatic production line according to customer needs, complete a series of candles from production to finished product process, after testing, this production line can produce 5000-6000 tea wax per hour

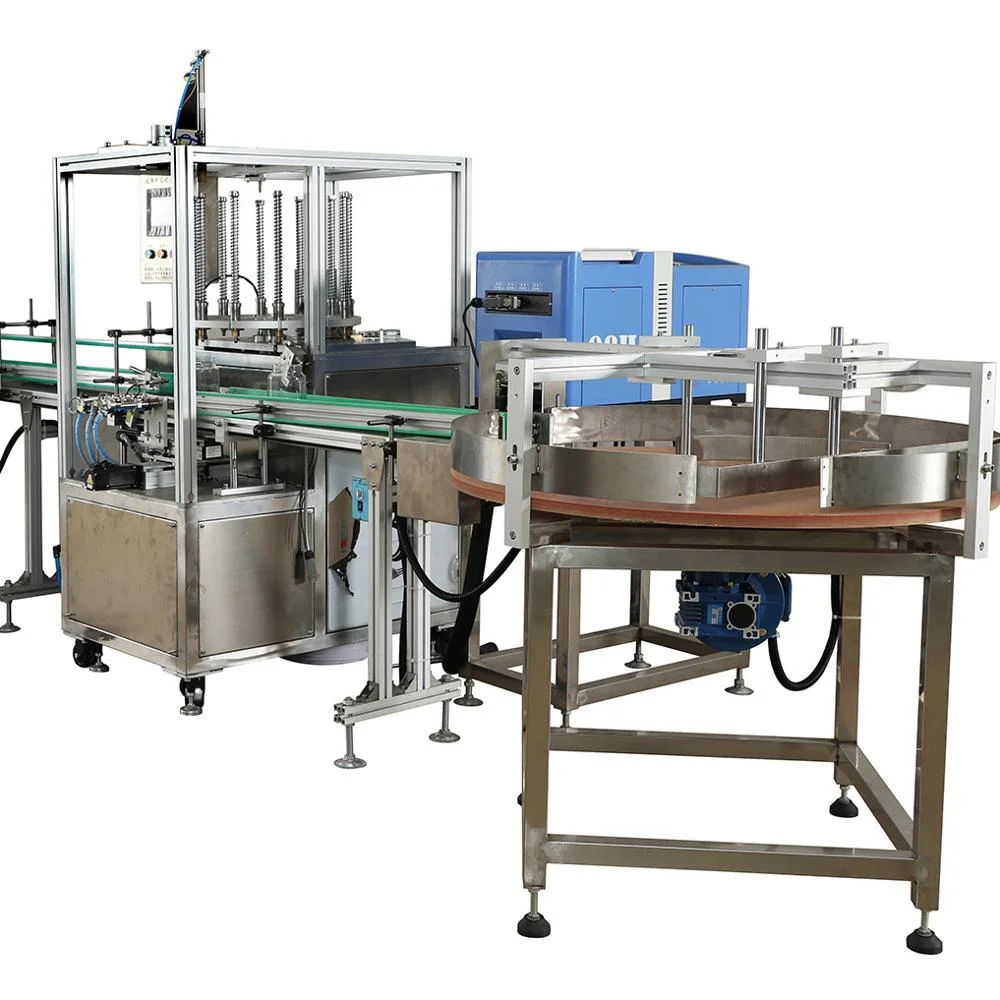

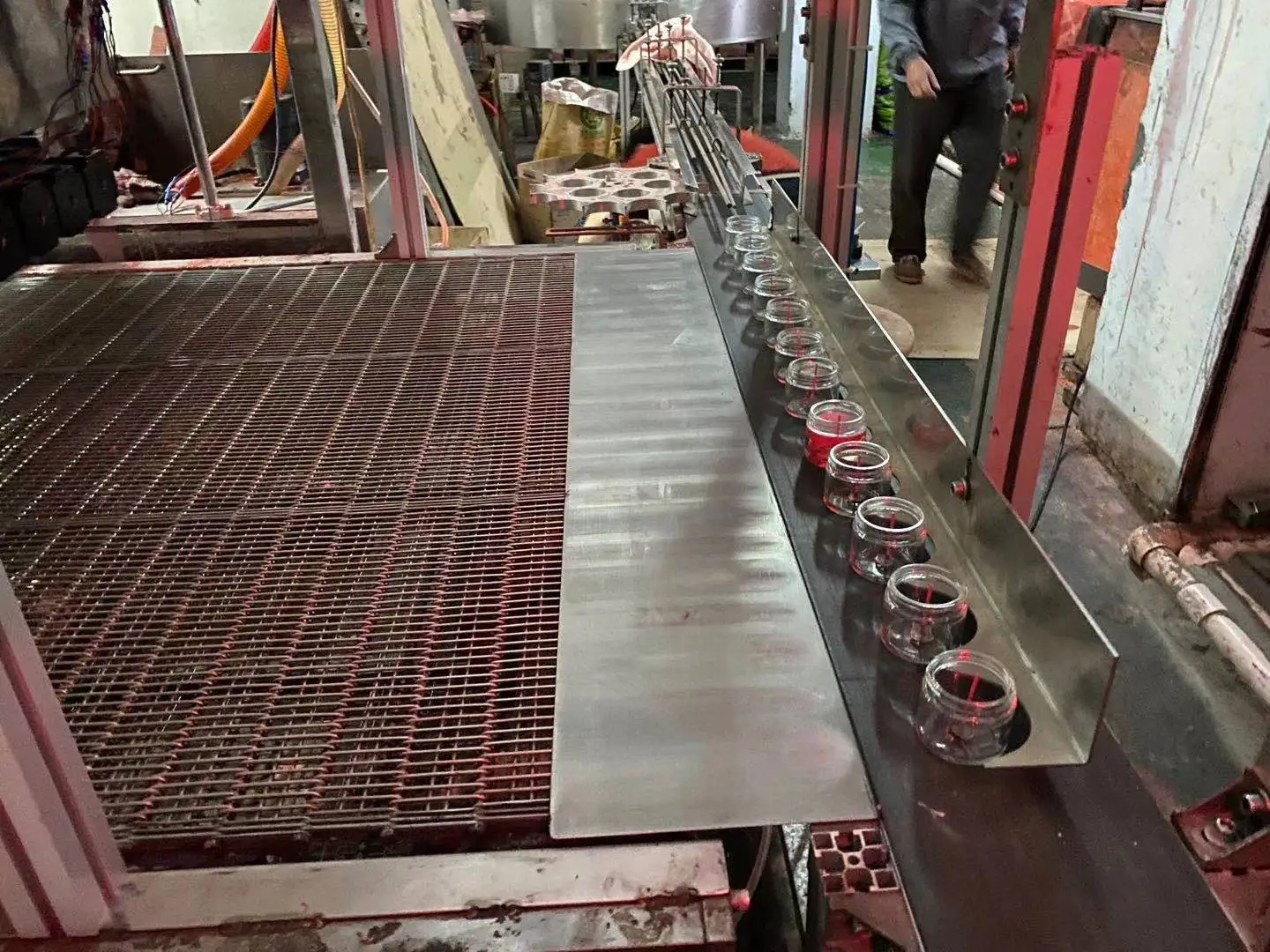

Feed up system

Feed up cups automatically.
Feed 12 cups at a time, save labor and time, and improve production efficiency.

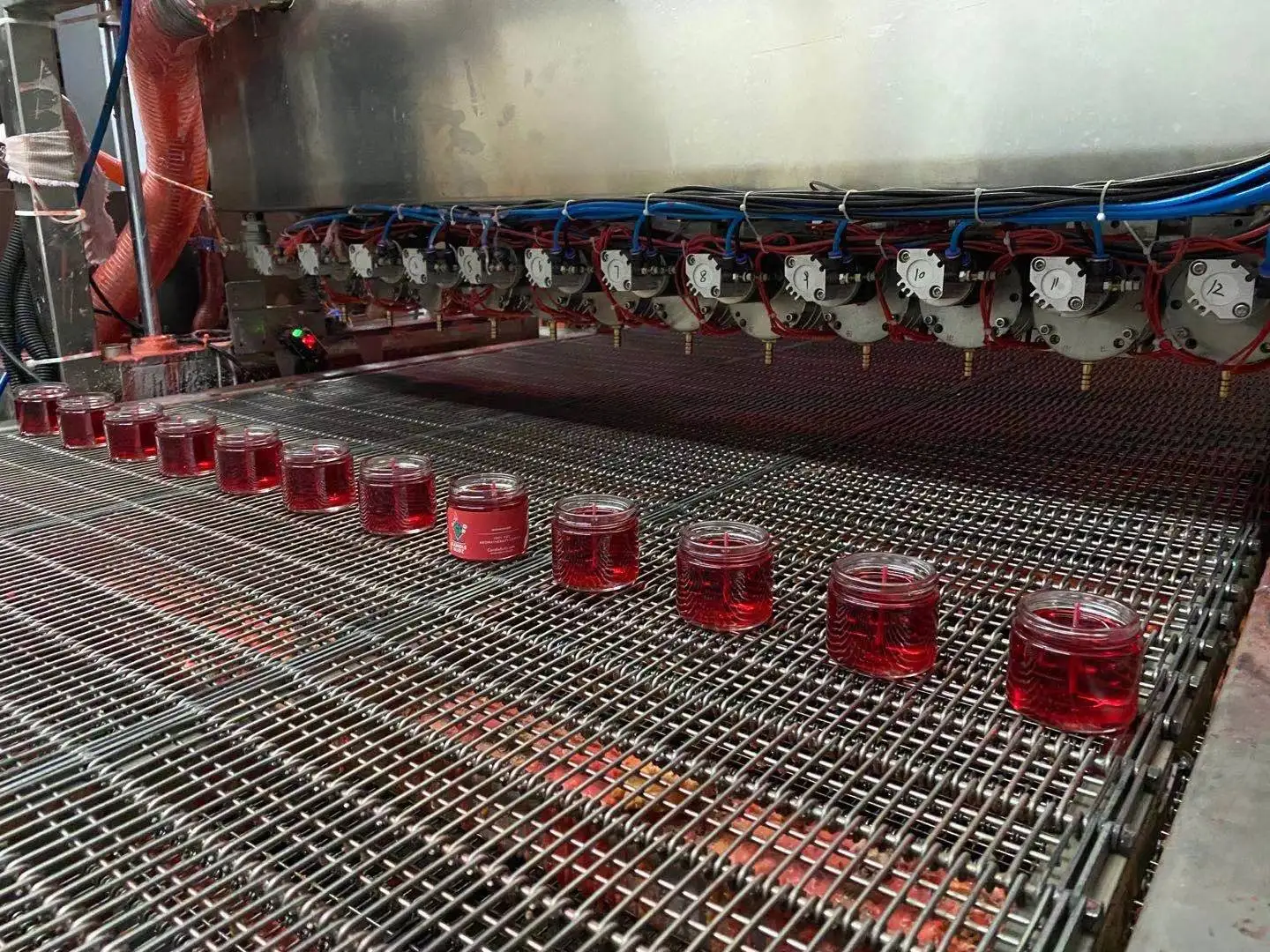

Movable Filling system

After the cup is preheated, it enters the filling system.

Set the filling capacity and other relevant data in the PLC system, and fill 12 cups at a time.

Workbench

You needs enough space to place production line equipment.

Automated lines, dosing stations and manual dosing systems with normal paraffin. We build complete systems for the production of candles using liquid paraffin. We design solutions tailored to the specific requirements of the Customer. We implement individual projects.

Our team are specialized in CANDLE MAKING MACHINES, any requirement or feedback are welcome!

Packing & Delivery

Our Company

Certificates

- CE BCTCFY180704061C

Price

Price US$ 33000 / Set

Packaging & Shipping

- PackingWooden case
- Packaging Size240 x 120 x 170 ( Centimeters)
- Package Weight 1000 ( Kilograms )
- Delivery Lead Time30 working days
- Minimum Order 1 Set
- Supply Ability2 sets per month
- Total quantity in Stock1 - 10
- Delivery PortGuangzhou or Shenzhen
- HS Code8422301090
- Shipping Career

Product Image

Fully Automatic Large-scale Factory Assembly Line Production 12-heads Nozzles Filling Machine

Candle Filling Machine Related Products

Related Products from premium suppliers on EC21

- Dongguan Yide Machinery Co., Ltd. is mainly exporting to Asia, Europe, North America, South America, Australia, Africa

Download Product Brochure

Yide Catalog.pdf (3.15 Mb)

Company Profile

About Dongguan Yide Machinery Co., Ltd.

Membership Free member
Registration Date2024.07.29
Country/RegionChina
CityDongguan
Contact MiaoMiao Li(Ms.)

Dongguan Yide Machinery Co.,Ltd was founded in 2014 .We are a leading manufacturer for candle making machine in china !There has 3000 square meters to produce and display candle machines in our factory!

Yide machinery keeping focus on developing advanced machines and providing professional engineering customization for candle manufacture solutions.Our products series are wax melter, wax pouring machine, wick centering machine,wick dipping machine, wick cutting machine and fully auto candle making machine, taper or pillar candle making machine,reed diffuser filling and capping machine and labeling machine.

Yide machinery widely used to making jar scented candles ,tea light candles,church candles and mould candles.

Our goal is to make candle production high accuracy ,high efficiency and lower labour cost and less raw material waste to realized fully auto production demand. We successfully cooperated with Top 3 candle factory all over the world ,USA,UK,Mexico ,Russia,India,Australia,France and More.

Yide Mission is developing candle machine to technical,supporting candle production to efficiency and Yide spirit is details make difference ,quality bring brand.

We are highly appreciated to service customers with our professional ,responsible teams to let our business better.Our customer choose us because there are many types of candle machines for making sample,small batch ,or even big batch production stage.We can fully understand what customer want and response rapidly.

Many thanks for choosing Yide machine,we are sincerely welcome you visiting us and appreciate a chance to cooperate.
