Product Attributes

- Brand Name GFUVE
- Model Number GF1000
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Accuracy Class 0.05
- Dimensions Cabinetsize8006001850mmBenchsize224007601846mm
- Measuring Range 120A480V
- Operating Temperature 20Cto55C
- Supply Voltage AC180265Vor3x220380V15frequency5060Hz.
- Related Keywords Multi-Positions, Single Phase Power Meter, Single Phase Reference En

Description by Manufacturer

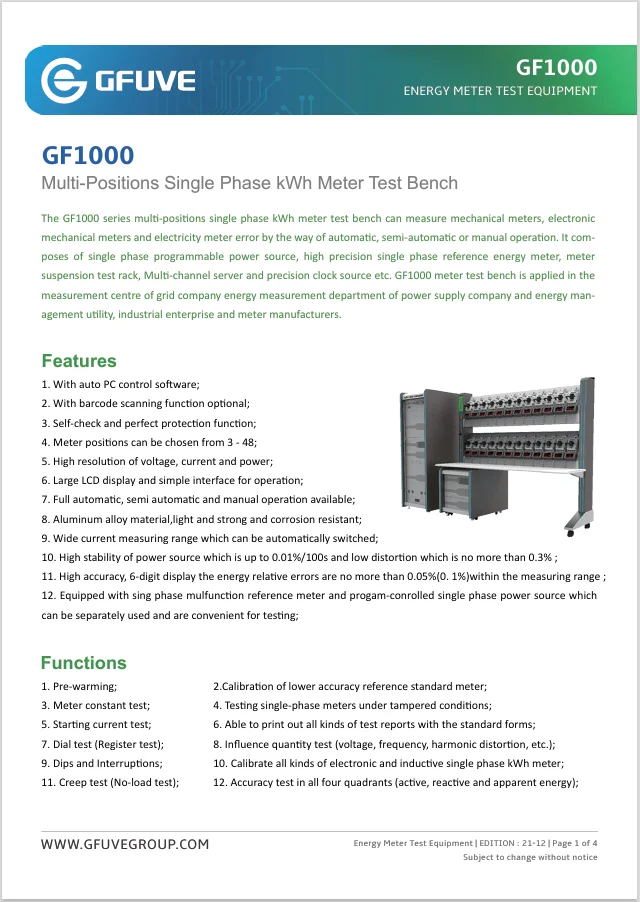

Product Description

The GF1000 series multi-positions single phase kWh meter test bench can measure mechanical meters, electronic mechanical meters and electricity meter error by the way of automatic, semi-automatic or manual operation. It composes of single phase programmable power source, high precision single phase reference energy meter, meter suspension test rack, Multi-channel server and precision clock source etc. GF1000 meter test bench is applied in the measurement centre of grid company energy measurement department of power supply company and energy management utility, industrial enterprise and meter manufacturers.

Functions

Pre-warming;

Meter constant test;

Starting current test;

Creep test (No-load test);

Dips and Interruptions;

Dial test (Register test);

Equipped with RS232 communication port;

Testing single-phase meters under tampered conditions;

Calibration of lower accuracy reference standard meter;

Able to print out all kinds of test reports with the standard forms;

Calibrate all kinds of electronic and inductive single phase kWh meter;

Influence quantity test (voltage, frequency, harmonic distortion, etc.);

Automatic measurement like shunting, basic errors, standard deviation etc;

Accuracy test in all four quadrants (active, reactive and apparent energy);

Test voltage, current, active/reactive/apparent power, phase, power factor, frequency, and etc;

Able to display waveform of voltage and current able to set 2nd-51st harmonic of voltage and current, measure the waveform distortion and harmonic content, and display harmonic chart;

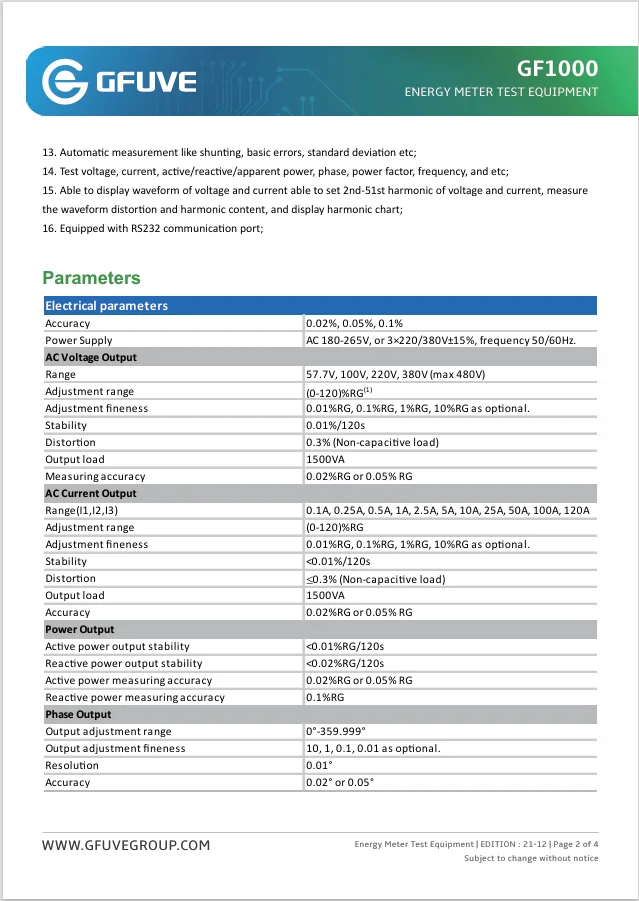

Parameters

Electrical parameters
Accuracy	0.02%, 0.05%, 0.1%
Power Supply	AC 180-265V, or 3×220/380V±15%, frequency 50/60Hz.
AC Voltage Output
Range	57.7V, 100V, 220V, 380V (max 480V)
Adjustment range	(0-120)%RG⁽¹⁾
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	0.01%/120s
Distortion	0.3% (Non-capacitive load)
Output load	1500VA
Measuring accuracy	0.02%RG or 0.05% RG
AC Current Output
Range(I1,I2,I3)	0.1A, 0.25A, 0.5A, 1A, 2.5A, 5A, 10A, 25A, 50A, 100A, 120A
Adjustment range	(0-120)%RG
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	<0.01%/120s
Distortion	≤0.3% (Non-capacitive load)
Output load	1500VA
Accuracy	0.02%RG or 0.05% RG
Power Output
Active power output stability	<0.01%RG/120s
Reactive power output stability	<0.02%RG/120s
Active power measuring accuracy	0.02%RG or 0.05% RG
Reactive power measuring accuracy	0.1%RG
Phase Output
Output adjustment range	0°-359.999°
Output adjustment fineness	10, 1, 0.1, 0.01 as optional.
Resolution	0.01°
Accuracy	0.02° or 0.05°

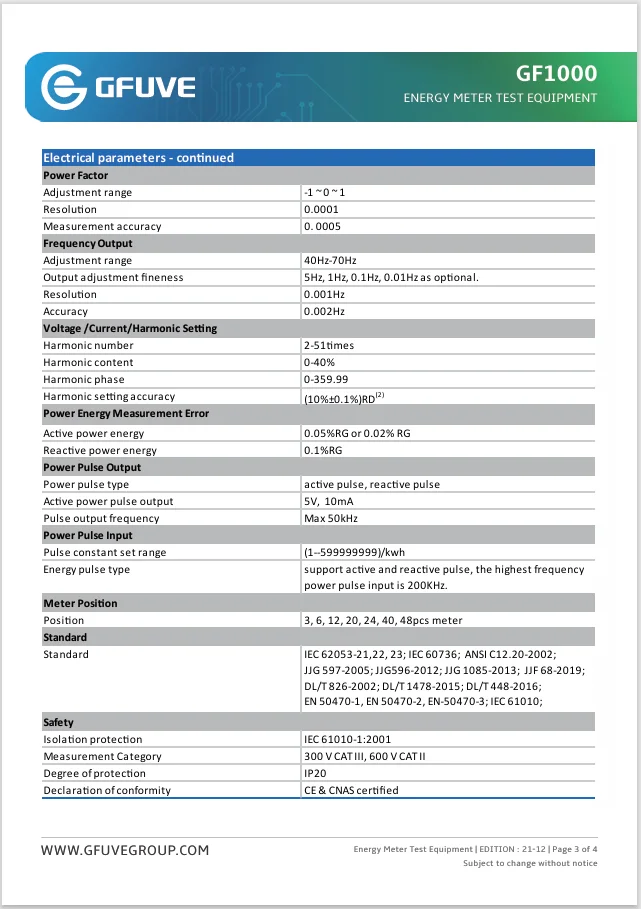

Power Factor
Adjustment range	-1 ~ 0 ~ 1
Resolution	0.0001
Measurement accuracy	0.0005
Frequency Output
Adjustment range	40Hz-70Hz
Output adjustment fineness	5Hz, 1Hz, 0.1Hz, 0.01Hz as optional.
Resolution	0.001Hz
Accuracy	0.002Hz
Voltage /Current/Harmonic Setting
Harmonic number	2-51times
Harmonic content	0-40%
Harmonic phase	0-359.99
Harmonic setting accuracy	(10%±0.1%)RD⁽²⁾
Power Energy Measurement Error
Active power energy	0.05%RG or 0.02% RG
Reactive power energy	0.1%RG
Power Pulse Output
Power pulse type	active pulse, reactive pulse
Active power pulse output	5V, 10mA
Pulse output frequency	Max 50kHz
Power Pulse Input
Pulse constant set range	(1--599999999)/kwh
Energy pulse type	support active and reactive pulse, the highest frequency power pulse input is 200KHz.
Meter Position
Position	3, 6, 12, 20, 24, 40, 48pcs meter
Standard
Standard	IEC 62053-21,22, 23; IEC 60736; ANSI C12.20-2002; JJG 597-2005; JJG596-2012; JJG 1085-2013; JJF 68-2019; DL/T 826-2002; DL/T 1478-2015; DL/T 448-2016; EN 50470-1, EN 50470-2, EN-50470-3; IEC 61010;
Safety
Isolation protection	IEC 61010-1:2001
Measurement Category	300 V CAT III, 600 V CAT II
Degree of protection	IP20
Declaration of conformity	CE & CNAS certified

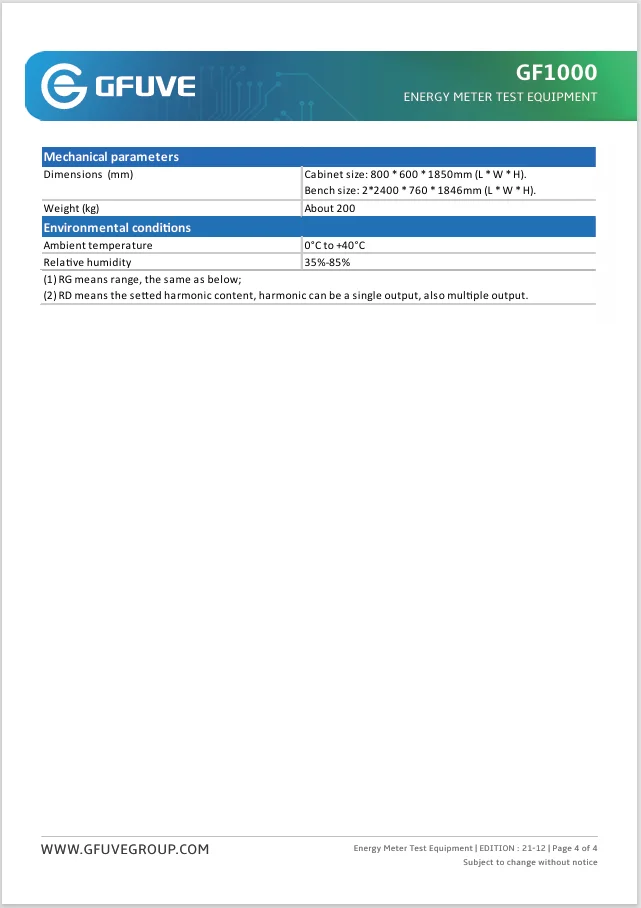

Mechanical parameters
Dimensions (W×D×H) (mm)	Cabinet size: 800 * 600 * 1850mm (L * W * H). Bench size: 22400 760 * 1846mm (L * W * H).
Weight (kg)	About 200
Environmental conditions
Ambient temperature	0°C to +40°C
Relative humidity	35%-85%
(1) RG means range, the same as below; (2) RD means the setted harmonic content, harmonic can be a single output, also multiple output.
