Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Custom Roll Forming Machi

Description by Manufacturer

Product Description:

This perforation and recoiling line is designed to punch the holes for the stips, then get the punched strips recoiled. The recoiled strips are prepared for forming upright profiles by roll forming machine.

Features:

Material: GI
Thickness: 1.5mm to 2.0mm
Press capacity: 100 Tons press
Recoiler motor: 5.5KW
PLC control system

Technical Parameters:

PERFORATION & RECOILING LINE FOR UPRIGHT PROFILE
PERFORATION & RECOILING LINE FOR UPRIGHT PROFILE

Material Specification
Thickness	1.5mm to 2.0mm or customized
Size	Customized
Material	GI, cold rolled steel
Yield strength	550MPa or customized

Machine Components
3Ton*350mm Hydraulic Decoiler With Pre-leveler and Power Feed-in Device
Load capacity	Max.3Tons
Coil inner-diameter	510±30mm
Coil outer-diameter	1500mm
Coil width	Max.350mm
Motor	2.2KW
Option	Please refer to Decoiler on home page
Power Feed-in Rollers
Pre-Level Device with 3 over 4 shafts to remove the Coil-set
Power	5.5KW

100 Tons Press
Servo motor feed-in device	3KW
Quantity of pressing tools	2 sets
Mateiral of pressing tool	Cr12Mov, heat treatment
Stroke	45 times/min
Holes patten	Customized

Tensioner Device

3Ton*350mm Hydraulic Recoiler
Coil inner hole expanding	Hydraulic system, 2.2KW pump motor
Driving motor with brake	5.5KW
Expanding type	Taper wedge expanding system
Load capacity	Max.3Tons
Coil inner-diameter	510±30mm
Coil outer-diameter	1500mm
Coil width	Max.350mm
Up/down stroke of coil car	Max300mm
Forward/Backward stroke of coil car	Max. 1000mm
Stop/start rotation	Automatic stopping device with limited switch to assist

PLC Control System
Function	Control the perforation automatically
PLC	Siemens
Touch screen	Siemens
Inverter	Schneider or Delta
Encoder	Omron
Punching tolerance	≤±1 mm
Control Voltage	24V

GI Custom Roll Forming Machine 5.5KW Recoiling Line And Perforation Line 0

Support and Services:

Technical Support and Service for Our Machines

We provide comprehensive technical support and service for our machines. Our team of experienced engineers and technicians can help you achieve optimal usage of the machine and maximize its performance.

We provide professional installation and commissioning services.
We provide remote and on-site technical support.
We provide troubleshooting services and respond to customer inquiries.
We provide preventive maintenance services to keep the machine running smoothly.
We provide spare parts supply and repair services.
We provide training and technical guidance.

If you have any questions or need technical support for our machines, please don't hesitate to contact us. We are here to help you.

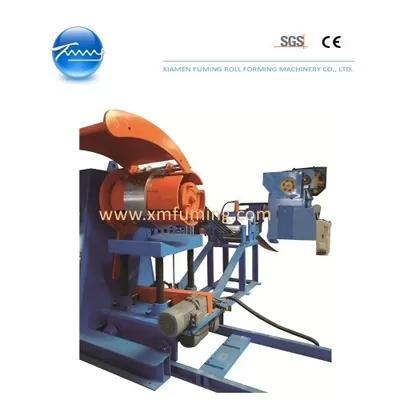

Product Image

GI Custom Roll Forming Machine 5.5KW Recoiling Line and Perforation Line
