Applications
Mobile phone metal earphone net, Audio speaker net, Mobile phone holder magnetic disc, DJI Samsung lithium battery steel sheet, Mobile phone metal shell, mobile phone back panel, mobile phone middle frame accessories, Mobile phone camera holder, Mobile phone holder, Mobile phone vc heat sink, Bluetooth wireless earphone aluminum alloy shell, Kitchen sink filter, Stainless steel filter basket.
Description

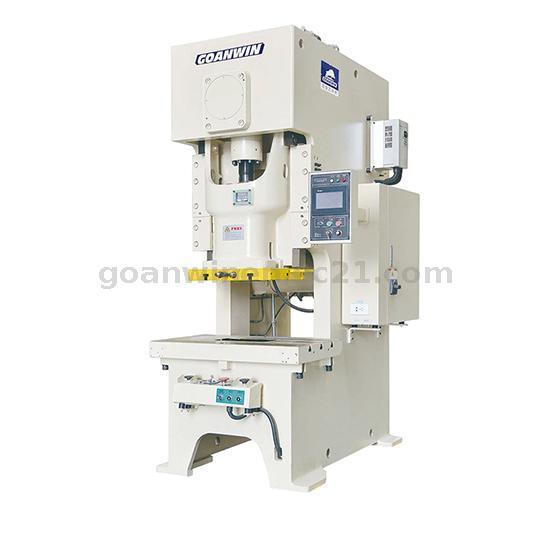

The A1 Series C-Frame Single Crank Power Press is a high-performance stamping machine designed for precision electronic stamping parts. Manufactured by Goanwin and powered by Taiwan TECO motors and Japan NSK bearings, the A1 Series delivers stable performance, high efficiency, and exceptional durability. Equipped with a Japan SHOWA hydraulic overload protection pump, it ensures a long service life while maintaining low maintenance costs and noise levels.
This robust yet compact press machine is the ideal solution for small stamping applications, combining precision, reliability, and high production efficiency to meet the demands of modern manufacturing processes. It is especially recommended for producing metal pieces with high accuracy and minimal deformation.
Features
1.High Performance and Stability
- Precise six-point, centered box-type gibbing.
- High rigidity frame with minimized deflection.
- High driving torque wet clutch and brake system for smooth operation.
2.Enhanced Durability and Efficiency
- Forged 42CrMo alloy crankshaft for long-lasting performance.
- Precision-machined gears for smooth power transmission.
- Dry clutch system for increased single-stroke rate and torque output.
3.User-Friendly Design
- Siemens-based control platform with a touch screen interface.
- Easy integration with automation systems.
- Flexible control options available upon request.
4.Reliable Overload Protection
- Japan SHOWA hydraulic overload pump for extended service life.
- Quickly responsive overload protector to safeguard the machine.
Specifications
- Tonnage: 25-315 tons.
- Design: C-Frame Single Crank Press.
- Accuracy Standards: Built to JIS Class 1 accuracy standards.
- Frame Material: High-strength steel with quenched and ground slide-guide.
- Control System: Delta-based with touch screen interface.
- Main Drive Components: Forged crankshaft and precision gears.
- Clutch System: High-performance wet or dry clutch.
Sales Service
- Guaranty Period: One year for the main machine components (excluding wearing parts).
- Parts Delivery: Replacement parts dispatched within three working days via TNT.
- Technical Support: Assistance available via email or video; technicians are available for overseas service (additional costs apply).
- Installation & Commissioning: Technicians can be dispatched for installation and commissioning; costs are borne by the buyer.
Standard Accessories
- Inverter.
- Touch pad.
- Preset counter.
- Forejudge counter.
- Electrical cam.
- Hydraulic overload protector.
- Mechanical Slide adjust device(A1-45 or below).
- Electric Slide adjust device(over A1-45).
- Mechanical Die height indicatot(A1-45 or below).
- Electric Die height indicator(over A1-45).
- Balance device.
- Crank angle indicator.
- Speed indicator.
- Air source receptacle.
- Second fall protection device.
- Misfeed detection device.
- Power socket.
- Maintenance tool box.
- Operation manual.
- Anti vibration press mount.
Optional Accessories
- Auto grease pump.
- Pneumatic die cushion device.
- Foot switch.
- Quick die change device(die lifter, clamp and die arm sepjes).
- Slide knock-out device.
- Die room light.
- Safety light sensor.
- Feeder.
- Uncoiler.
- Straightener.
- Mechanism hand.
The A1 Series C-Frame Single Crank Power Press offers a complete package of efficiency, precision, and reliability for your stamping needs.
