Good Price 1530 CNC Router Machine 4 Axis

Add to Basket Share to :

Price

US$ 8500

Min Order Quantity1 Set
Supply Ability100
PortQingdao Port
Delivery Lead Time10
Payment Terms 4
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Jinan Hopetool CNC Equipment Co.Ltd.
Membership Free member
Registration Date2022.07.14
Country/RegionChina
CityJinan
Contact Jackie Zhao(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Jackie Zhao

Jinan Hopetool CNC Equipment Co.Ltd.

* Buying Product

Category : Other Manufacturing & Processing Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Hopetool
- Model Number HT-1530
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Related Keywords cnc router 4 axis

Description by Manufacturer

Product Description

characteristic

his machine is specially for 4D engraving, the spindle(A axis) can rotate +/- 90 degree, can make multi-kinds of surface which we can design with Software.

With this machine, you can make different surface carving, arc-surface milling, bend surface machining for 4D jobs, like special shaped arts, bended doors or cabinets.

With hard steel structure, it can work on MDF, Acrylic, wood, and some soft metal, cutting and engraving on Rosewood for furniture, indoor decoration.

performance parameter

NO.	Description	Parameter
1	X,Y,Z Working Area	1500x3000x(300-700mm)*±180°
2	Table Size	1800×3500mm
3	X,Y,Z Traveling Positioning Accuracy	±0.02/300mm
4	X,Y,Z Repositioning Accuracy:	±0.02mm
5	Table Surface	T slot table(optional vacuum table)
6	Frame	Big Steel Tube Structure
7	X, Y Structure	Helical rack gear , HIWIN Linear guide
8	Z Structure	Imported Ball Screw , HIWIN Linear guide
9	Max. Power Consumption	(Without Spindle) 4.2Kw
10	Max. Rapid Travel Rate	50000mm/min
11	Max. Working Speed	25000mm/min
12	Spindle Power	3/5.5KW
13	Spindle Speed	0-24000RPM
14	Drive Motors	Stepper motor(Optional servo motor)
15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
16	Command Language	G Code
17	Operating System	DSP A18/Stntec
18	Computer Interface	USB
19	Flash Memory	512M
20	Collet	ER25
21	X,Y Resolution	<0.02mm
22	Software Compatibility	UG , Power mill
23	Running Environment Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%
25	Packing Size	4.12.32.6m
26	N.W.	1600KG
27	G.W.	1800KG
28	Optional Parts	Dust Collector/ Dust Hoods for three Axis
		Vacuum Pump
		Rotary System
		Mist-cooling System
		SIEMENS/DELTA/ Panasonic Servo Motors
		Colombo Spindle
		X:2m, Y:4m, Z:1m

Price

Price US$ 8500 / Set

Packaging & Shipping

- Packaging Size320 x 220 x 185 ( Centimeters)
- Package Weight 1800 ( Kilograms )
- Delivery Lead Time10
- Minimum Order 1 Set
- Supply Ability100
- Total quantity in Stock21 – 50
- Delivery PortQingdao Port
- Shipping Career

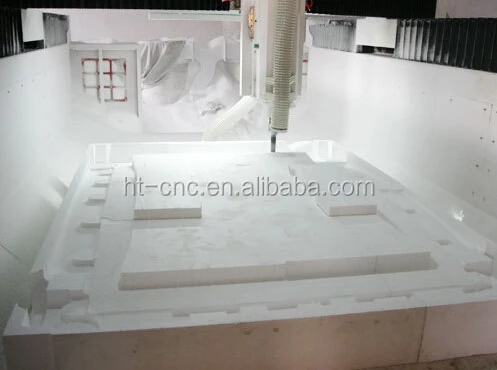

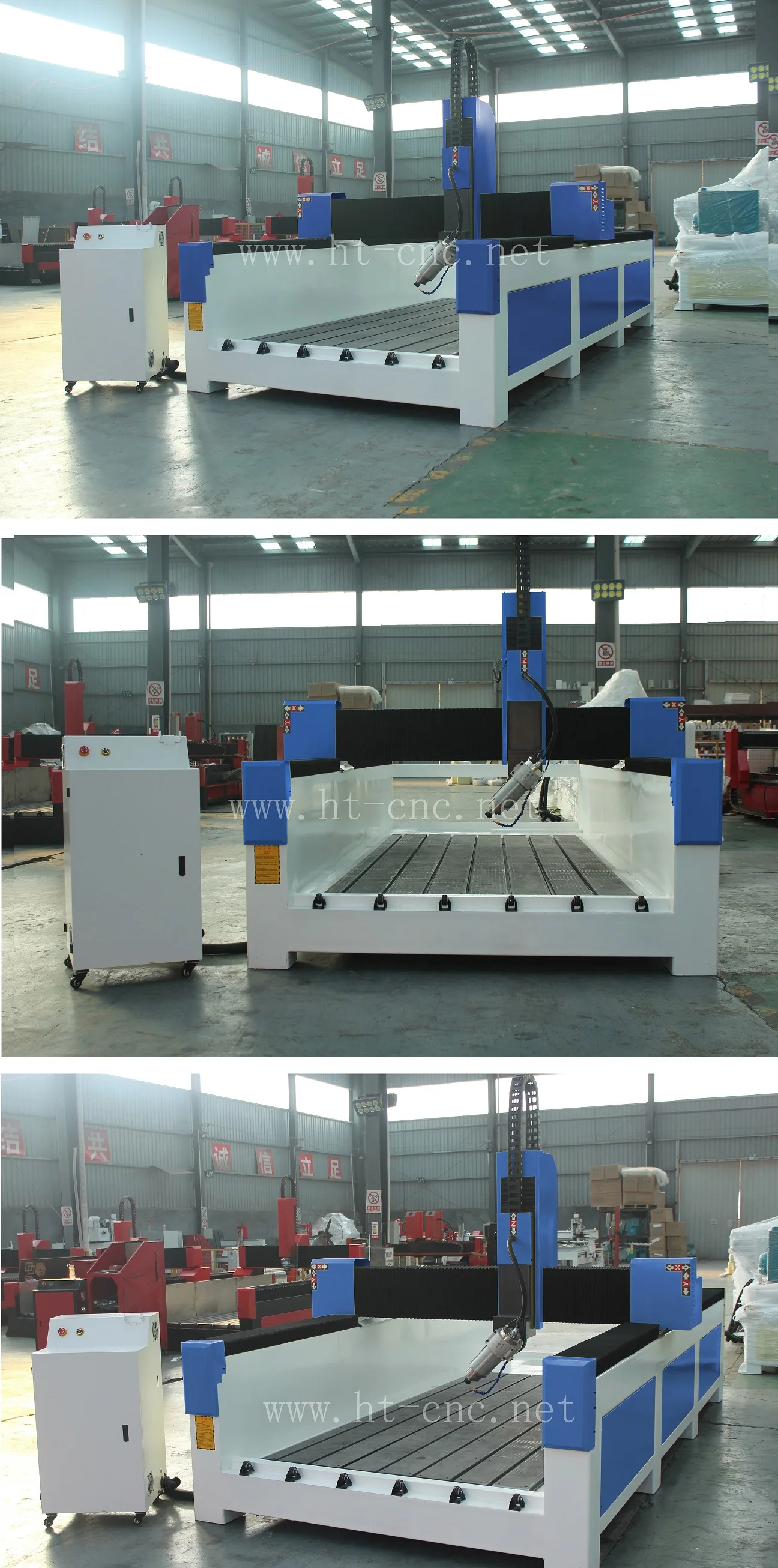

Product Image

Good Price 1530 CNC Router Machine 4 Axis
