Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Graphite Electrodes

Description by Manufacturer

Graphite Electrodes

Graphite electrodes including RP Graphite Electrodes , RPI, HP, SHP and UHP Graphite Electrodes are widely used in Electric Arc Furnace and Ladle furnace for making alloy steel or other metals and nonferrous metal.

Our main exporting size of Graphite Electrodes Solutions are:

(Dia. 75-Dia. 700mm)

Our Ladle furnace Graphite Electrodes has the following feature:

1. Lower electric resistivity, good electric and heat conductivity;

2. High mechanical strength under high temperature;

3. High resistance to thermal shock and mechanical vibration;

4. Lower ash content;

5. According to the customer's feedback information, our electrodes used in EAF/LF with the pretty lower consumption per ton steel.

We main supply electric arc furnace graphite electrodes , direct current furnaces electrodes .

look forward to working with you for a long time!

Item		Unit	Nominal Diameter
			UHP		HP		RP
			Φ300-400	≥Φ450	Φ250-400	≥Φ450	Φ250-400	Φ450-600

Electric Resistivity	electrode	μΩ·m	≤5.0	≤5.5	≤6.0	≤6.5	≤8.5	≤9.0
	Nipple		≤4.0		≤4.5		≤5.5
Transverse Strength	electrode	MPa	≥15.0		≥10.5		≥8.0	≥7.0
	Nipple		≥24.0		≥20.0		≥16.0
Young's Modulus	electrode	GPa	≤14.0		≤12.0		≤9.3
	Nipple		≤18.0		≤16.0		≤14.0
Bulk Density	electrode	g/cm3	≥1.68		≥1.65		≥1.54
	Nipple		≥1.76		≥1.74		≥1.70
Coefficient of thermal expansion	electrode	10-6/ºC	≤1.5		≤2.0		≤2.5
	Nipple		≤1.2		≤1.6		≤2.0
Ash		%	≤0.2		≤0.2		≤0.2

Packaging & Shipping

- Delivery Lead Time15-30 days
- Supply Ability50000MT/Year
- Shipping Career

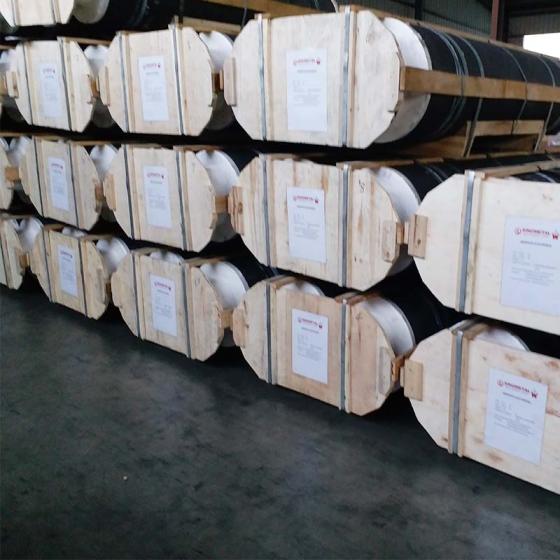

Product Image
