HDMI Daisy Chain Over IP Extender

Add to Basket Share to :

Price

US$ 299

Min Order Quantity299 Pair
Supply Ability1000 Set/ Sets per Month
PortTaiwan
Delivery Lead Time7 days
Payment Terms 2
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Panio Information Co., Ltd.
Membership Free member
Registration Date2016.07.18
Country/RegionTaiwan
CityTaoyuan
Contact Vick(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Vick

Panio Information Co., Ltd.

* Buying Product

Category : Professional Audio, Video & Lighting

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name PANIO
- Model Number HD1000/1002
- Place of Origin Taiwan
- Supply Type In-Stock Items
- Condition New
- Related Keywords HDMI Extender, HDMI OVER IP, Audiovisual, Environment control systemc

Description by Manufacturer

HDMI / RS-232 / IR Daisy Chain over IP Extender

[HD1000-1002] is the high performance, cost-effective HDMI Extender over CAT. 5e/6 up to 100m at the best strengthened competitive price in the market.

HD1000 / 1002 supports Full HD 1080p video and cascaded-chainable with high flexibility for expansion.


	Uses easy to install, inexpensive CAT. 5e/6 cables
	Cascaded-chainable receiver up to 32 layers(1000M 1080P)
	HDMI Digital Audio/Video extended distance up to 100 meters (330 feet) between Transmitter(HD1000) and Receiver(HD1002), supports with HD video 1080P and PC resolution 1920x1200 60Hz signals, over CAT.5e/6 cabling.
	Supports video high resolution up to 1920x1080, 1080p
	Supports HDMI 1.3a
	HDCP compliant
	Supports Default EDID, and Selected EDID modes.
	HDTV compatible (720p, 1080i, 1080p)
	Supports RS-232 (Serial)
	IR (Infrared remote) enabled
	Supports Local HDMI monitoring port
	No software / driver installation required.
	Each receiver (HD1002) links cascade-chainable 2 receivers(HD1002)
	Rack mountable
	Made in Taiwan.
	Remark: Suggest using UTP Cat6 cable, use other poor quality cable may lead to signal weaken that unable to achieve the satisfactory performance.

Each receiver (HD1002) links cascade-chainable 2 receivers(HD1002)

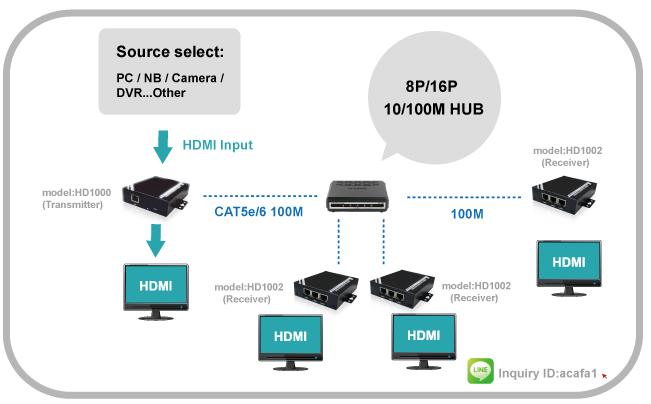

HDMI Over IP

Application


2 X IR Cable	2 X RS232 Cable	2 X DC 5V

MODLE NAME				HD1000	HD1002
Console Connectors	HDMI Output			HDMI ( Female )	HDMI ( Female )
	RS-232 Control Port			Phone Jack	Phone Jack
PC Connectors	HDMI Input			HDMI ( Male )	N/A
Extension Port	RJ-45			Full HD Video / Audio Extension
RJ-45				1 ( Line Out )	3 ( Line in x1 + Line Out x 2 )
LED Indicators		Local	Power	Left Red LED
			Link	Right Green LED
		Remote	Power	Left Red LED
			Link	Right Green LED
Cascaded-Chainable				N/A	Yes, up to 10 layers
DDC Supported				DDC, DDC2, DDC2B
Extension Cable Type & Length				CAT.5e / CAT.6 Max. Length: 100m
Max Video Resolution				1920x1080 60Hz, Full HD 1080P
Wide Screen Supported				Yes
OS Compatibility				OS Independent
Power Supply				External DC 5V / 2A Adaptor
Dimension ( L x W x H )				115 x 91 x 28 mm
Unit Weight				340g	380g
Housing material				Metal
Operating Temperature				32~ 122°F (0~ 50°C )
Humidity				0%~80%RH

Price

Price US$ 299 / Pair

Packaging & Shipping

- Packing2 pcs per box
- Delivery Lead Time7 days
- Minimum Order 299 Pair
- Supply Ability1000 Set/ Sets per Month
- Total quantity in Stock1 - 10
- Delivery PortTaiwan
- Shipping Career
