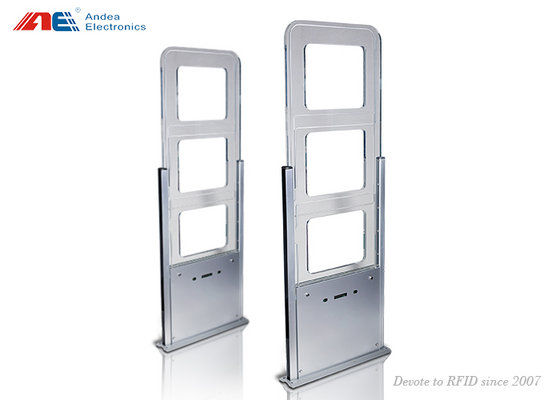

HF RFID Library Security Gates Width 90CM With Infrared Function

Product Introduction:

The RFID library security gate integrates 3D intelligent technology and it can detect any directions in the 3D space of device induction zone; The equipment supports electronic tags in accordance with ISO/IEC 15693 and ISO 18000-3 standard from multiple vendors, both AFI and EAS safety test model available; Its system supports up to 9 aisles at the same passageway. Aisle identification distance is above 90cm (The identification distance is related with tag performance, size, site environment and so on). This product can be widely used in library or archive entrance against theft and other fields.

Key Benefits:

Single technology is required for both inventory and theft management of the library
Library staff are alerted immediately when un-borrowed items pass through the theft detection gates
Would-be thieves are deterred by the physical presence of the gates
Number of patrons passing through the gates is captured by a counter on the gates

Product Features:

Operating Frequency: 13.56 MHz
Support ISO 15693 and ISO 18000-3 protocols
Aisle Width: 90cm
RF Power 1-8W
Integrated infrared sensor cutting analysis, realize the flow statistic
Support a variety of security models: EAS, AFI, EAS+AFI
Integrated 3D omni-directional induction technology
Support up to 10pcs gates(9 aisles) at the same entrance
Support EMI (electro-magnetic interference) detection
Support three roads relay linkage output, one road MOS linkage output
Built-in sound and light alarm prompt function, adjustable volume
Communication Interface: Ethernet (TCP/IP)

Technical Specification
Model	LSG405
Compatible Protocols	ISO 15693
Alarm Mode	EAS, AFI and EAS+AFI
Passive Alarm	Support
EMI Detection	Support
Aisle Width	90cm
Power Supply	AC 100~240V 50~60Hz
Max Power Consumption	30W (Rated Power 20W)
Housing Material	Acrylic and Metal Plate
Dimension *(LWH)*	Whole: 1664636118mm Antenna: 164260044mm Base: 636*118mm
Weight	23 kg/pc

Product Application:

RFID library, archive, etc.
