Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Processing Types Alcohol
- Related Keywords machine filling beer, filling beer machine, beer filling machine, filling machine-beer

Description by Manufacturer

Model	HG4-1
Filling nozzle	4
Sealing nozzle	1
Filling capacity	500-700 CPH
Motor	0.55kw
Maximum filling pressure	0.3Mpa
Filling temperature	<4°C
Compressed Air consumption	0.1m3/min(0.4～0.6Mpa)
CO2 consumption	160g/100L
Can neck	Φ52～Φ90mm
Can height	105～240mm
Machine size	180012002200mm
Weight	450KG

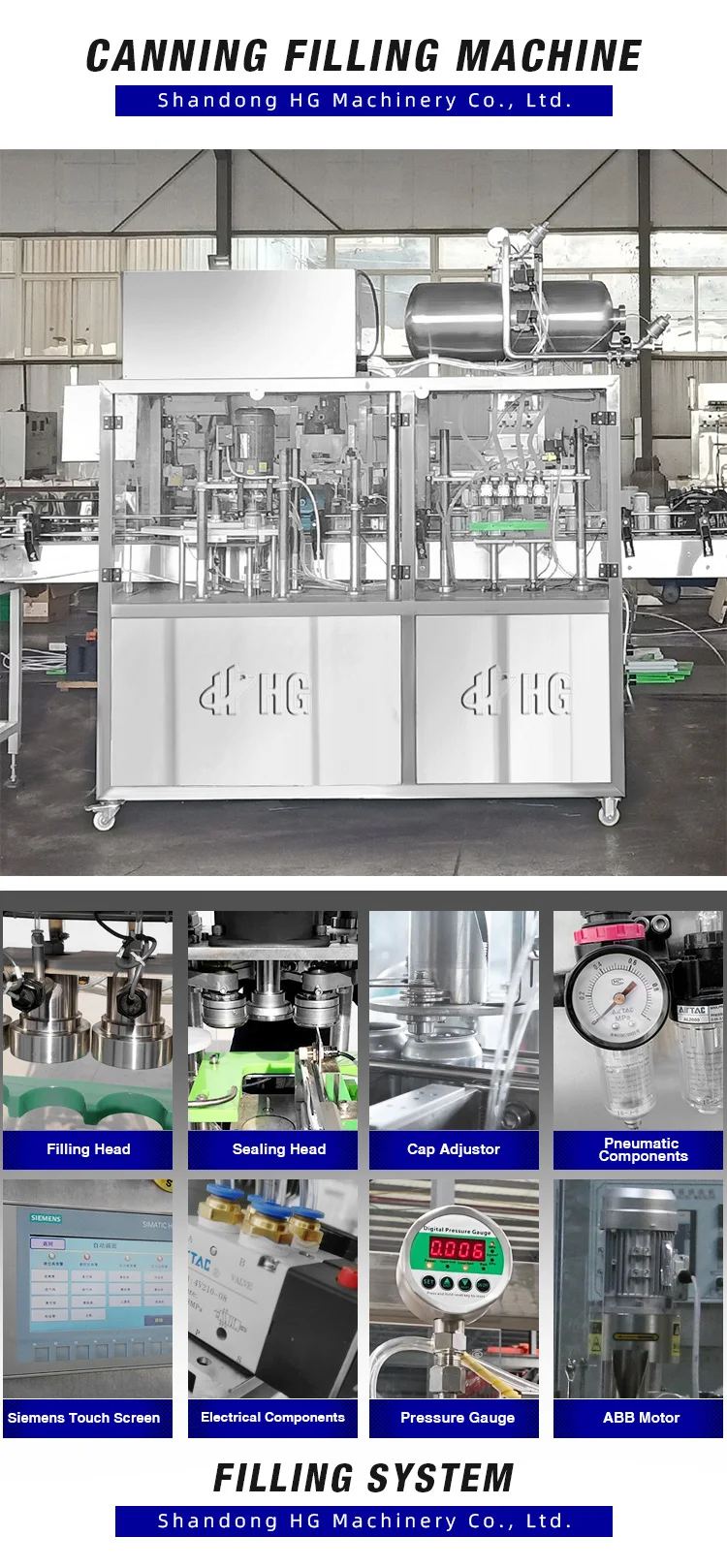

4-1 Canning Filling Machine

This 4-1 type fully automatic canning machine is special designed for medium capacity brewery/brew pubs. It’s easy operating with high efficiency. The working flow includes CO2 purge, filling and then sealing the caps. All-in-one filling method design, the working is reliable.

Automatic canning machine is special designed for medium capacity brewery/brew pubs. It’s easy operating with high efficiency. The working flow includes CO2 purge, filling and then sealing the caps. All-in-one filling method design, the working is reliable.

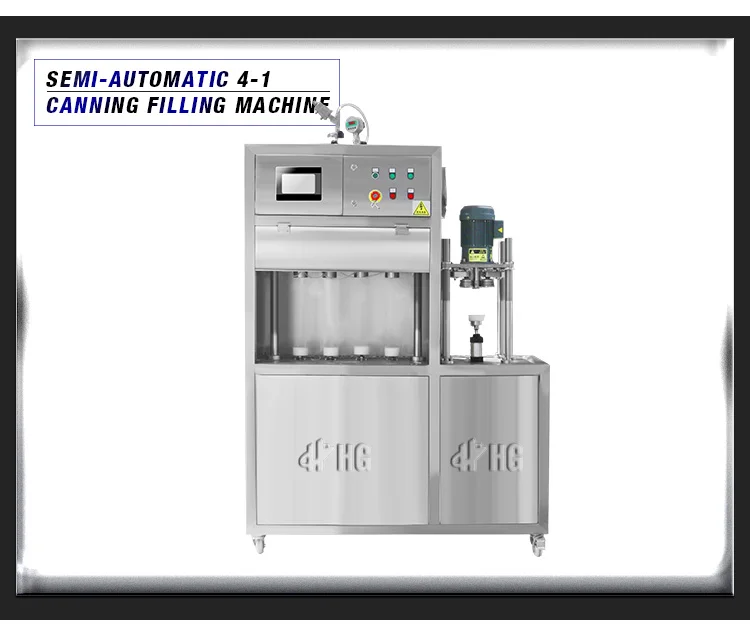

4-1 Semi-automatic canning machine
This 4-1 type semi automatic canning machine is special designed for medium capacity brewery/brew pubs. It’s easy operating with high efficiency.The working flow includes CO2 purge, filling and then sealing the caps. All-in-one filling method design, the working is reliable.

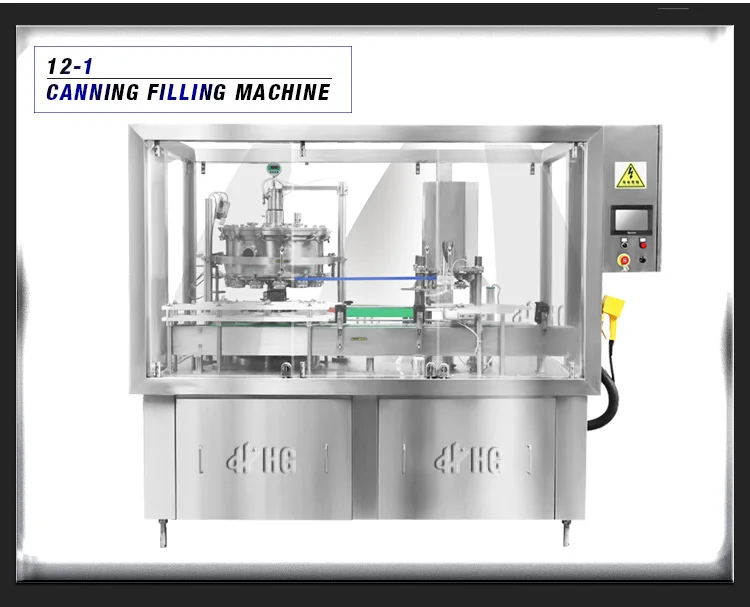

12-1 Fully-automatic canning machine
This 12-1 type fully automatic canning machine is special designed for medium or large capacity breweries. It adopts counter pressure filling principle. It has advantages of fast filling speed, high precision in liquid level and it only starts filling when there is a can, otherwise it will not fill.working is reliable.

20-4 Fully-automatic canning machine
This 20-4 type fully automatic canning machine is special designed for medium or large capacity breweries. It adopts counter pressure filling principle. It has advantages of fast filling speed, high precision in liquid level and it only starts filling when there is a can, otherwise it will not fill.working is reliable.

Using isobaric filling method.
It's easy operating with high efficiency.
All in one filling method design, the working is reliable.
It made of AISI304 stainless steel
The machine is special designed for medium capacity brewery and brew pubs

Item	Production capacity	Filling method	Material	Dimensions
HG-GZ-4-1	100-300CPH	Isobaric filling	SUS304	17007502200mm
HG-4-1	500-700CPH	Isobaric filling	SUS304	180012002200mm
HG-12-1	2000CPH	Isobaric filling	SUS304	215013001900mm
HG-20-4	6000CPH	Isobaric filling	SUS304	220017501900mm

Q: Are you a manufacturer?
 A:Yes, We have more than 20 years in brewing and beer filling equipment.
Q: What is your available port of shipment?
A: Qingdao, Tianjin, Ningbo, Shanghai
Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm before production.
Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries.
1years warranty for filling machine.
Q: How about the installation and training?
A: We can supply the installation and training. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.
Q: How do you guarantee the filling machine operation?
A: Before the delivery, we will test and debug all machines in good condition and record the video for your checking.

Our service

Manules / Videos of machine installation, adjusting, setting, maintenance are available to you.
If any problems occured and you can not find out the solutions, Telecom or Online face to face communication are available around 24 hours.
HG engineers & technician are ready to your countries for services if you agree to pay the expenditure. 4. The machine will have 1 year warranty. During the warranty year, if any of the parts are not broken because of misoperation, we guarantee to replace free of charge. The warranty will start counting after the machine is sent out and you received the machine.
HG company has an independent team for after-sale service. If any emergency please call the saleman or our after-sale's manager.
