Product Attributes

- Brand Name CHIKEK
- Model Number CHK37xMK
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Frequency 125KHz/134.2KHz/13.56MHz
- Interface USB-HID driverless or HID Keyboard
- Antenna External- multiple sizes for option
- Protocol EM ISO11784/11785 ISO14443A/B ISO15693 ISO7816
- Related Keywords HID RFID Module, USB HID Driveless, Multi RFID Reader, Smart Card Reader

Description by Manufacturer

Key Features:

DC 3.3V~ 5V power supply, HID Keyboard interface;

Compliant with ISO11784/11785, or ISO14443A/B, ISO15693, ISO18092 Standard;

Available to operate DESFire PICC level, Application ID create/delete/format, etc;

Support to create Standard DataFile&BackupFile, and ValueFile, RecordFile, etc;

Dimension with 22mmX53mmX5mm(comply for all product in this series);

External antenna , reading range up to 5 ~ 7cm;

Data output in any file of text, excel, word, etc directly in HEX or DEC, etc;

Connection available with 1.25mm-pitch PIN connector, or stamp-holes;

External LED&BUZZER(external driver circuit needed)

Technical Parameters:

Electrical Specification
Power supply	DC 3.3V ~ 5V
Power consumption	Max current：<50mA, Standby current: <1 mA
Operation frequency	125KHz/134.2KHz, or 13.56MHz
Baudrate	9600~115200 bit/s ( default 9600bps)
Interface	USB-HID driverless or HID Keyboard
Antenna	External, UFL/Molex connector, or stamp hole
Reading range	Up to 4 cm ~ 10 cm( depends on antenna and cards)

Mechanical Specifications
Dimension	22mmx53mmx5mm (LxWxH)
Weight	7g
Material	FR-4, Blue

Environmental Conditions
Operation temperature	-20°C～ +80°C
Storage temperature	-40°C～ +85°C
Humidity	Relative humidity 5%～95%

Supported Standard/ Tags
	EM4100,EM4200,TK4100
ISO11784/11785	HitagS 64, HitagS 256, HitagS 2048
ISO14443 A	Read/write: MIFARE® Classic 1K /4K, MIFARE Ultralight®/Ultralight® C, MIFARE DESFire®EV1, MIFARE® Smart MX, MIFARE® Plus S / X, MIFARE® Pro X, NTAG 21x Read UID only: Read UID only of all other ISO14443A RFID tags
ISO14443 B	SRI4K, SRIX4K, AT88RF020, 66CL160S, SR176
ISO15693	EM4135, EM4043, EM4x33, EM4x35, I-Code SLI / SLIX, M24LR16/64, TI Tag-it HF-I, SRF55Vxx (my-d vicinity)
ISO7816	PSAM T=1 (optional)

Model List	Supported standard
CHK171MK	EM, ISO11784/11785
CHK371MK	ISO1444 3A only
CHK372MK	ISO14443A/B, ISO15693
CHK373MK	ISO14443A/B, ISO15693, MIFARE DESFire®

SDK information

Demo software

WINDOWS, C# language

Files

Comprotocol document

API document

User Manual

Demo.exe

Note: Other functions and details to be continued and upgrade

Packaging & Shipping

- Delivery Lead Time5 working days for small order lot
- Supply Ability10000 sets per month
- Delivery PortSHENZHEN
- Shipping Career

Product Image

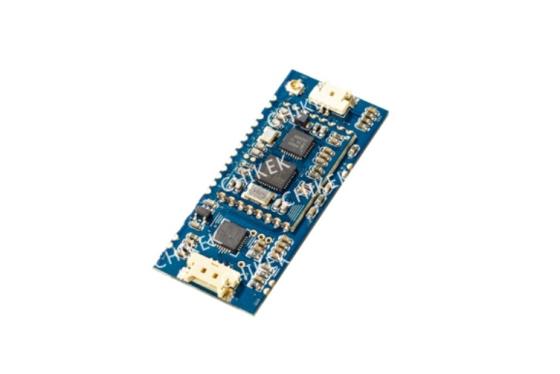

HID Keyboard RFID Reader Module, USB HID Driveless Reader, Smart RFID Reader
