Product Attributes

- Brand Name HIFLUX
- Model Number PNVXXVSXX-S, PNVXXVSXX-A
- Place of Origin Korea
- Supply Type OEM Service
- Condition New
- Material Stainless Steel
- Media Oil
- Power Manual
- Pressure High Pressure
- Standard or Nonstandard Standard
- Temperature of Media Normal Temperature
- Related Keywords needle valve, hiflux, high pressure, hip

Description by Manufacturer

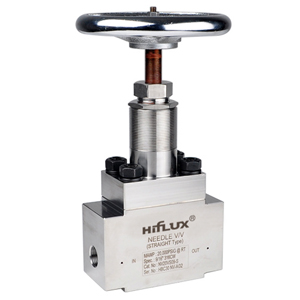

hiflux welding type needle valve

* [HIFLUX] Welding Type Needle Valve - Features

- Prevents galling due to the no-rotation stem.
- Packing designed for reliable sealing.
- Metal to metal seating type to lengthen the life of the seat.
- 'Vee' or 'Regulating' stem for flow control and shut-off.
- Welding type.
- Max working pressure : 3,000psi, 7,500psi.
- Pipe size : 15A, 25A.
- 2-pattern body type. (Straight type, Angle type).
- A valve using stainless steel 316 cold material for excellent corrosion resistant.

* [HIFLUX] Welding Type Needle Valve - Pressure & Tube size

Pressure(psi)	kg/f	bar	Tube Size
3000	210	206	15A, 25A
7500	527	517	15A

* As all sizes are for reference, they can be different from actual sizes.
* Please contact us for details or send to online inquiry, We will give you respond as soon as possible.

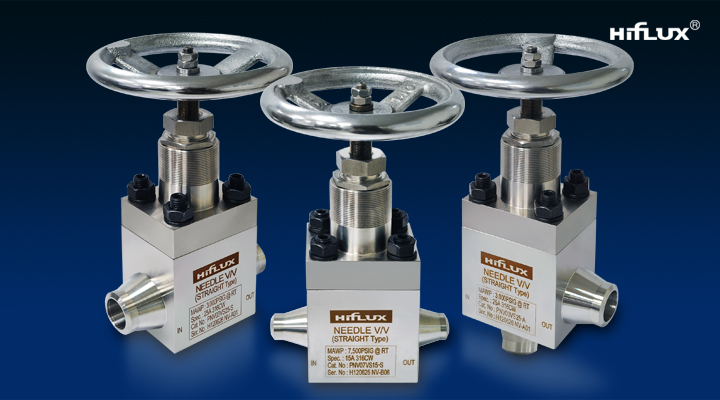

* [HIFLUX] Welding Type Needle Valve - Straight Type

1-Handle
2-Sliding Washer
3-Stem Traveller
4-Stem Seal Gland
5-Stem
6-Nut
7-Cover
8-Seat Holder
9-Body
10-Connections


3000psi	7500psi

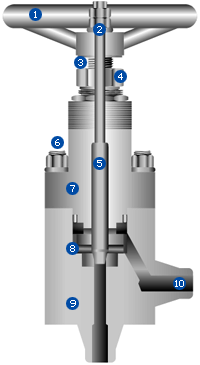

* [HIFLUX] Welding Type Needle Valve -Angle Type

1-Handle
2-Sliding Washer
3-Stem Traveller
4-Stem Seal Gland
5-Stem
6-Nut
7-Cover
8-Seat Holder
9-Body
10-Connections


3000psi	7500psi

* Other product

	High pressure needle valve		High pressure pipe needle valve
	High pressure check valve		High pressure ball valve
	High temperature valve		High pressure control valve
	Air operated valve		High pressure tube fitting
	High pressure tube		High pressure nipple
	Low pressure tube		High pressure gauge
	High pressure regulator		Back pressure regulator
	High pressure union adapter		General pressure regulator
	High pressure adapter		High pressure male adapter
	Tube support
	Safety Head		Rupture disc
	Tooling Set-Coning tool		Tooling Set-Reseating tool
	Tooling Set-Threading tool		Lok Type Fitting
	Lok Type Valve

* Ordering option

- As our products are divided into pressures of 5,500~150,000psi, body type and port size, you can use them according to the specifications which you want to use.
- Our products generally are produced with STS materials, but they can be manufactured with other materials on demand so that various fluids and gases can be used.
- Please inquire with us about special materials apart from the above-mentioned materials, such as STS316, HC-276, INC600, INC700, Ti and Ni.
